The purpose of this post is to hopefully help others who are in the process of building a “hen house” because it’s a lot to take on and so many things to consider. I researched more than I care to admit about every little thing our chickens would need to be happy. Some important aspects that shaped my overall design is that I wanted the coop to sit on the ground (for the ‘deep litter’ method), I didn’t want them “cooped up” in a small area and I wanted to create a space that was as natural as I could provide (not perfectly sterile, give them access to dig, fly, run, forage for their own food, etc). I also created the coop a little bigger than necessary for our 7 birds to accommodate a few more if we wanted. Upon my initial research I was a bit envious of the elaborate coops I was seeing but shocked at what people were spending. I finally looked up what the natural habitat of a chicken is and was happy to see that they’re forest birds! That was perfect because I happen to have a forest in my backyard! That steered me away from doing a lot of things other people are doing with their chickens.

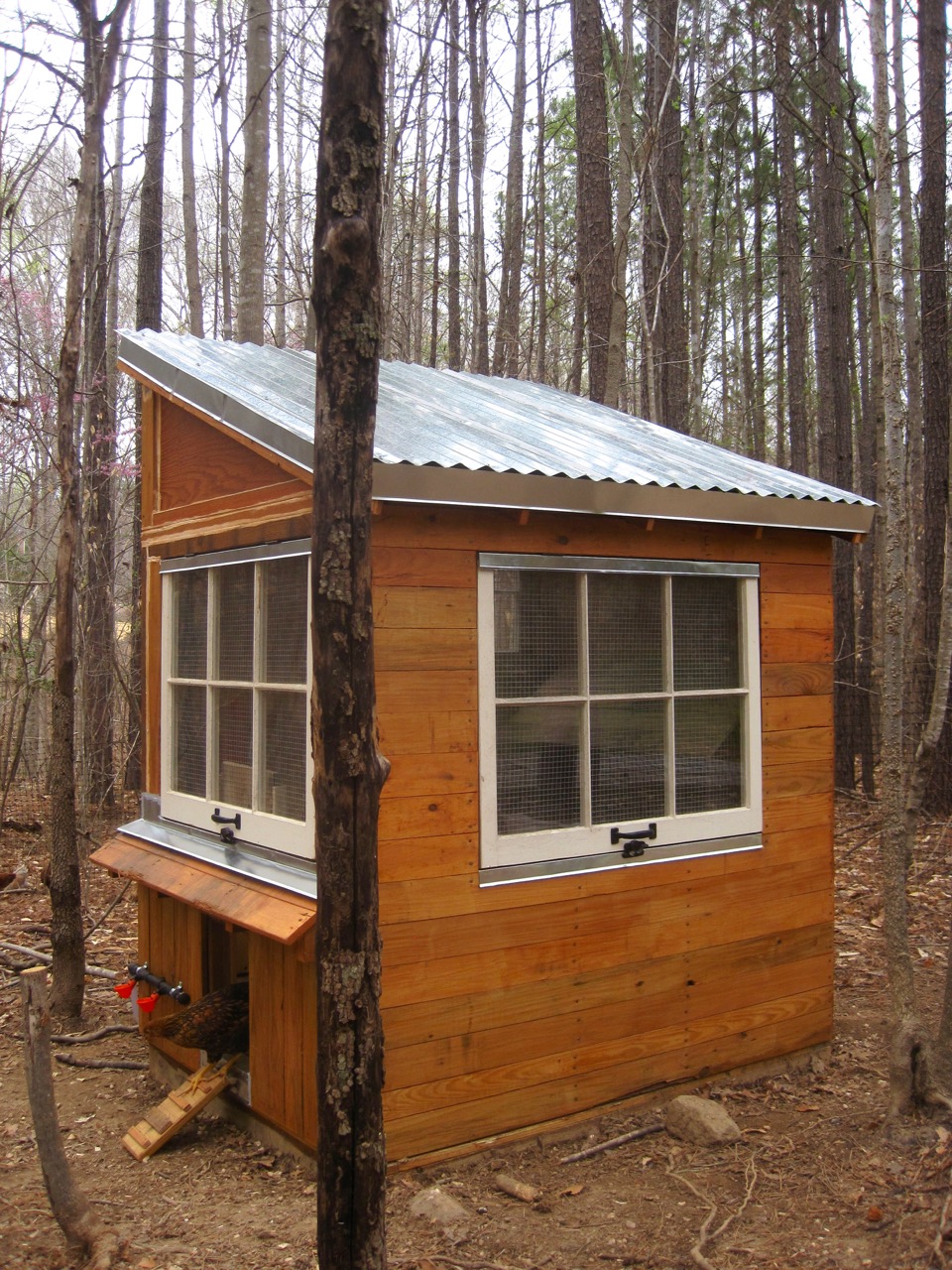

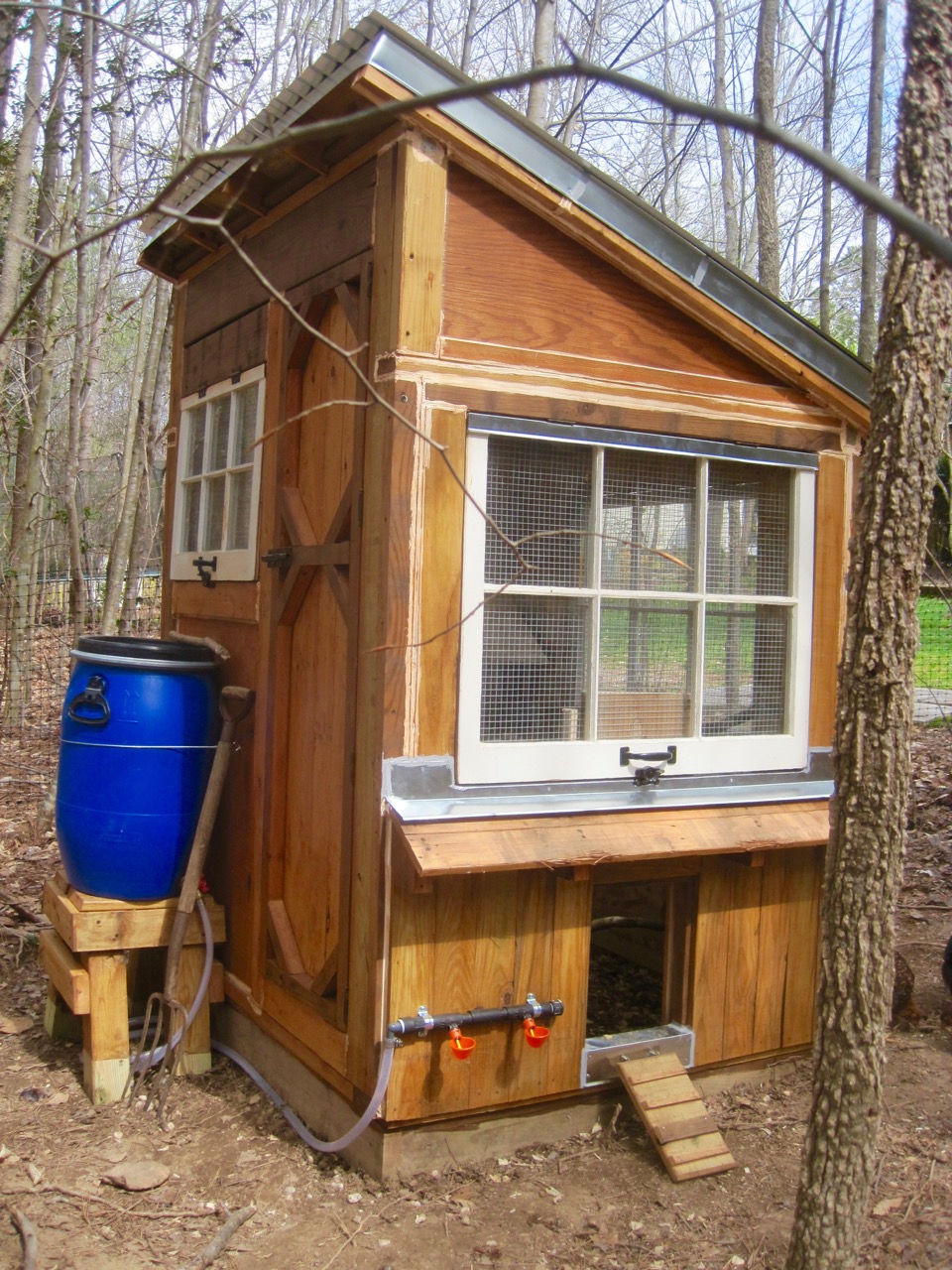

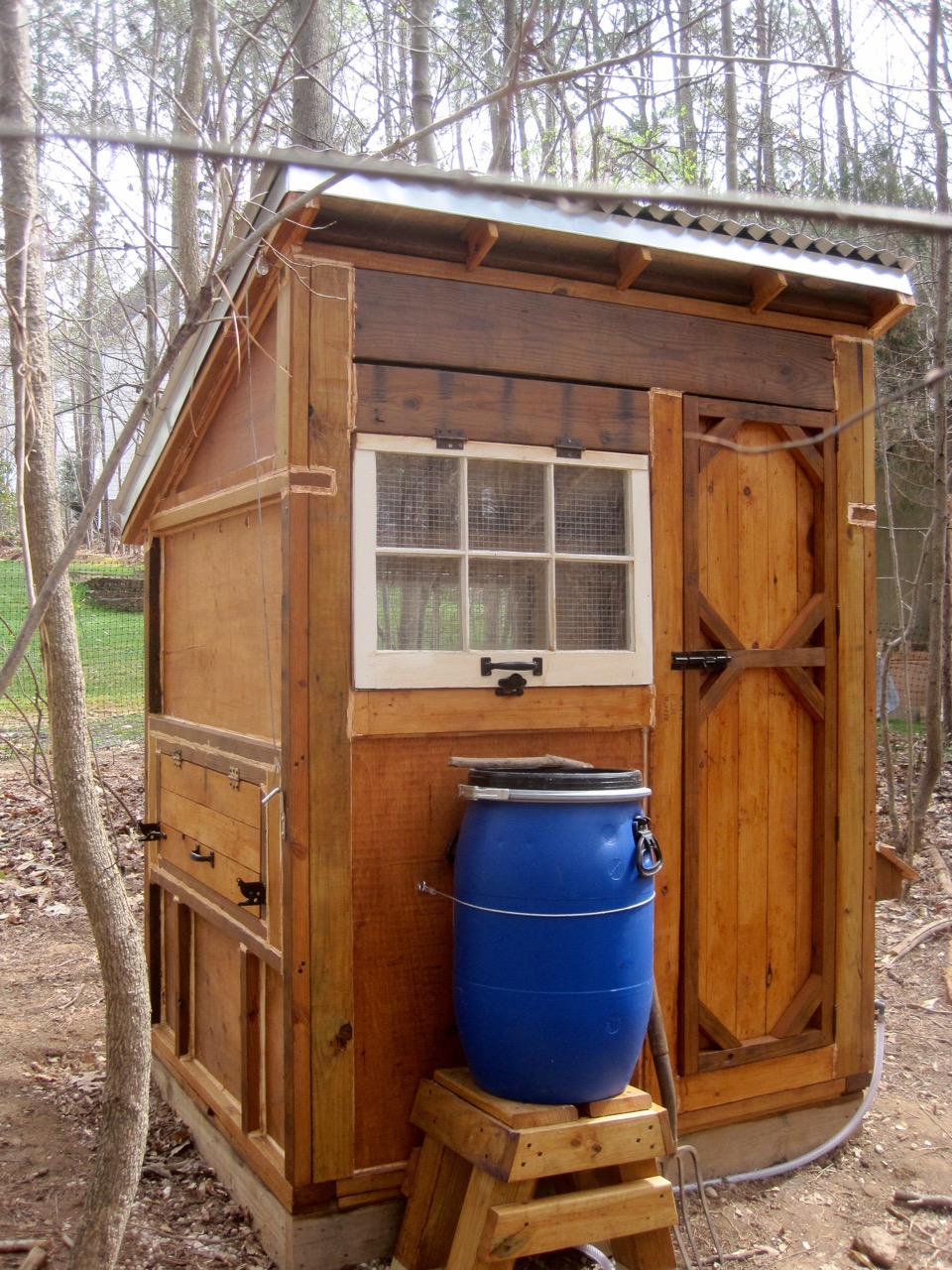

Here’s what our finished coop looks like:
The water barrel holds enough water to last over a month. The watering cups are my favorite! See how I made it here.
The shiny metal is too modern looking to me – I plan on aging it in the future (when I recover).

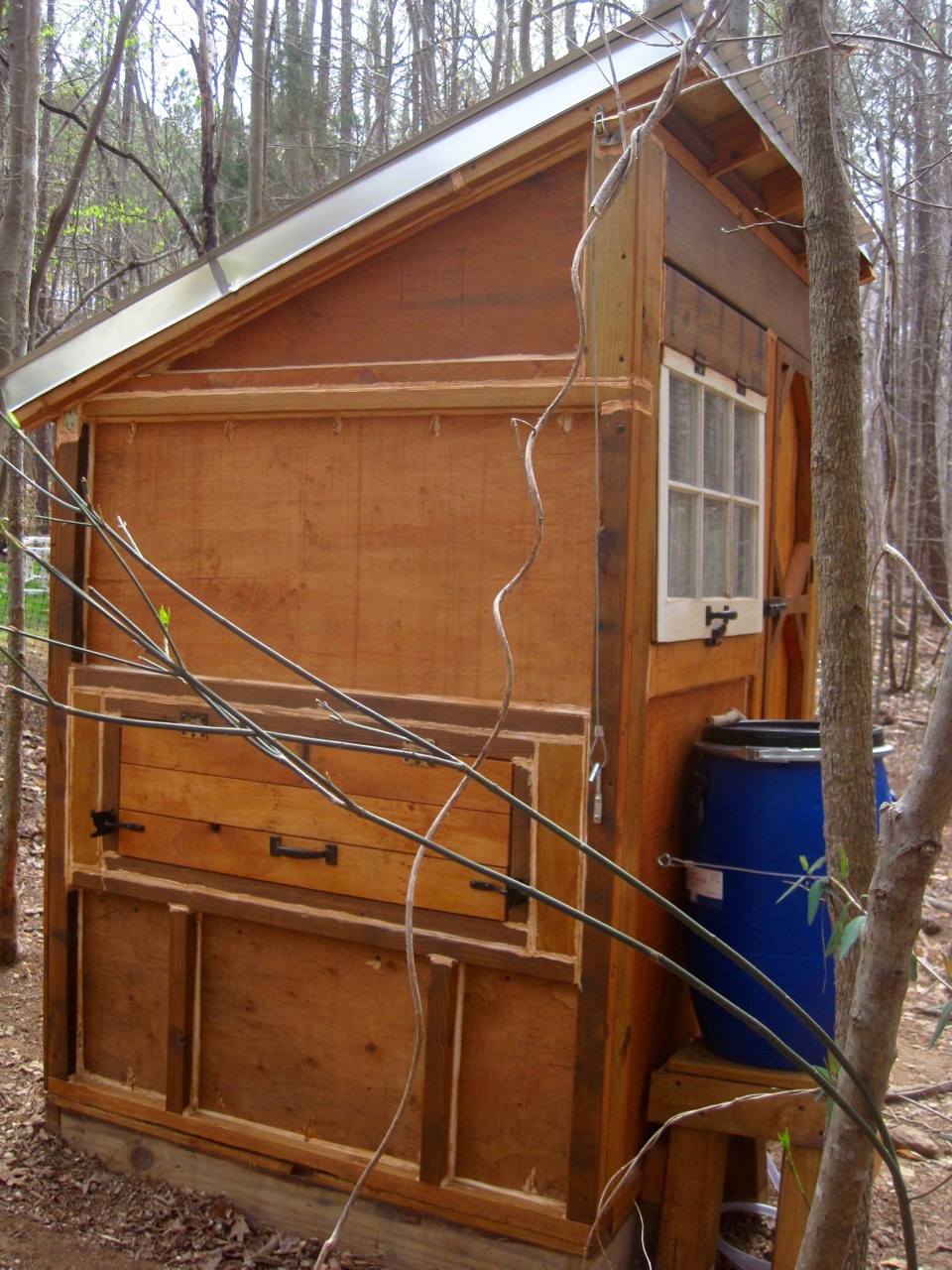

I didn’t want my egg boxes to stick out of the structure for different reasons and I added 2 latches on each side to prevent raccoons finding their way inside.
The egg door is easy enough for my 4-year-old to open and with the weight of the door it latches once it’s down so I don’t need to worry about them forgetting and predators getting in.

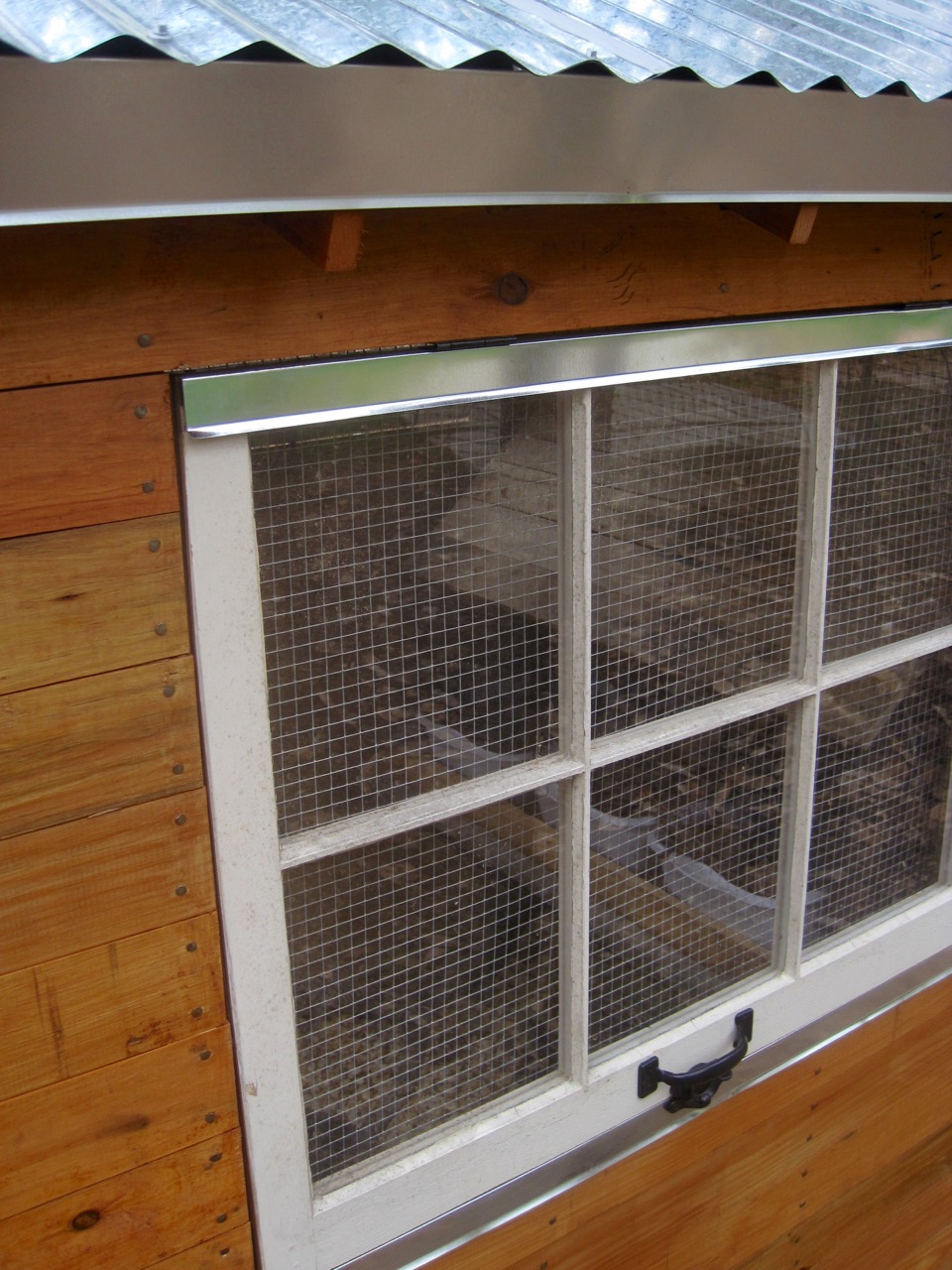

I really wanted windows to give the chickens as much natural light as possible and because it adds character.

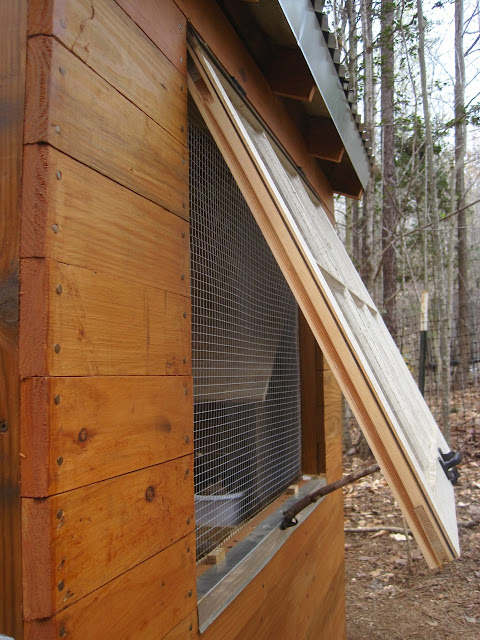

I also knew the windows would be an easy way to give them ventilation by propping them open.
There’s also natural ventilation with the gaps I left around the windows and I left up to 1″ gaps between the walls and the roof rafters.

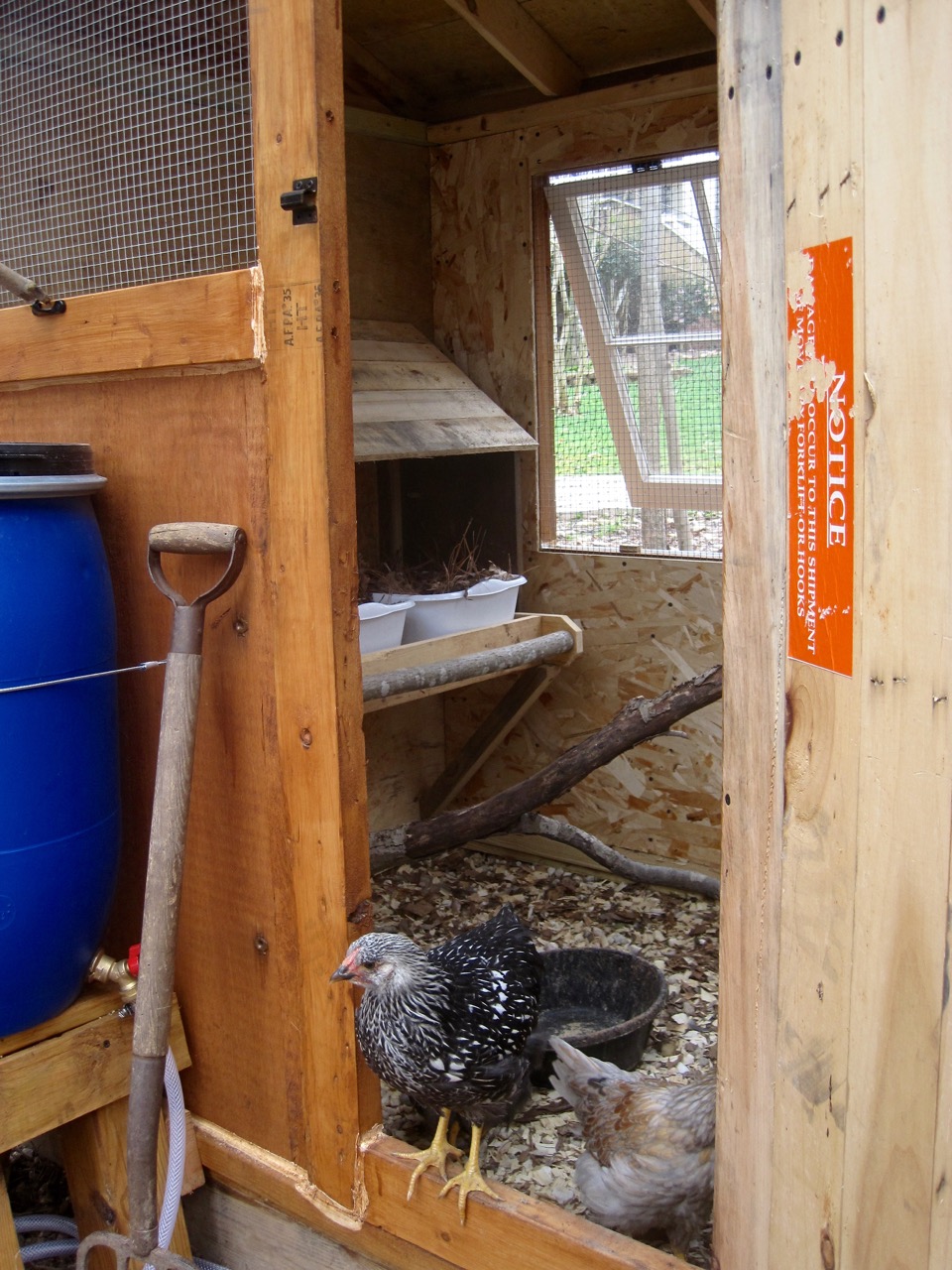

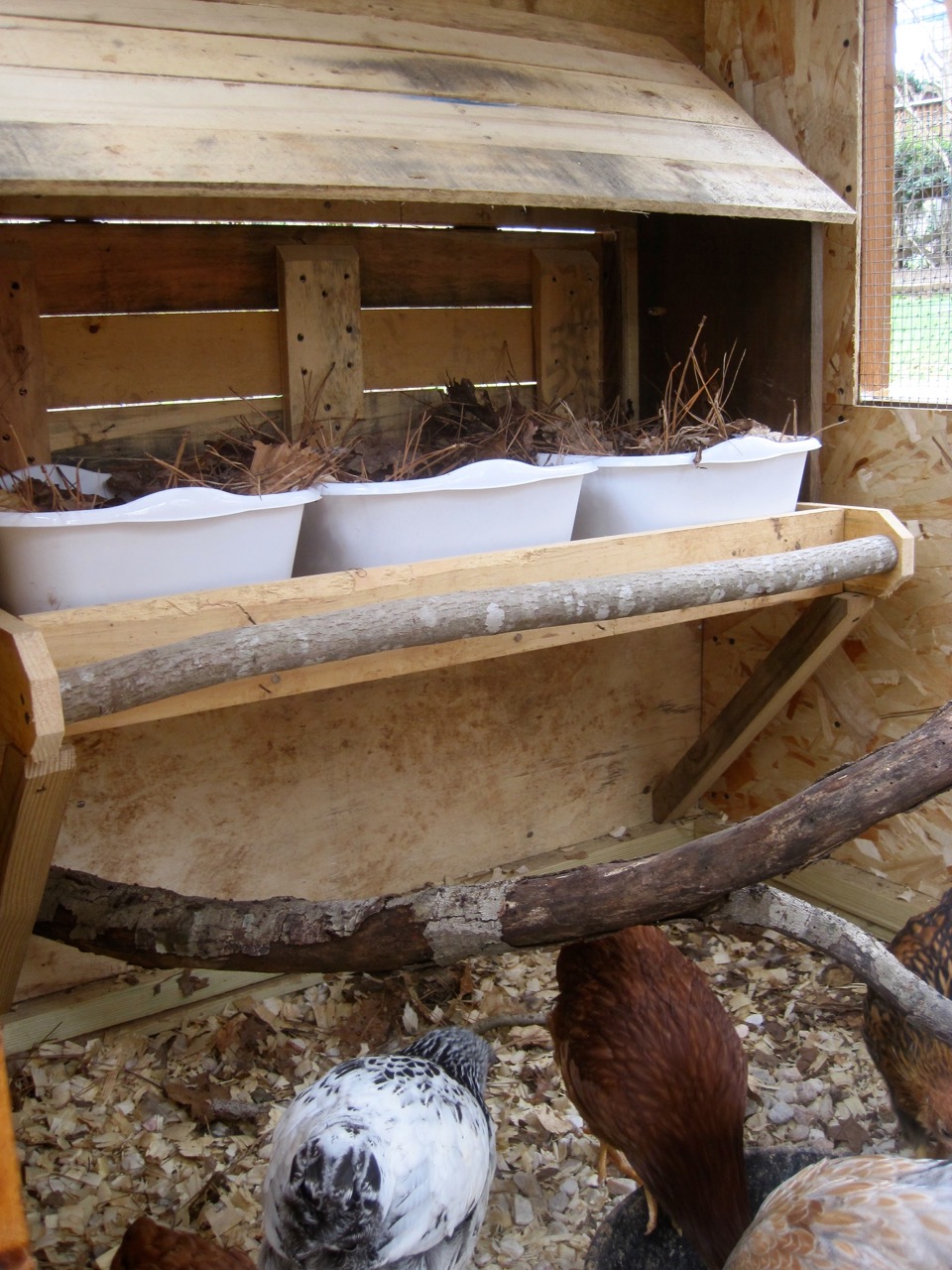

I took advantage of all the branches we have and made a perch for the boxes and a roost.

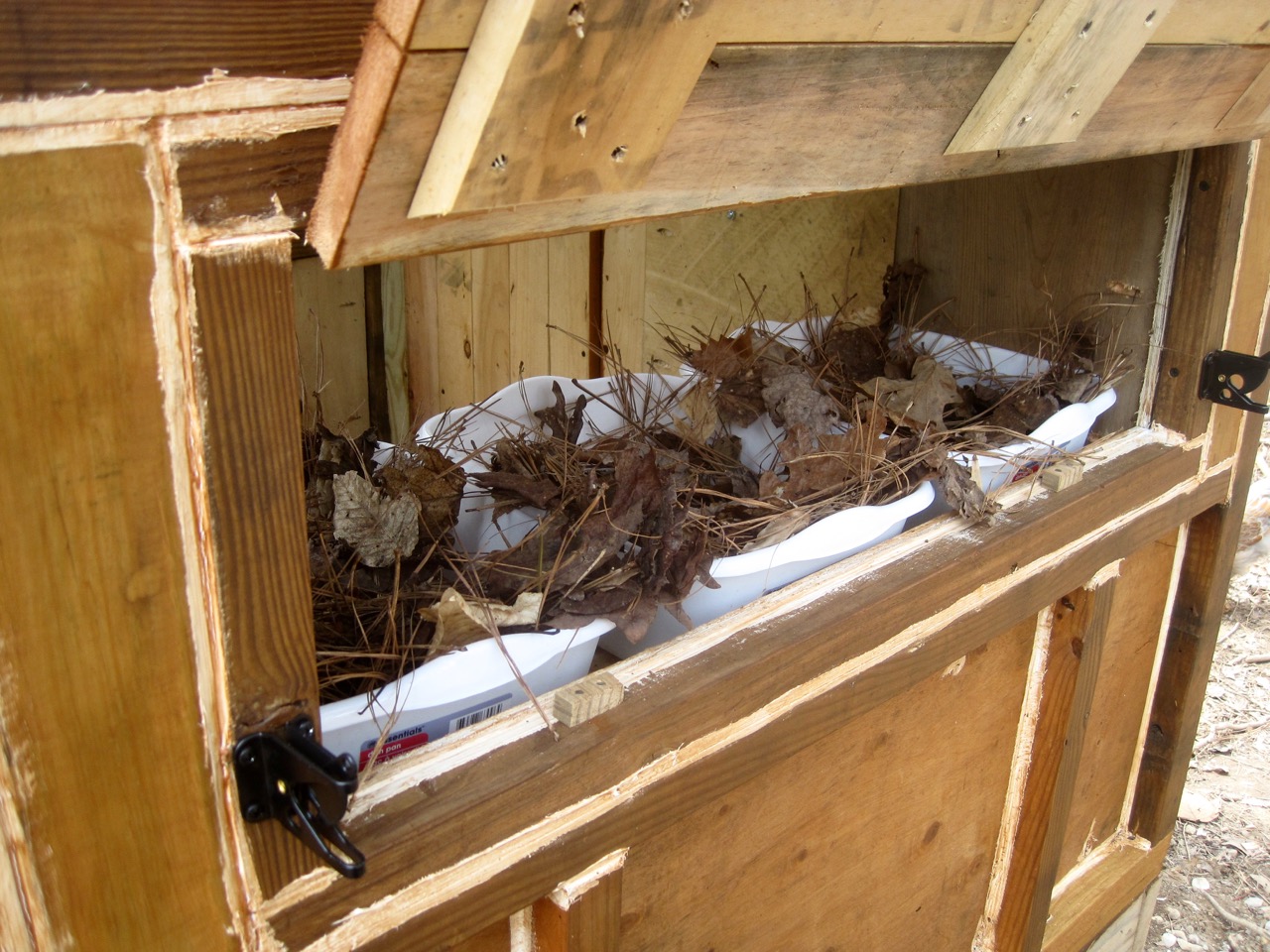

We have endless amounts of leaves and pine needles to fill the nesting boxes.

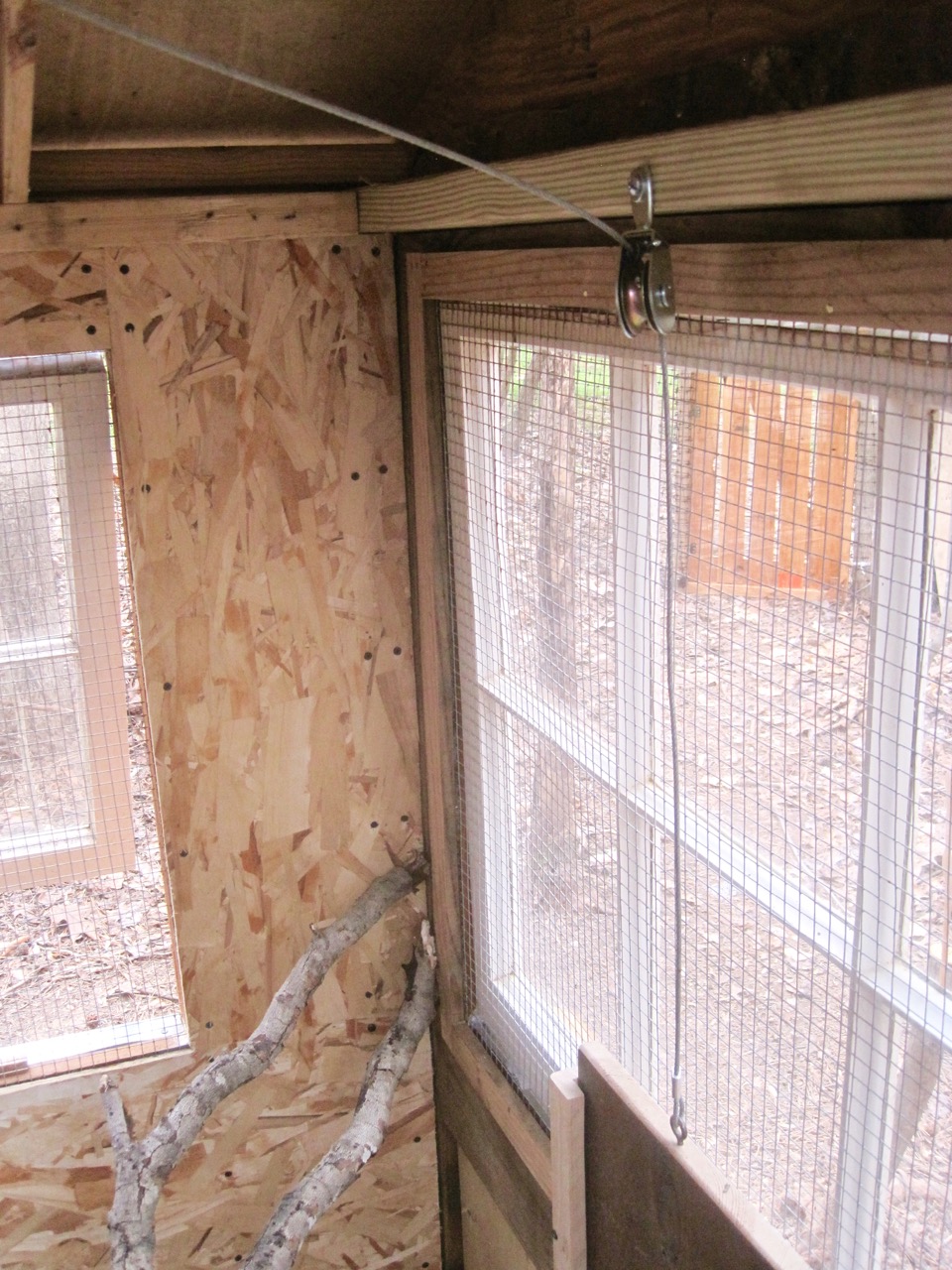

The hen door opens easily from outside with the assistance of a few pulleys.

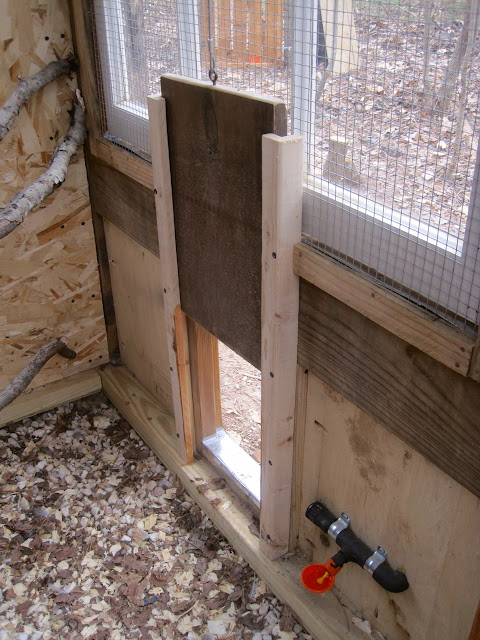

For the guillotine door I simply cut a channel in 2×2’s for the door to slide up/down. I have a watering cup on the inside (hooked up to the 2 from the outside).

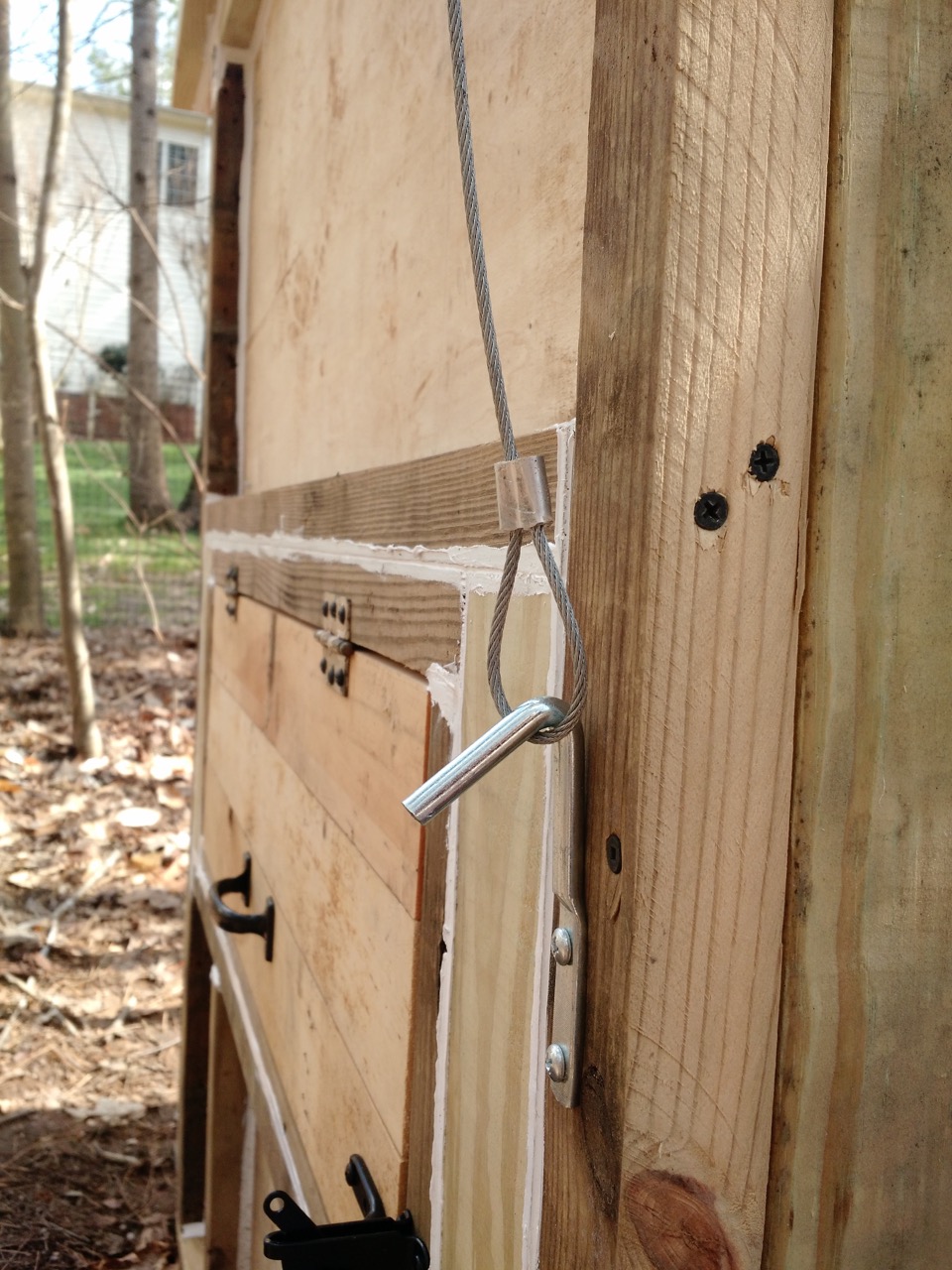

The hen door is secured up on a hook and my boys can operate it easily.
Our little chicks are about 1 week old here. We kept them in the living room for the first few weeks.
I would take them outside on warm days and they’d just want to stay on my lap!
Once they got too stinky for the house we moved them into the garage.
One of the first big purchases we made was a new 300-foot long deer fence off Craigslist. It’s 4-feet high and we’ll be able to move it around as we prefer pretty easily to create different “paddocks”. I used it to make them a small area to play in while their coop was being built. They were happy to spread their wings!
OK – Here’s the Coop Build!

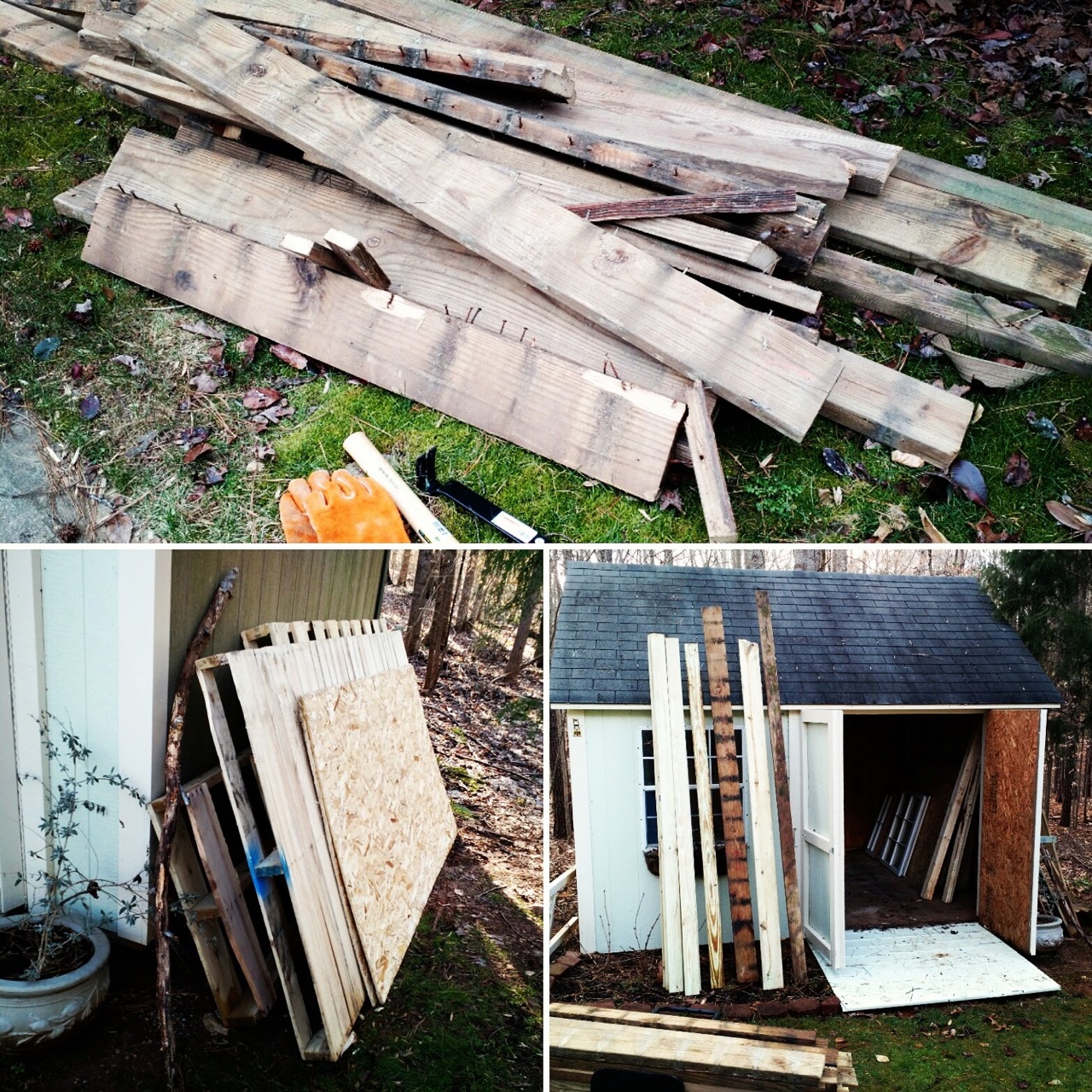

I knew I didn’t want to spend a bunch of money so I found as many free materials as I could find on Craigslist and was able to round up pallets, plywood and decking material. I also bought 4 windows for $10 each.

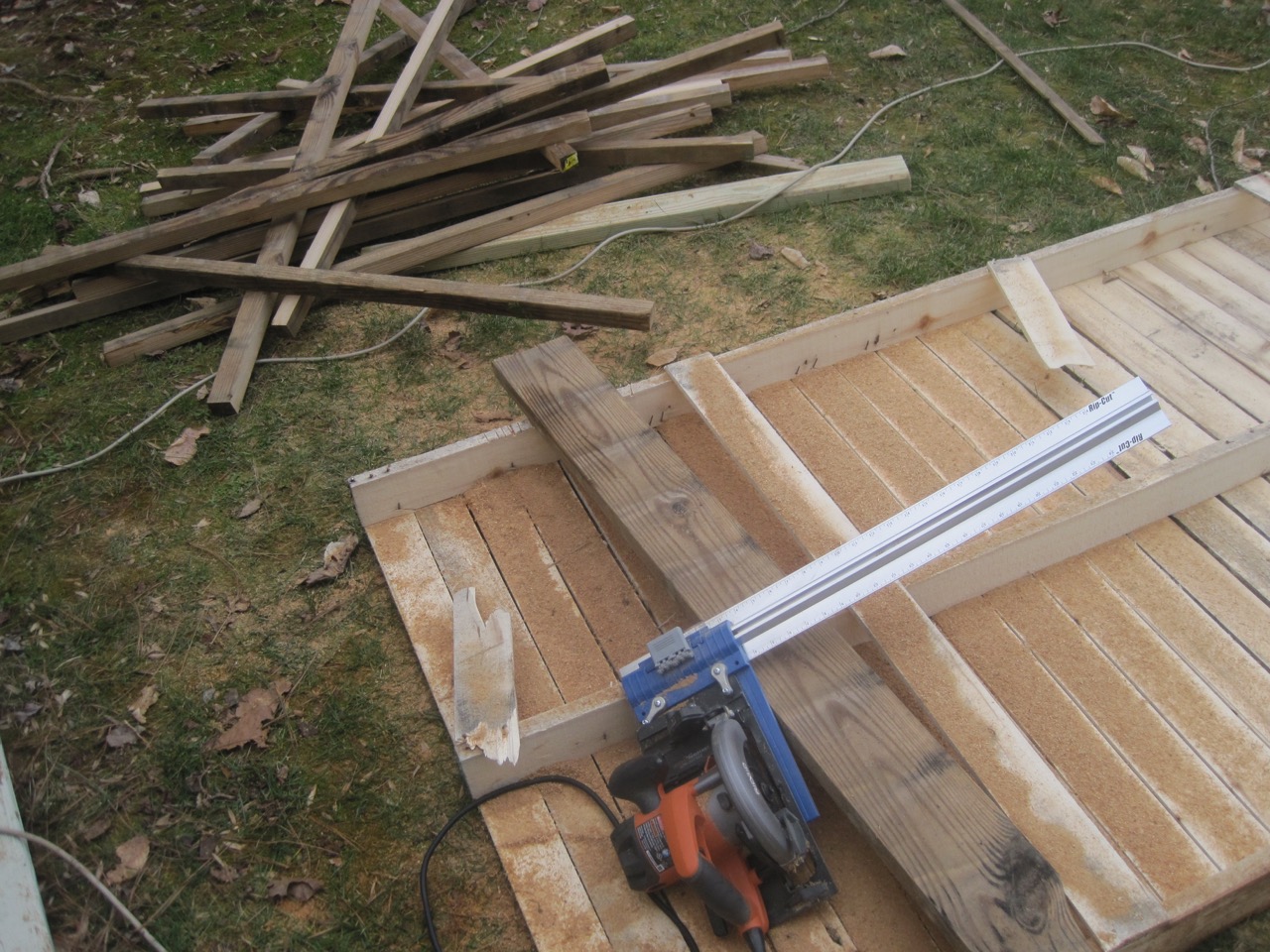

Pulling out the nails of the decking material was a LOT of work but it was worth the effort! I used my Kreg rip cutting jig for my saw to cut 2″ sections for framing my walls. I knew 2×4’s for the whole structure was a bit overkill and didn’t want to spend any extra money.

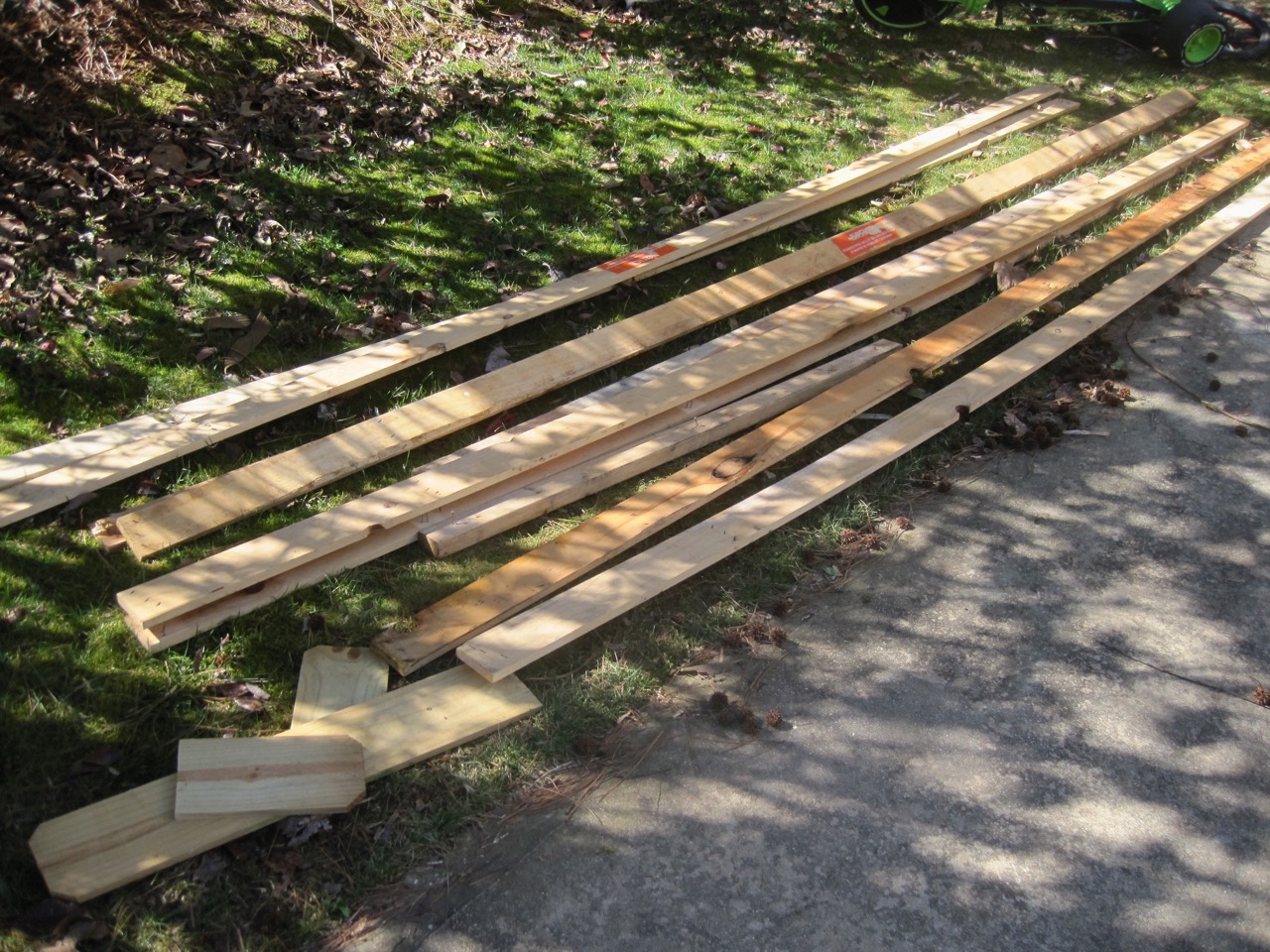

I found someone getting rid of about 12 1×4’s that were 12-feet long! These were a pain in the neck because they had a lot of long staples that I had to pull out – again, worth it!

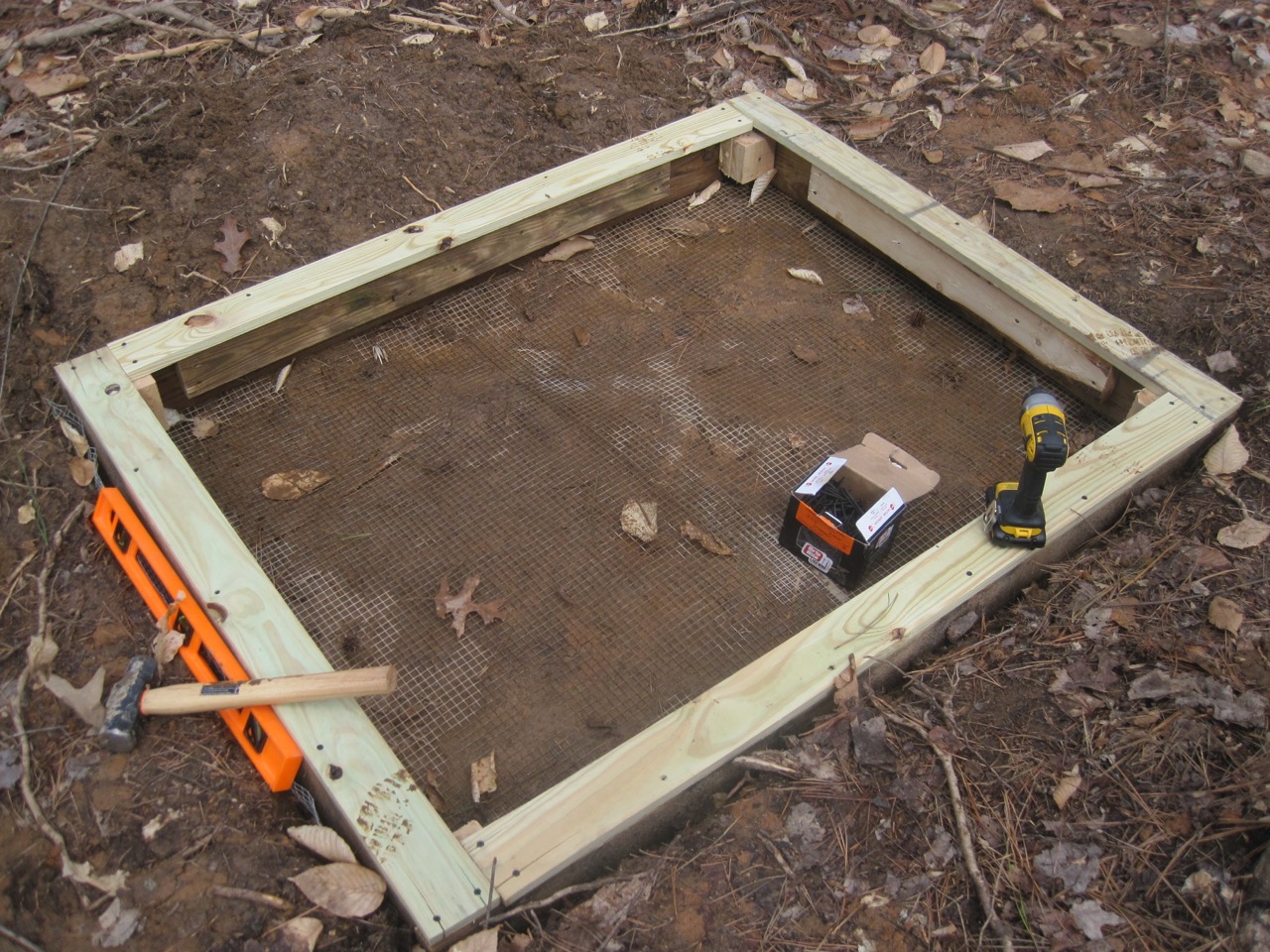

My coop has a 4×5′ footprint so I dug a hole for my foundation which I made out of 2×6’s and topped off with 1×4’s (you’ll later see I pulled up the foundation because of water problems).

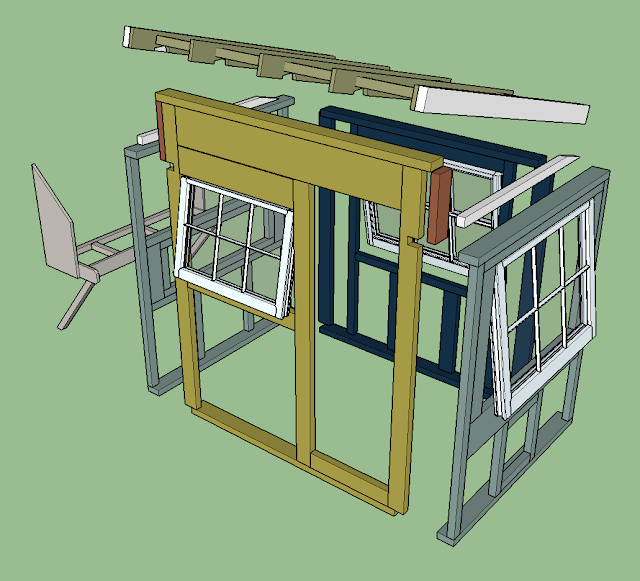

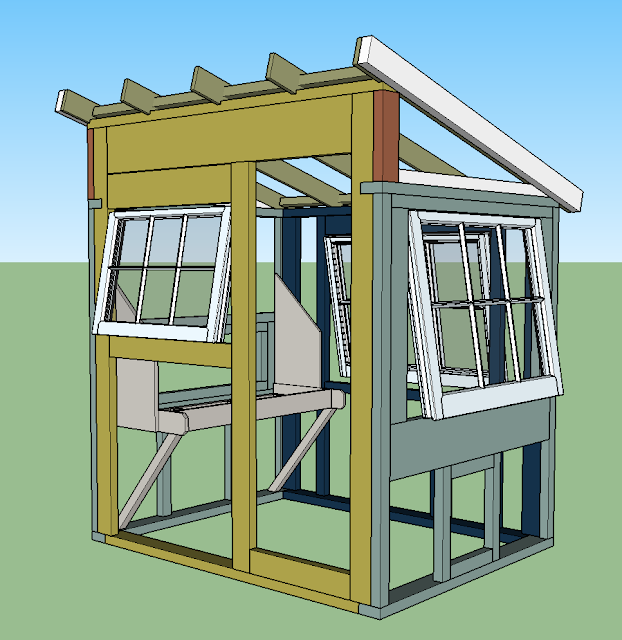

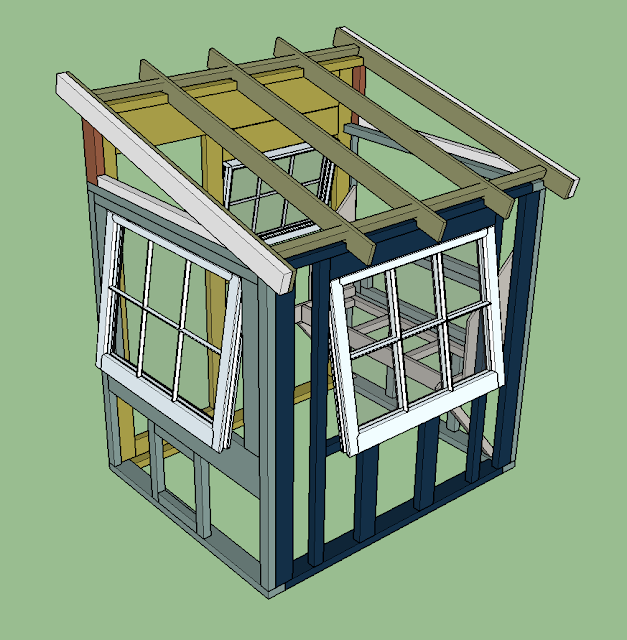

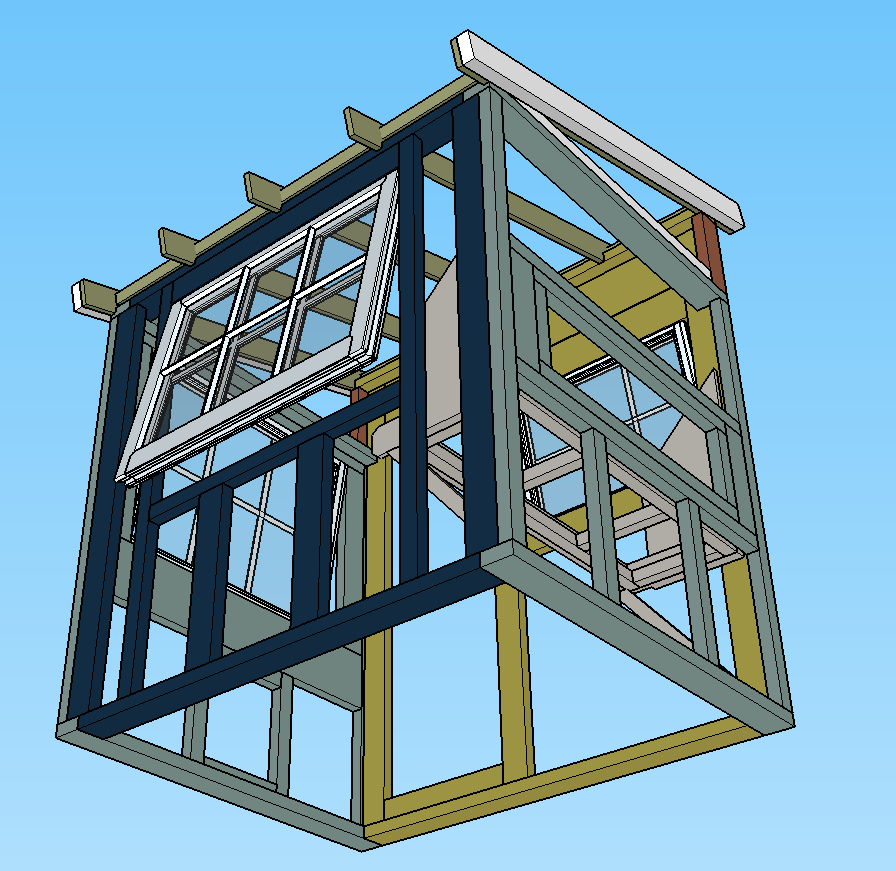

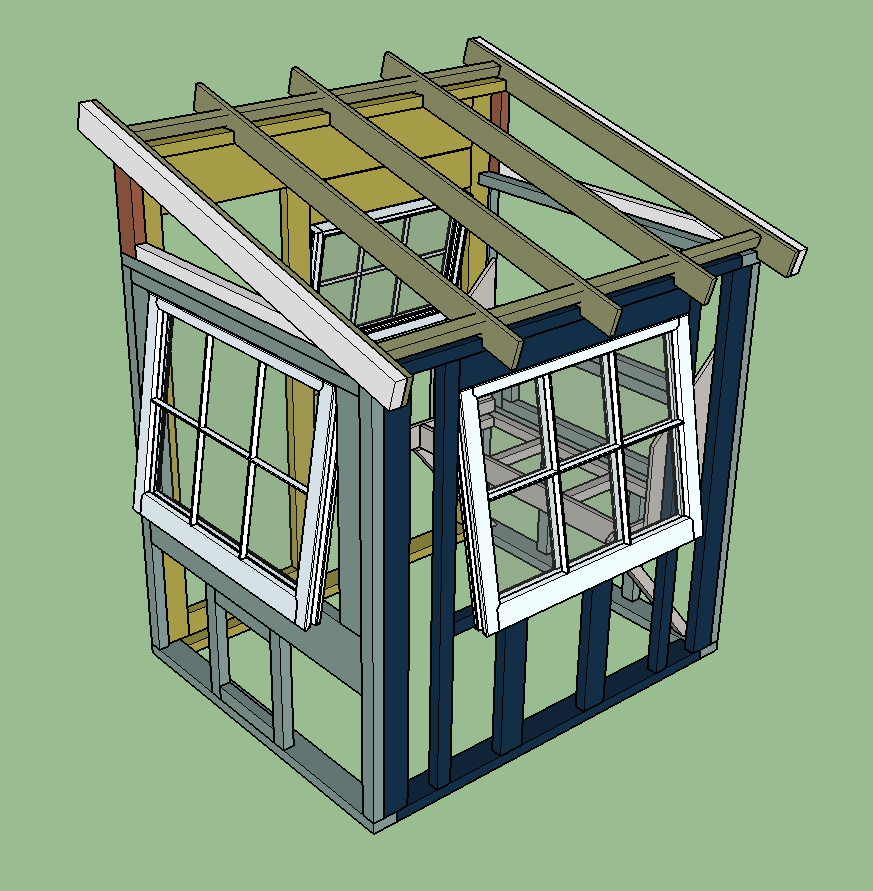

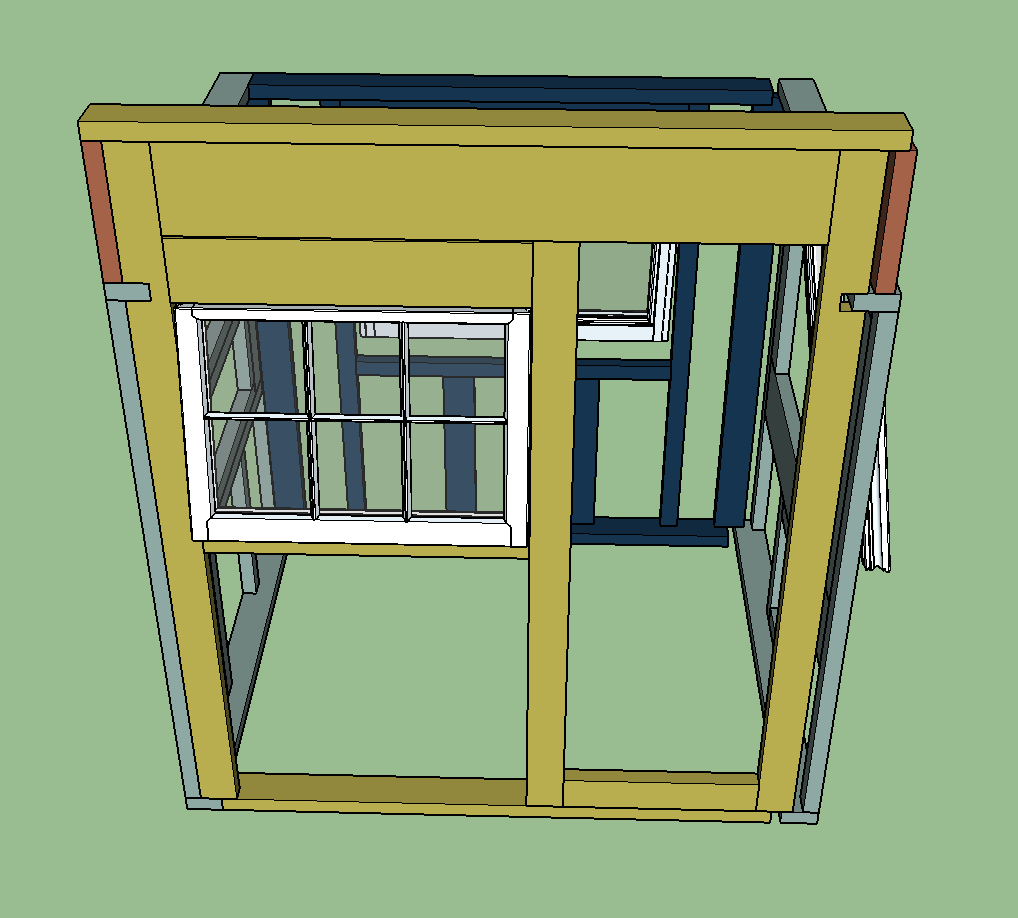

I designed and built my 4 walls, roof and roosting boxes separately so they would fit together like a puzzle and I could do everything by myself. I created these images in SketchUp after I had everything built to better show how I did it.

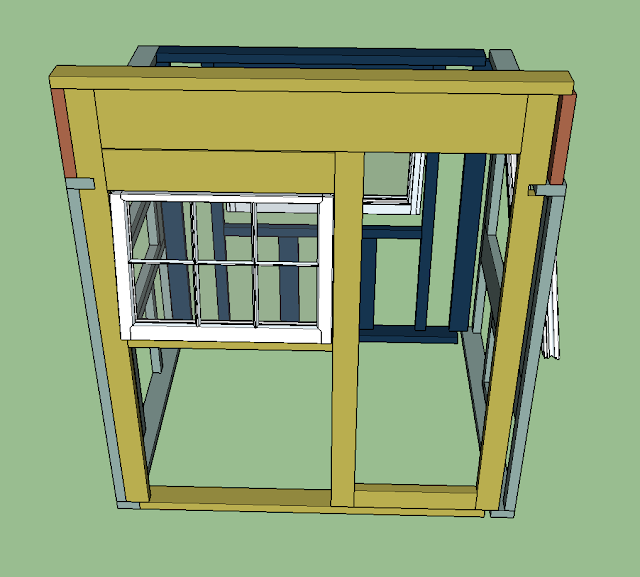

Each section is it’s own color. Notice how the walls overlap in the corners making it easy to put screws from the short-sided walls into the longer walls in the corner. The main structure is built out of 2×4’s I purchased, the 2″ sections I ripped from the decking as well as the 1×4’s with staples.
The 3 shorter walls are about 4’9″ tall and the tallest wall with the door is about 5’9″.

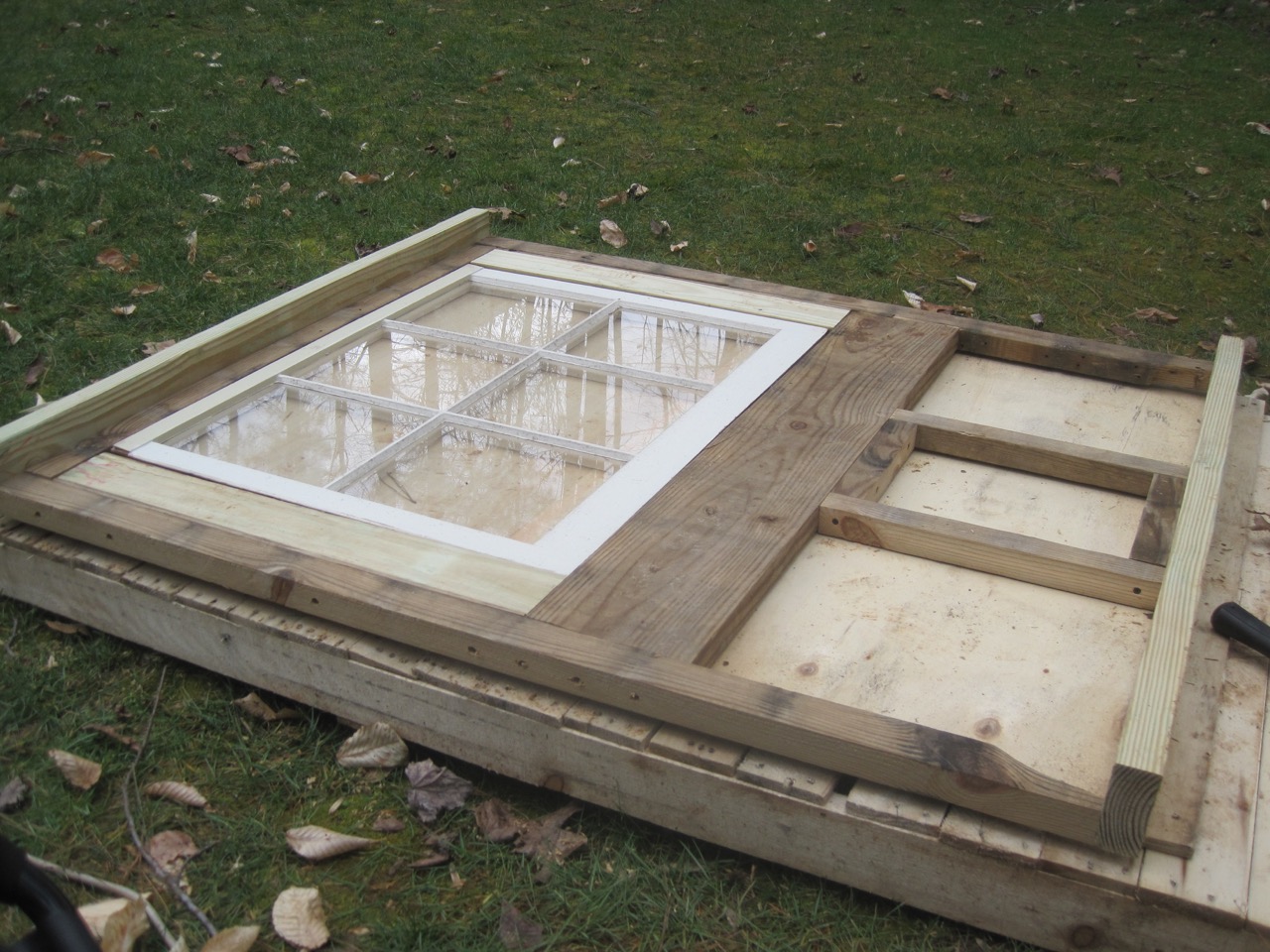

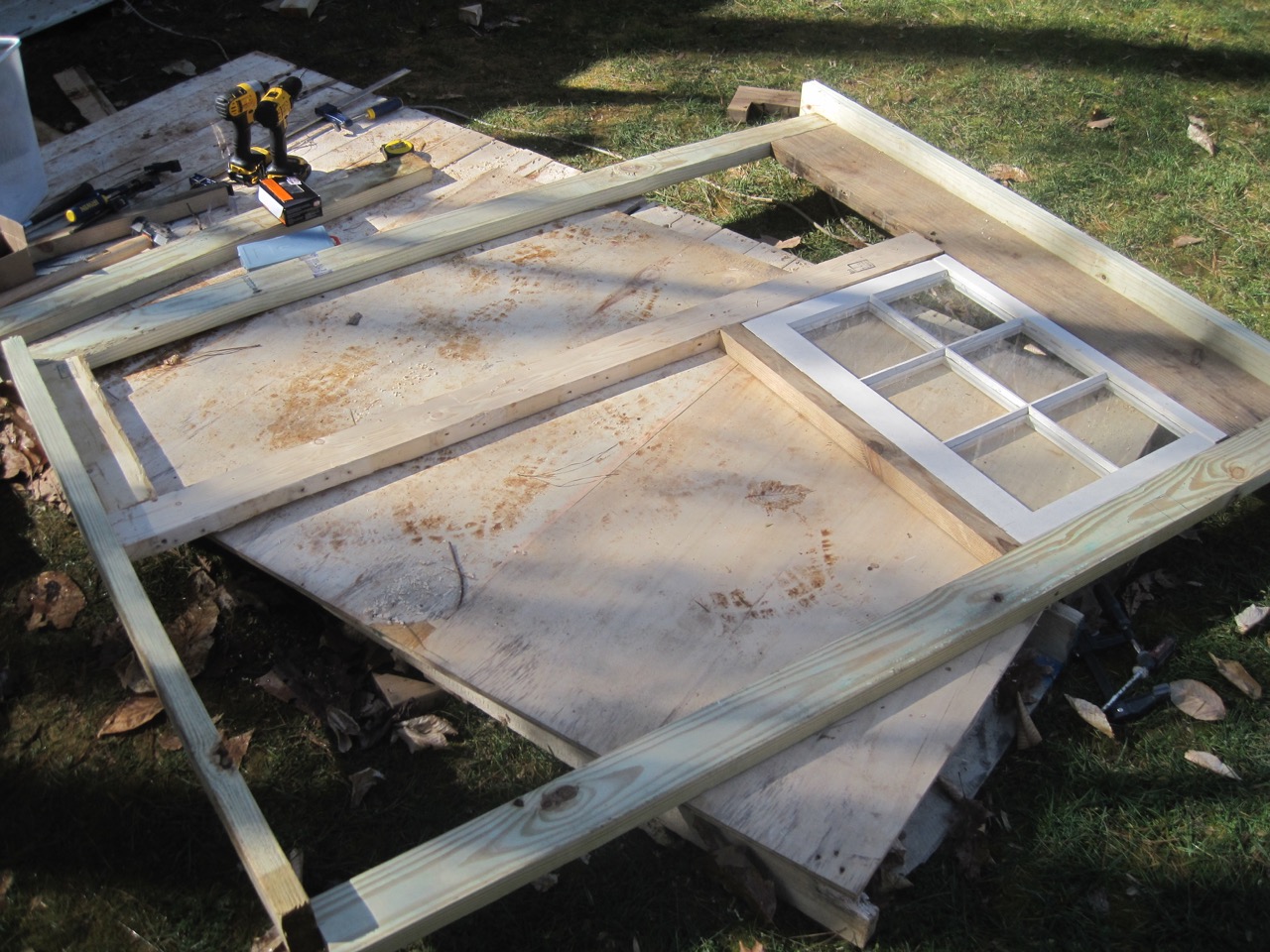

My first wall! It’s 4′-wide exactly and I basically set the window inside and added all the inside framing around it.
Second wall! I did the same thing as the first wall; designing and building as I go around the window. After I got it together I decided I wanted the window lower and added another piece.

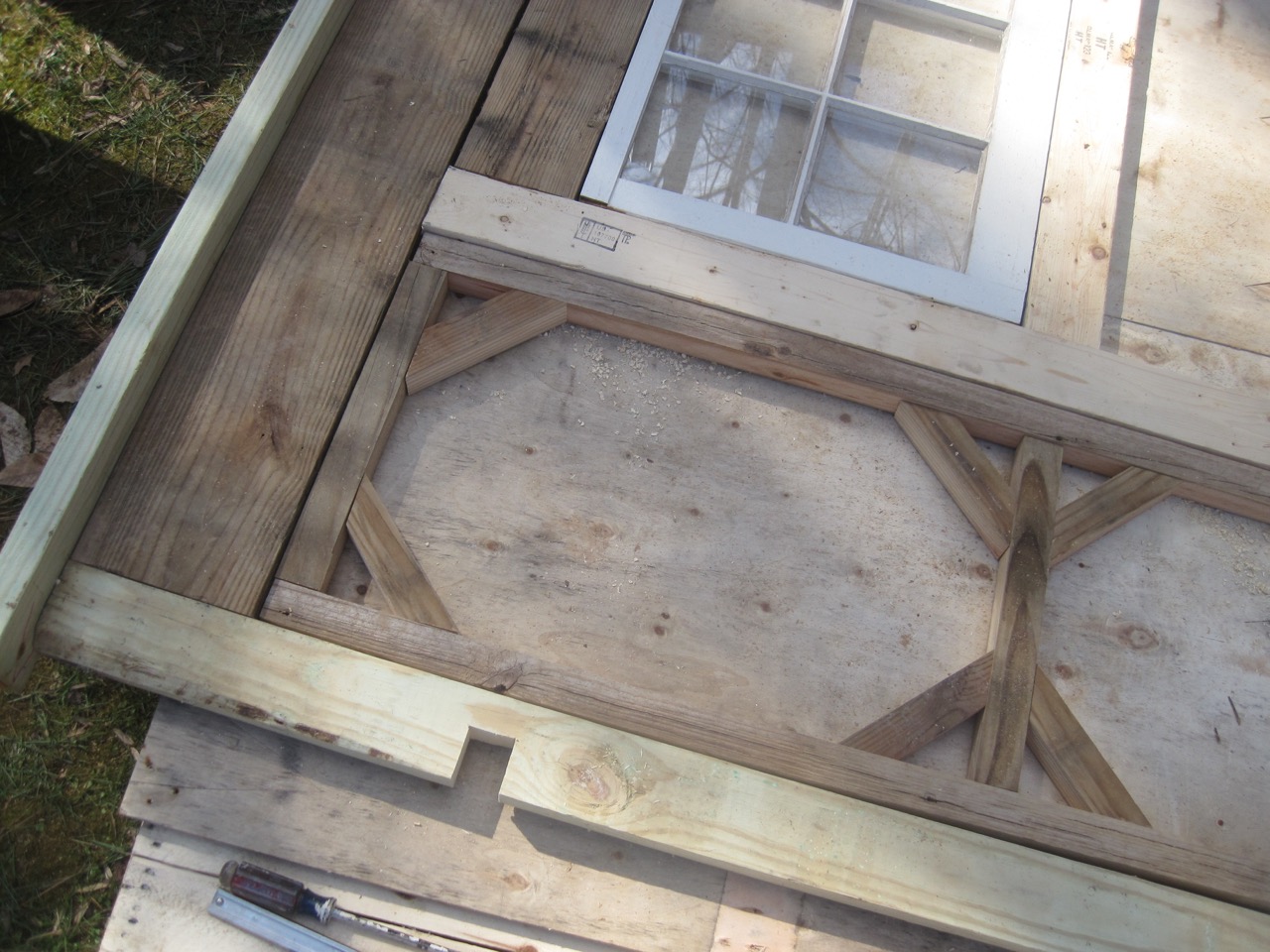

Making the frame of the door was easier with it laying down. Notice the notches on the side to insert the shorter wall.

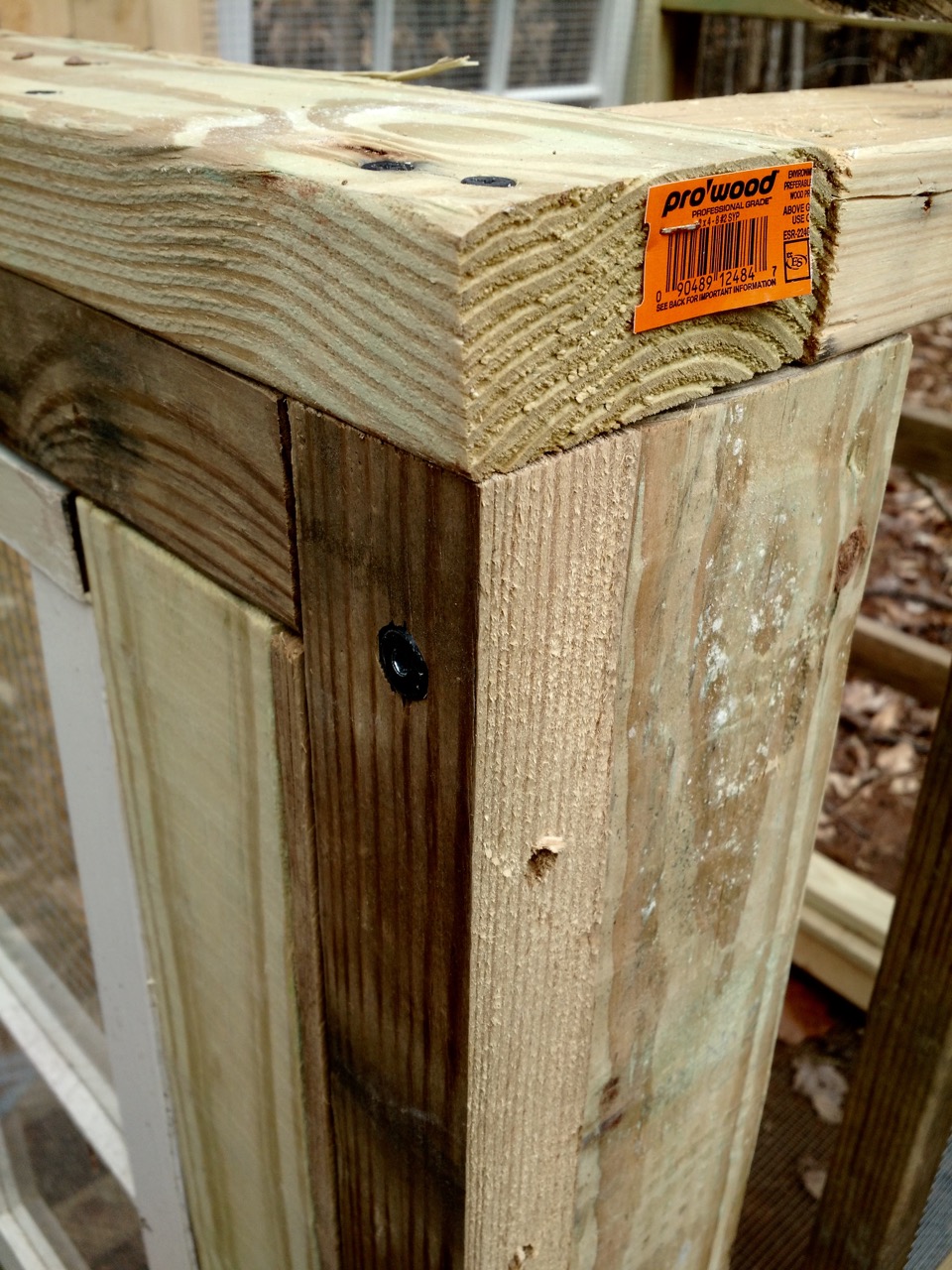

Here’s how the corner of the walls looked once I got them screwed together. I used long lag bolts.

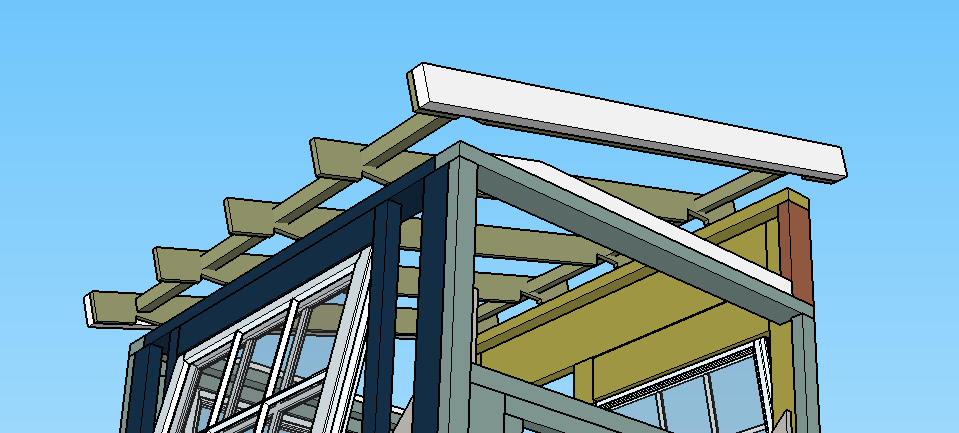

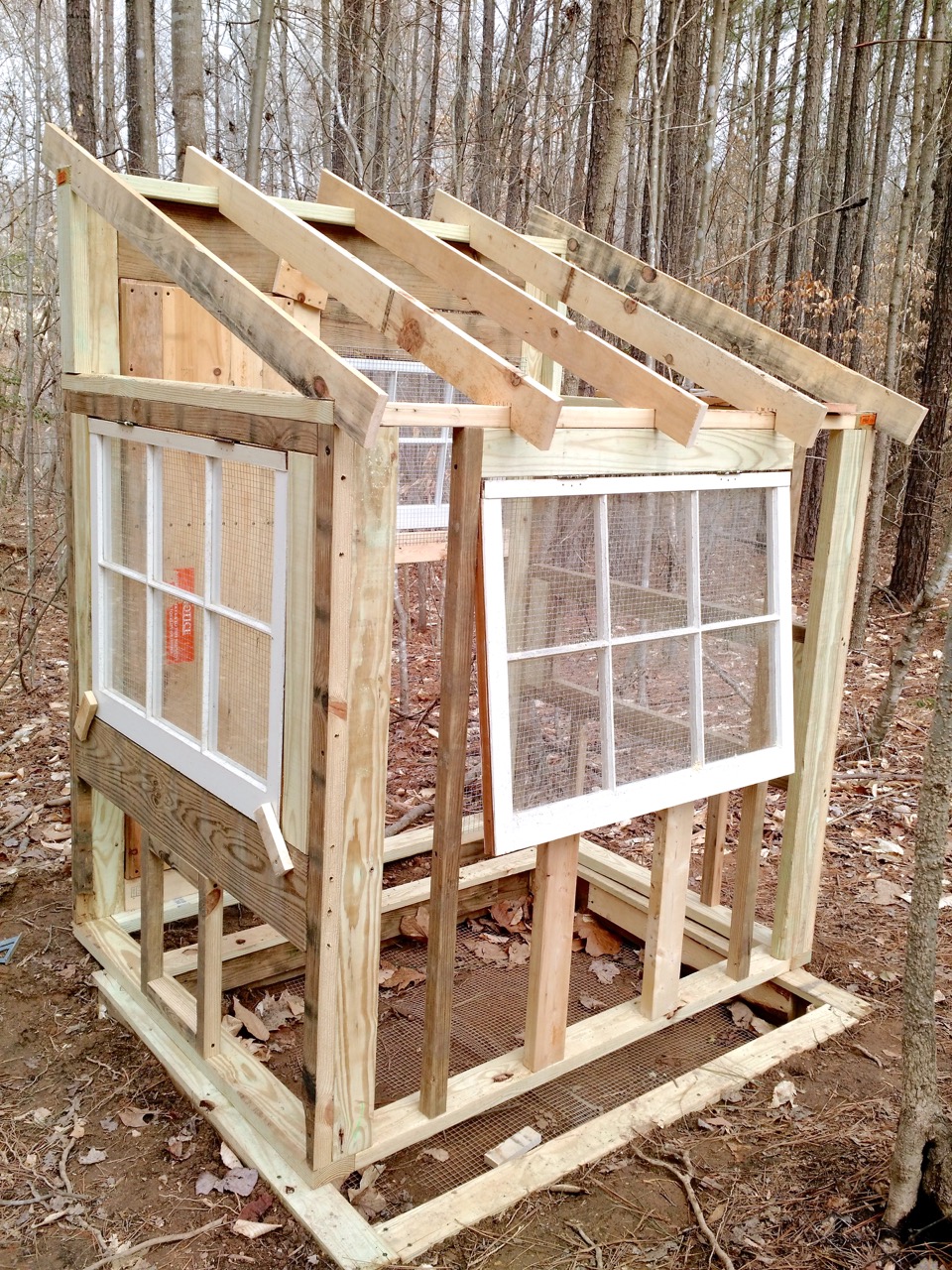

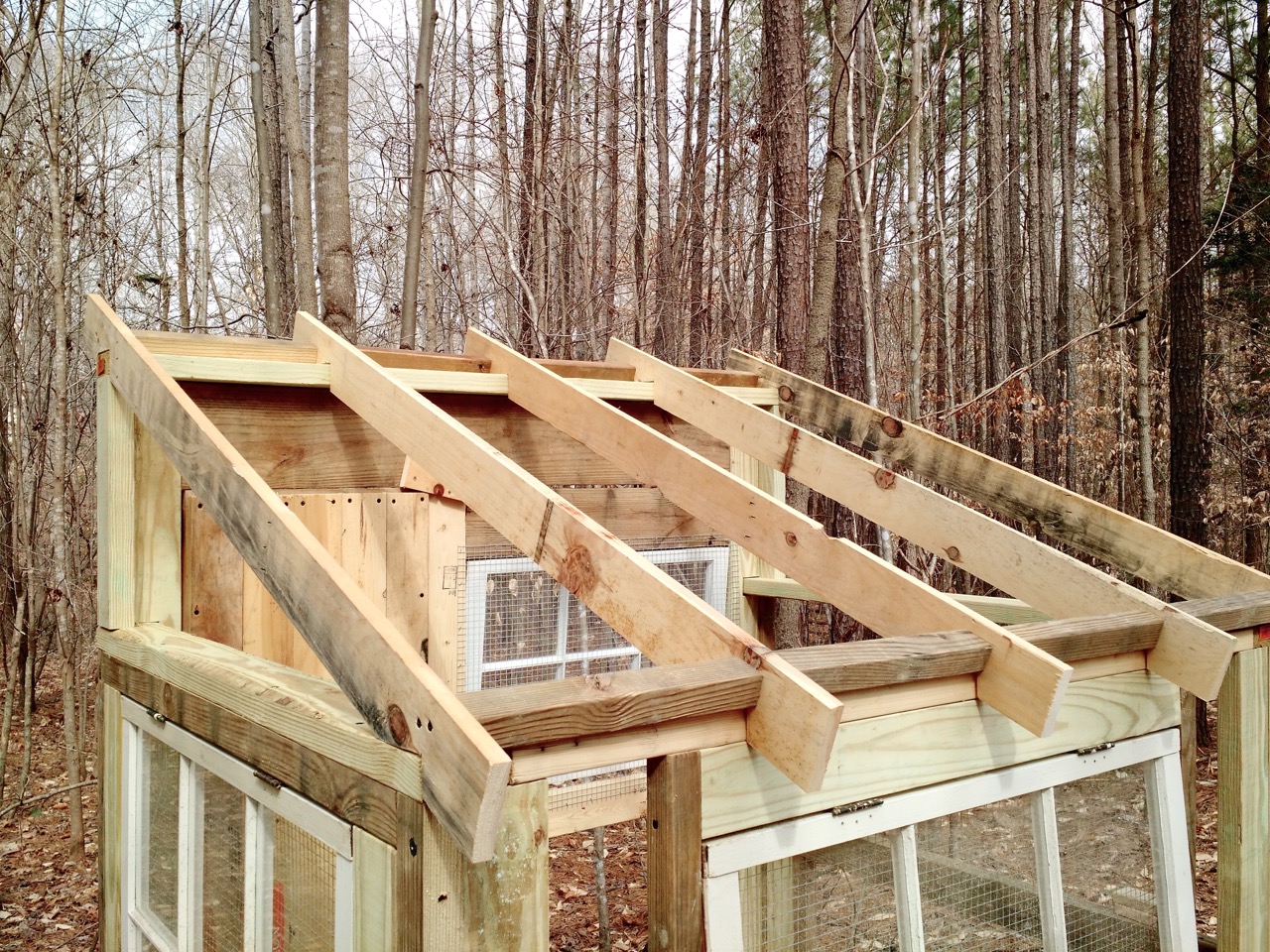

The roof is made of 1×4’s that I cut to 5′ lengths and figured out where I needed to cut notches by holding it against my walls. I spaced them out with 2×2’s and later added a 2×4 on each end so the roof would have more dimension and hang over. The orange-colored 2×4 fills in the gap between the tall and shorter walls.
I had to push the structure off the foundation to attach the back window (there was a tree in the way).

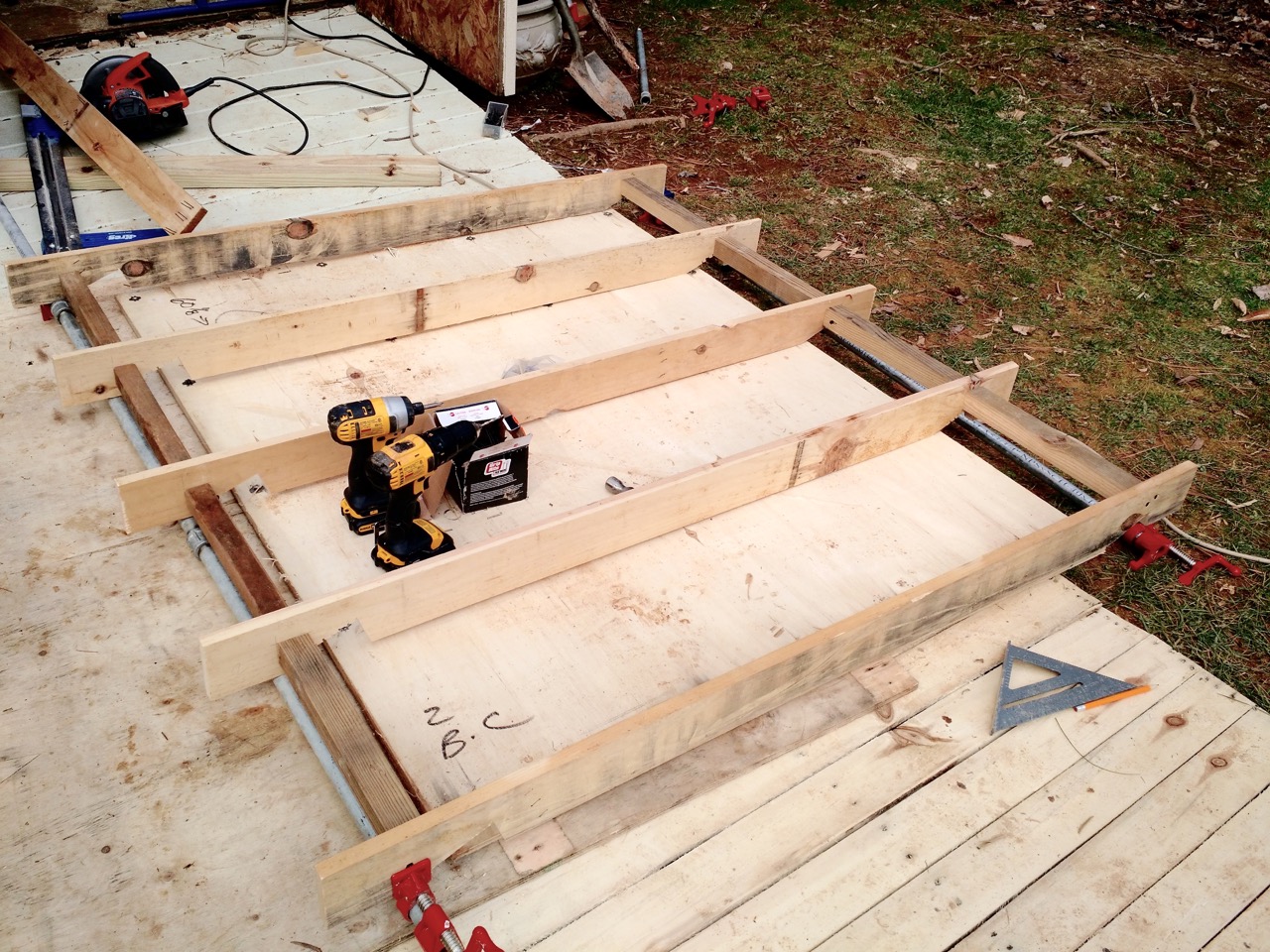

I built the roof on the ground so I could clamp it together easier.
It was very easy to carry the roof over and slide it right into place.

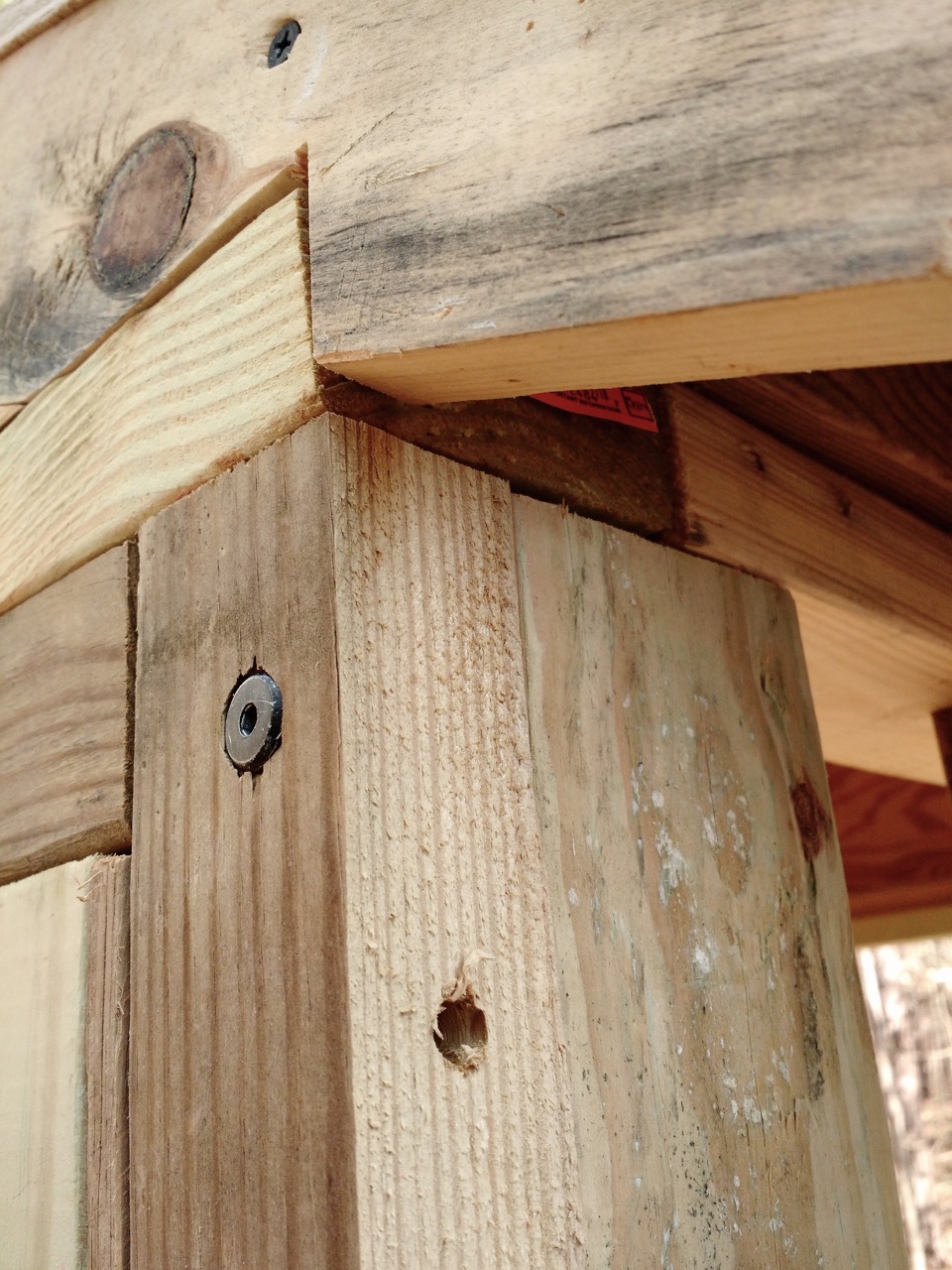

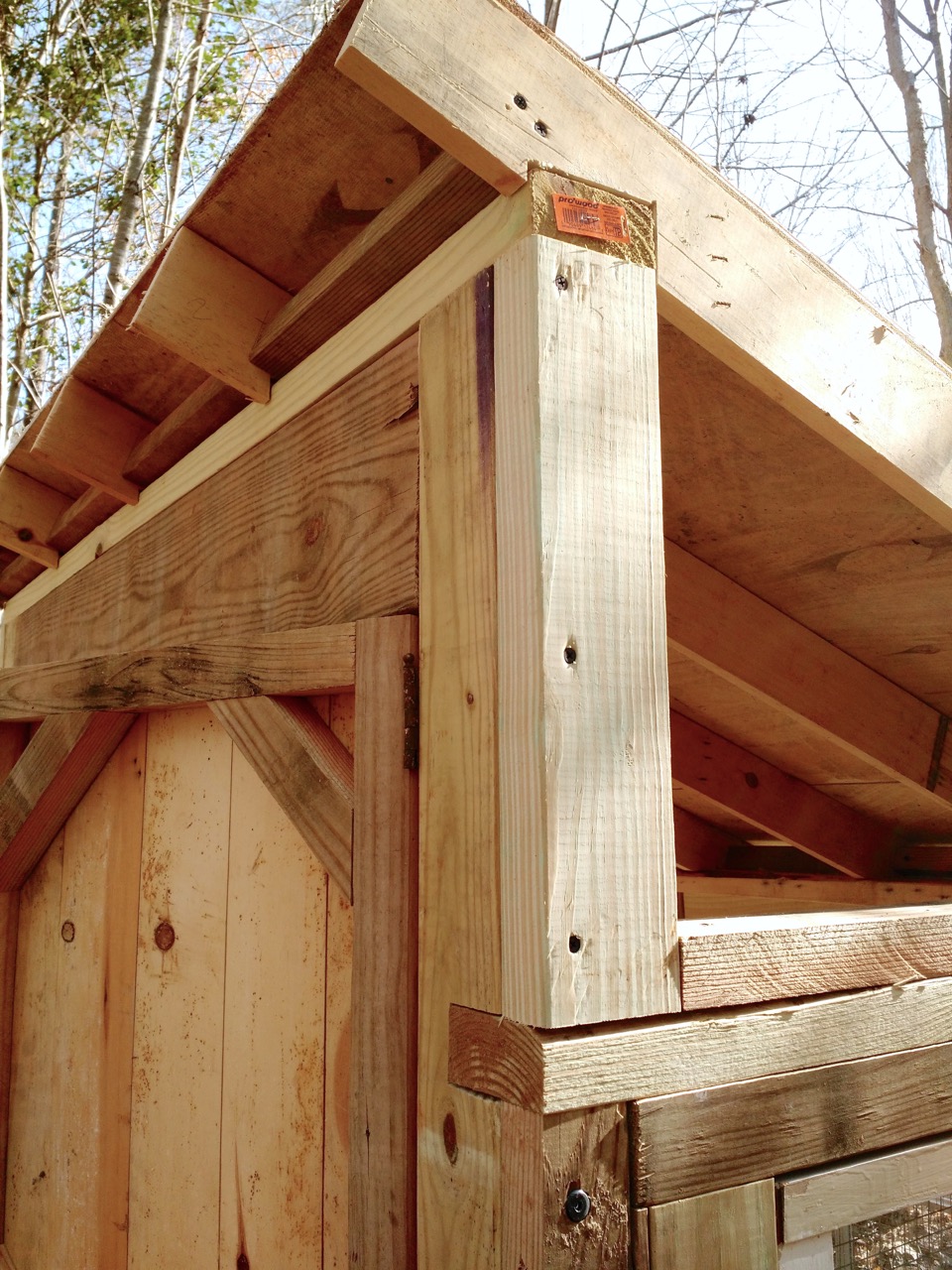

Showing the back corner of the roof over the walls.
Now it was time to start filling in all the open spaces! I didn’t like the idea of attaching plywood to the outside, especially particle board, because I loved seeing the different wood pieces of the structure.
I started by attaching 1×4’s around the hen door.

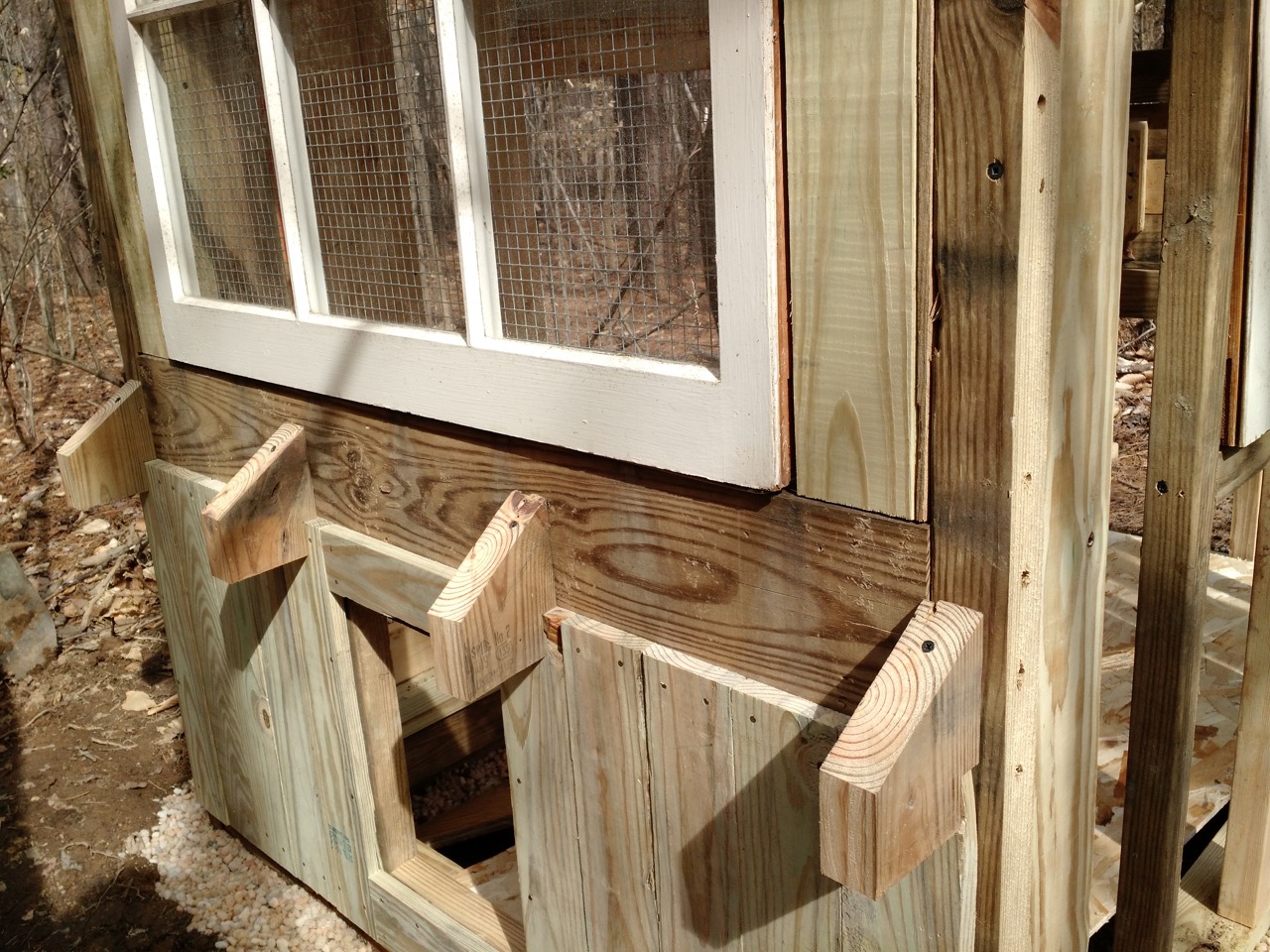

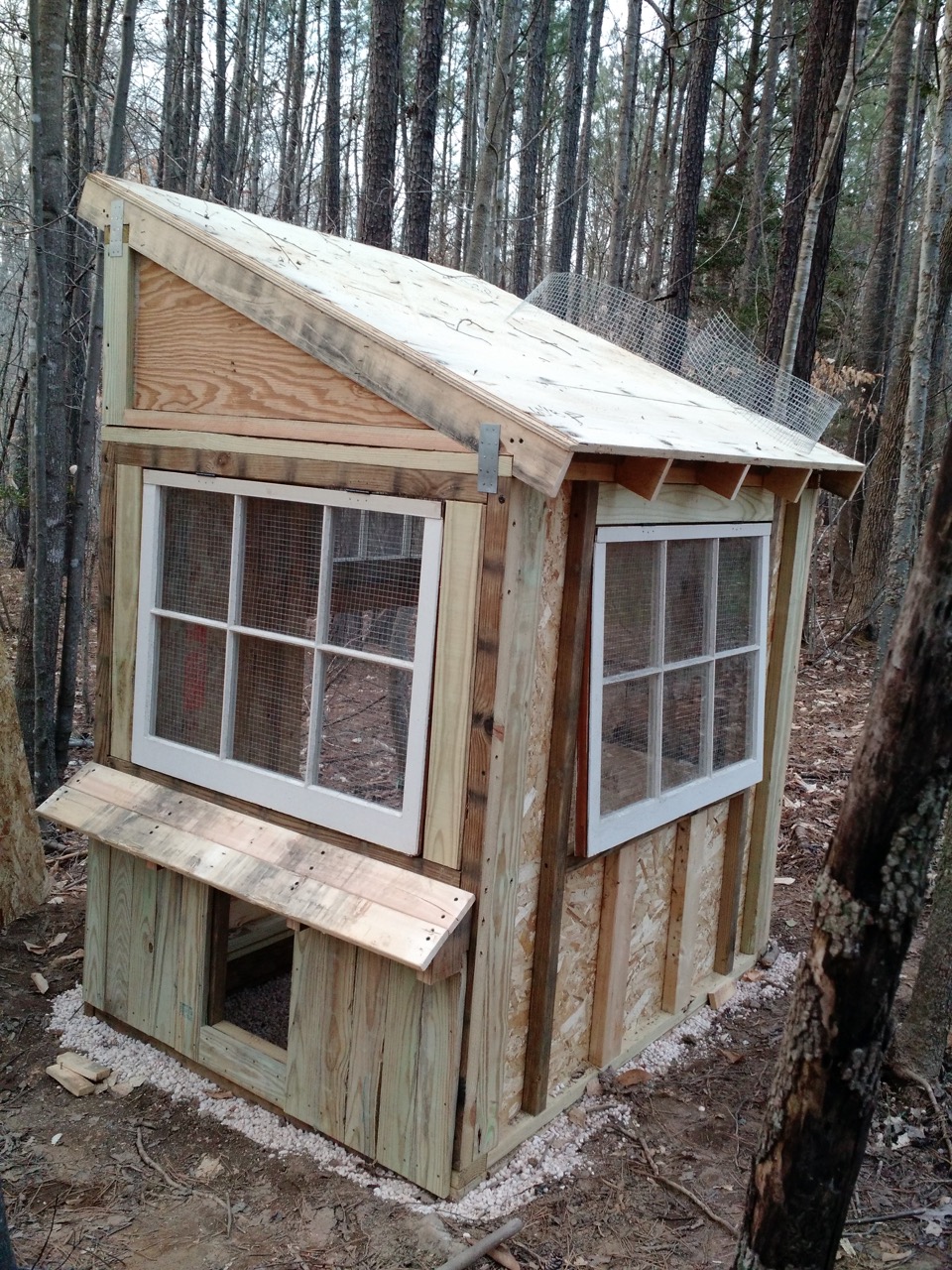

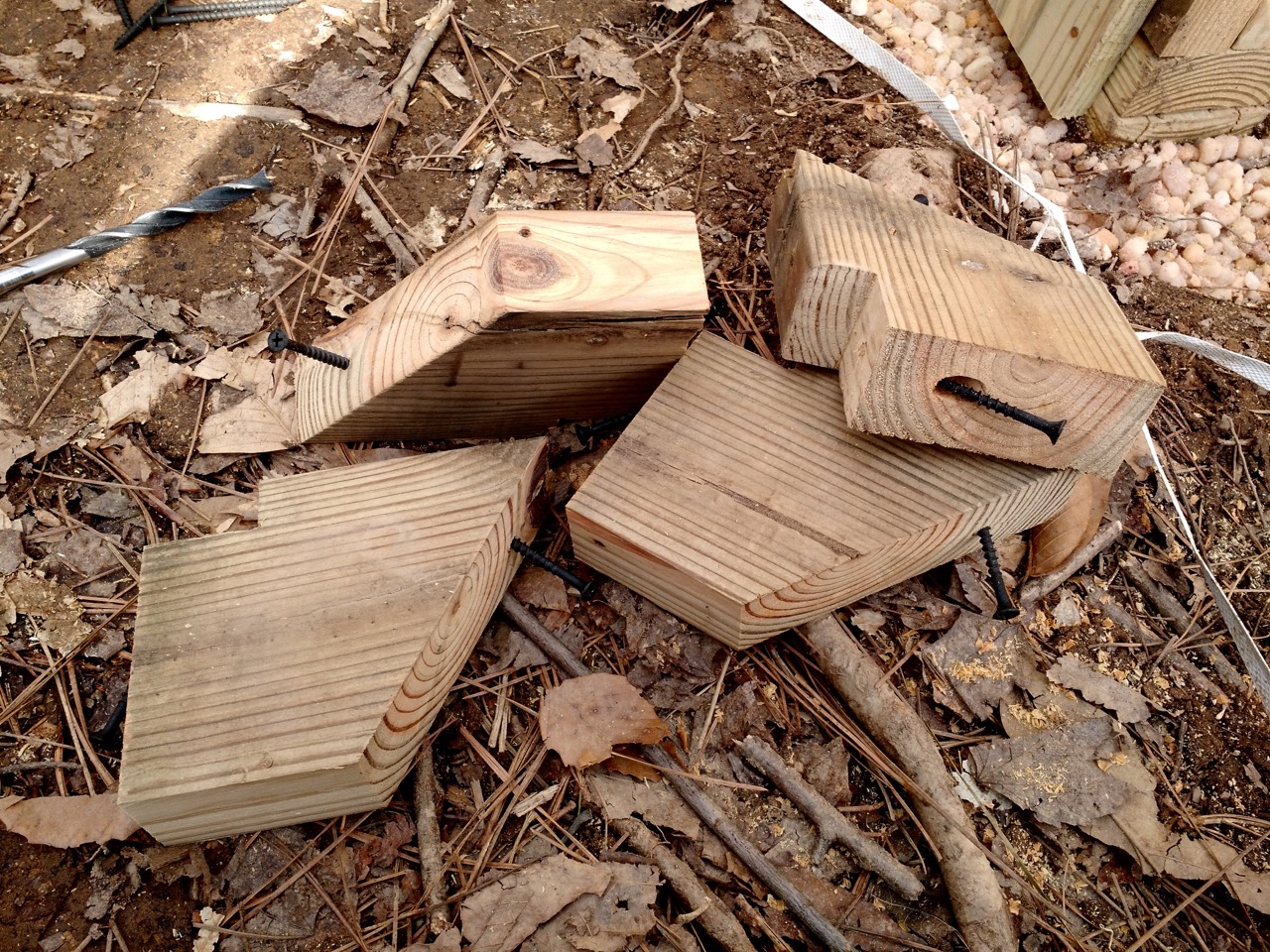

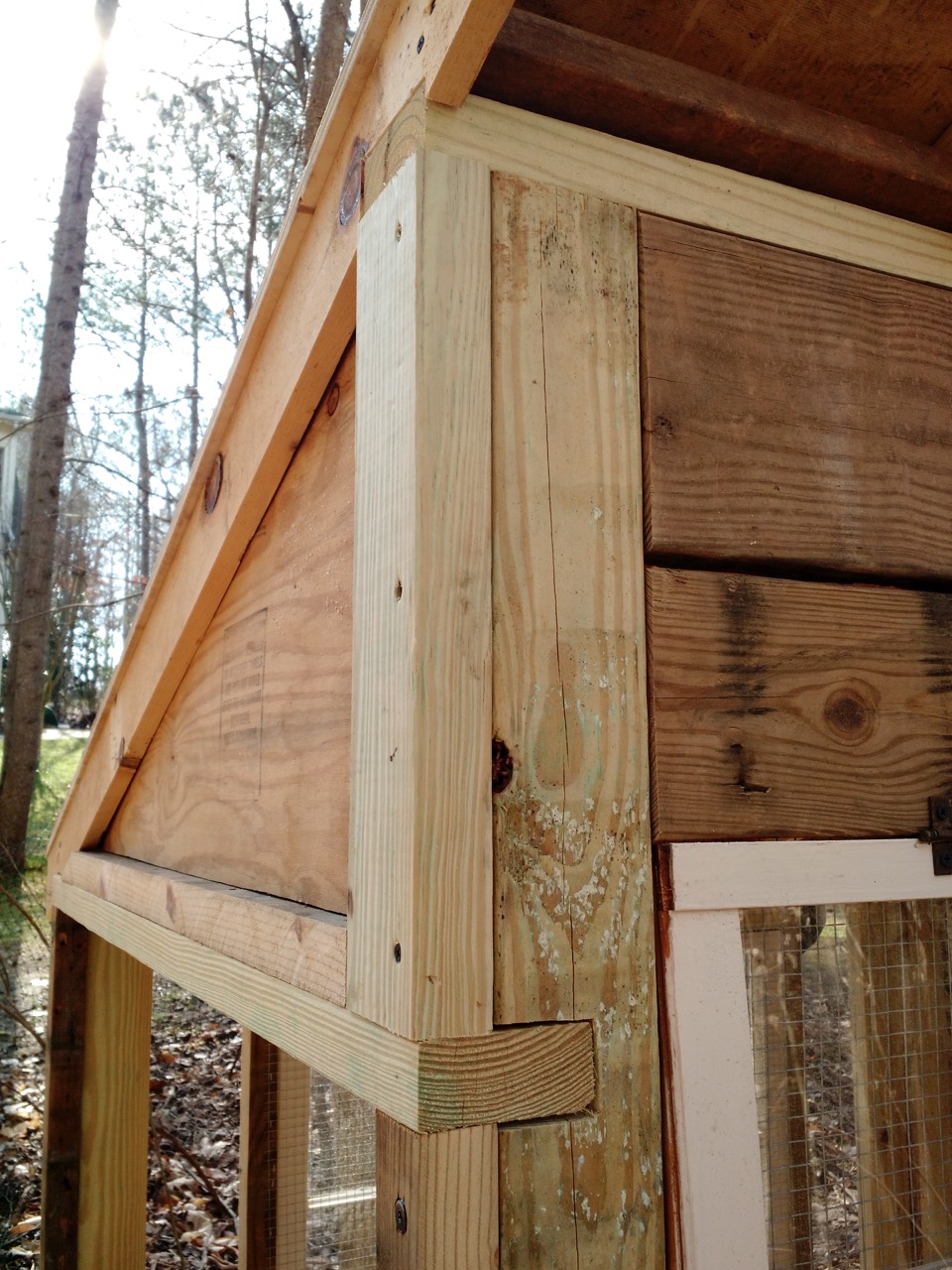

To make a little overhang I used scrap 2×4’s and cut them down until they looked right. This overhang was mostly to keep debris out of the watering cups and rain from getting inside the hen door, but it also adds dimension & cuteness. 🙂
I pre-drilled long screws to make them easier to attach without clamps.

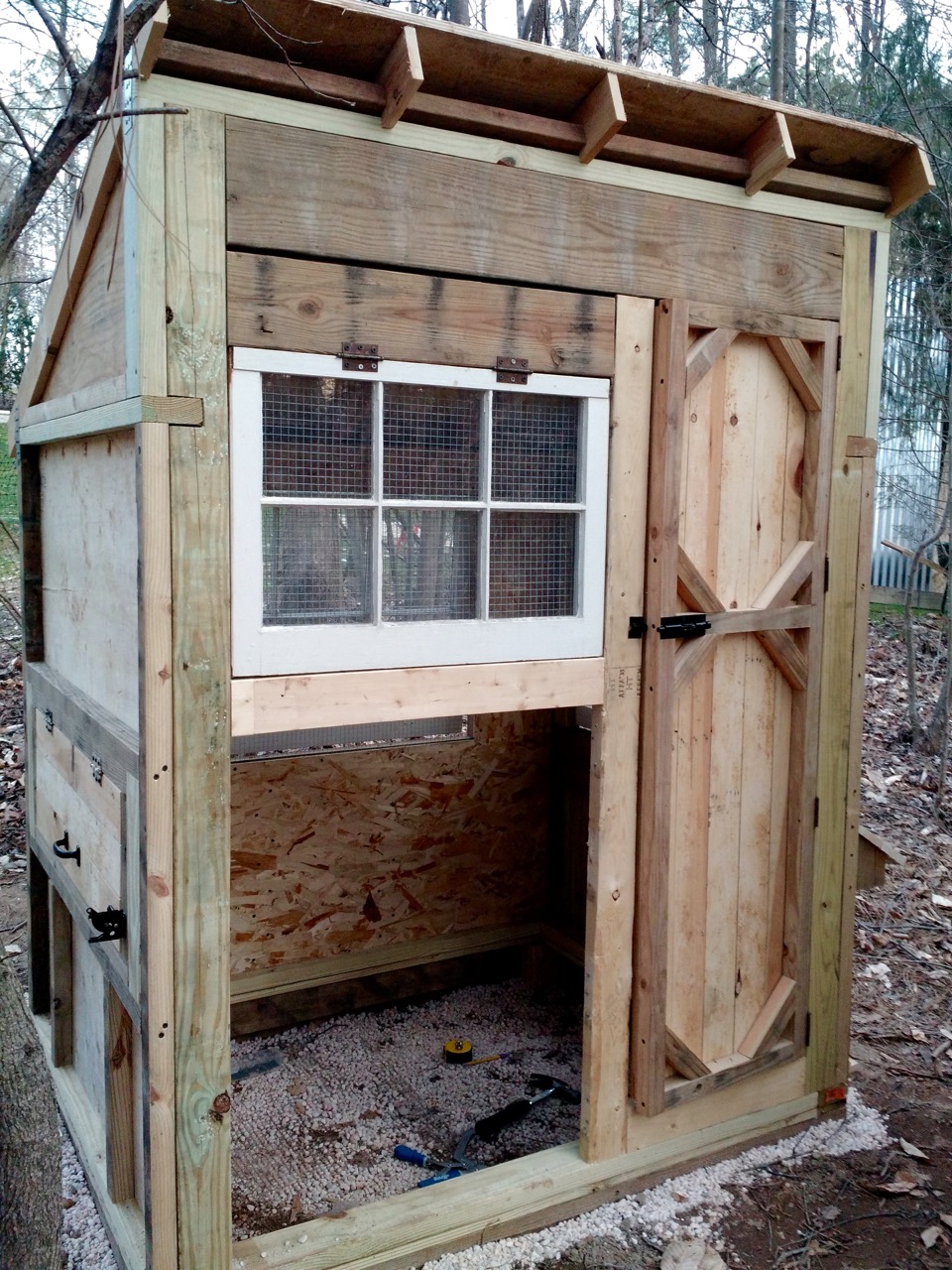

After a few days progress was finally made! I added metal strapping to the inside/outside to attach roof more securely. I added plywood to the inside of the back wall and used my Kreg pocket hole jig to attach plywood in recessed parts of other areas (trying to preserve the character by seeing the framing).

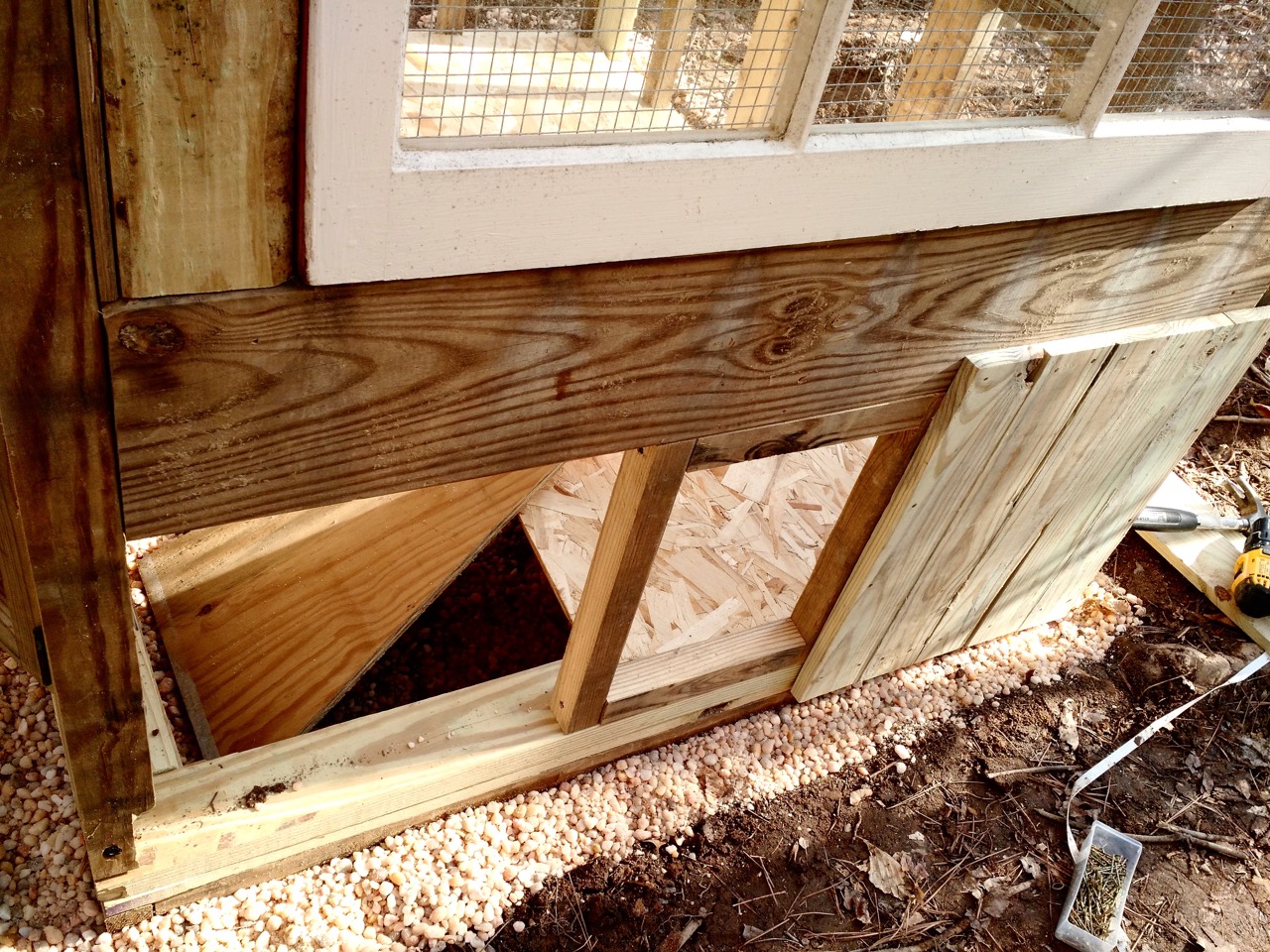

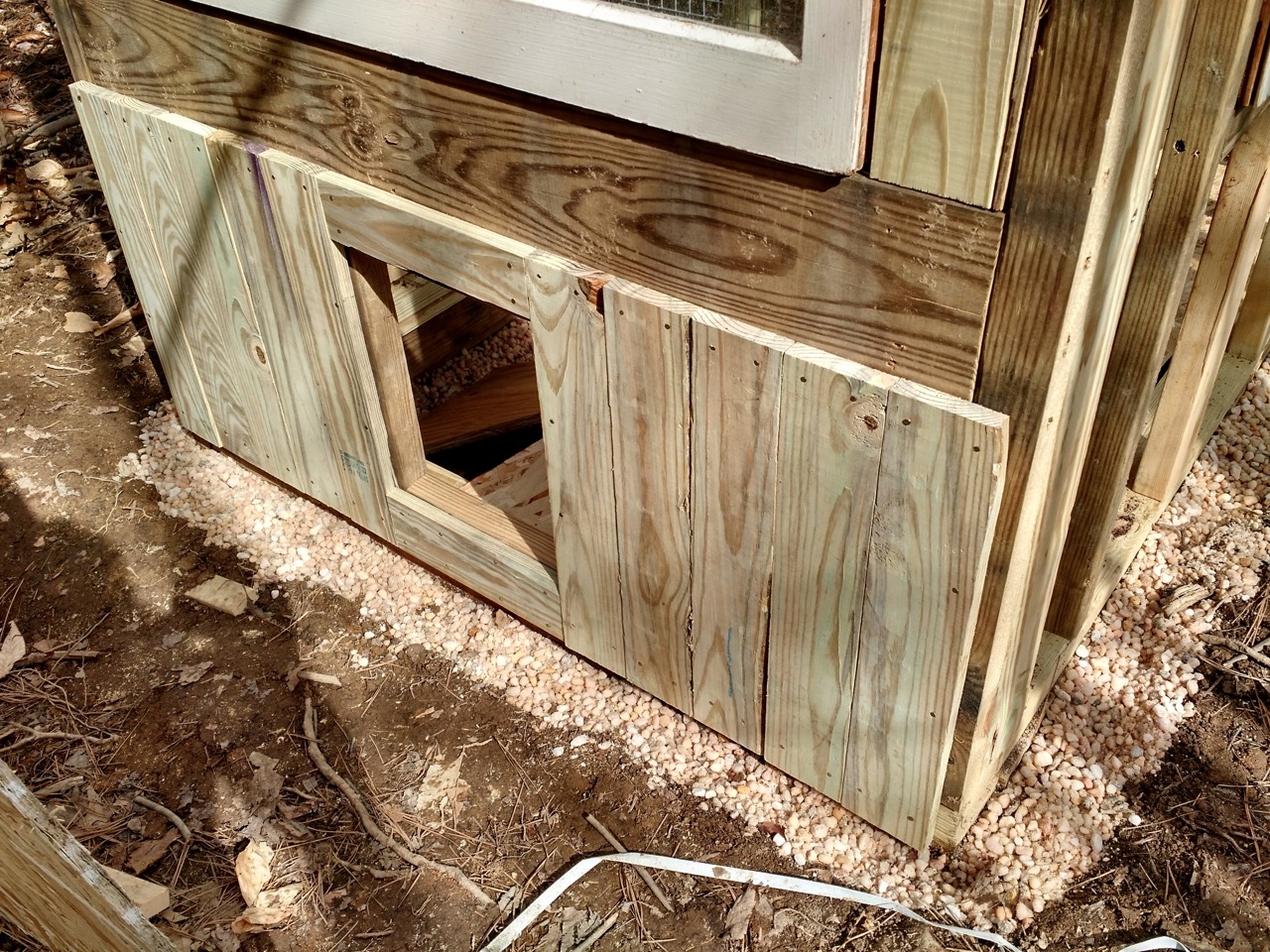

CAUTION! If you are on a slope and have heavy rains like us do not do your foundation like this! You can see how I put gravel around the perimeter filling in the space between the foundation and the dirt. My thinking was that it would keep wet soil off my boards and preserve them longer (the soil is pretty damp). WELLL… I didn’t think about how the gravel was creating a perfect drain for the water to go straight into the foundation off our sloped yard. After a heavy rain there was 2-INCHES of water INSIDE the coop!! I had a very hard time because it was after I had the coop almost completed and felt like I was taking major steps backwards. Thankfully I didn’t attach the coop to the foundation yet and I could slide it off onto boards while I figured out a new plan. My husband ended up leveling the foundation on the ground (meaning the back end is about 3″ into the ground and the front end is on top of the ground) and we filled it almost entirely with gravel. Now water can’t penetrate upwards and the chickens will stay dry (yay for dry chickens)!

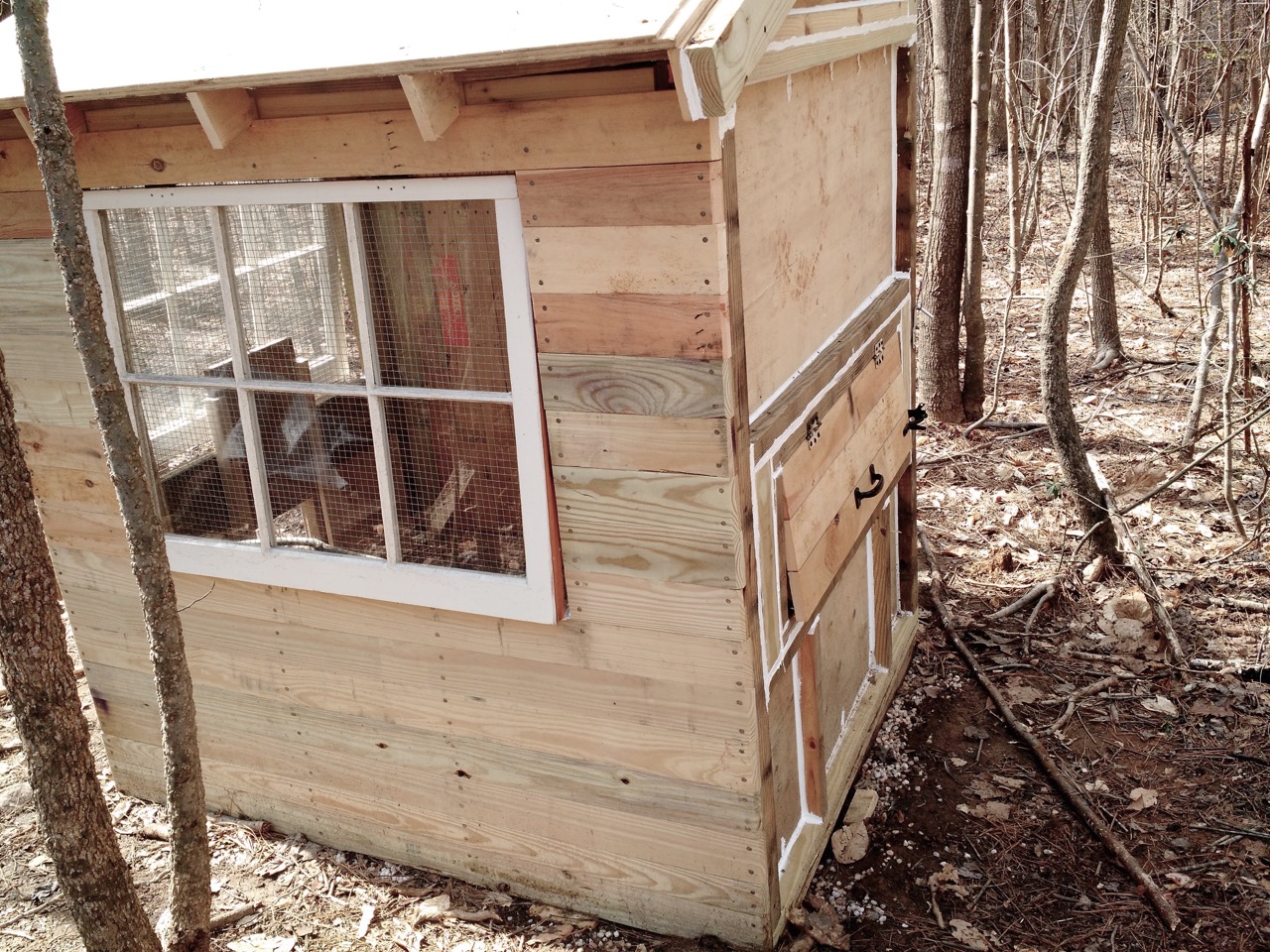

I simply nailed 1×4’s across the entire back wall. Most of these were in the discounted section and were very crooked and I had to clamp each one down as I hammered them in. At this point all the walls were closed and we moved the chickens in even though I wasn’t completely finished. During the day they were out in the yard while I worked.

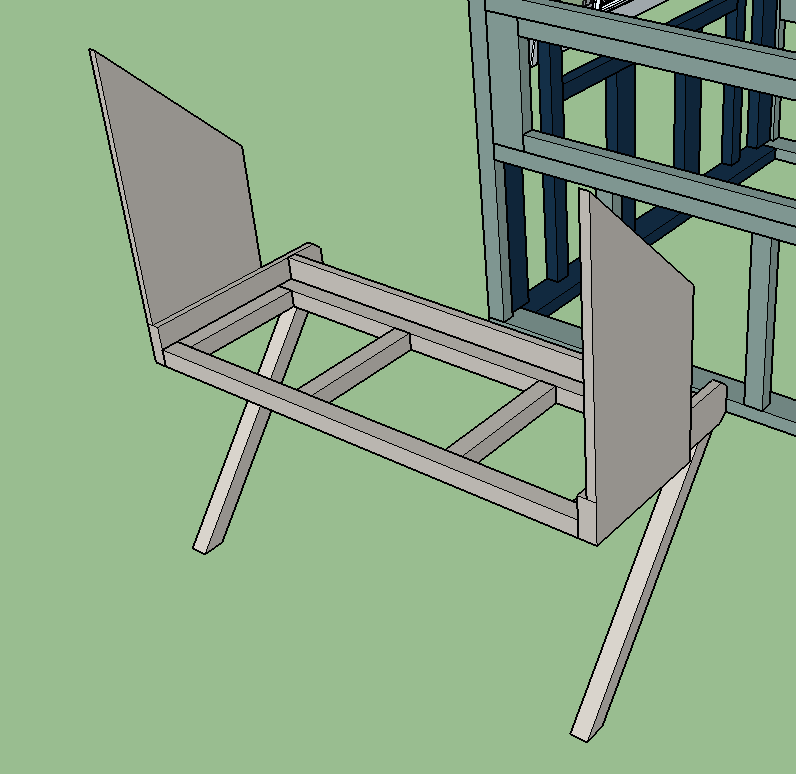

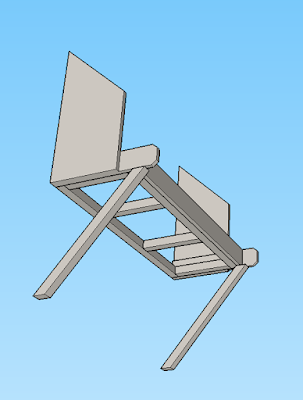

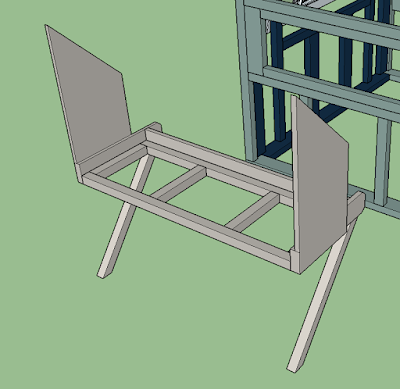

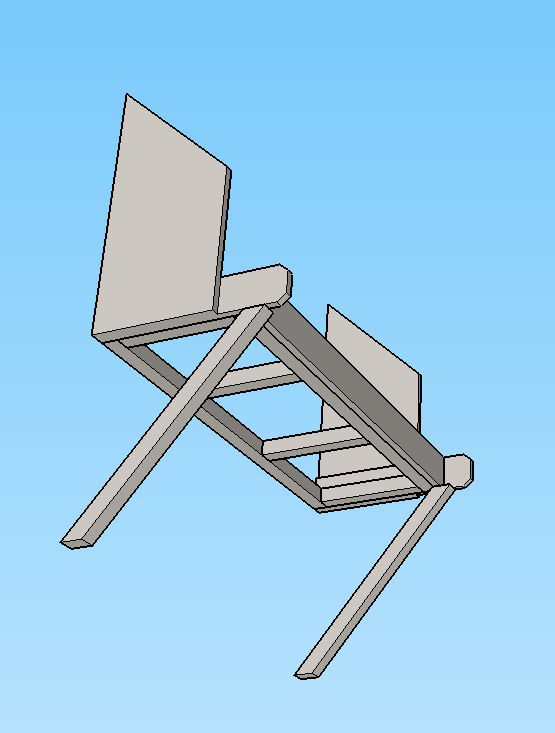

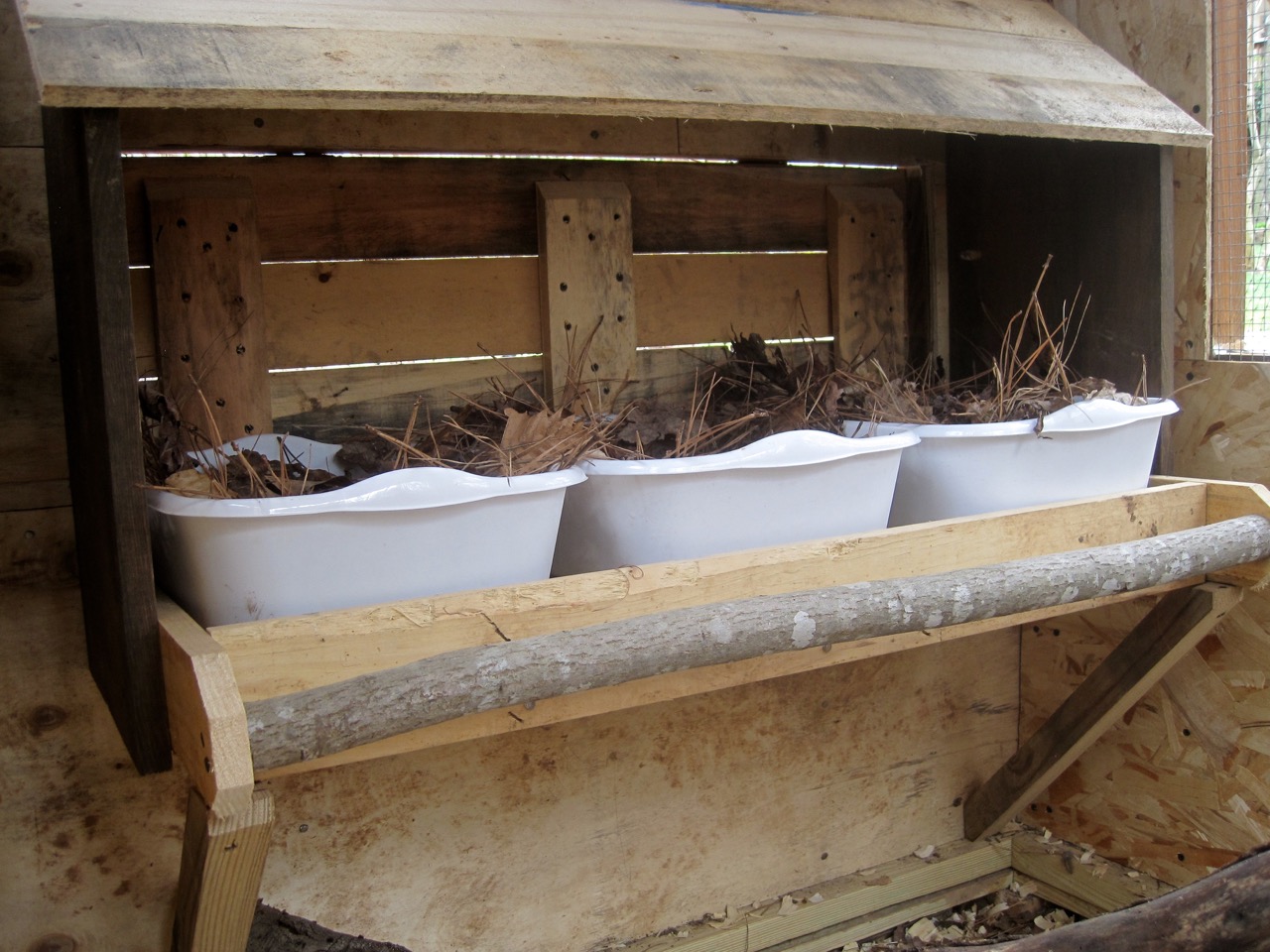

For the nesting boxes I used 2×2’s to create a frame (base), then I nailed a 1×4 to the front and other 1×4’s to the sides that extended passed the front to hold a perch. For the sides I used a scrap 1×12 board and cut a diagonal and screwed that over the sides. To attach it to the coop I screwed the 2×2 base frame to the coop wall and used pocket holes to attach the tall diagonal walls.
I made 2×2 braces for supports.
I nailed 1×4’s to the diagonal sides for the roof/overhang.

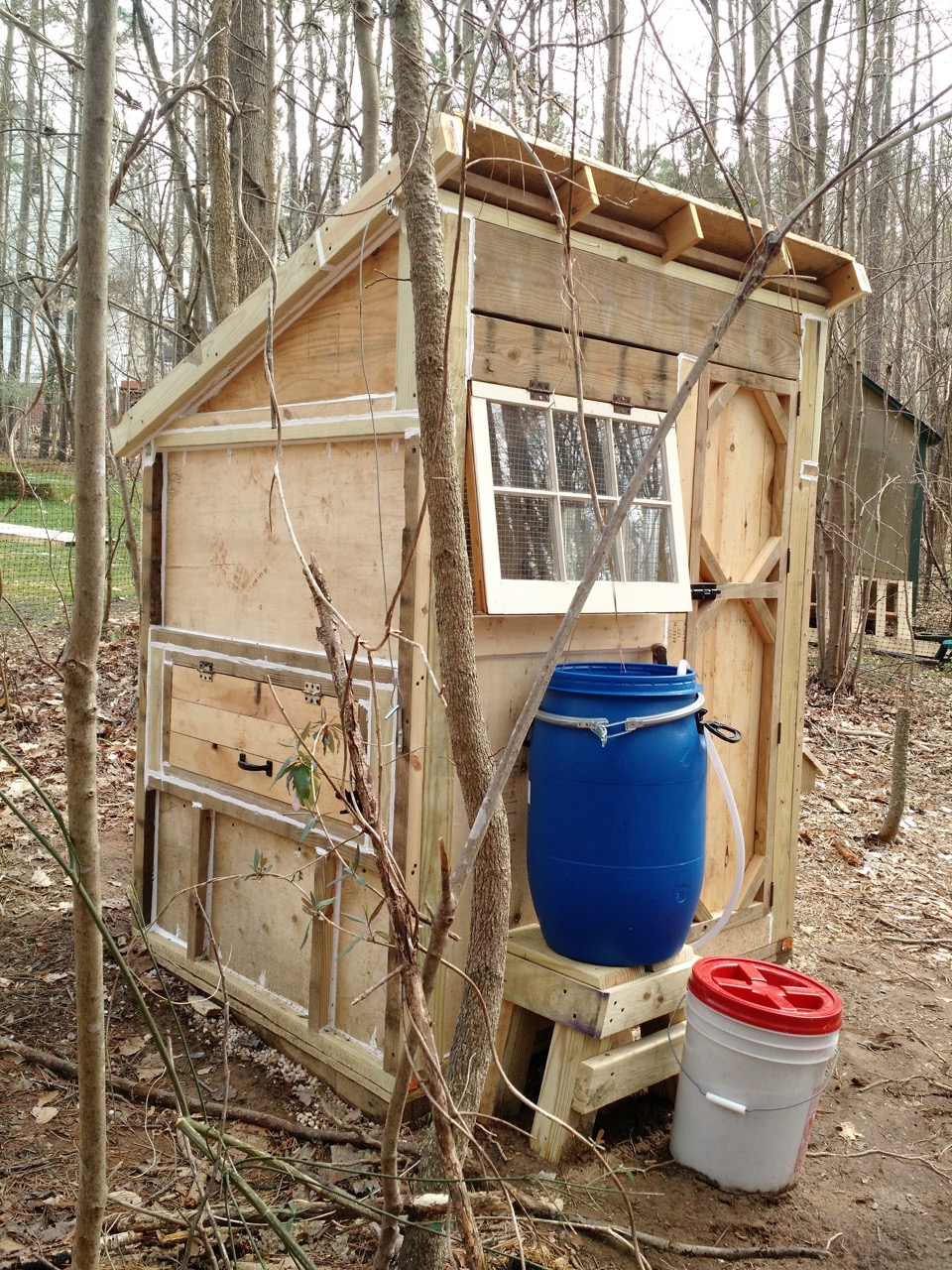

I wasn’t being very patient and HAD to get the watering system up and running because I was so sick of cleaning out their water dish and filling it up everyday. It’s gravity fed so I built a sturdy stool to keep it elevated.

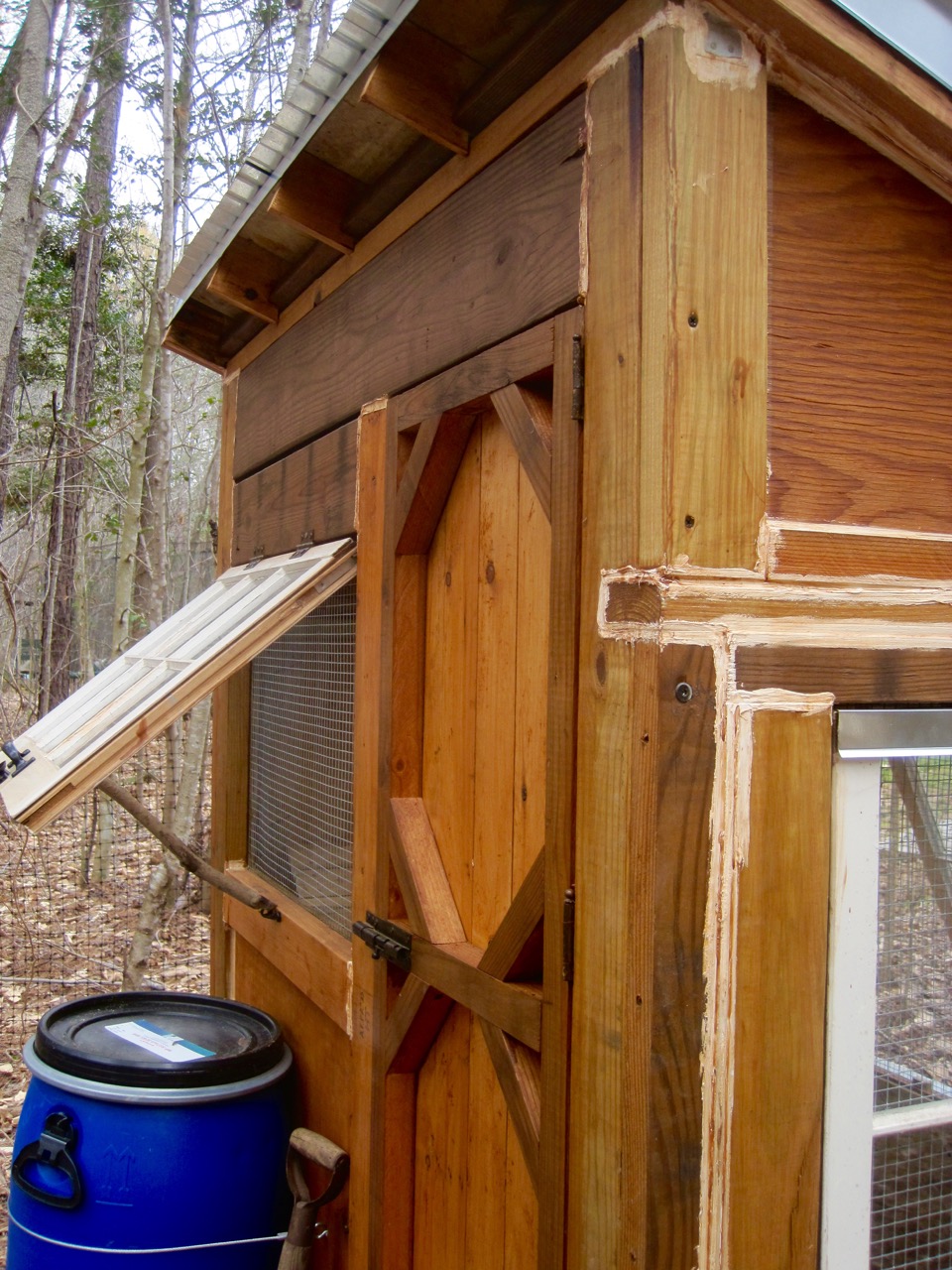

You may have noticed the unsightly white caulking everywhere. I envisioned it being more stream-lined and clean looking, adding to the white of the windows. WELL.. I didn’t realize how exterior wood trim caulking is very tacky, sticky and hard to work with. Because I designed the walls in an unconventional way with a lot of recessed areas I needed to make sure it was protected from water.

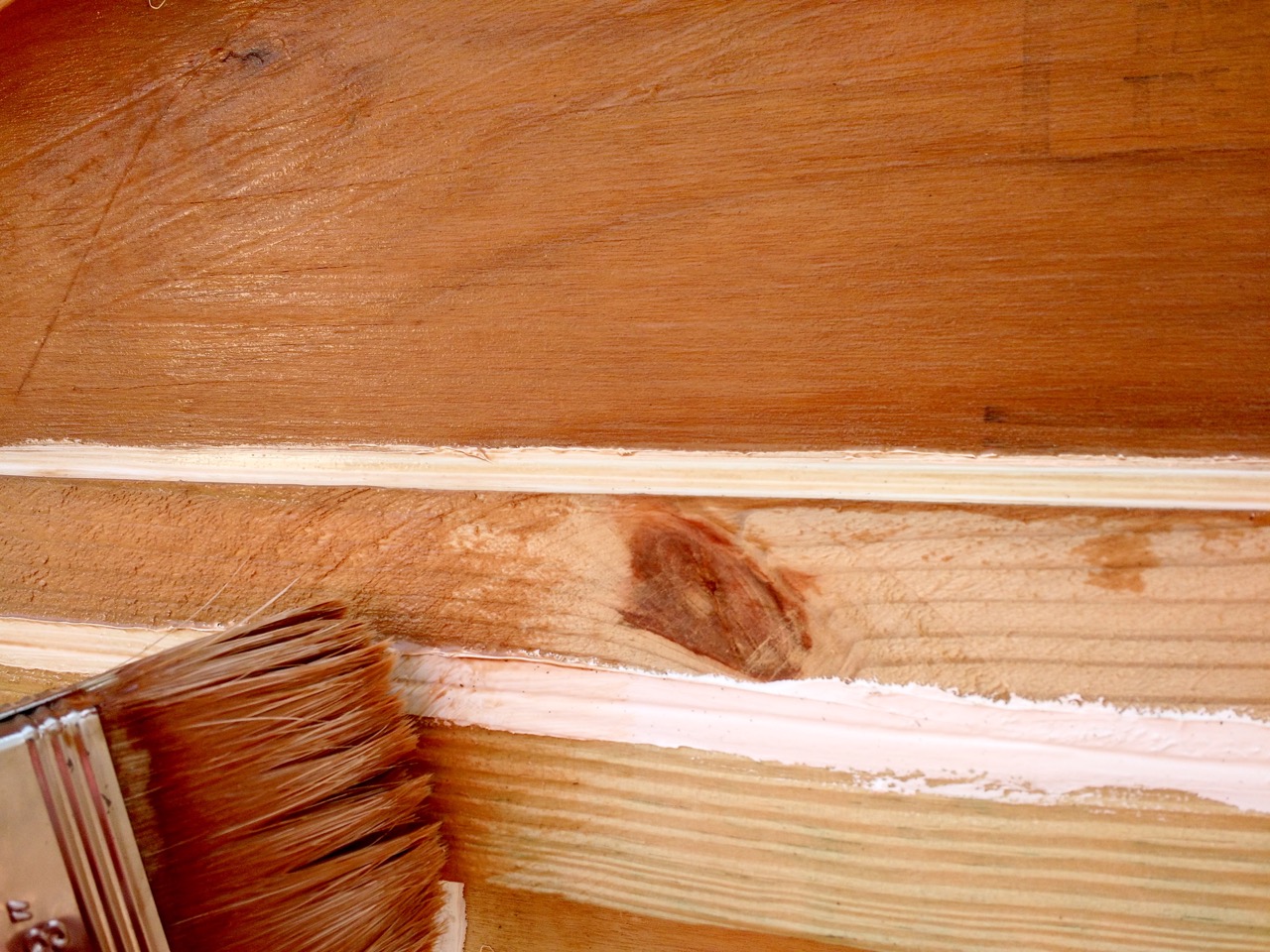

I decided on Flood brand stain to protect the wood. It was so easy to apply – I was actually pretty sloppy with it and it turned out pretty nice 🙂

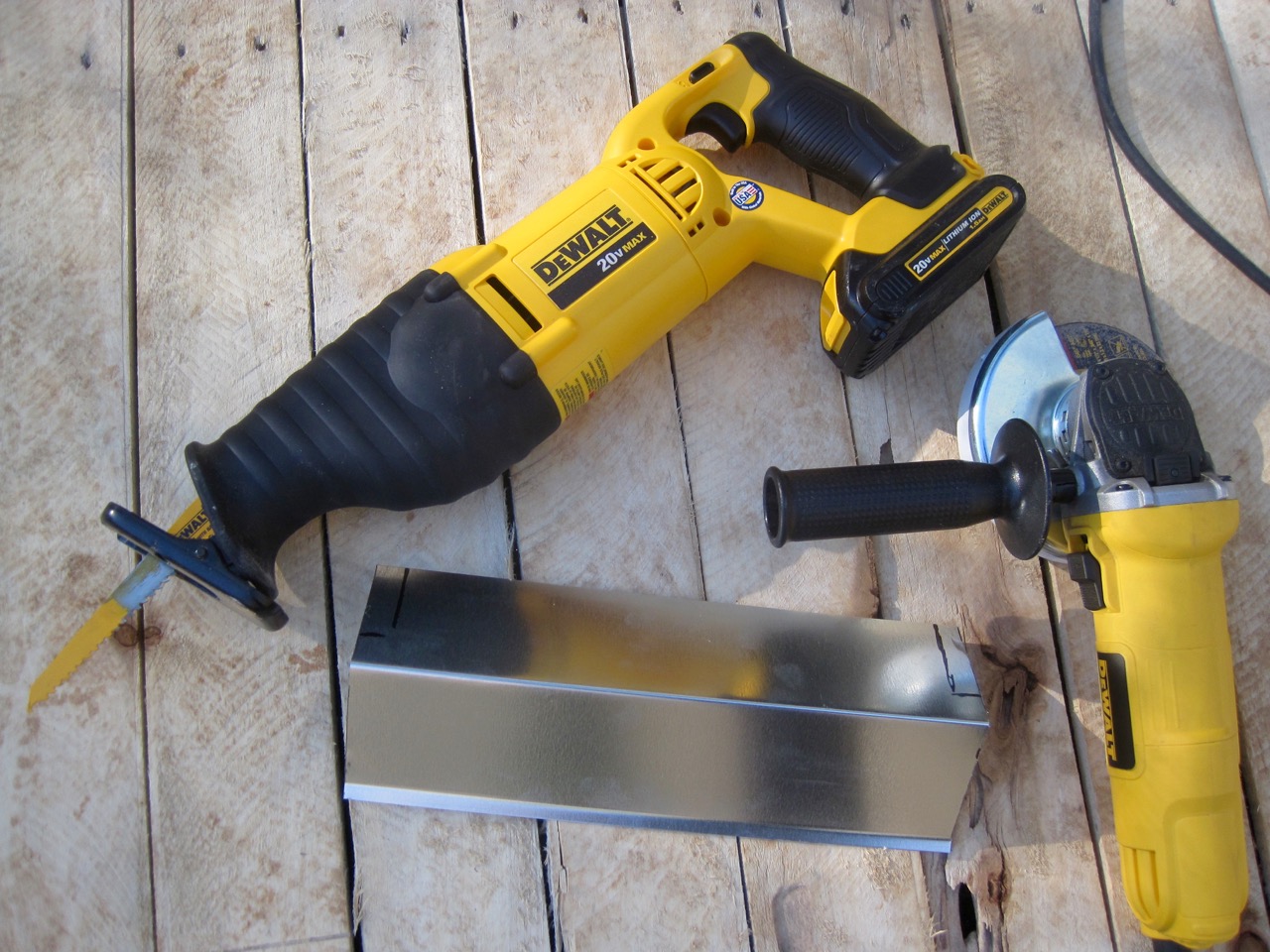

The metal work was one of the last things to do. I had neither of these tools when I started this project and am so glad to have both in my arsenal!

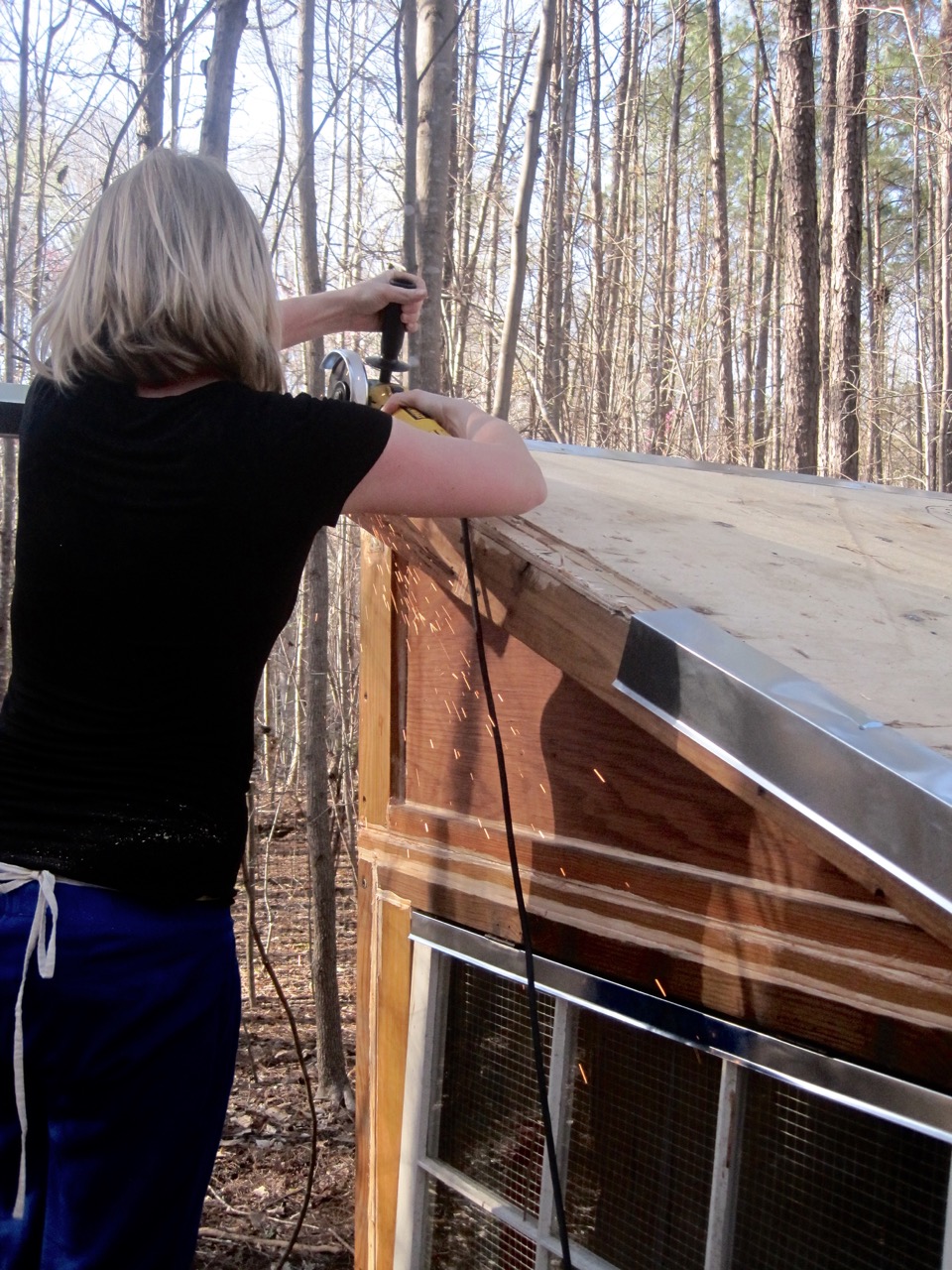

I started by nailing a long piece of flashing to the back edge of the roof, cutting at each end where I could bend it at the corner. I did the same thing with a second piece of flashing for the front end.
We used 2 sheets of 10-foot corrugated metal (cut into lengths we needed) and used special screws with rubber gaskets to keep water out. I also used special metal caulking to fill all the joints.

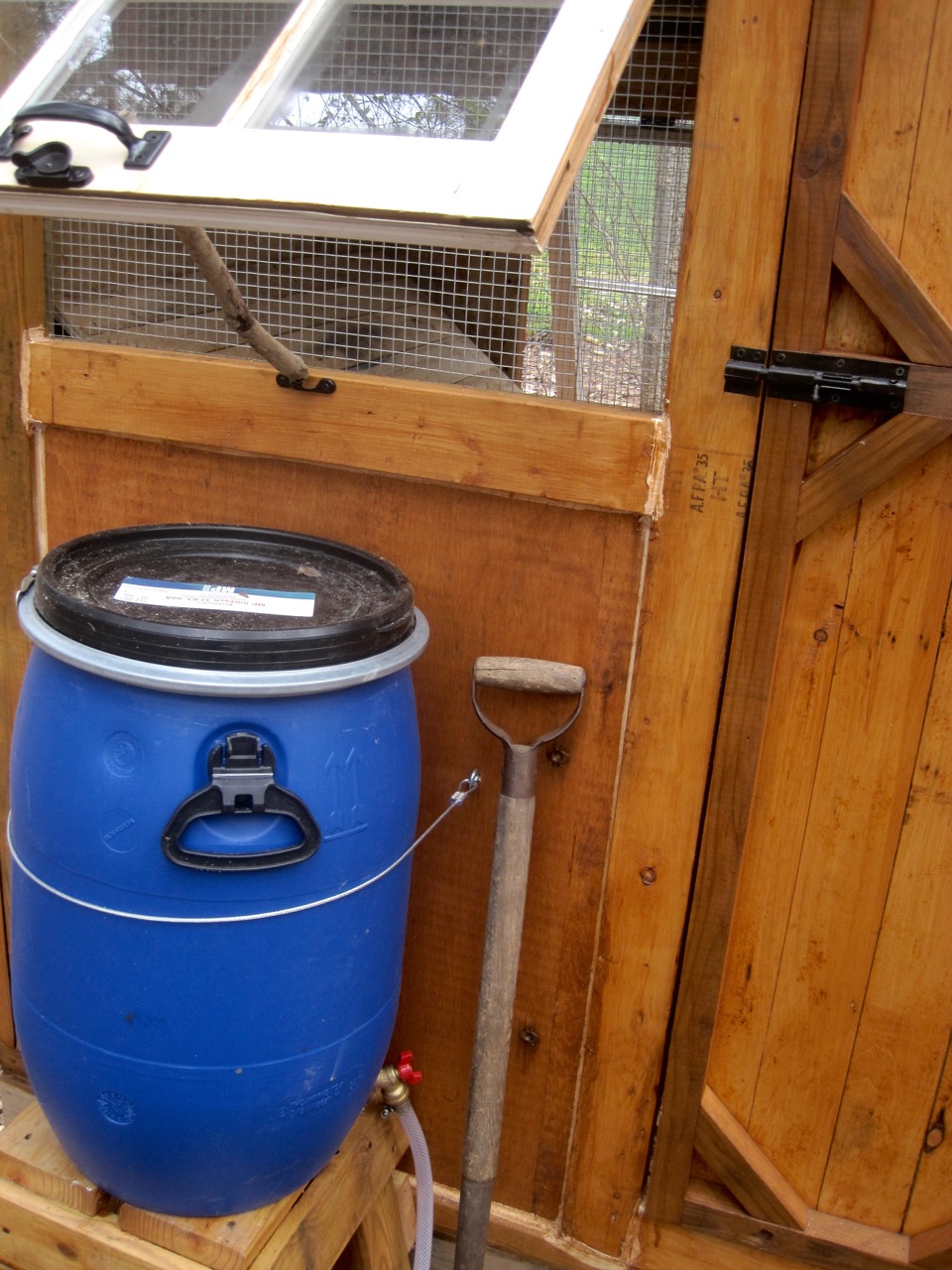

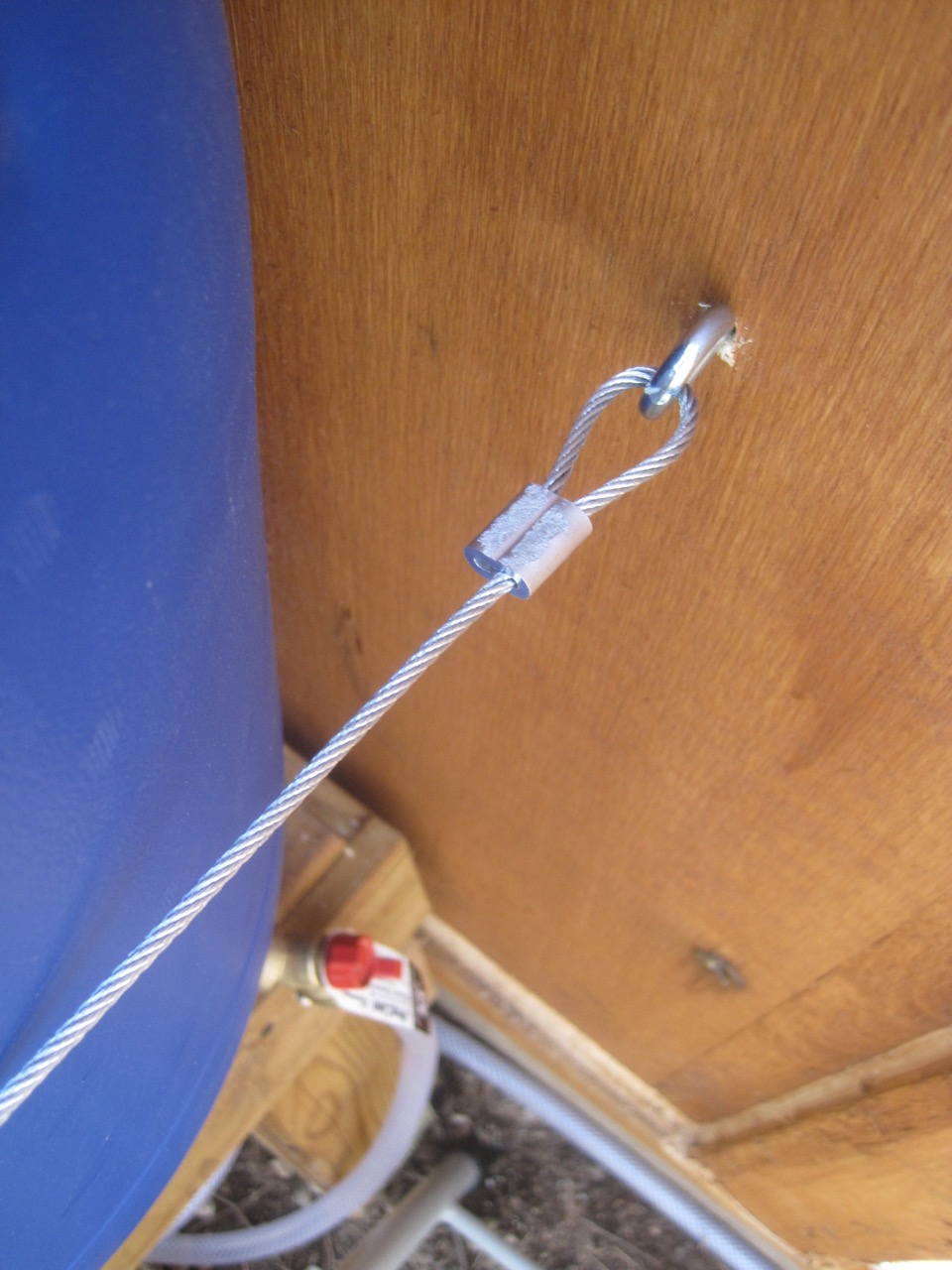

I anchored the water tank to the wall as a precaution with some eye-bolts and galvanized wire.

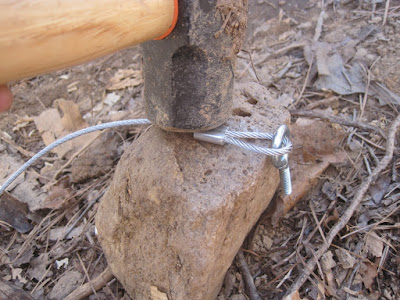

If you don’t have a crimper tool, a rock and sledge hammer will do the trick 🙂

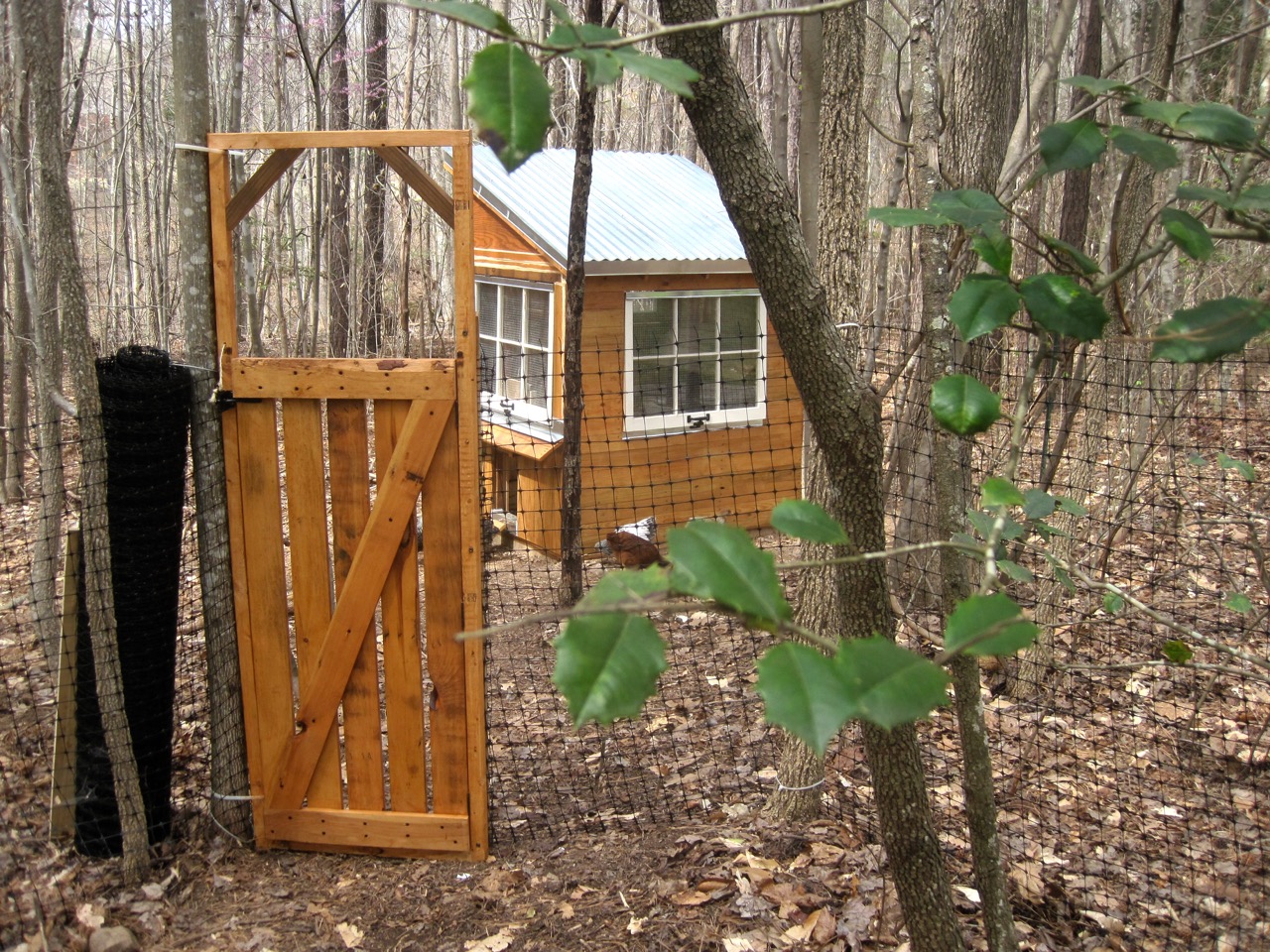

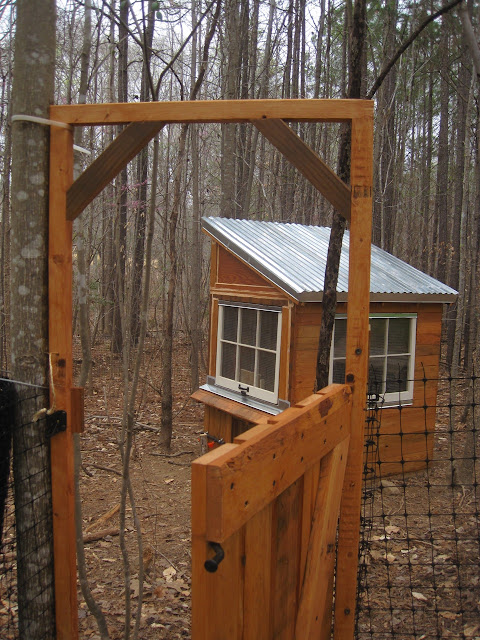

I made this gate as an afterthought to make getting in/out of the deer fence easier than how we originally had it. I used scrap 2×2’s and 1×4’s and it was up in a few hours! It zip-ties against a tree and I made the sides of the frame extend 4″ passed the bottom so I could cut points into them and essentially stake the gate frame into the ground. We keep the extra roll of fencing on one side and I wrapped the other loose end around a wood trim piece a few times and bolted into several places on the gate frame.
I’m sure you’re wondering how long this took me and how much it cost? I was surprised to discover that it took me ONE WHOLE MONTH to complete from start to finish! As a stay-at-home mom I did most of the work when baby was napping (2-3 hour periods) and minutes here and there when the kids were happy outside. My favorite times were Saturday’s when my husband could be with the kids!
COST? Here’s a pretty good estimate:
Lumber : $130
Lumber : $130
Hardware Cloth: $50 (enough to make a run)
Pulleys, Wire Clamps, Bolts: $20
Door/Window Latches, Handle Pulls, Hinges: $35
10 bags of gravel $40
TOTAL = $430!
TOTAL = $430!
Watering System: $75
Deer Fence $150
One thing is certain – we paid more than expected for this project and that’s even with all the free lumber I gathered! It was more work than I imagined and I probably did a lot of things wrong and/or complicated them more than they needed to be, however, I learned a lot and it’s so nice to see the girlies out enjoying their new home!
Silver and Blue Laced Wyhondotte’s
Rhode Island Reds
Golden Laced Wyhondotte’s and Light Brahma
The trees give the birds extra protection from flying predators (hawks) and they love digging in the dirt and laying in the leaves.
I’m so glad this project is over (sigh)!
