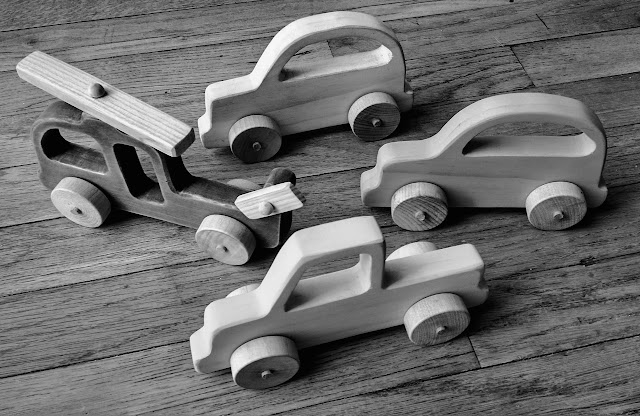

DIY Wooden Toy Vehicles – Car, Truck & Helicopter

I made these cars off a plan from Ana-White.com but changed a few things and thought it would be helpful to make a post about the building process.

WOODEN TOY VEHICLE INSTRUCTIONS

Materials Needed:
Select Pine Board – 4″-wide x 3/4″-thick
16 Wooden Wheels (1-1/4″ to 1-1/2″ diameter with 1/4″ hole)
2 Axle Pegs (for Propellers) – 7/32″-wide x 1-1/4″-long
 1/4″-Diameter Wooden Dowel (Cut 8 2-1/2″ Pieces for each Toy)
Wood Glue
Sand Paper
Paint
Car Template Printout (Click Here to Download)

Tools Needed:
Scroll Saw or Jigsaw
Router with 1/8″ Round Over Bit (Optional)
Electric Sander (Optional)

Drill & Drill Bits

 Download and print vehicle template.  Cut out.  Trace patterns onto your pine board – I traced 1 of each plus an extra car to make 4 total.

Whether you are using a scroll saw or jigsaw, drill a large enough hole for blade in each vehicle window.  Cut pieces out.

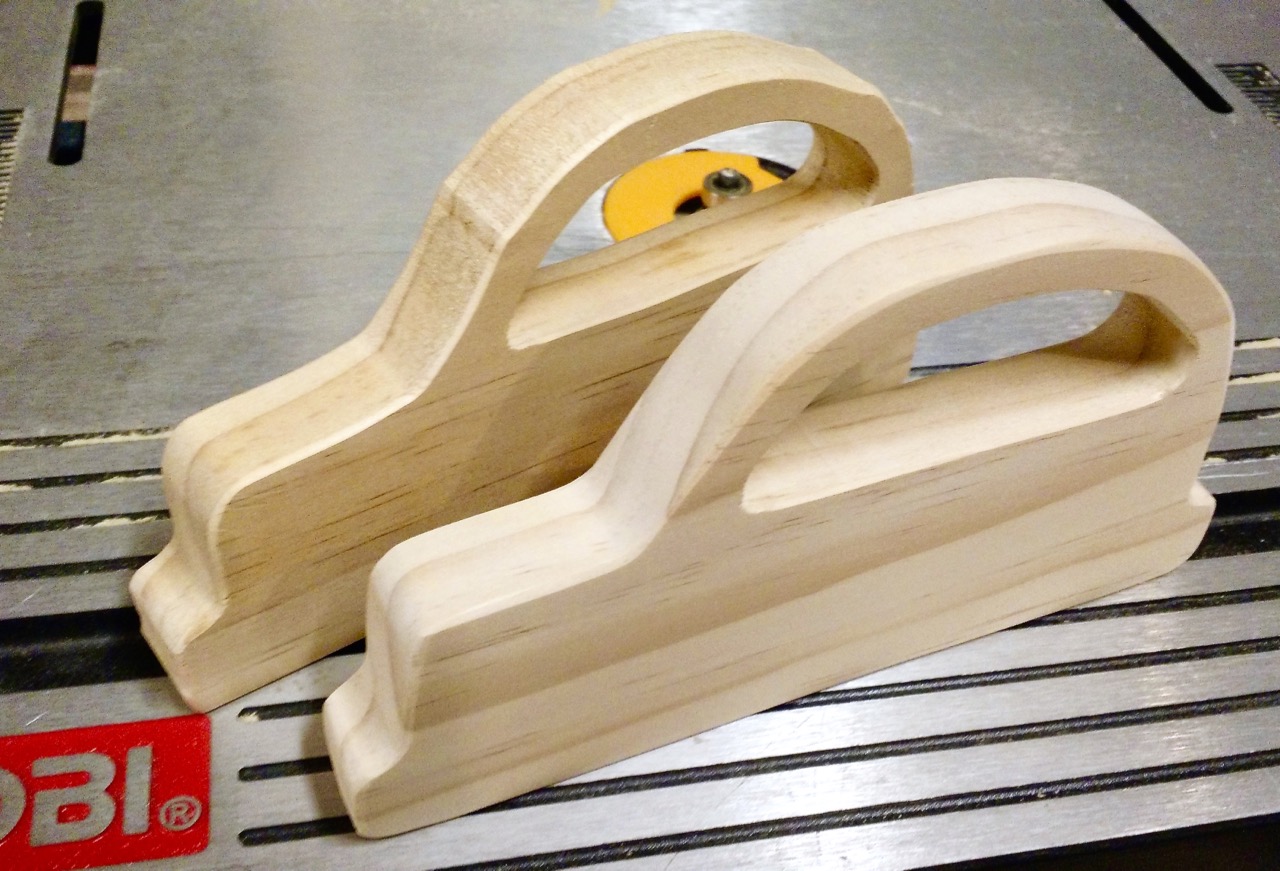

If you choose to, use a router to round over all your edges with a 1/8″ round over bit.  Sand all edges smooth.  You can see in the picture above the difference between the rough car and the routed/sanded car.

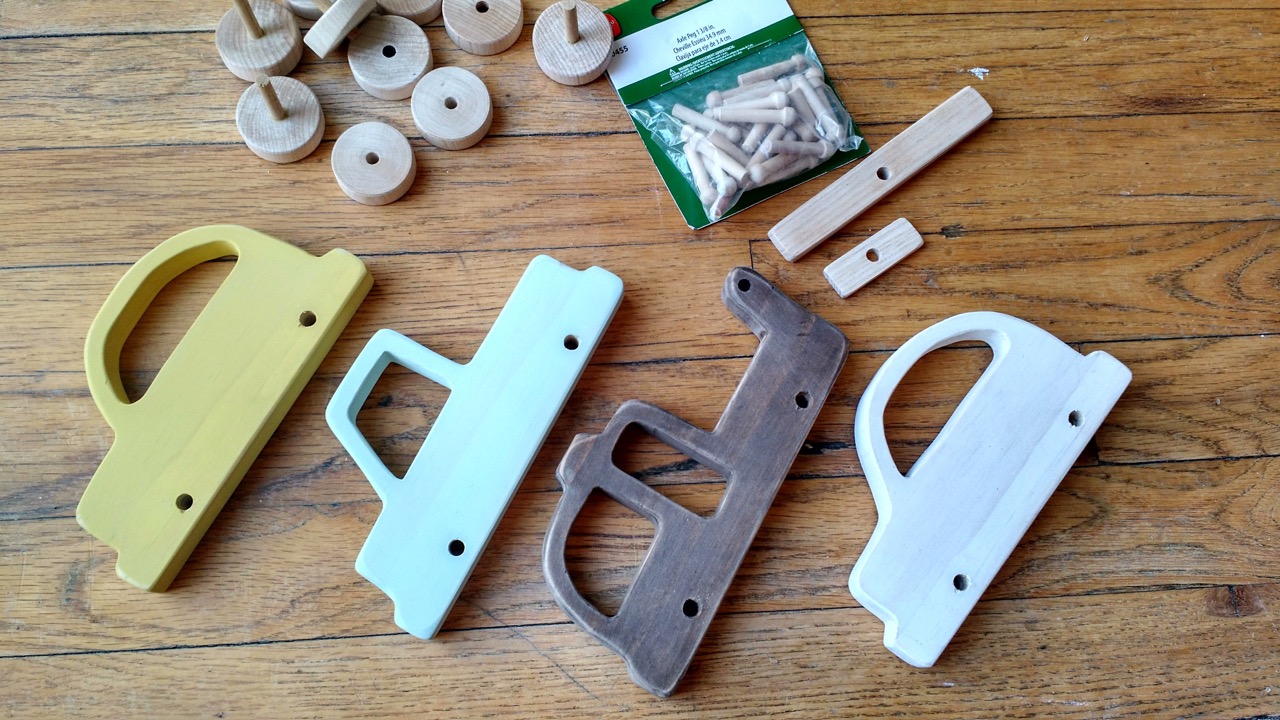

Drill holes for wheel axles and propellers for helicopter over each of the cross-hairs from template patterns.  For the wheels you want the holes slightly LARGER than 1/4″ so your wheel axles will turn, for the propellers you want 1/4″ holes.  Paint vehicles, let dry and lightly sand smooth.

Glue a wheel onto each dowel piece and set aside to dry.

For the propellers, rip a 3/8″-wide strip from your pine board, at least 8″-long.  Cut a 5″-long piece and 2″-long piece from that.  Drill a 1/4″ hole in the center of each.

 Attach wheels and let dry.  Sand axles flush with wheels if you prefer (I didn’t).
