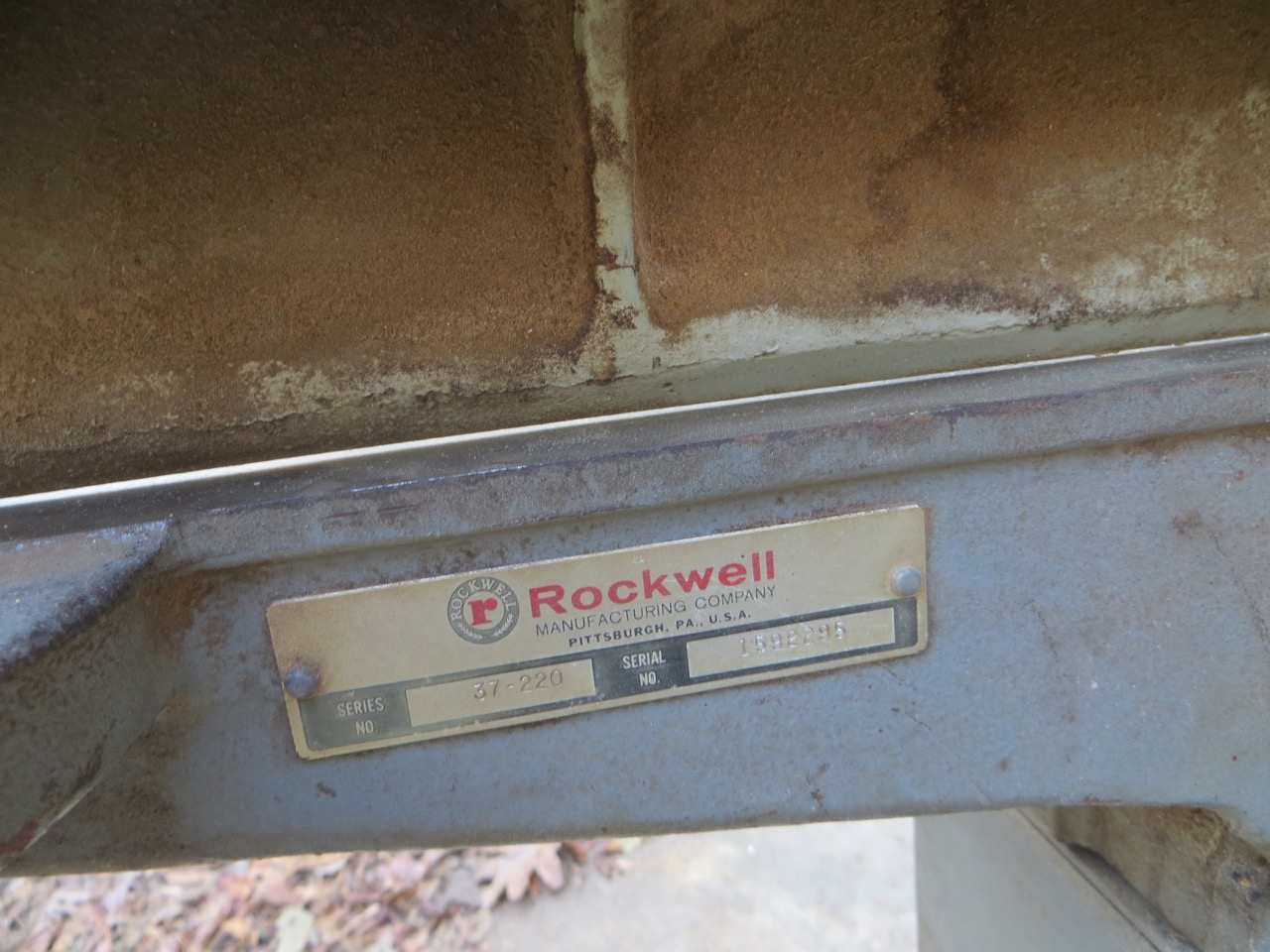

Rockwell 37-220 6″ Jointer Makeover + Caster Base & Push Blocks

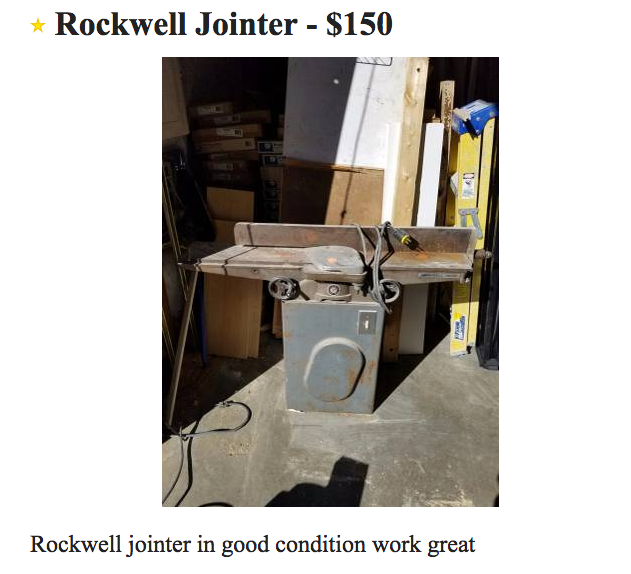

My husband gave me a budget of $400 to buy some shop tools.  I’ve been wanting a jointer and a planer for a few years and it’s been on my mind a lot recently.  I was excited and started looking on Craigslist hourly for a deal to pop up.  When I saw this older Rockwell jointer it spoke to me and I simply had to have it!

While the guy was testing it out with a block of Ash I brought I could tell he was in trouble.  He was working really hard to push the board across the blades and it eventually kicked out and flung across the room and the palm of his hand hit the blades (he didn’t check the depth of cut and it was way too deep)!  His hand was bleeding everywhere so he wrapped a big towel around it.  My stomach was up in knots from what just happened and it made me second guess buying it.  I knew once I got it adjusted and cleaned up it would be safe.

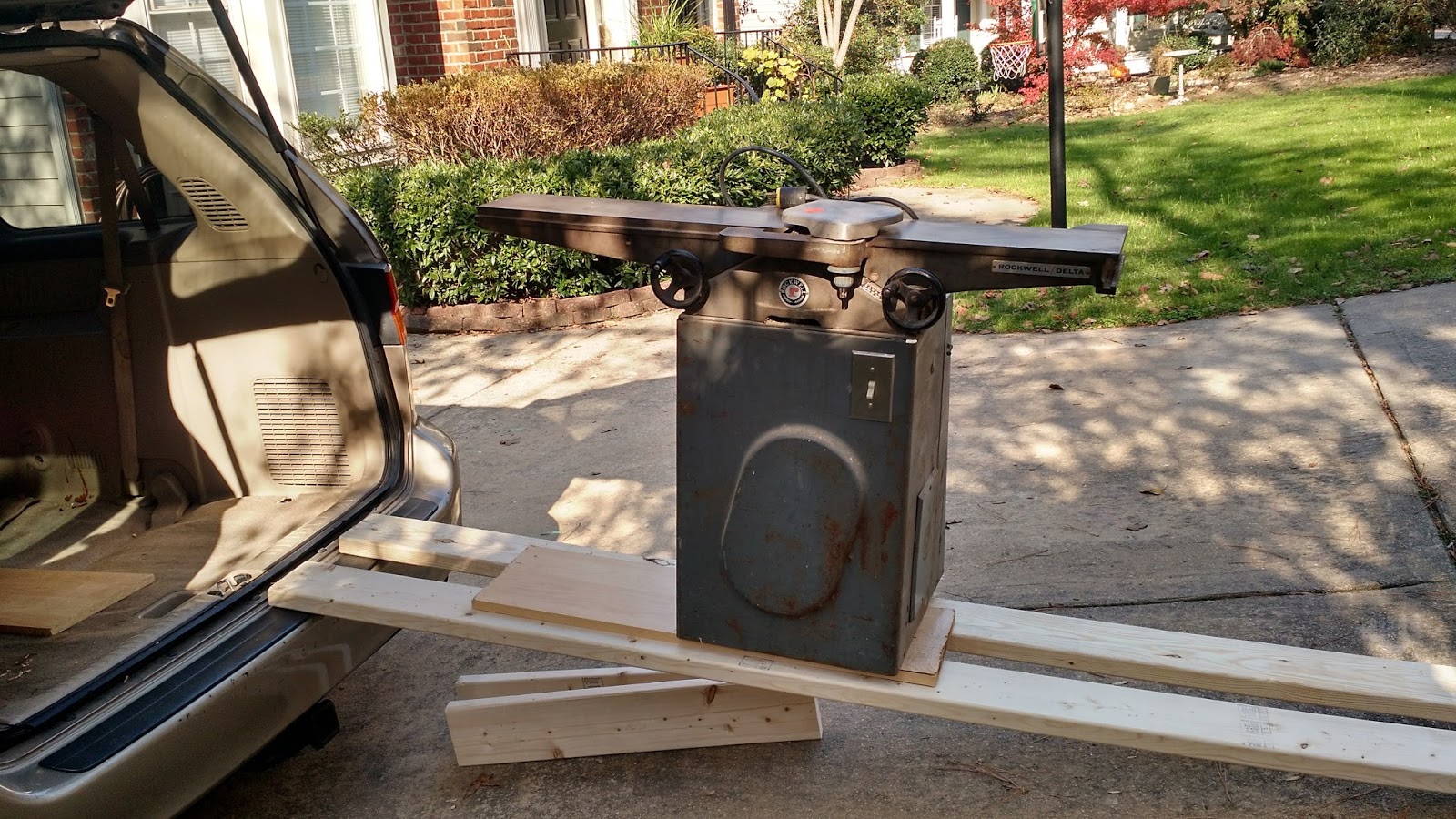

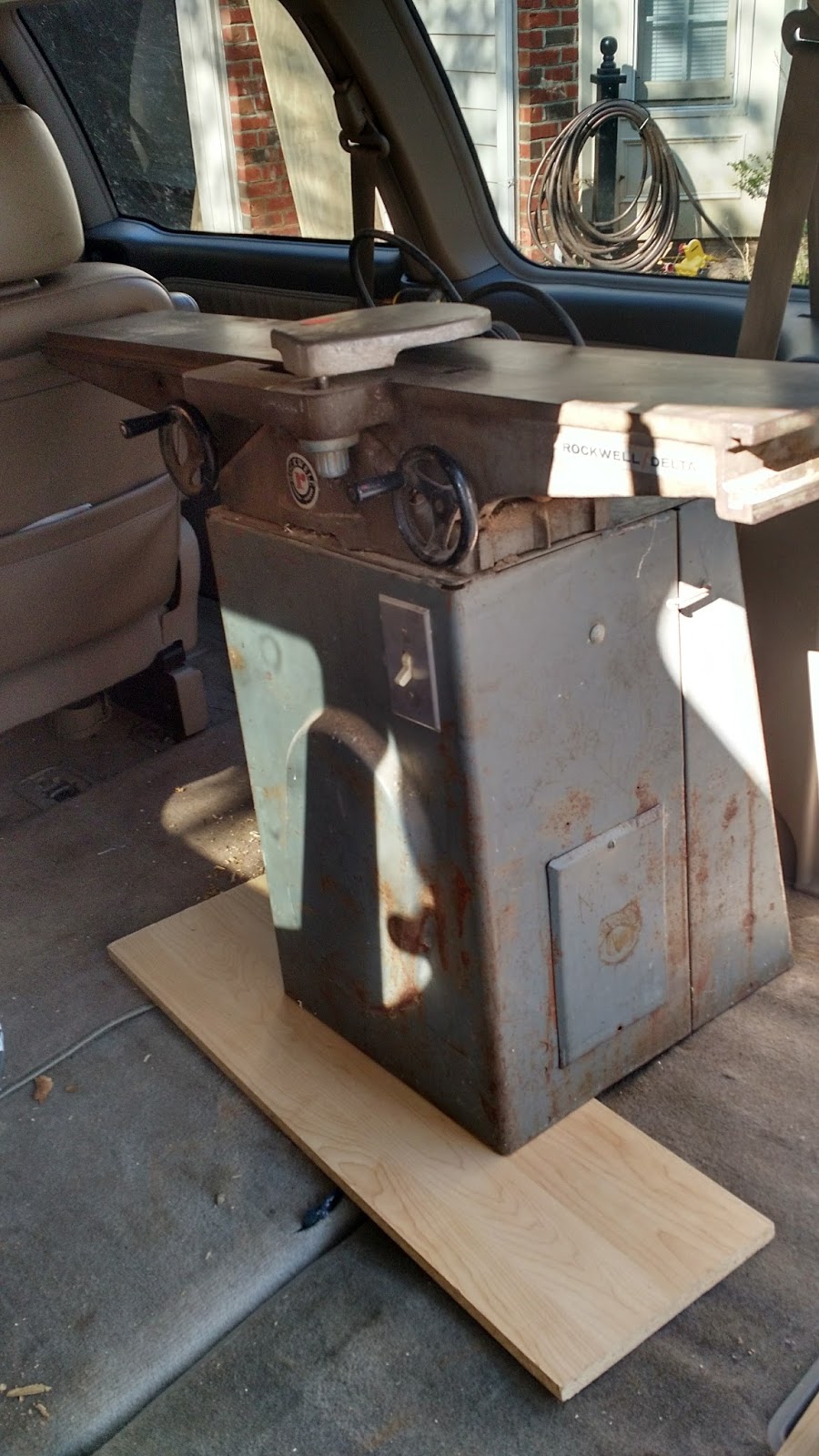

 I loaded the tiny little beast into my pick-up truck mini van and away I went!

Of course I couldn’t wait for my husband to come home to help unload it so I fixed up a way I could slide it out onto a dolly.  It’s heavier then it looks and the edges of the tables are sharp!

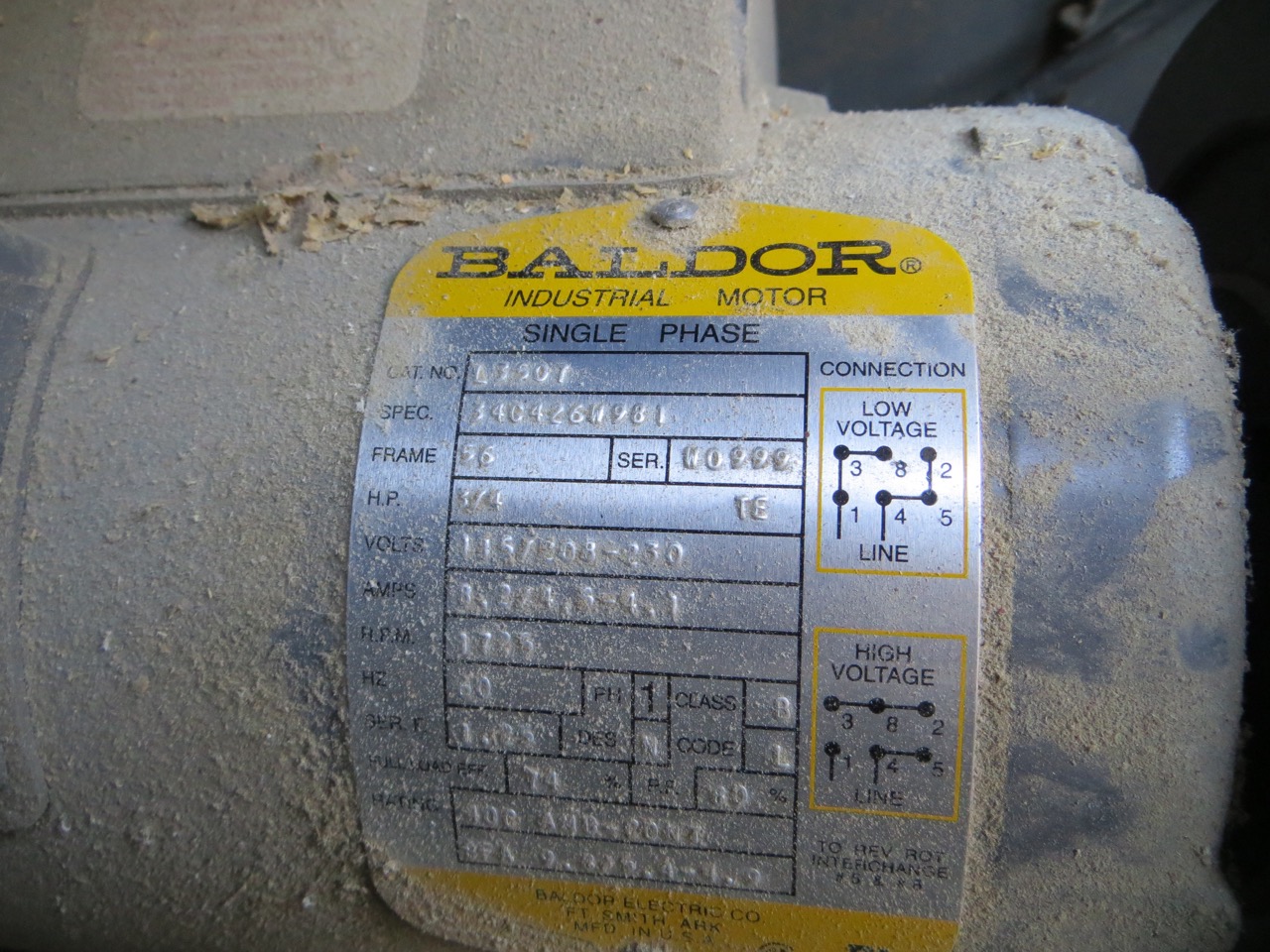

I’m happy to show you how I disassembled everything because it became a stressful process as I realized the tables weren’t as easy to remove as people were saying jointer tables generally are: “loosen the gib screws and the tables should literally fall off”.  Not with this one!

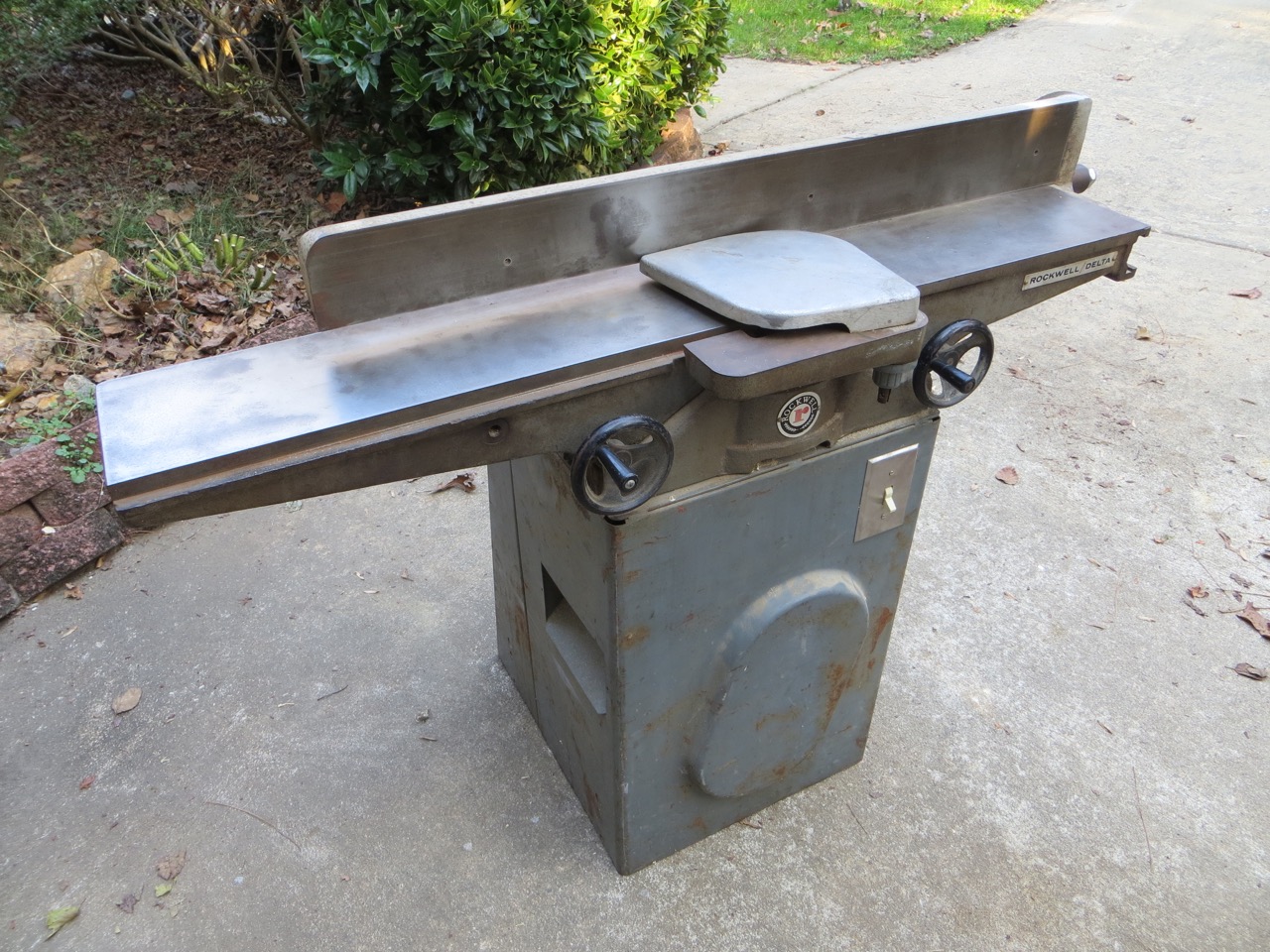

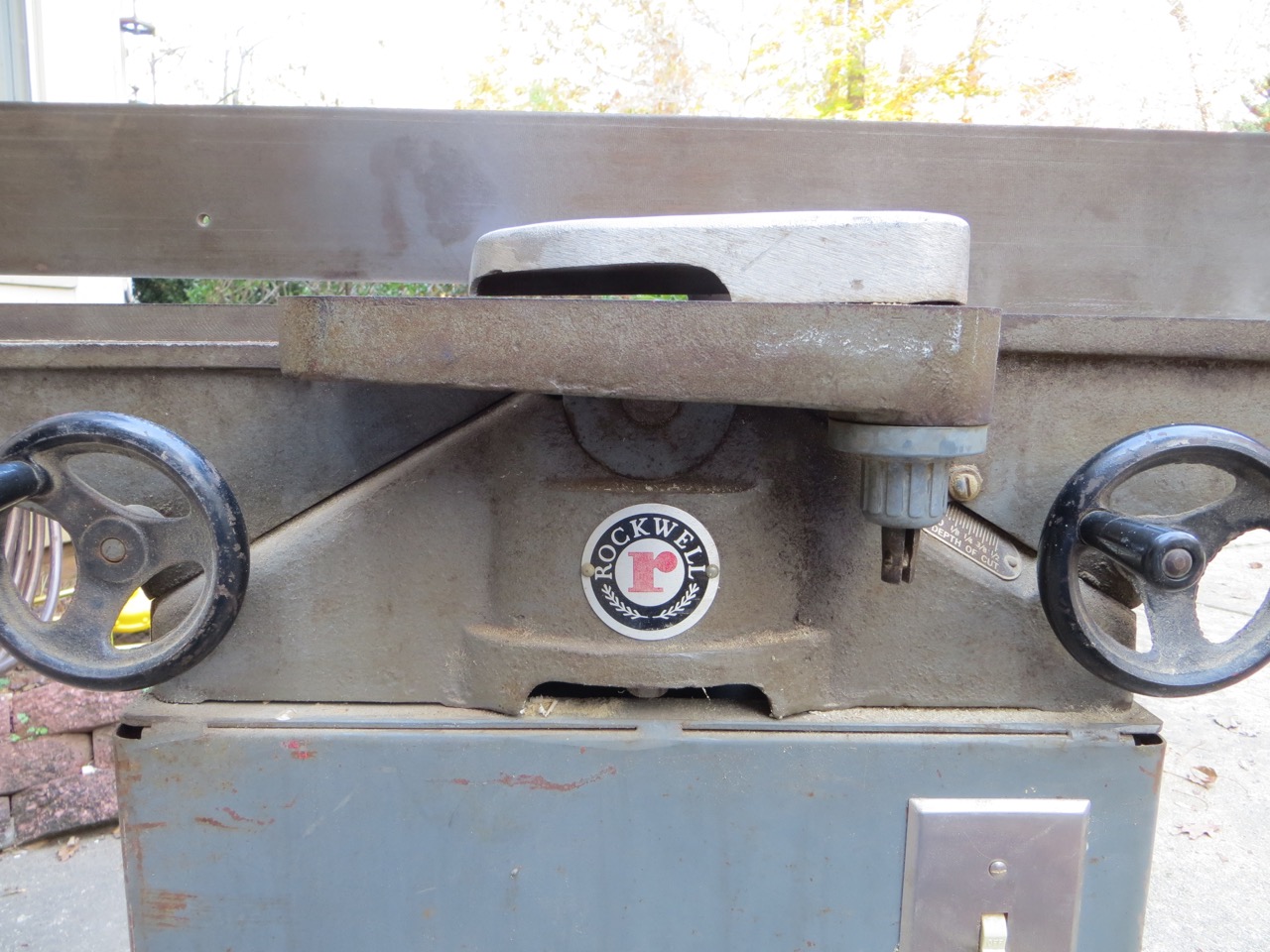

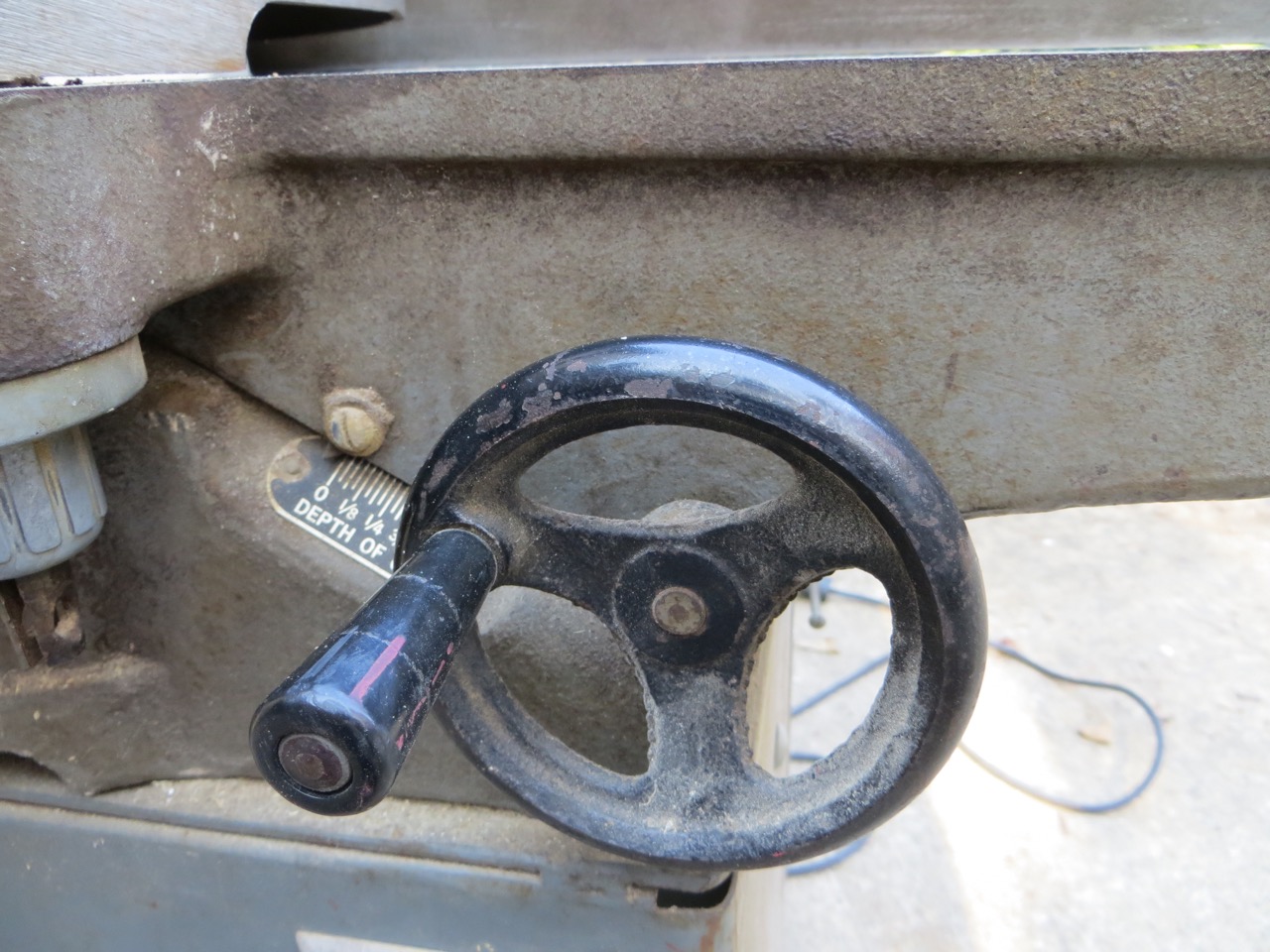

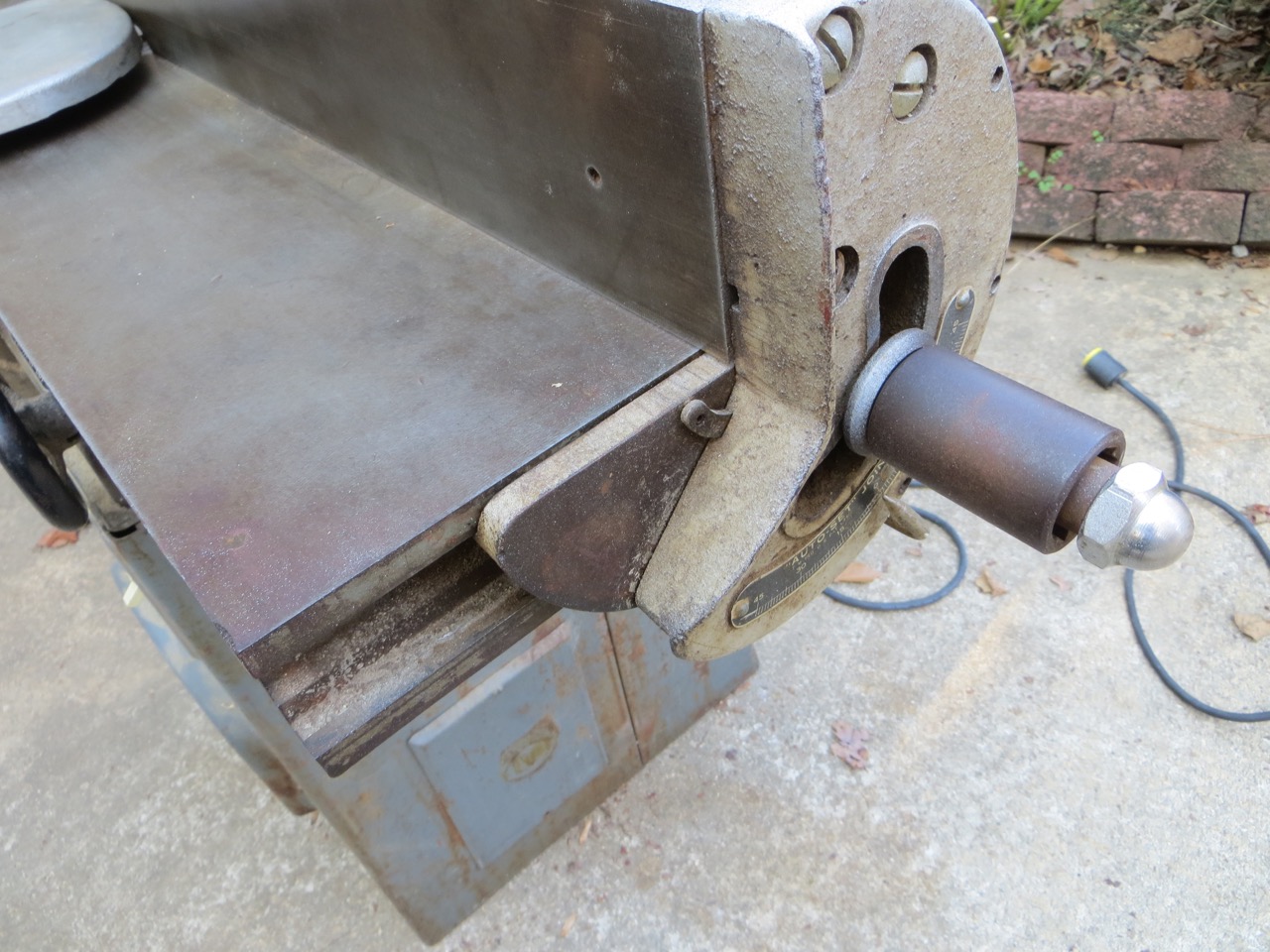

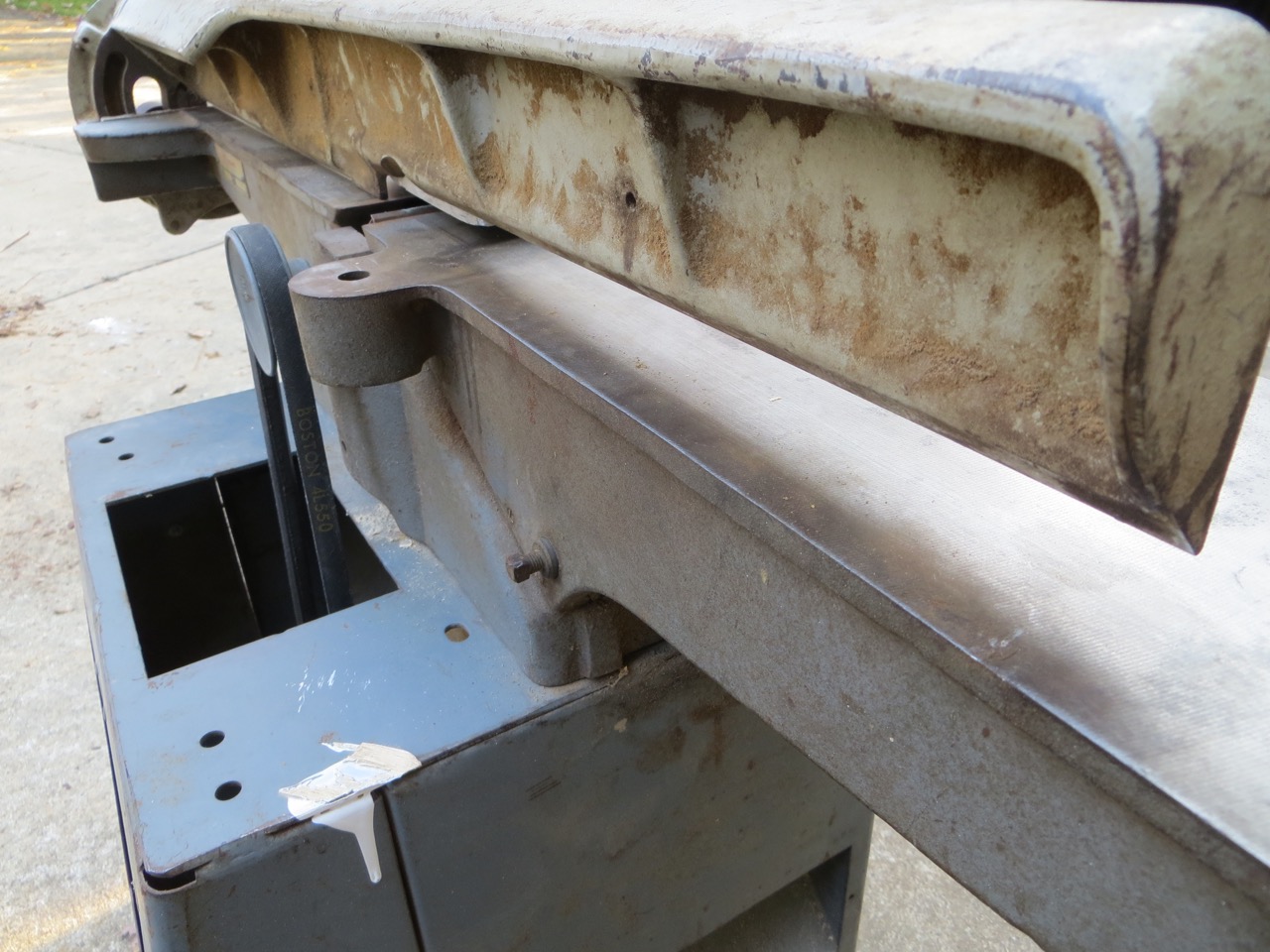

But first – my favorite part – BEFORE and AFTER pictures!

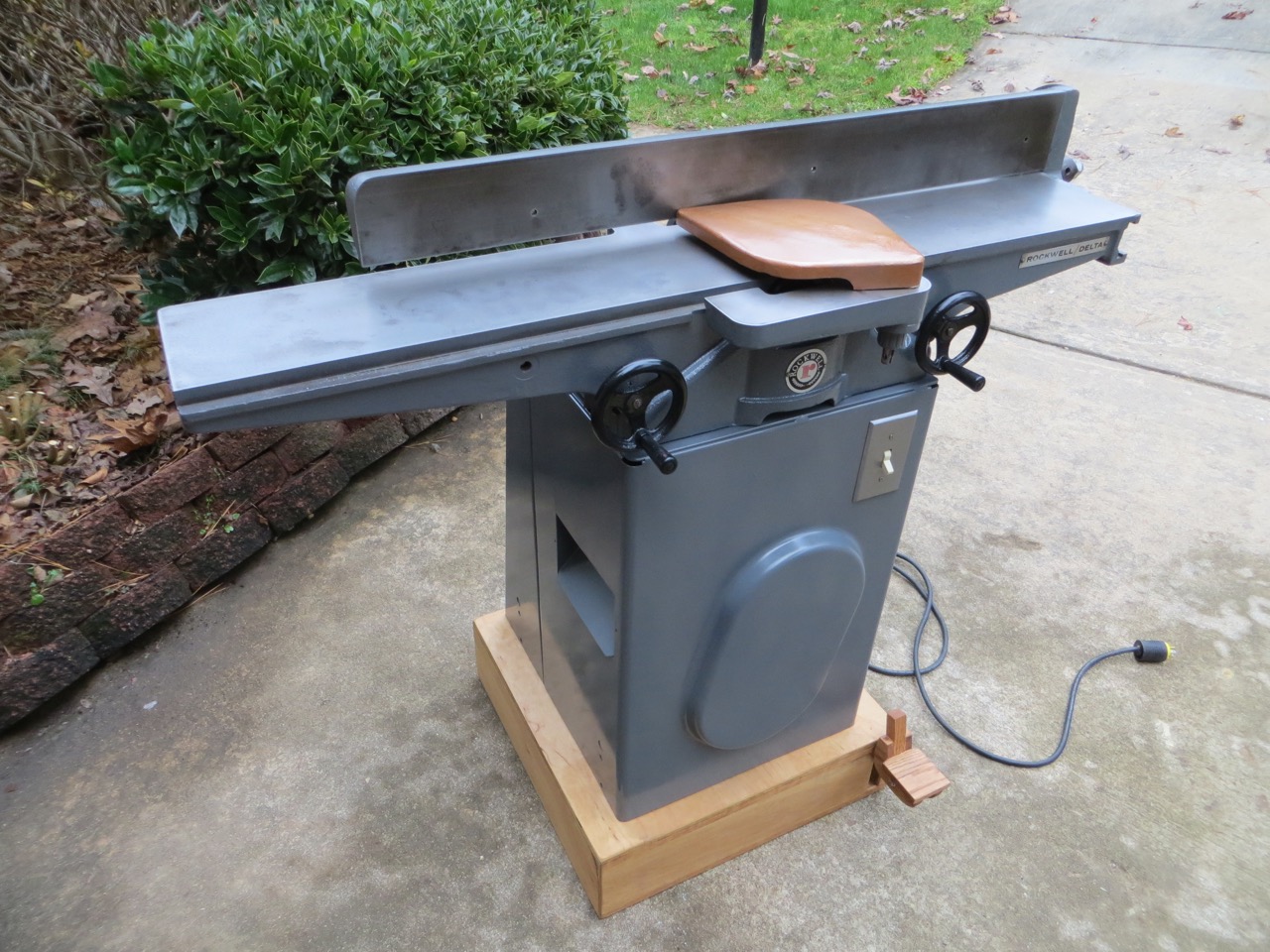

 I made a caster base for the jointer.  I love how the caster wheels are activated with a simple pedal!  Even without the casters I would have wanted a base to raise the jointer because it seemed unusually short and I’m only 5’7″.  I made the wooden base almost 2-inches bigger on each side and the front to stabilize the jointer more-I was really surprised how unstable it felt, especially with how front-heavy it was!

I also made some simple push blocks and will show you at the end how I made them.  It felt SO much safer pushing boards through with these (especially after watching a guy almost loose some fingers on this thing)!

Orbital Sander + 220 Grit
Steel Wool – 00 & 0000
Metal-bristled Brushes
Mineral Spirits (Heavy Duty Gloves + Goggles)
TSP Cleaner
PB Blaster
Rubber Mallet
Masking Tape

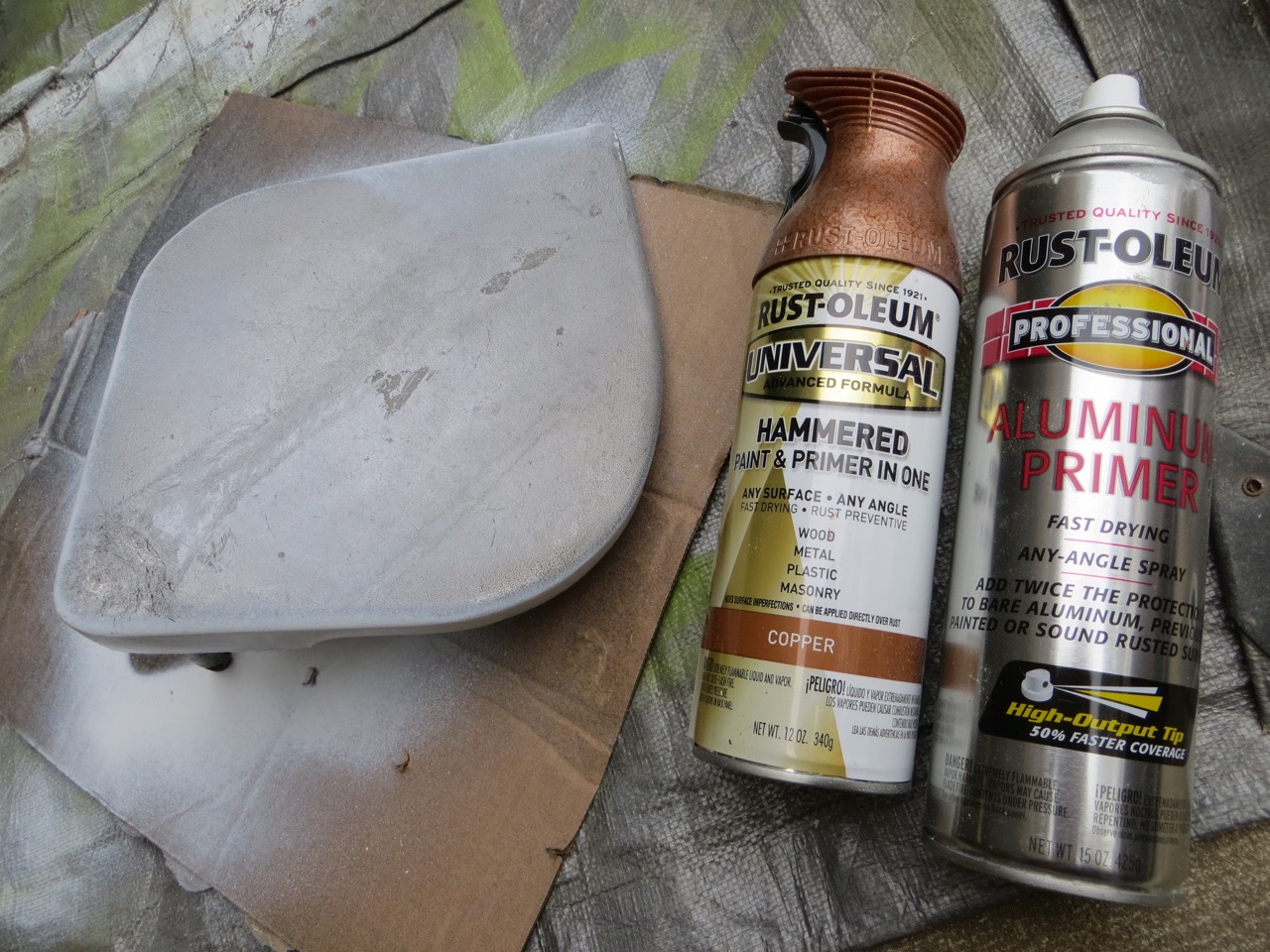

Primer & Paint
Cotton Balls, Swabs, Rags

I recommend cleaning the tables first.  My tables were very rusty and had deep machining marks from the manufacture so I opted to use my orbital sander with 220 grit paper first – it cleaned them up pretty good!  I finished off by spraying WD-40 and rubbing with the length of the tables using steel wool pads; starting with 00 and ending with 0000.

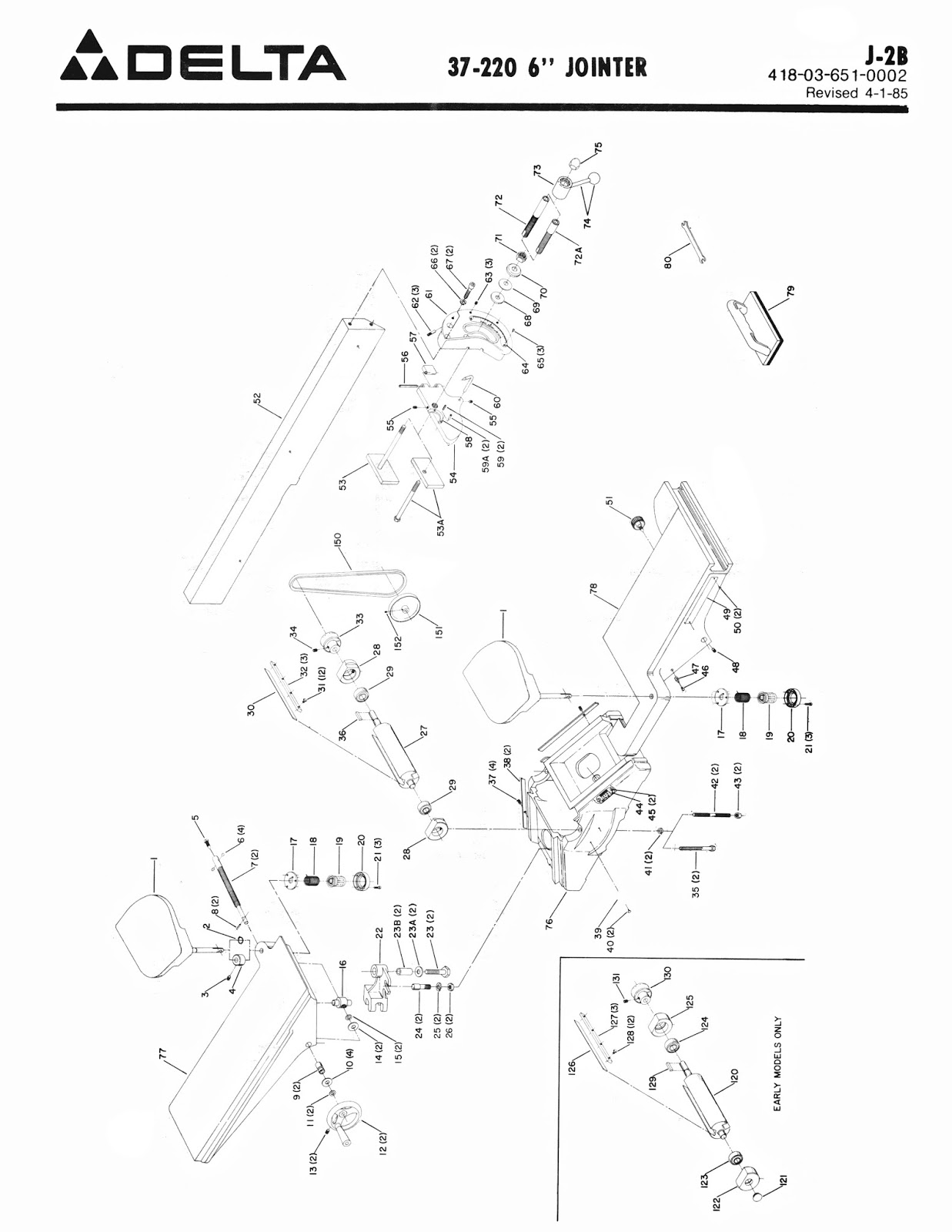

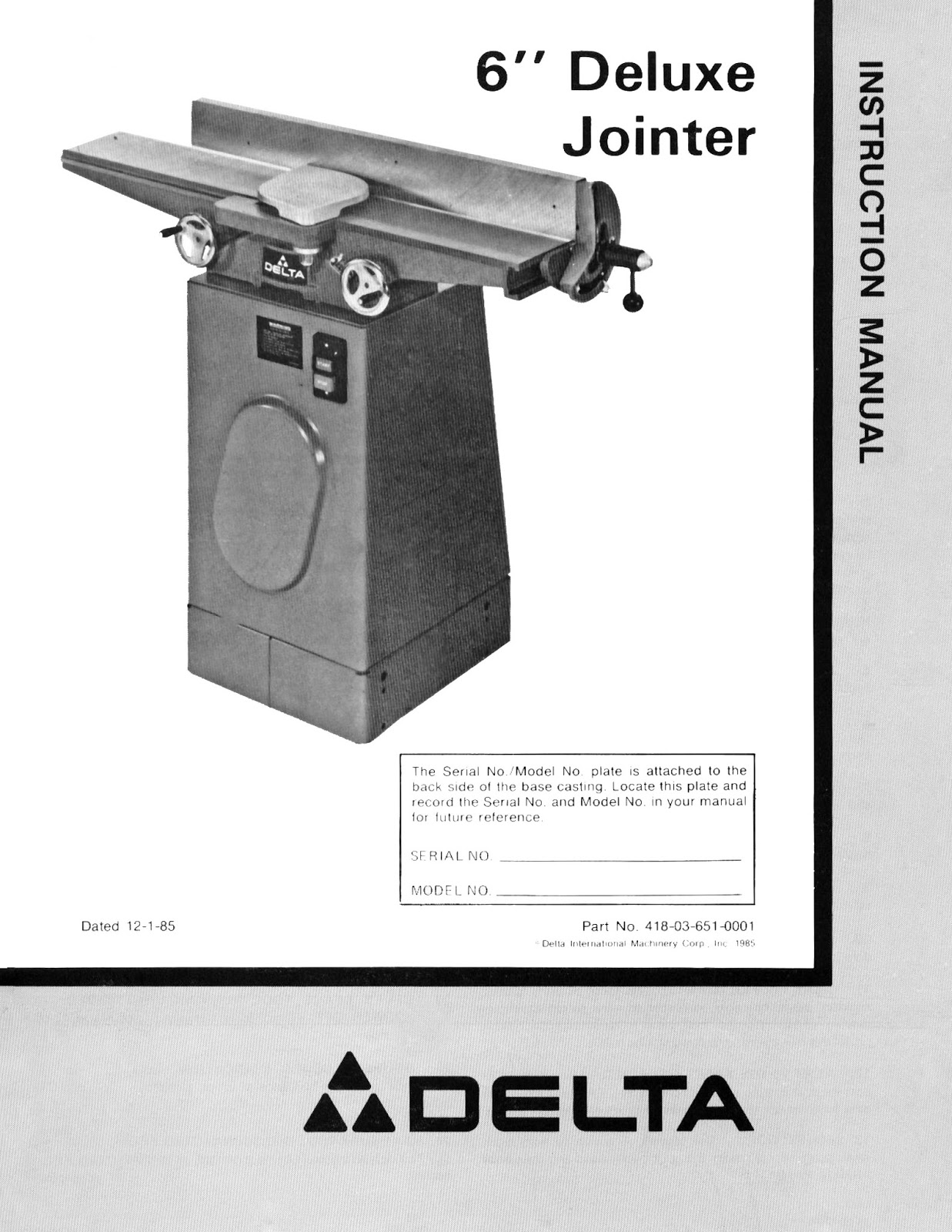

Here’s an exploded parts list diagram that may help as you work.

 Turn the main jointer head upside down.  You can remove the tables first but I opted to get the cutterhead out of the way to avoid bending the pulley shaft from flipping everything back/forth while I worked.

 Loosen/remove all gib screws.

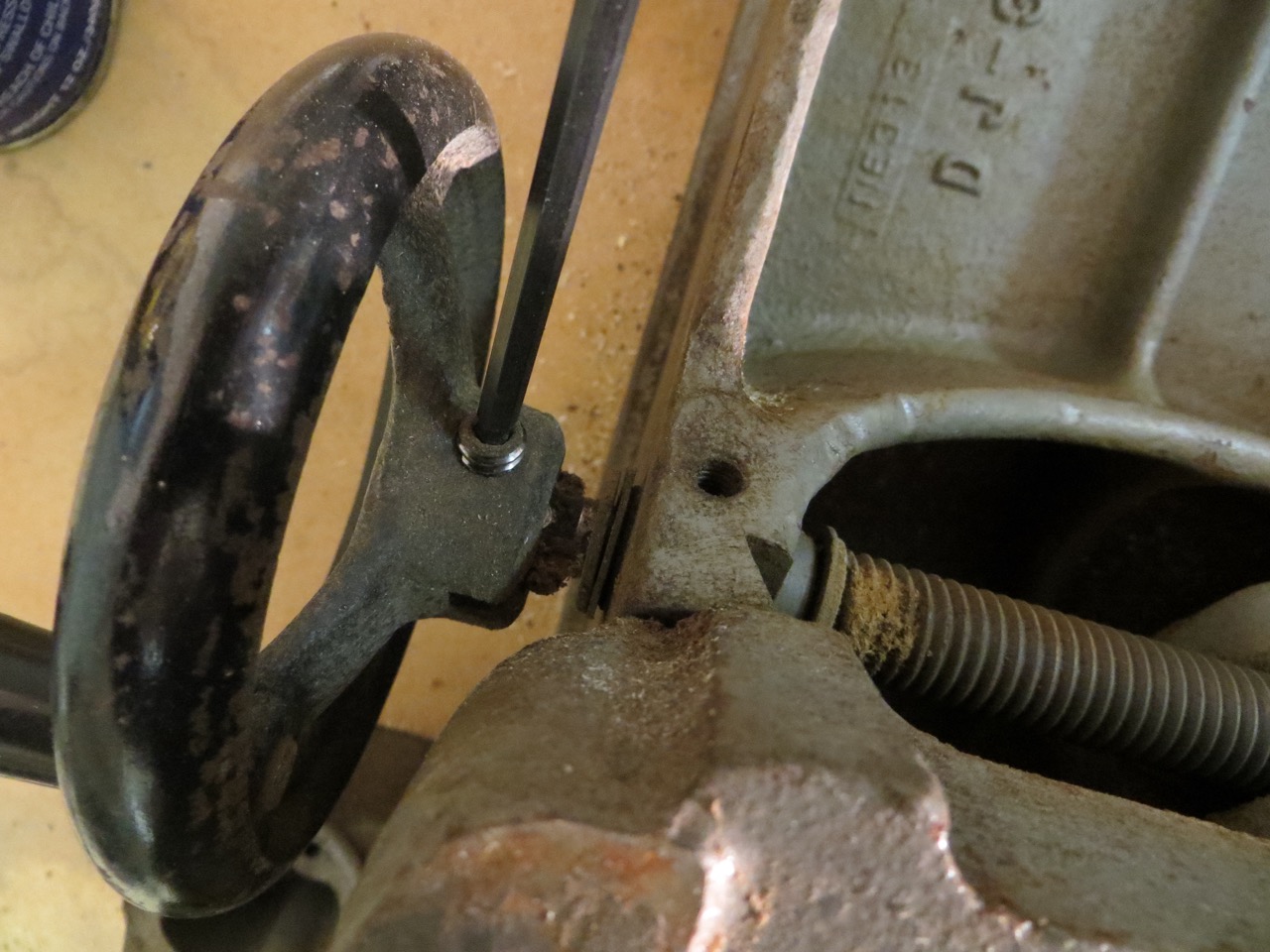

 Remove handles and lock screws from the other ends.

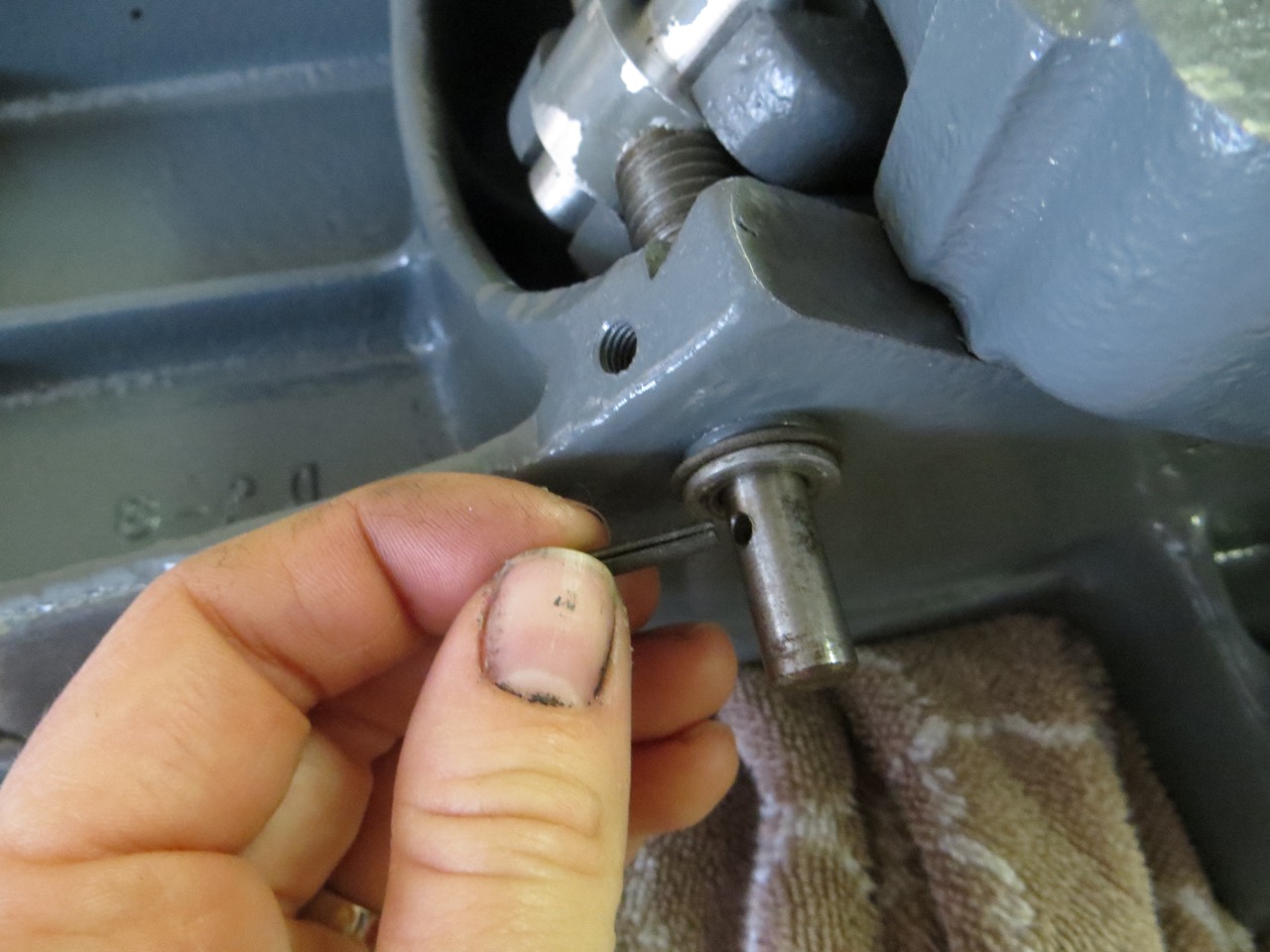

 Use a mallet and punch to push wheel pin out of shaft.

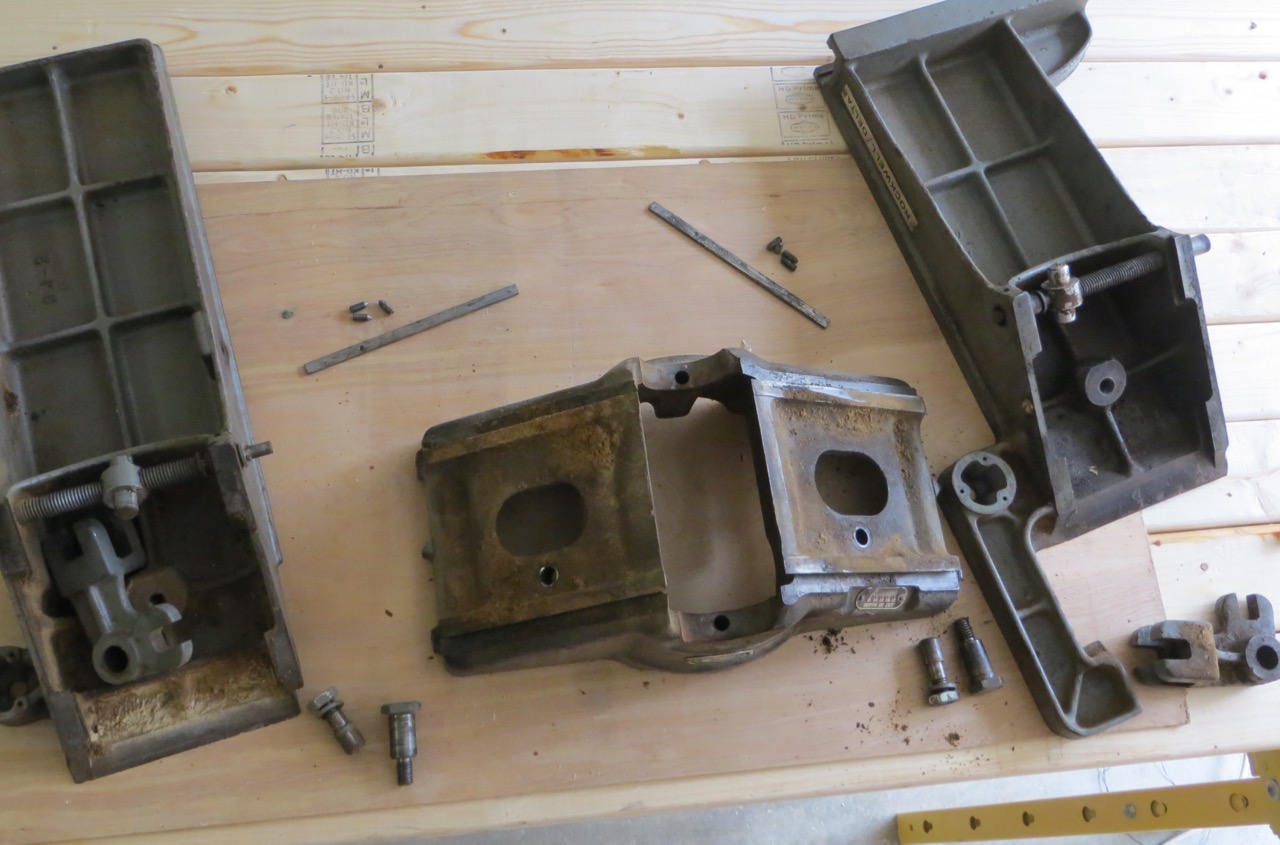

 I removed the right table first before I decided to document how to do it.

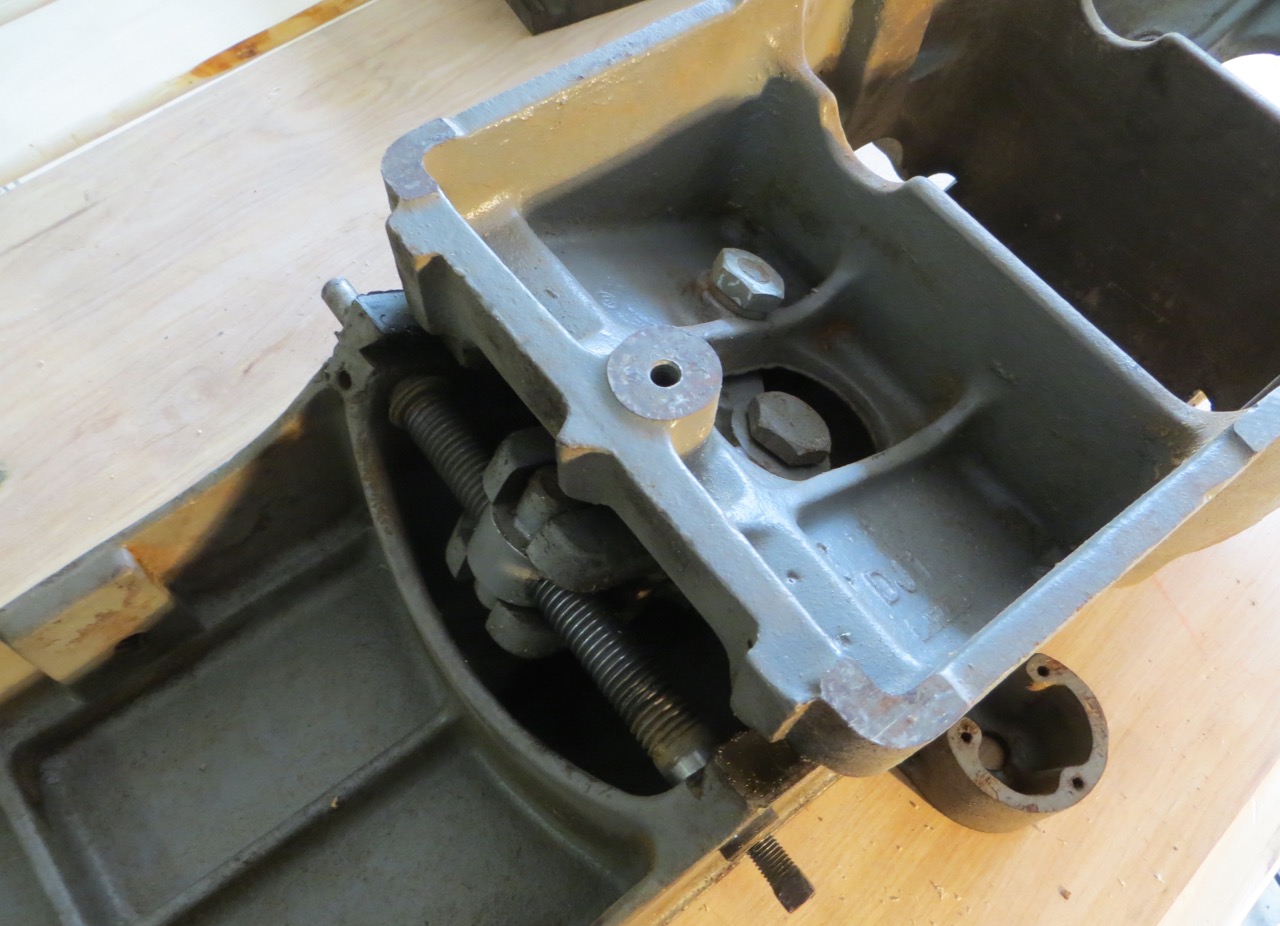

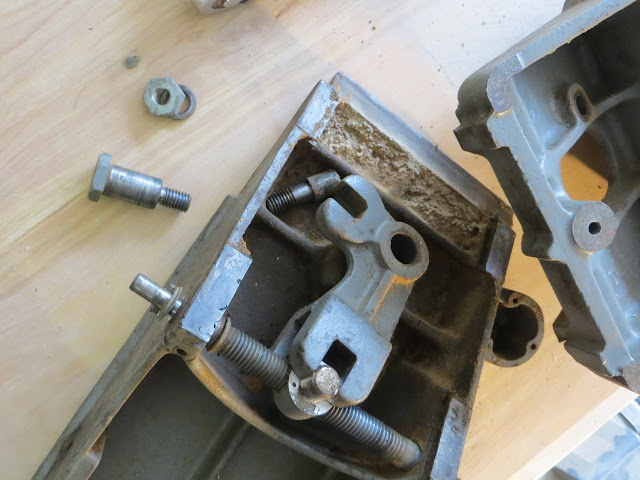

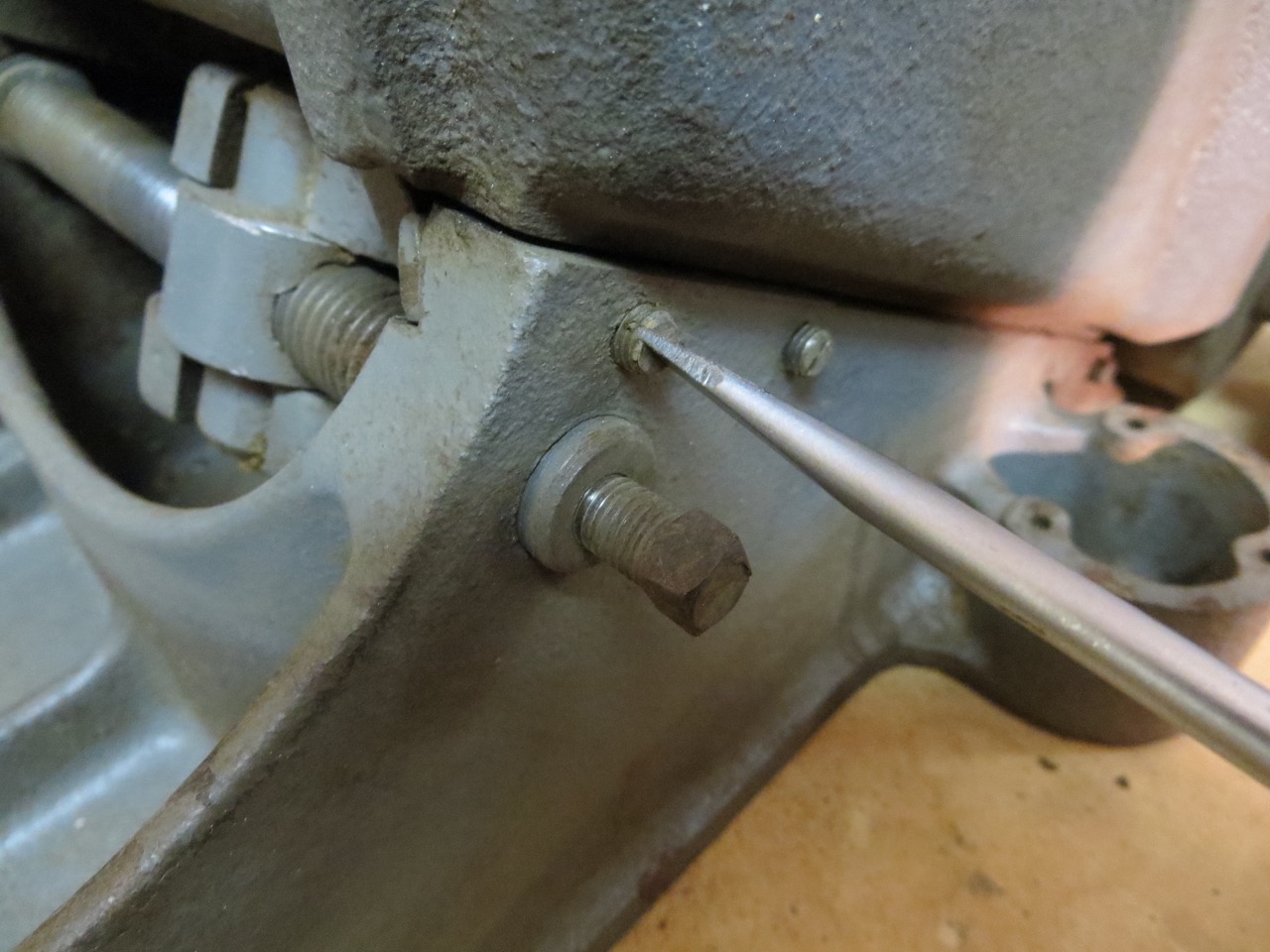

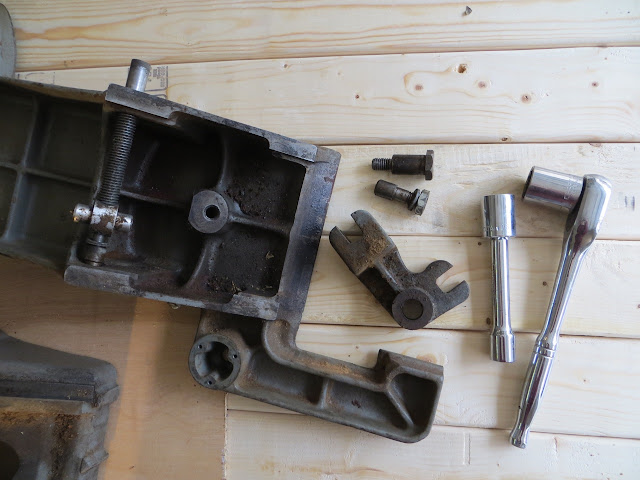

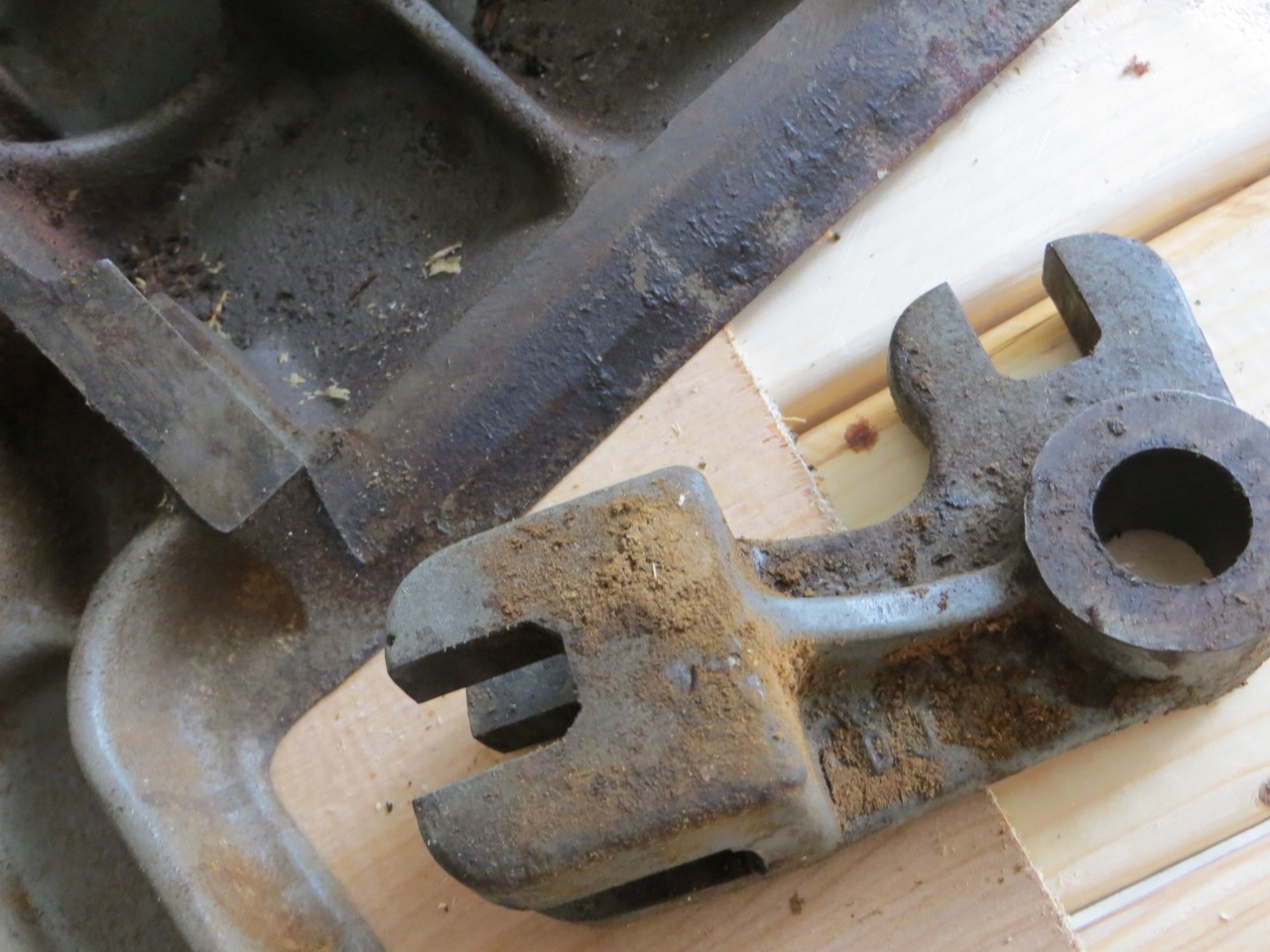

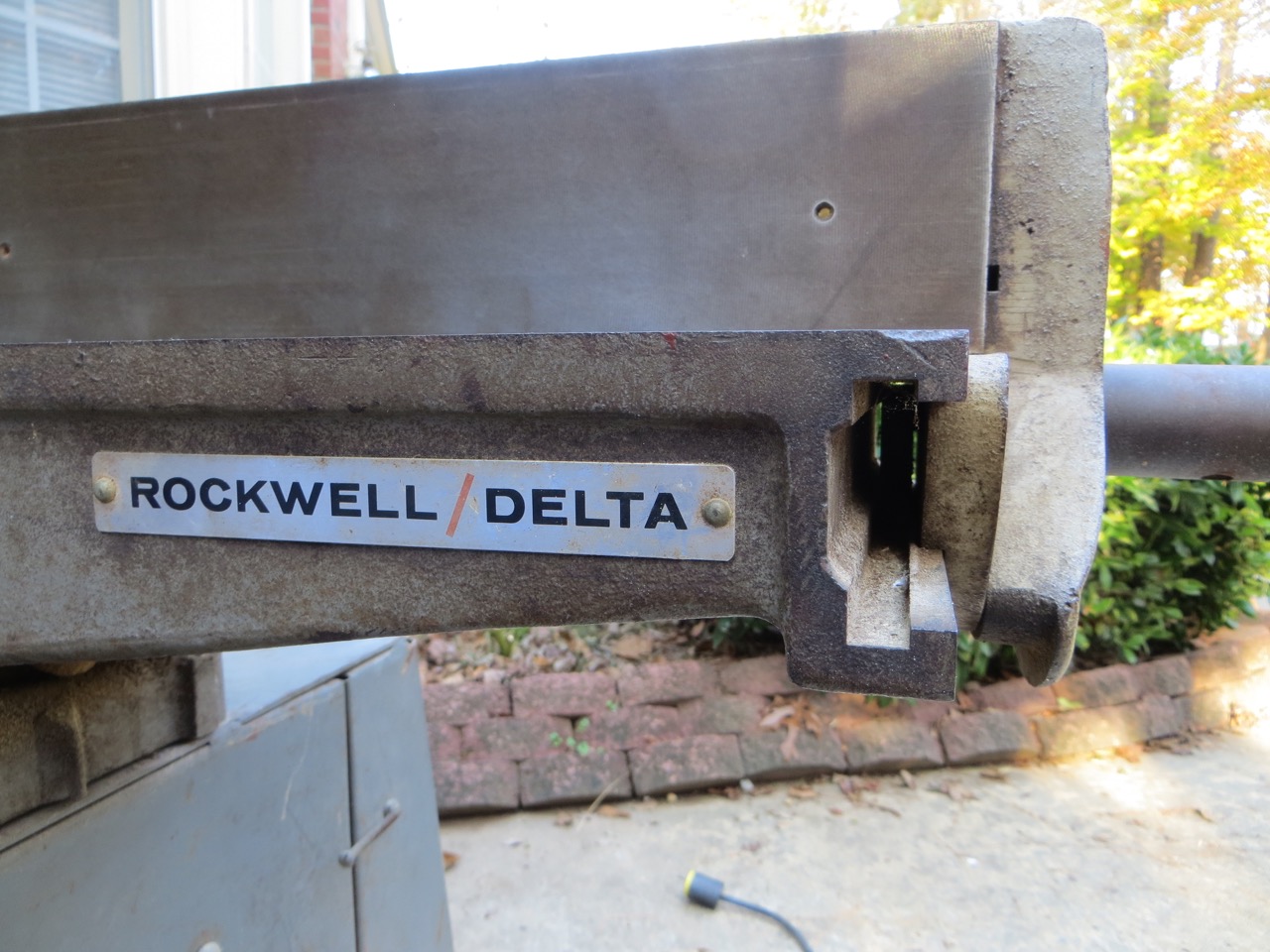

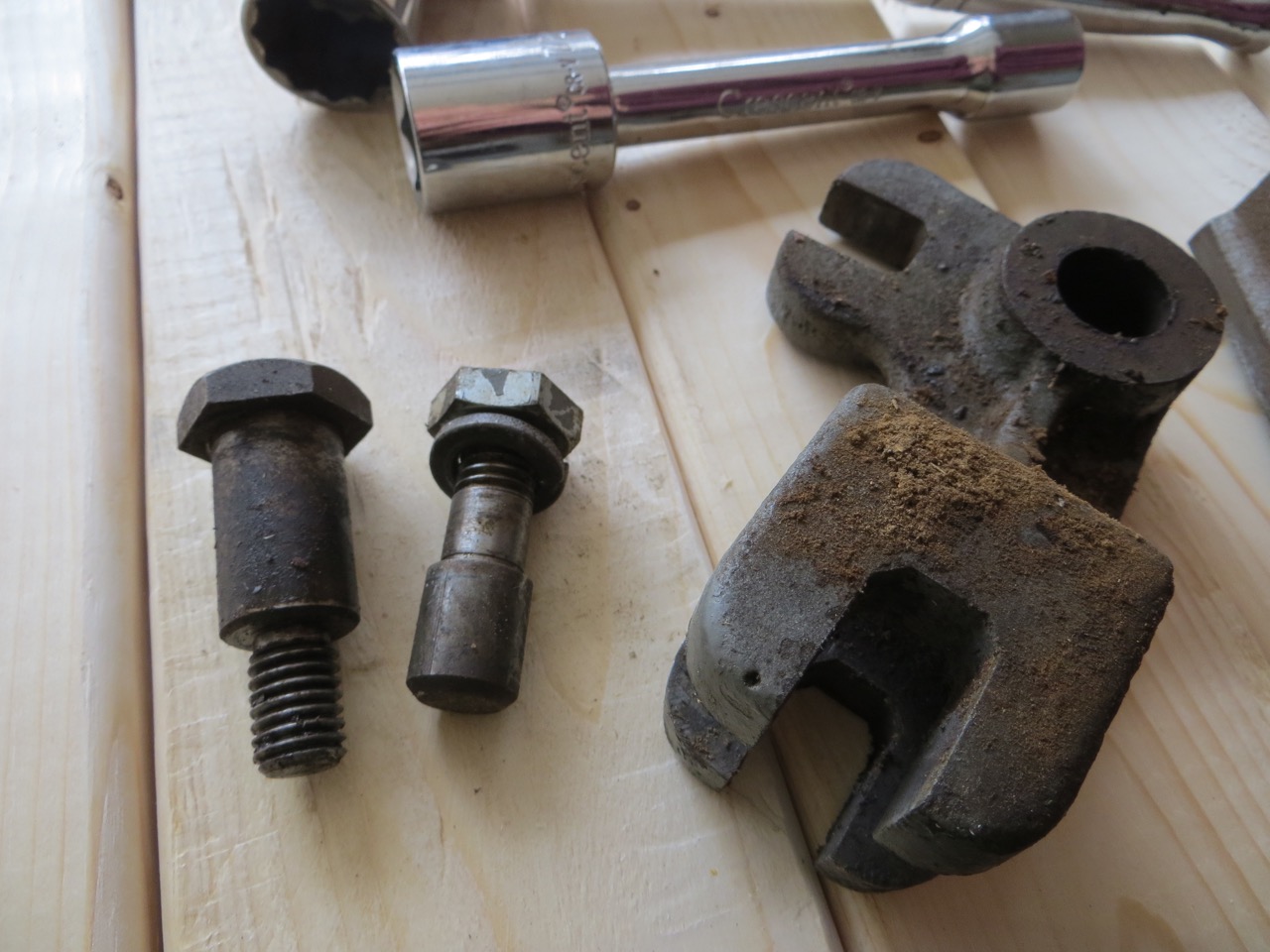

 This shows you the “arm” (bell crank), bolt and shoulder pin that keep the tables from sliding off once the gib screws are removed.  I tried SO hard to get the tables off without taking these parts off and it’s impossible!

 See the bolt head and nut there?…

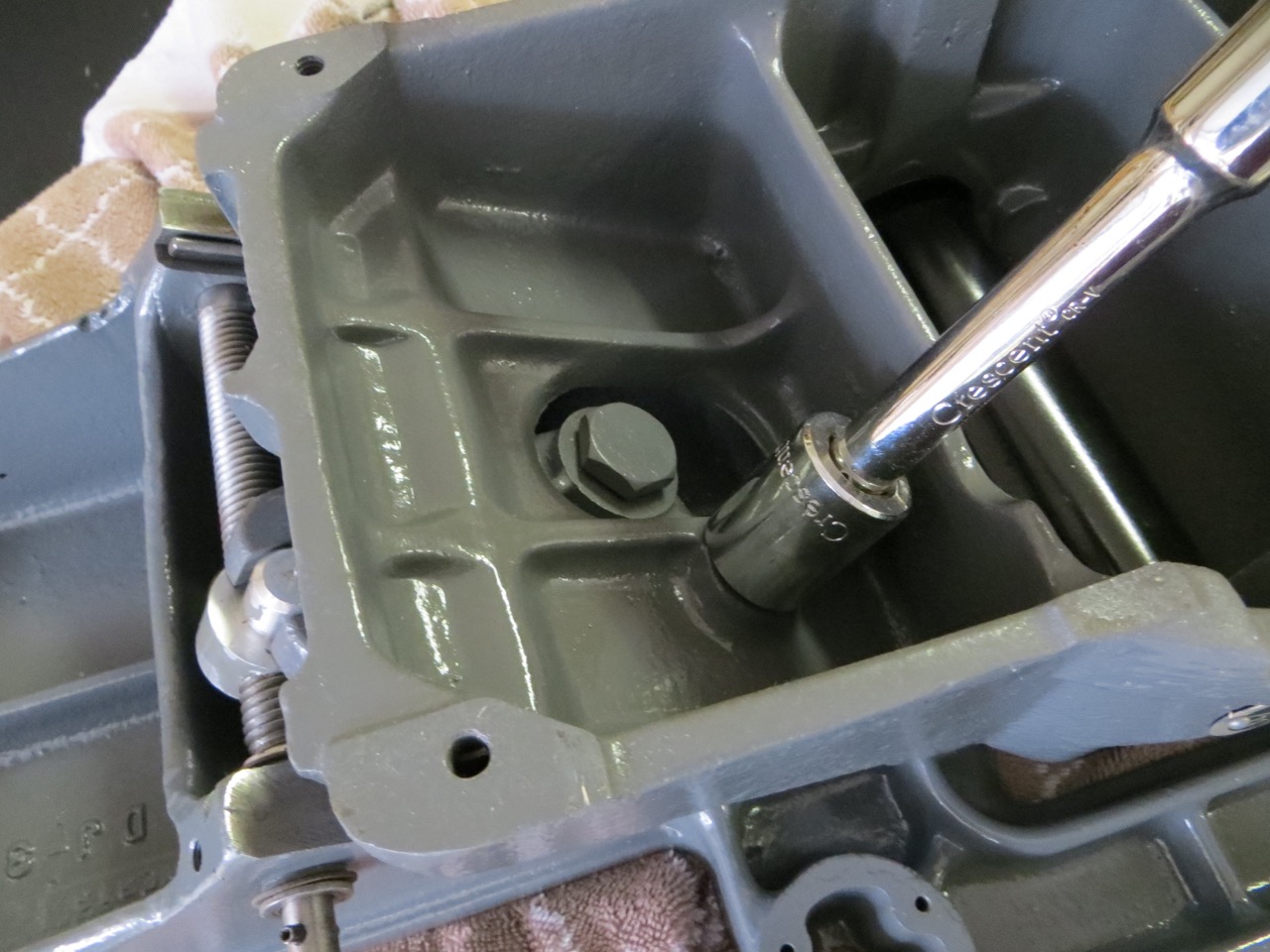

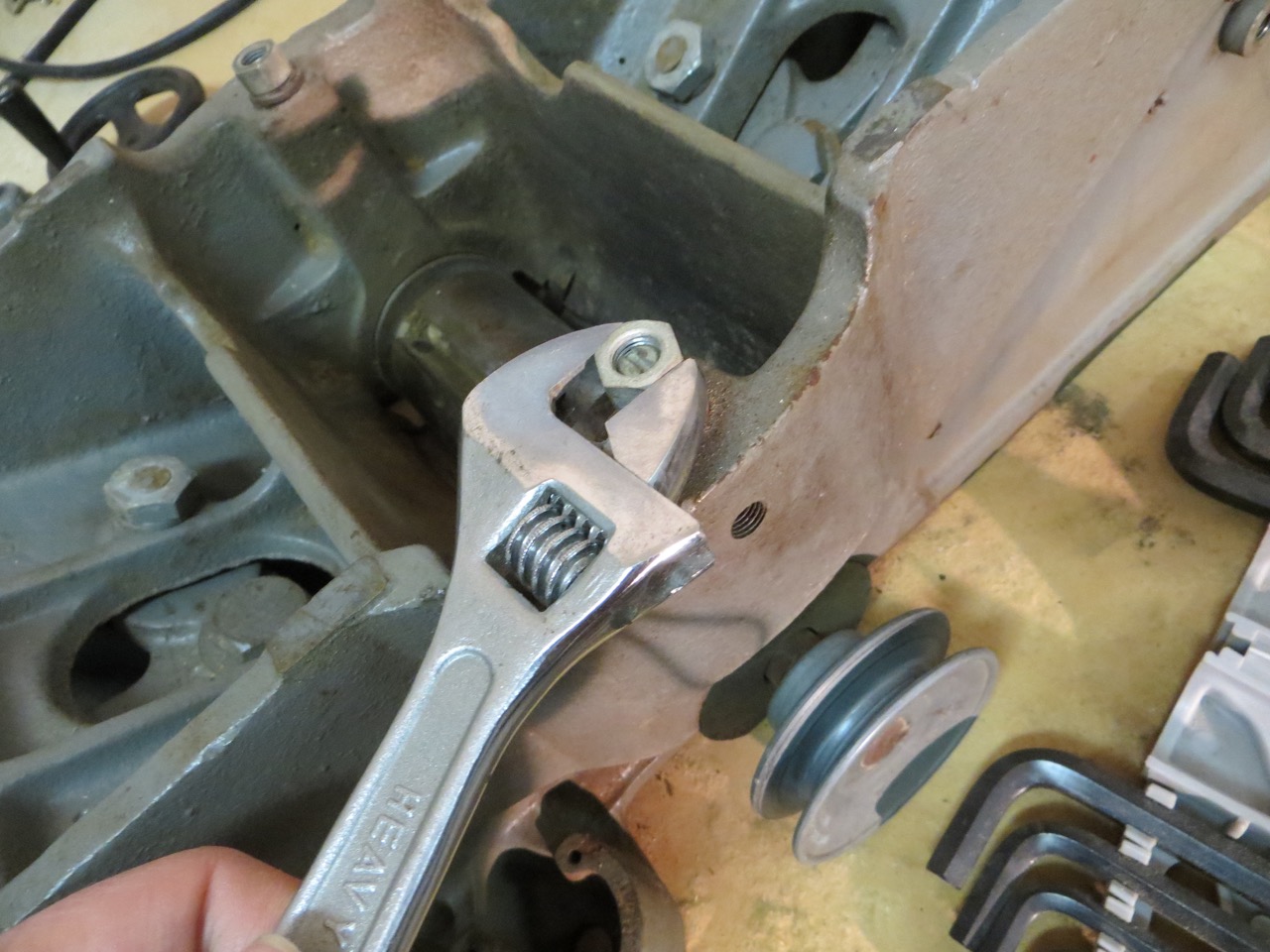

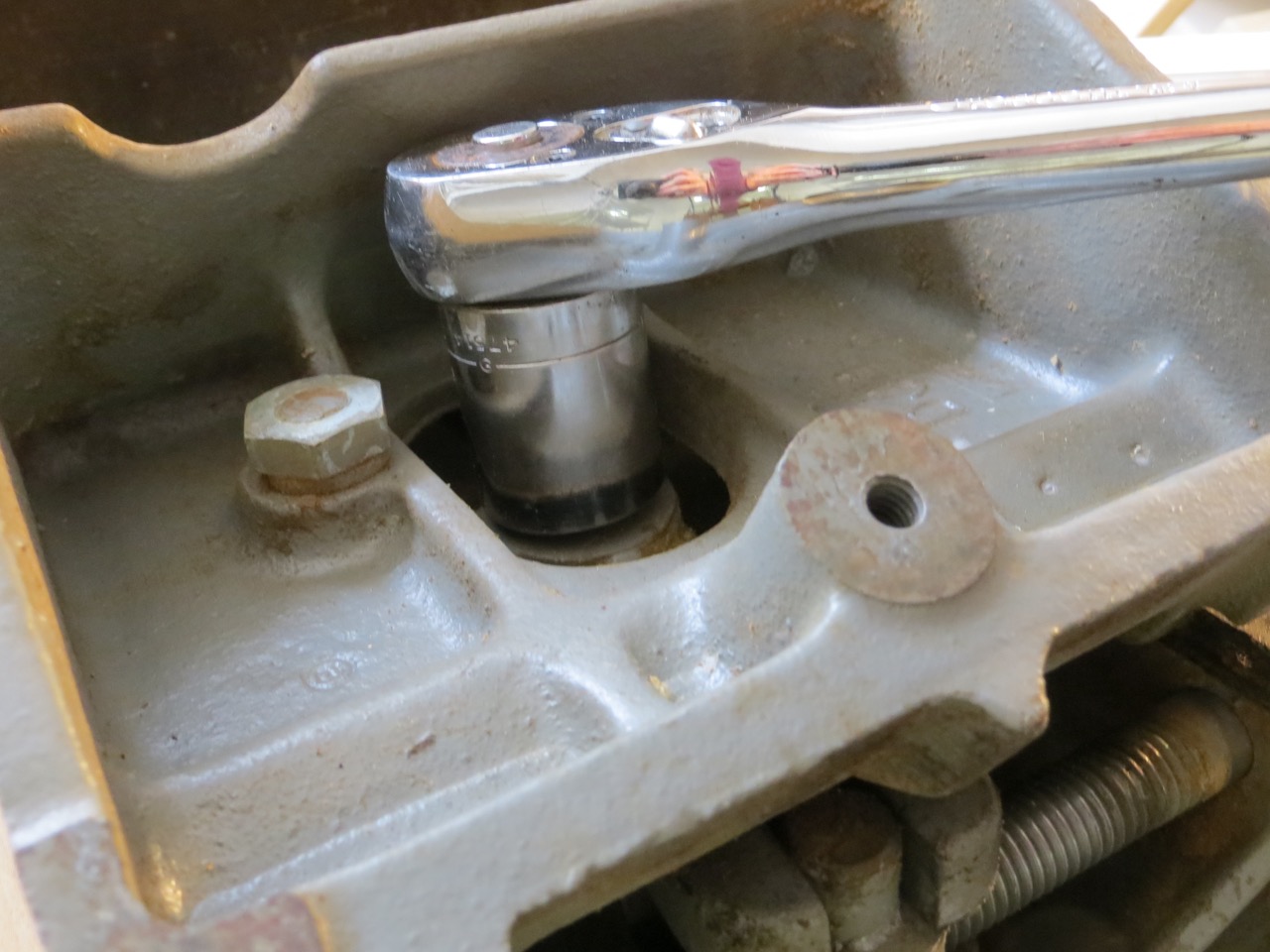

 …loosen the bolt with a 1″ socket (I’m pretty sure that’s the size).

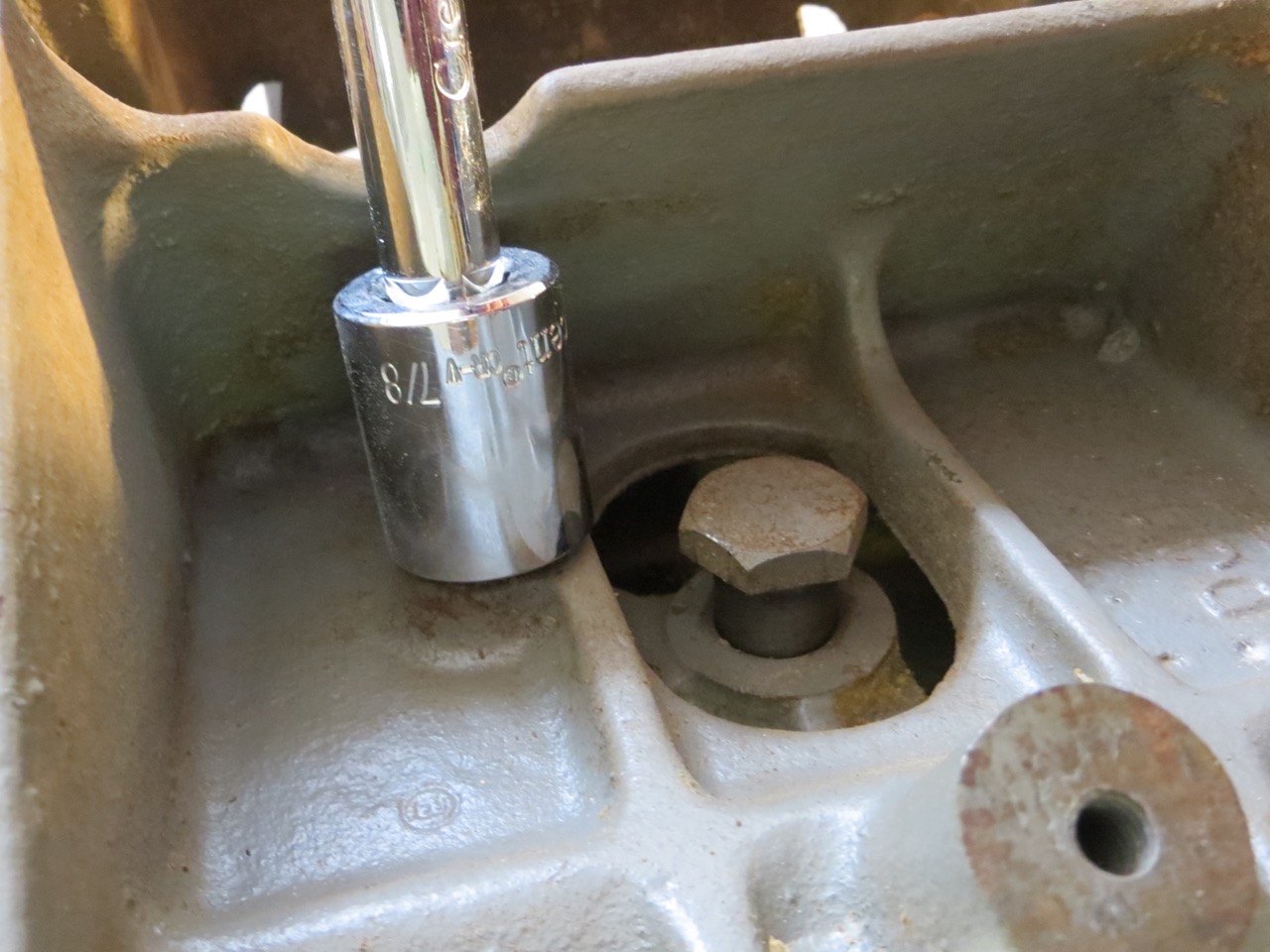

 And the nut with a 7/8″ socket.

 Once you remove the nut with lockwasher the shoulder pin that the “arm” rotates on falls down and the table can be pulled off (if your tables are upside down like mine you’ll be pulling the tables upwards to slide off).

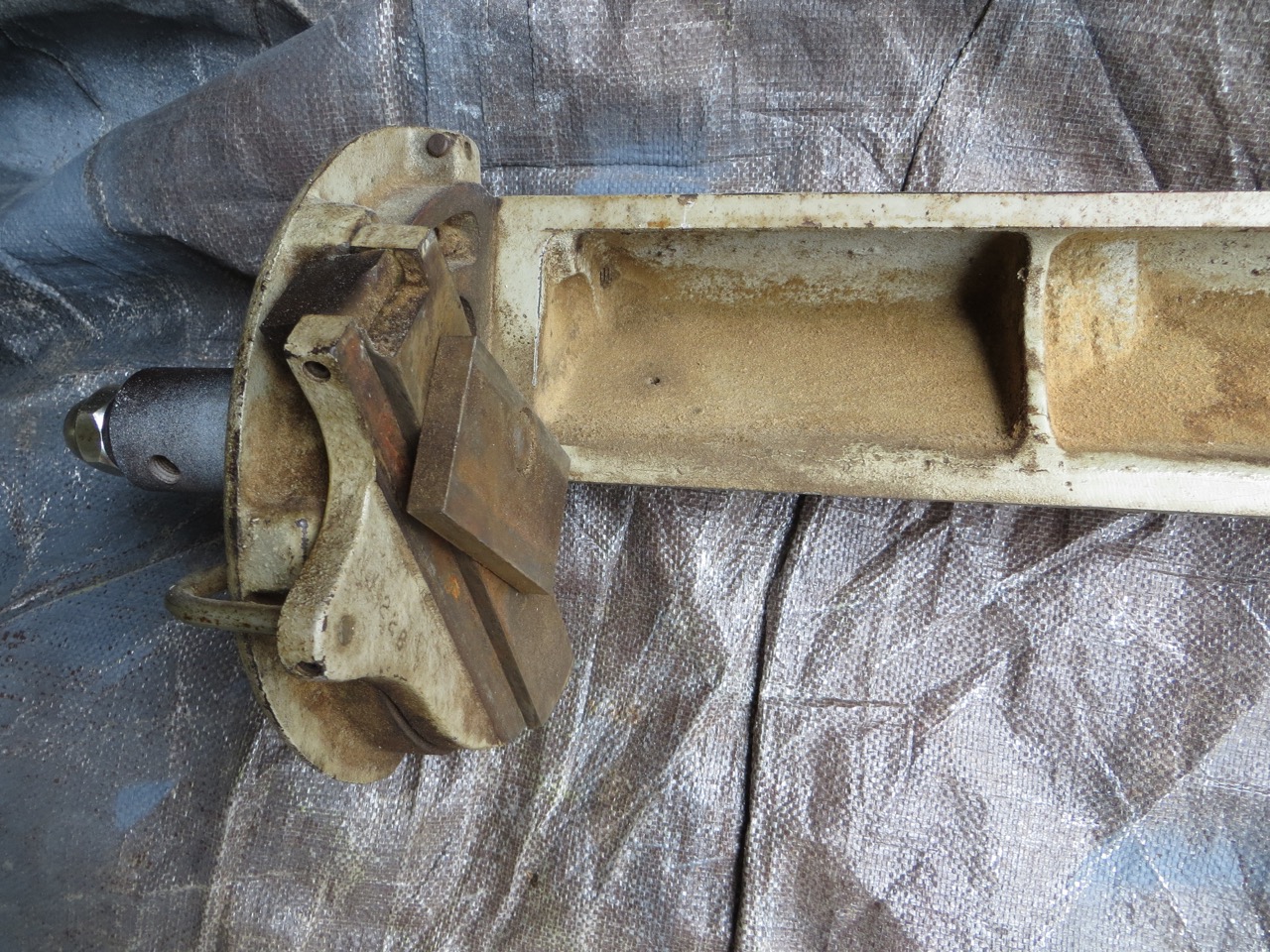

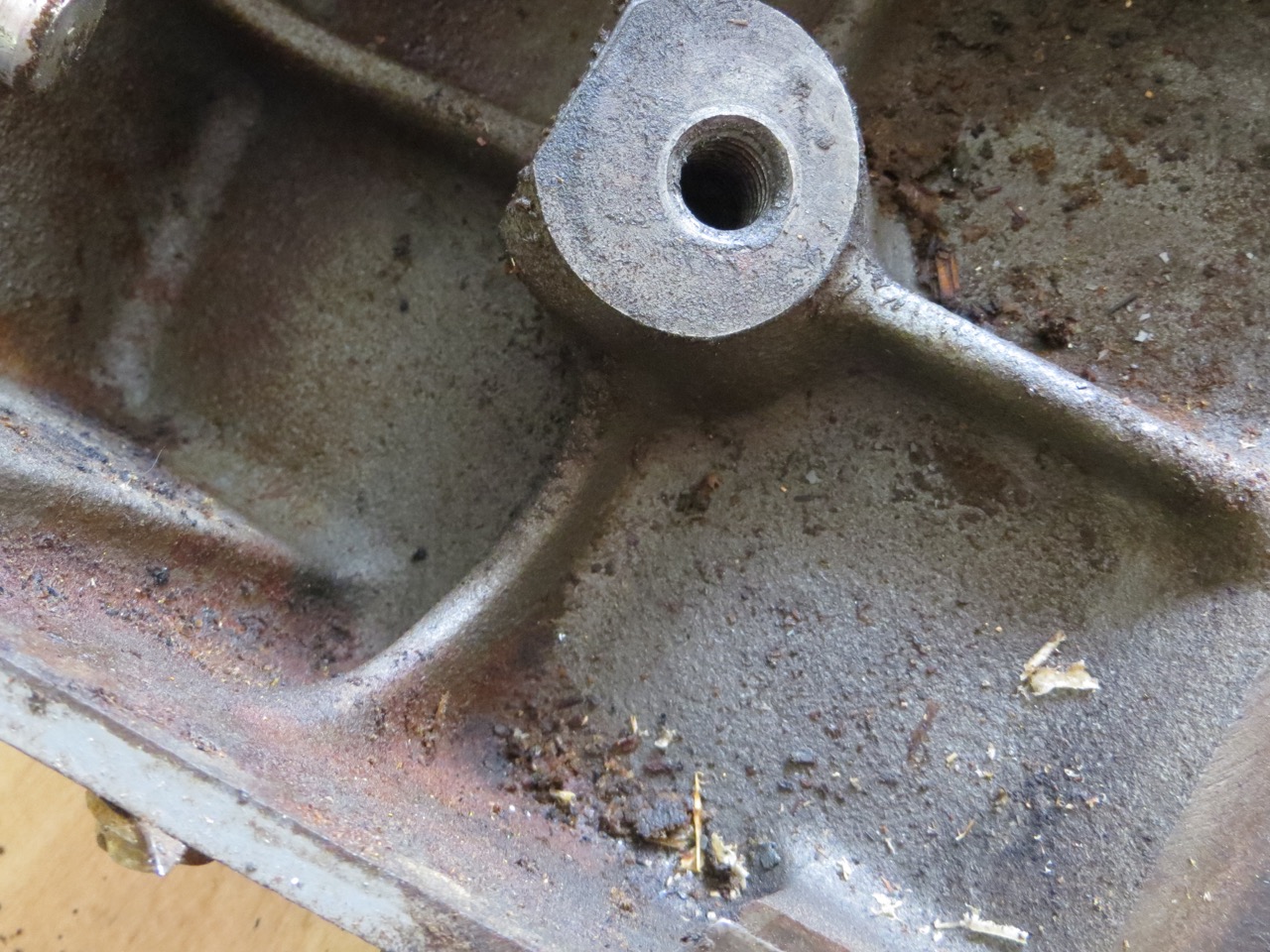

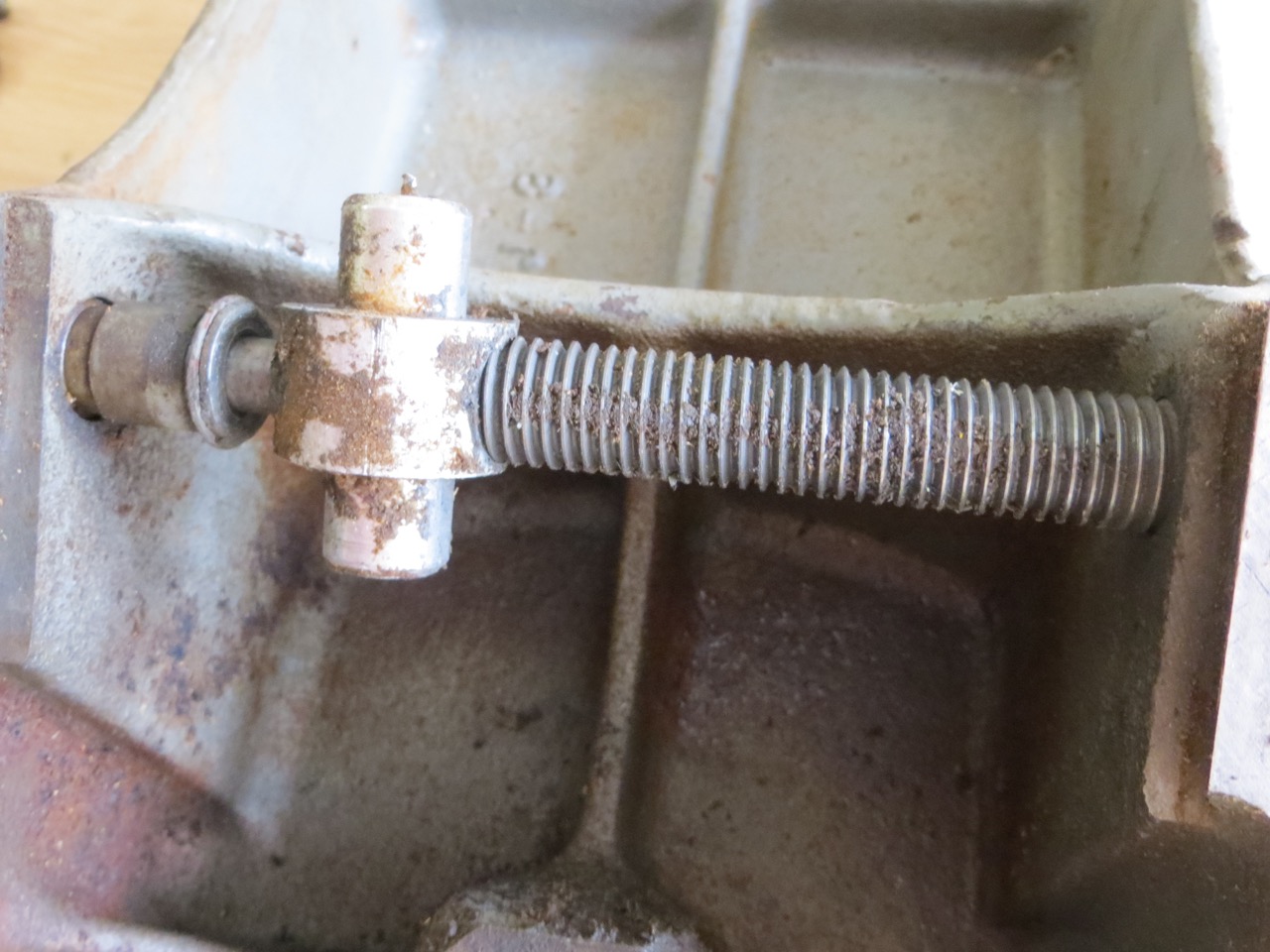

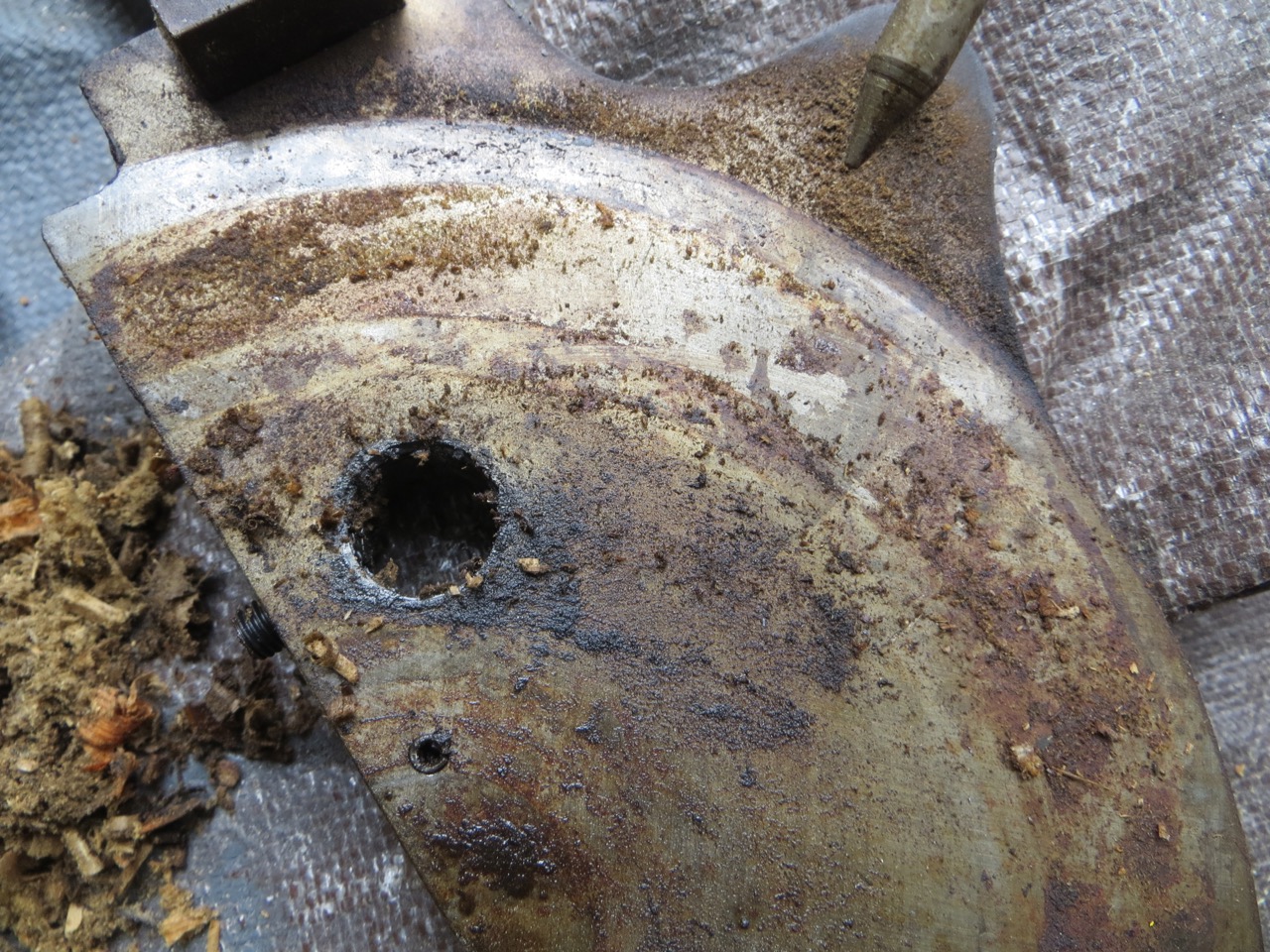

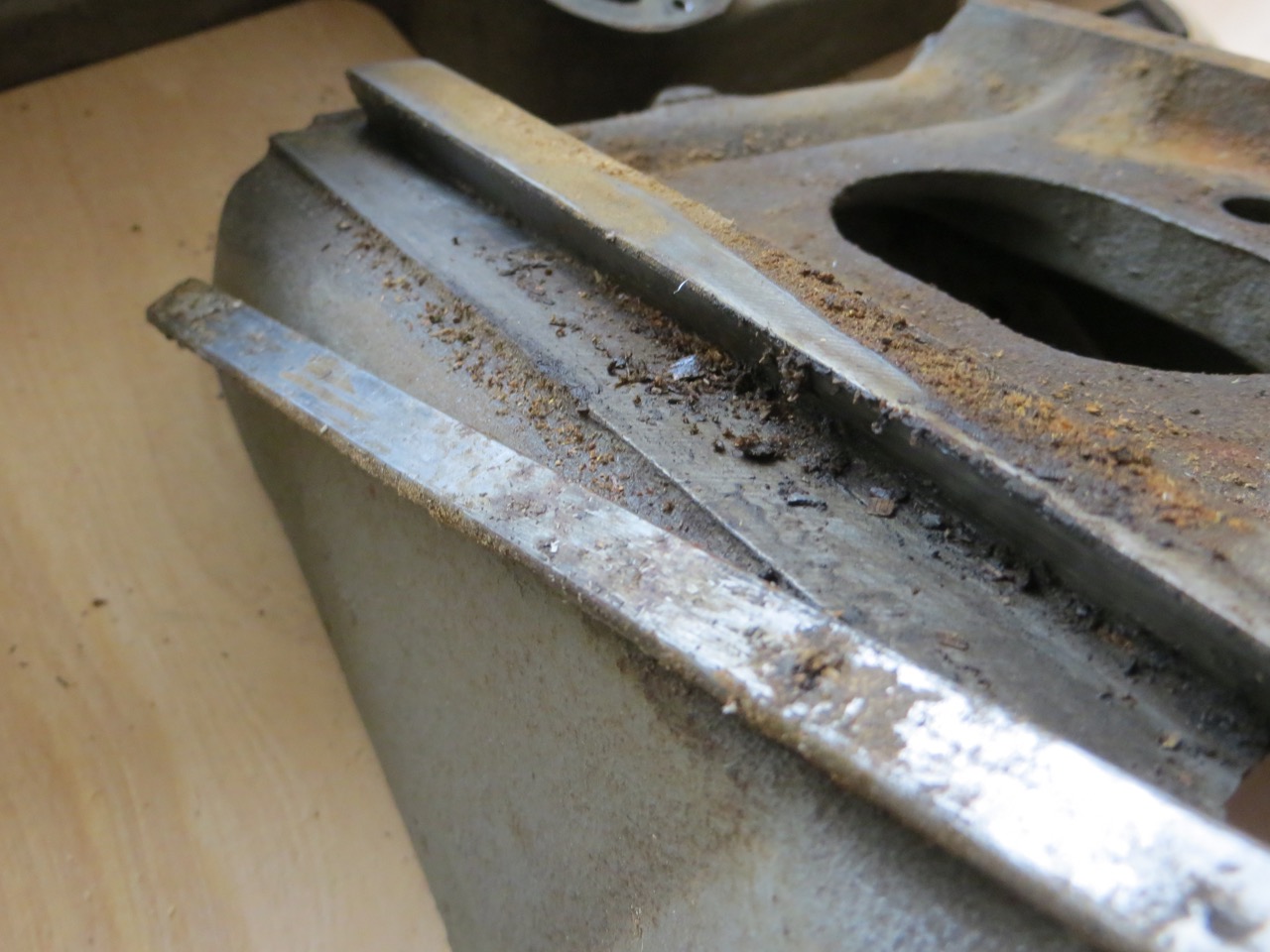

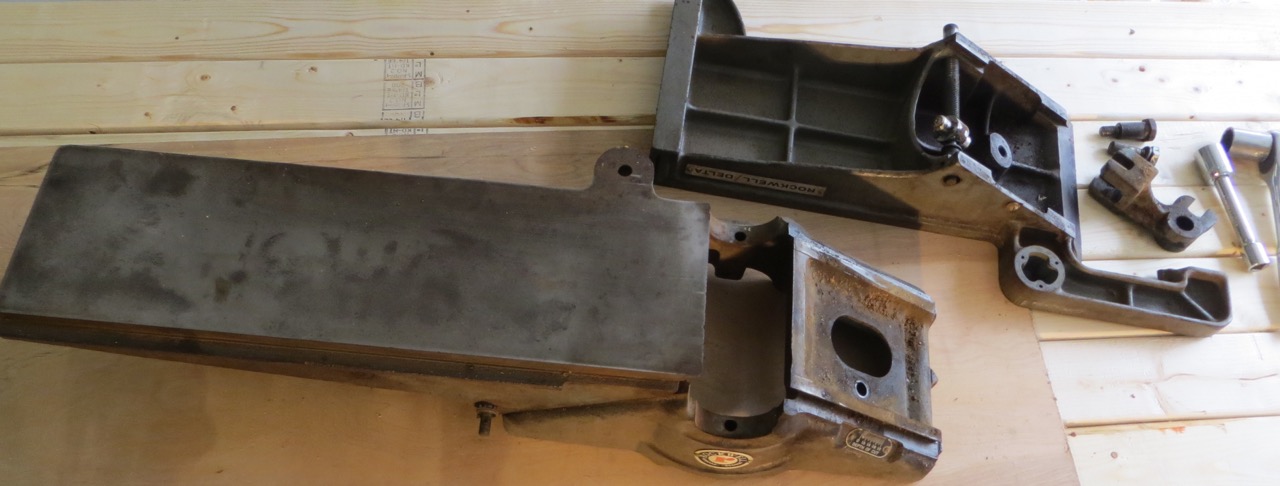

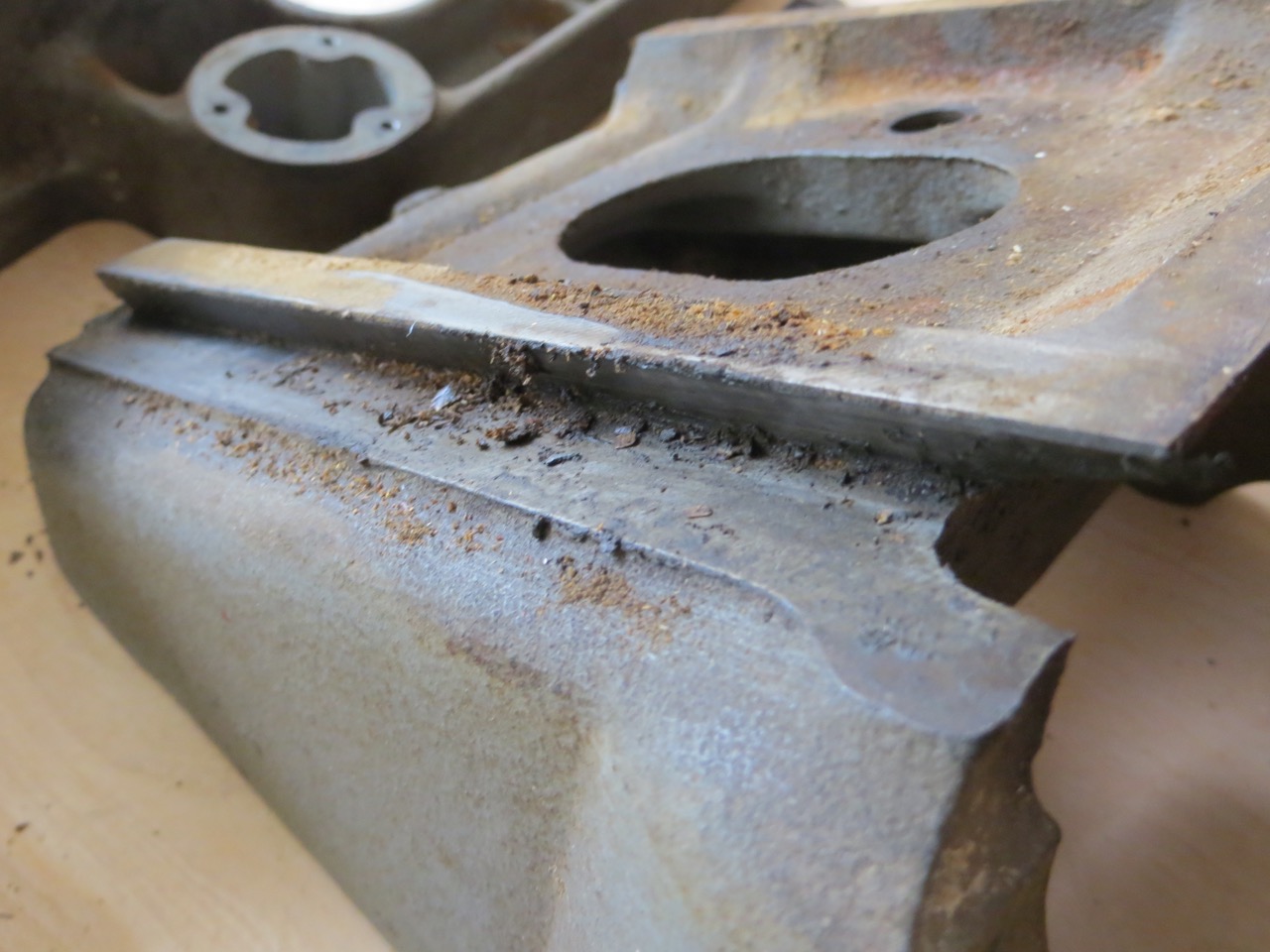

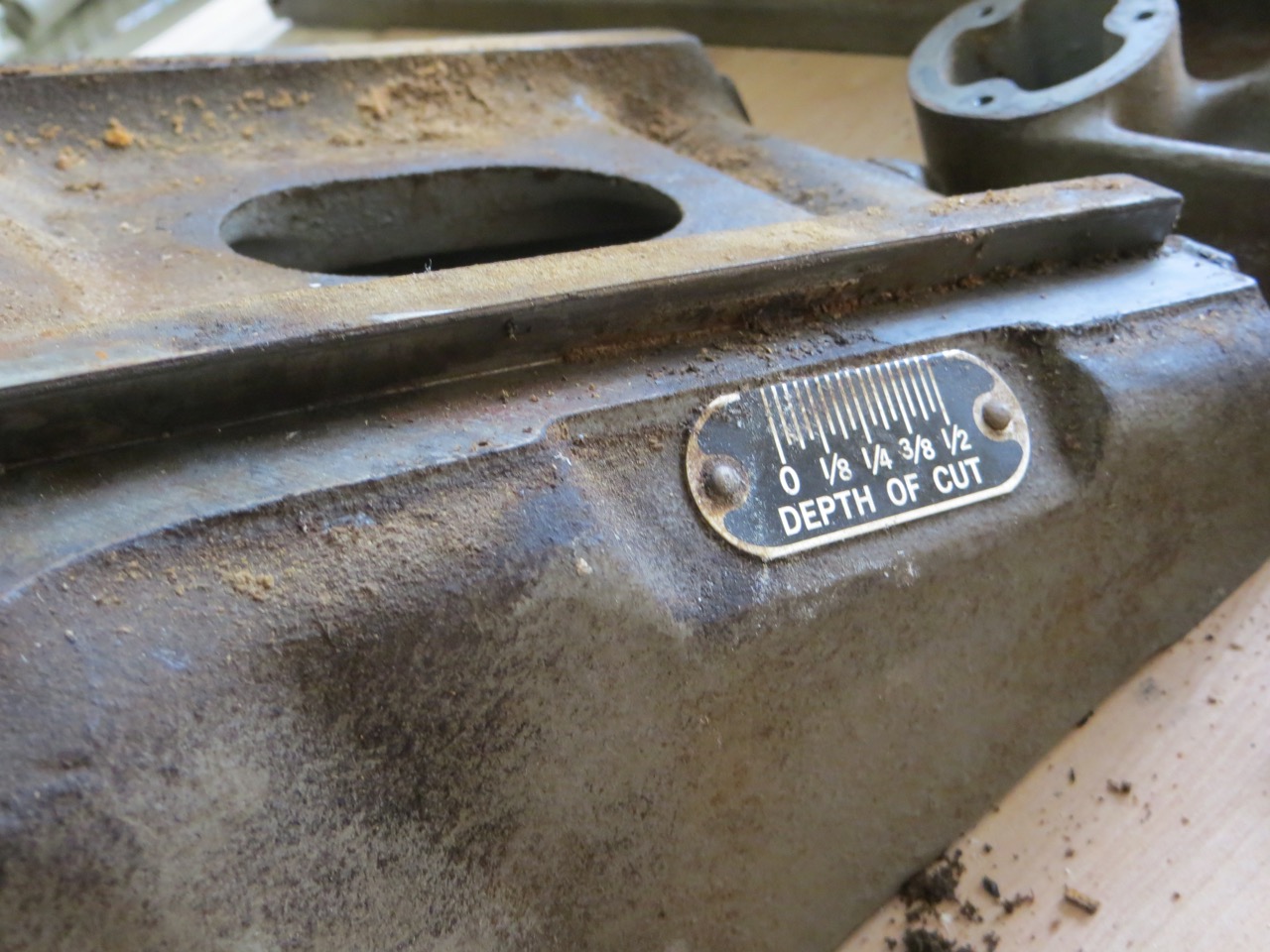

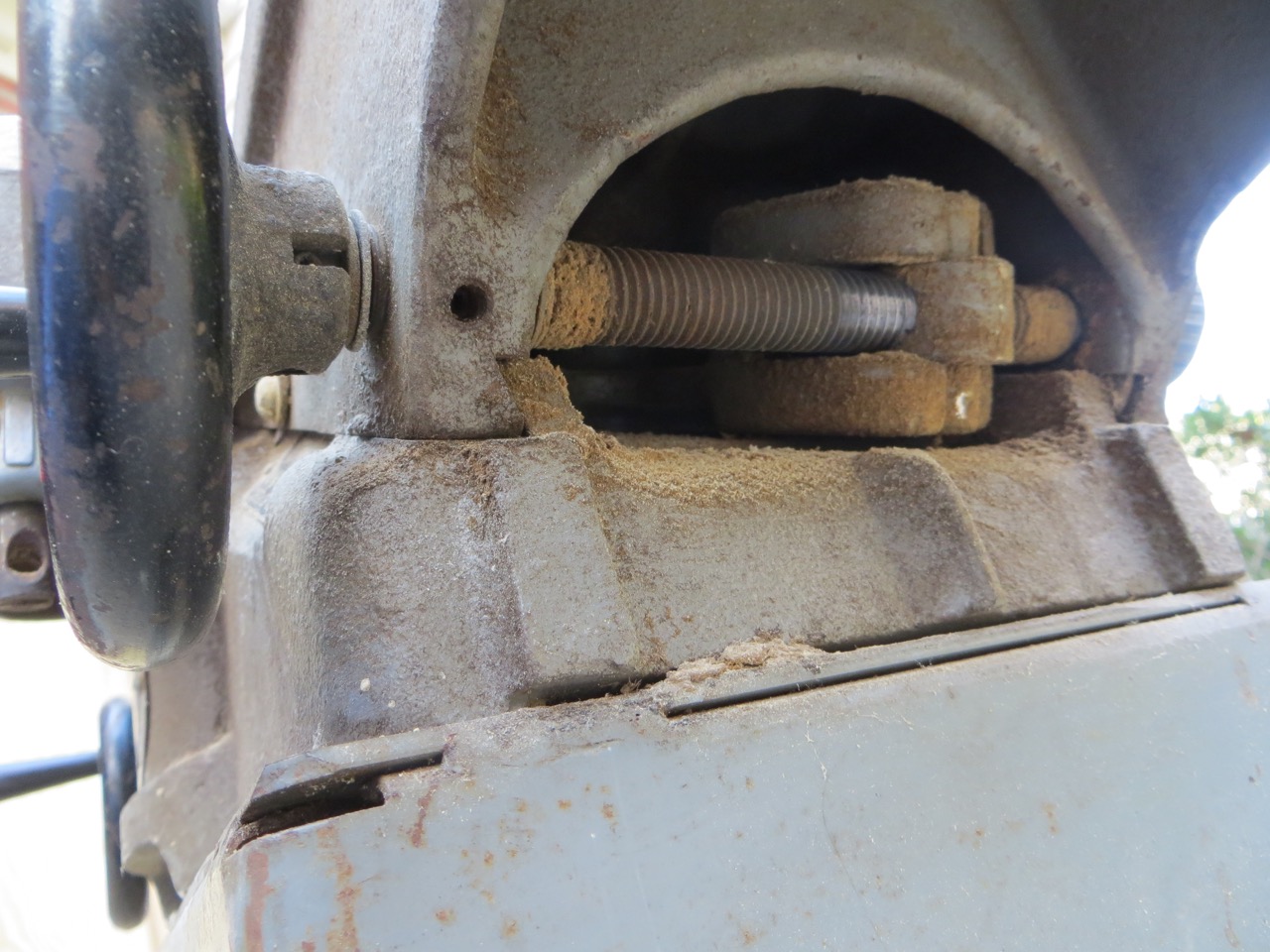

 This shows you how much gunk was in the dovetail ways and on the gib bars!

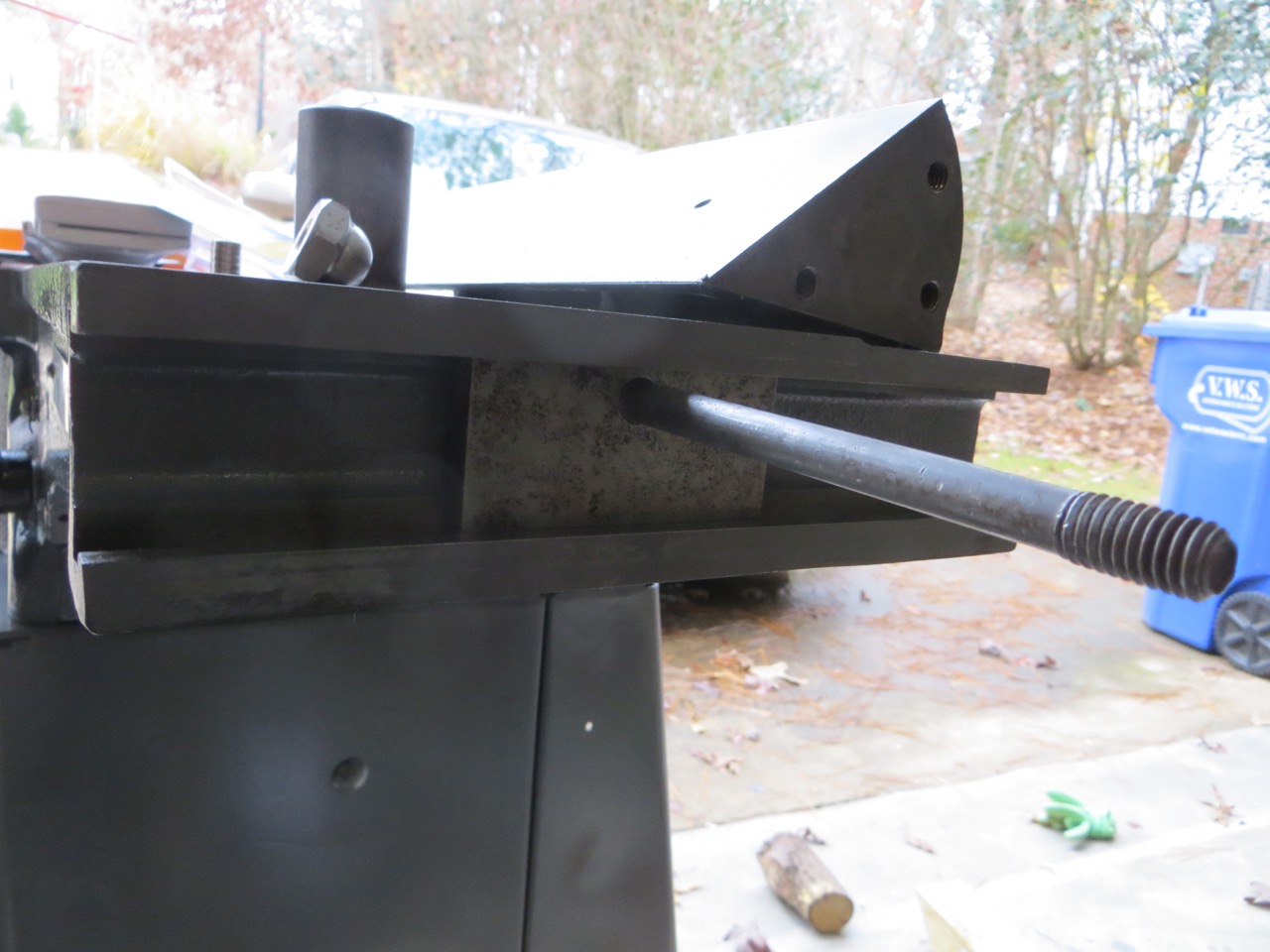

 I brushed off a lot of caked on sawdust from the screw rod but you can still see all the debris between the threads – no wonder the tables were hard to adjust!

 I didn’t use the large brush pictured here but I had it just in case.  I bought 3 of the smaller brushes and used them all for this project – you can’t get by without them in my opinion!  You will feel like you’ve scrubbed your life away when you’re done with this project (just so you know)!

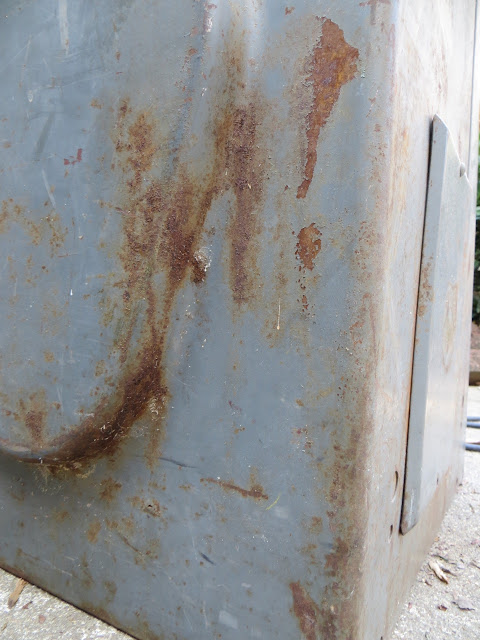

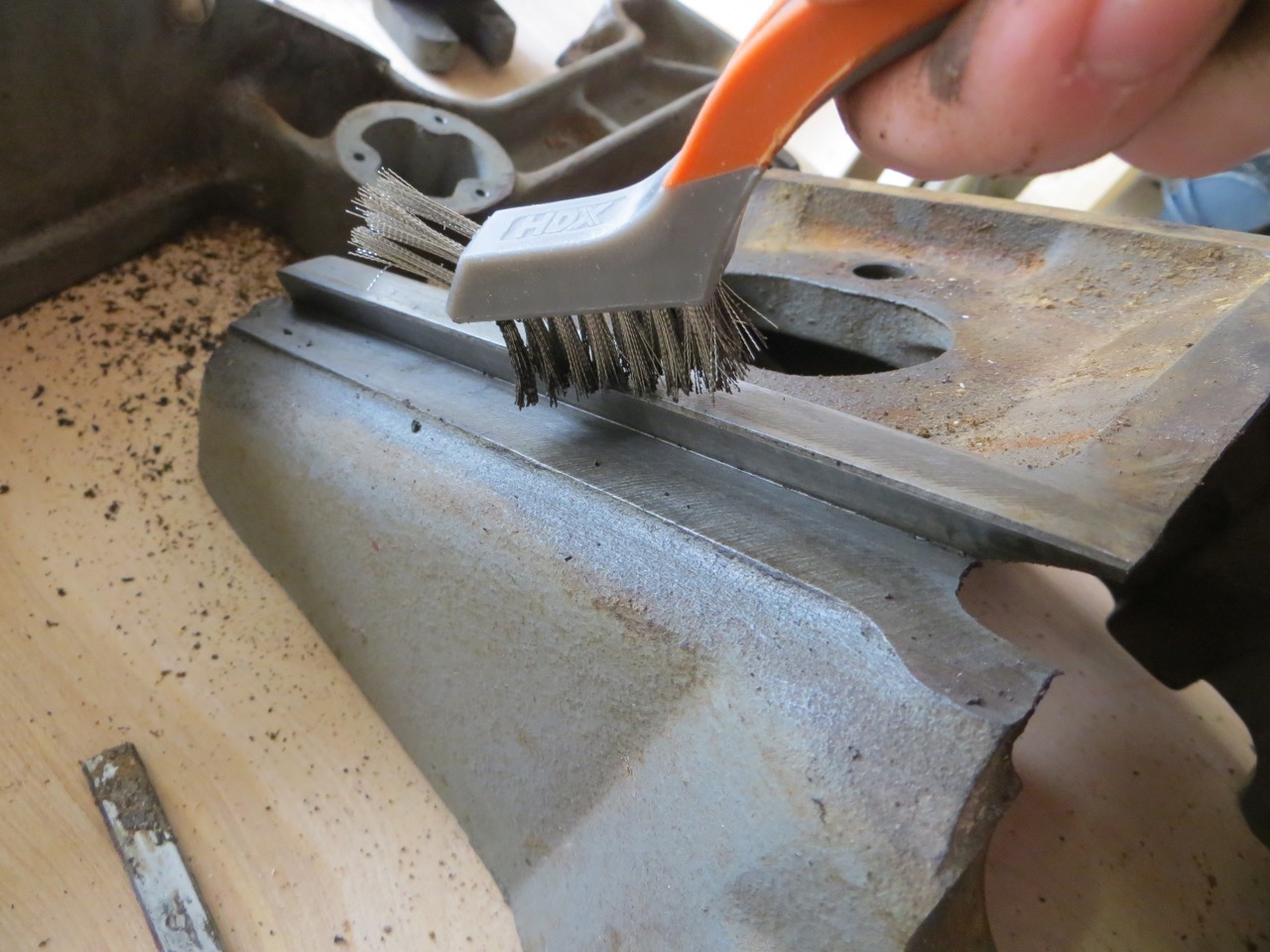

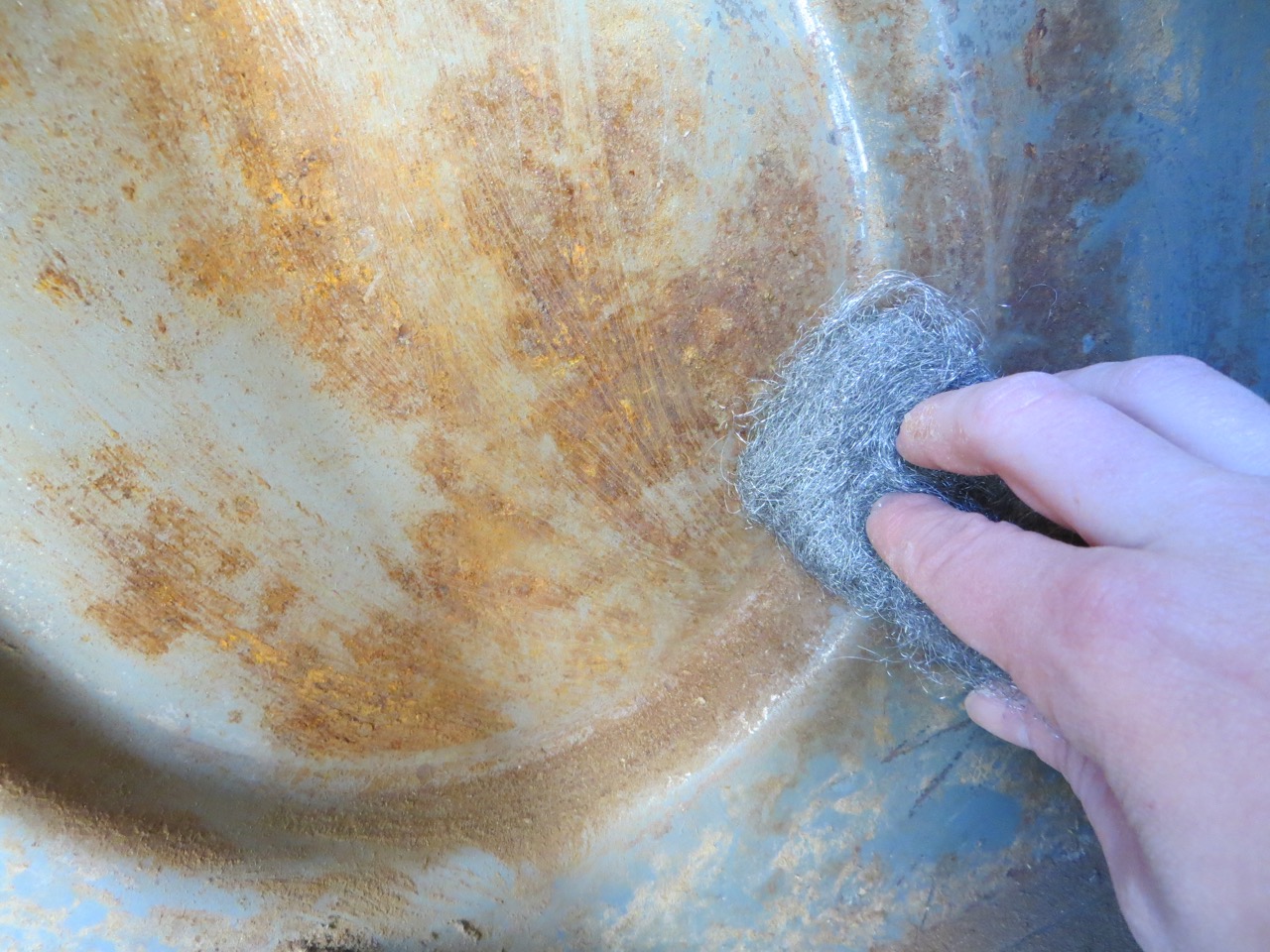

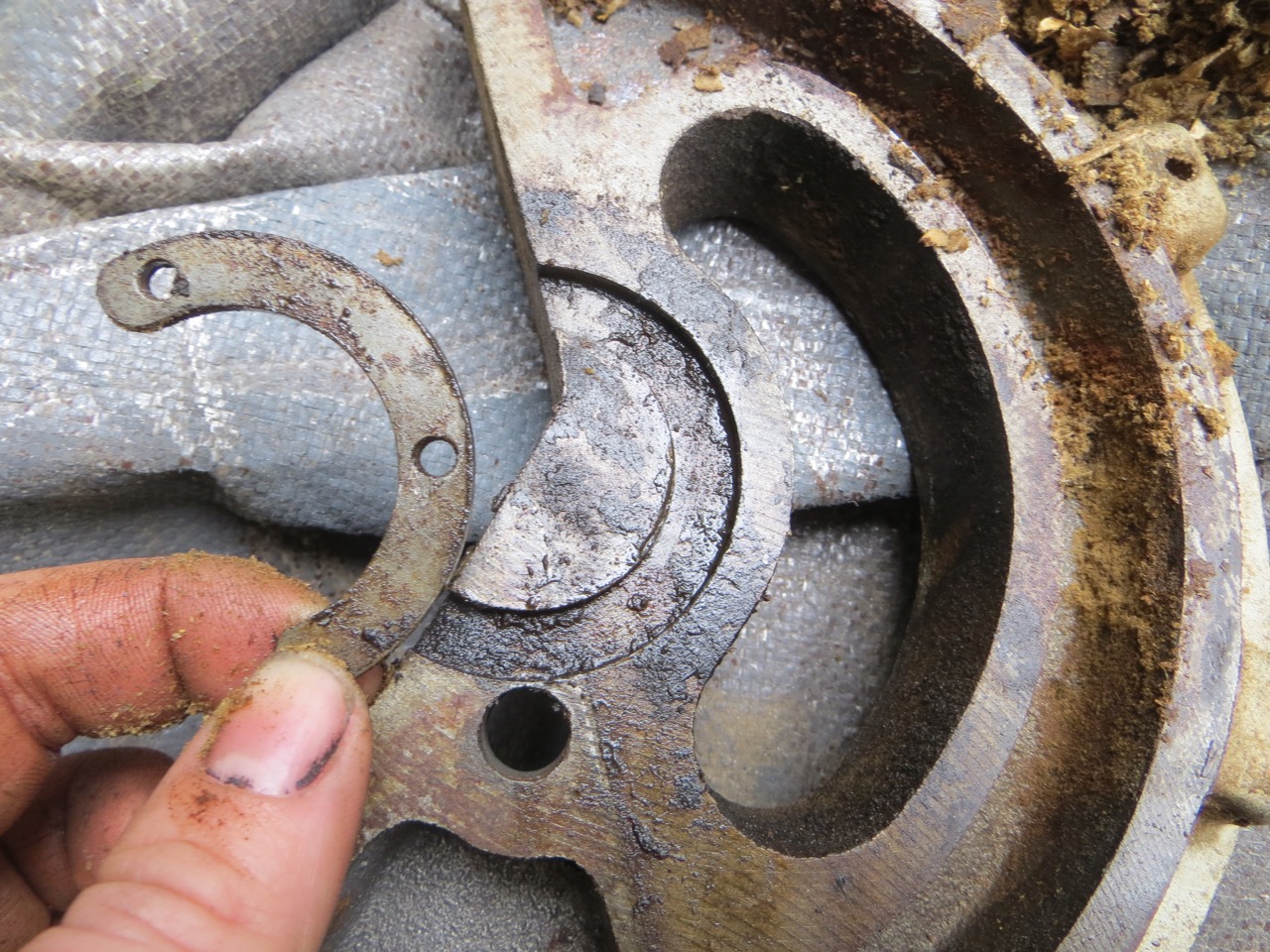

 So much rust and gunk!  I scrubbed every little bit of surface I could possibly scrub and pulled a towel through and around the areas on the cutterhead shaft I couldn’t reach.

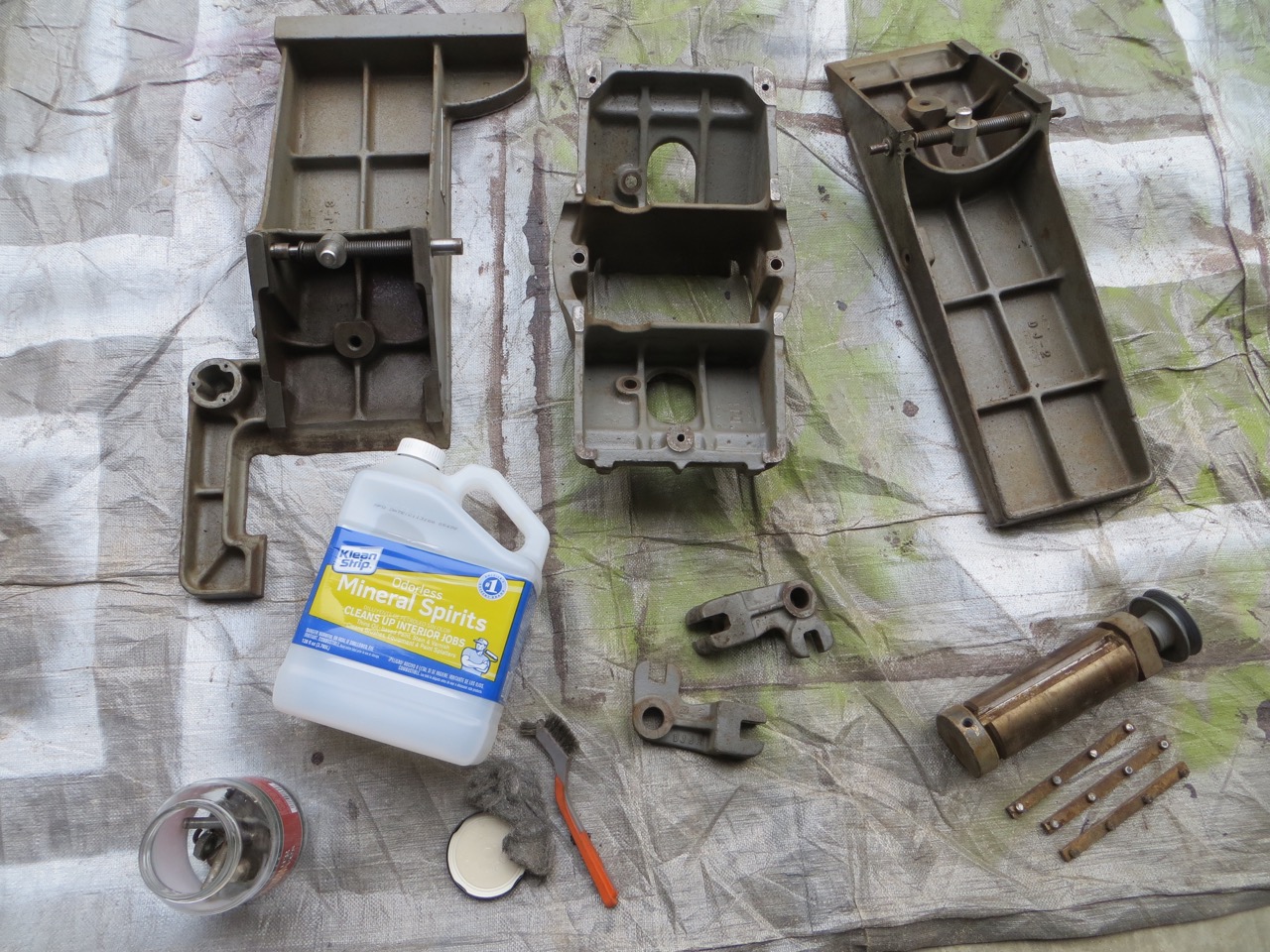

I used mineral spirits to clean and de-gunk everything.  I soaked a large piece, scrubbed and scrubbed, wiped off with towels and ‘rinsed’ residue with more mineral spirits.  Work on one piece at a time.  TIP: Use heavy-duty rubber gloves with the mineral spirits and I HIGHLY recommend goggles!  I wasn’t wearing eye protection and a bit of mineral spirits/gunk flung into my eye as I was scrubbing so I had to rush inside and flush my eye out!

Pictured is a glass jar soaking smaller parts/bolts in Evapo-rust for a few hours.

After all my pieces were scrubbed & rinsed I sprayed TSP on all surfaces and wiped clean and dry.  I used my air compressor to blow out any remaining liquid/debris that may be sticking around.

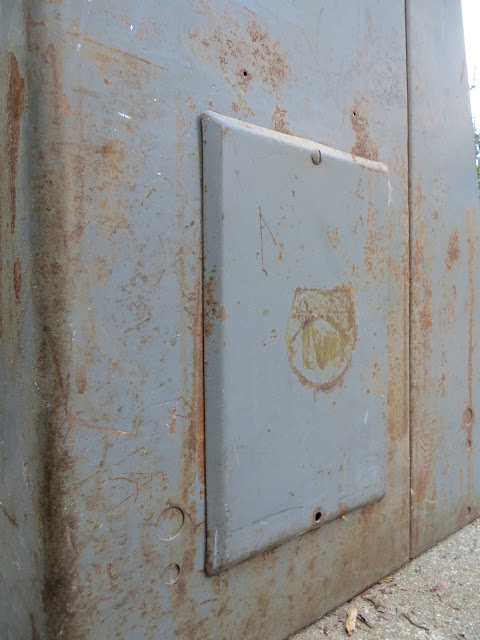

I didn’t bother taping off anything on my pieces except the metal badges because I knew I’d go through all the pieces and remove paint with acetone where I wanted bare metal (where ever metal rubs on metal).

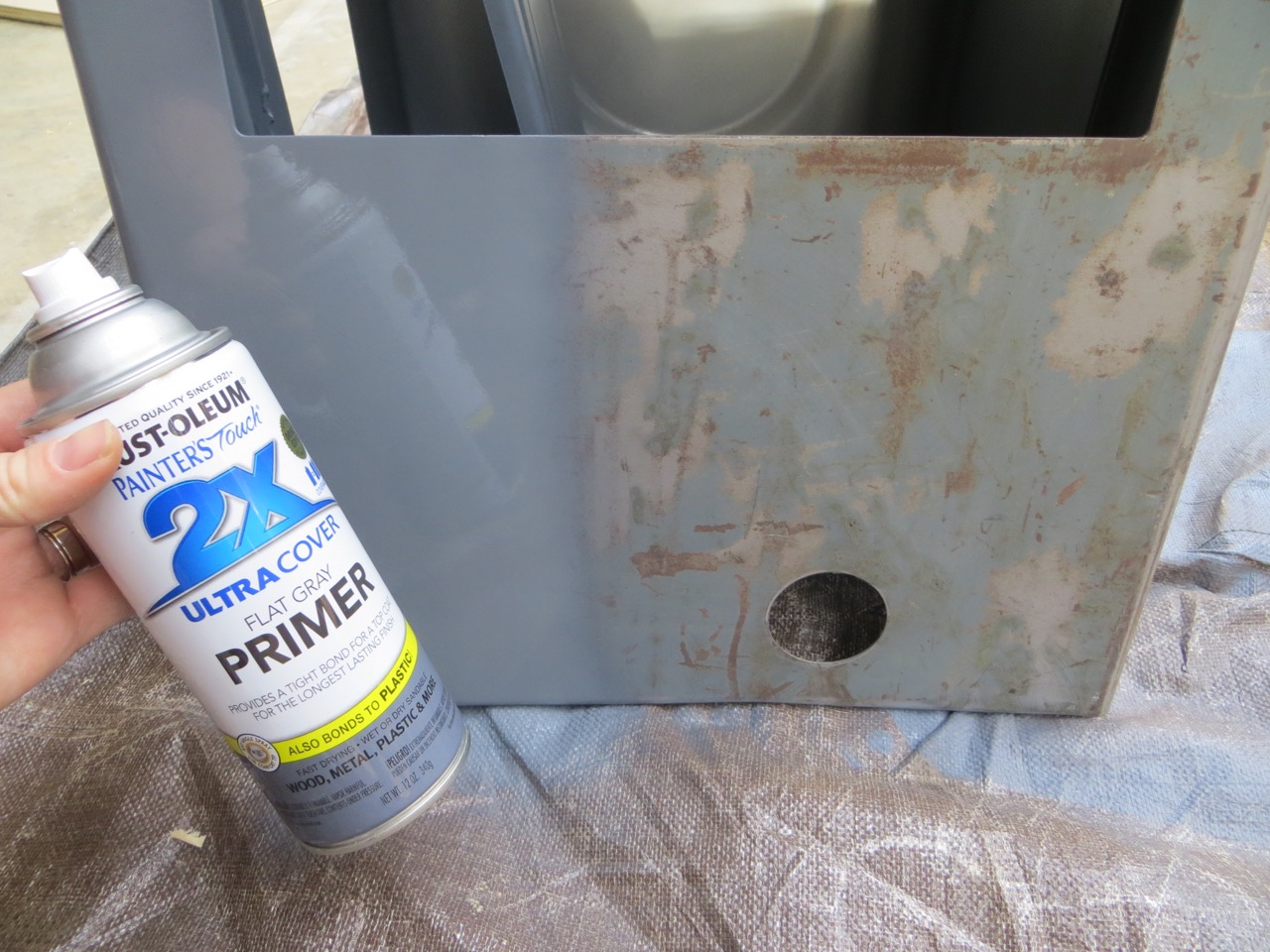

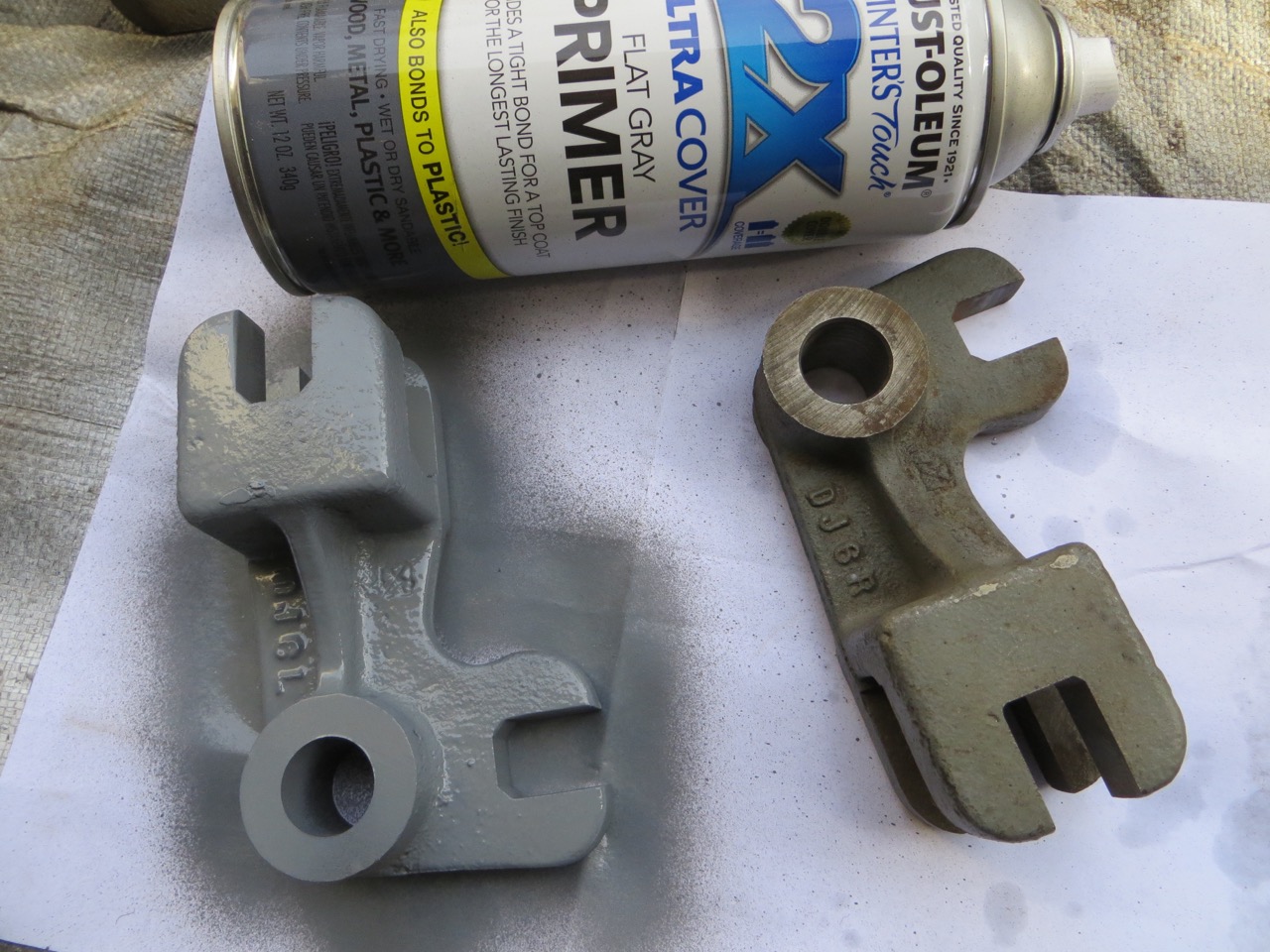

 Prime all your pieces.

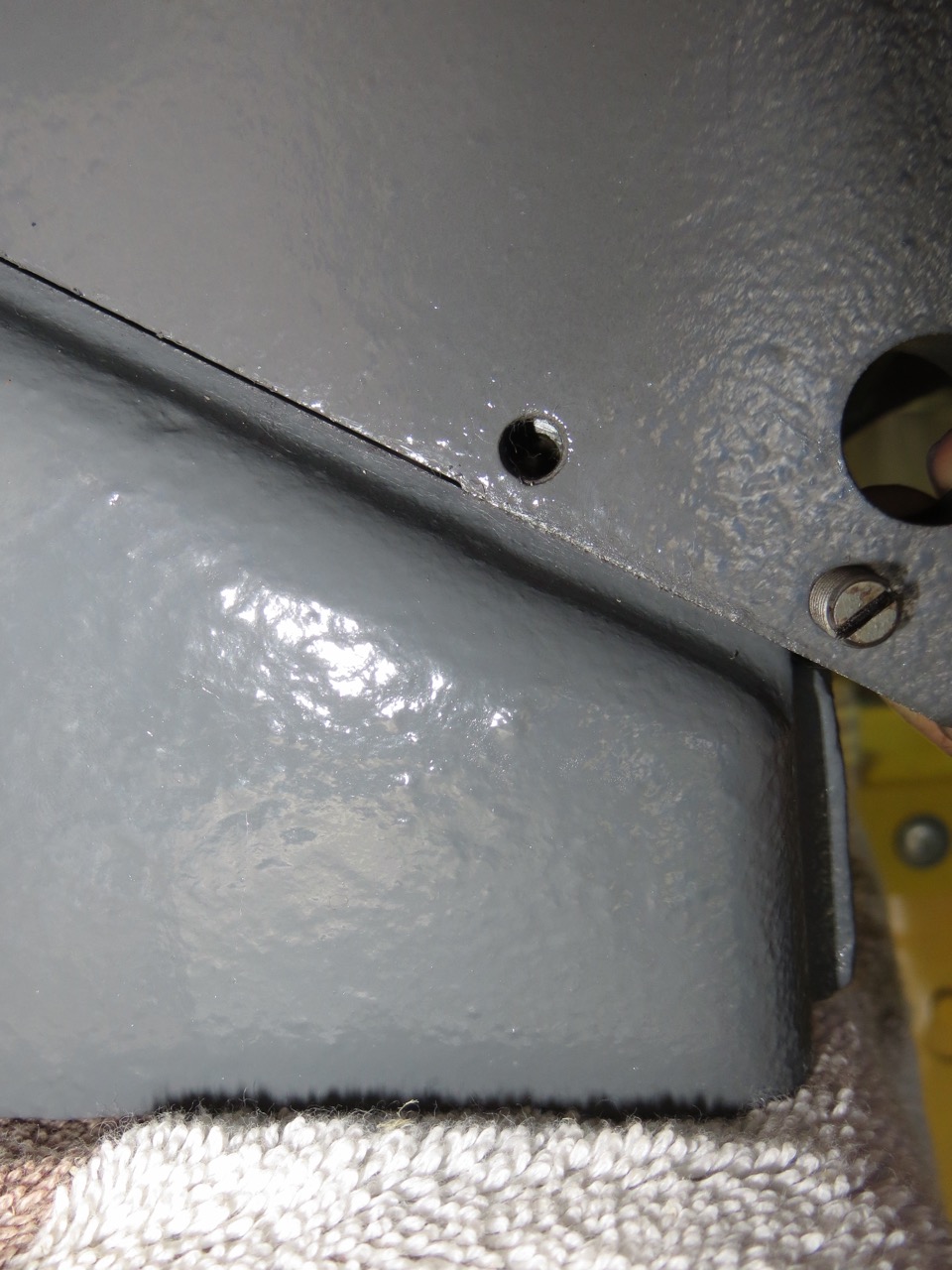

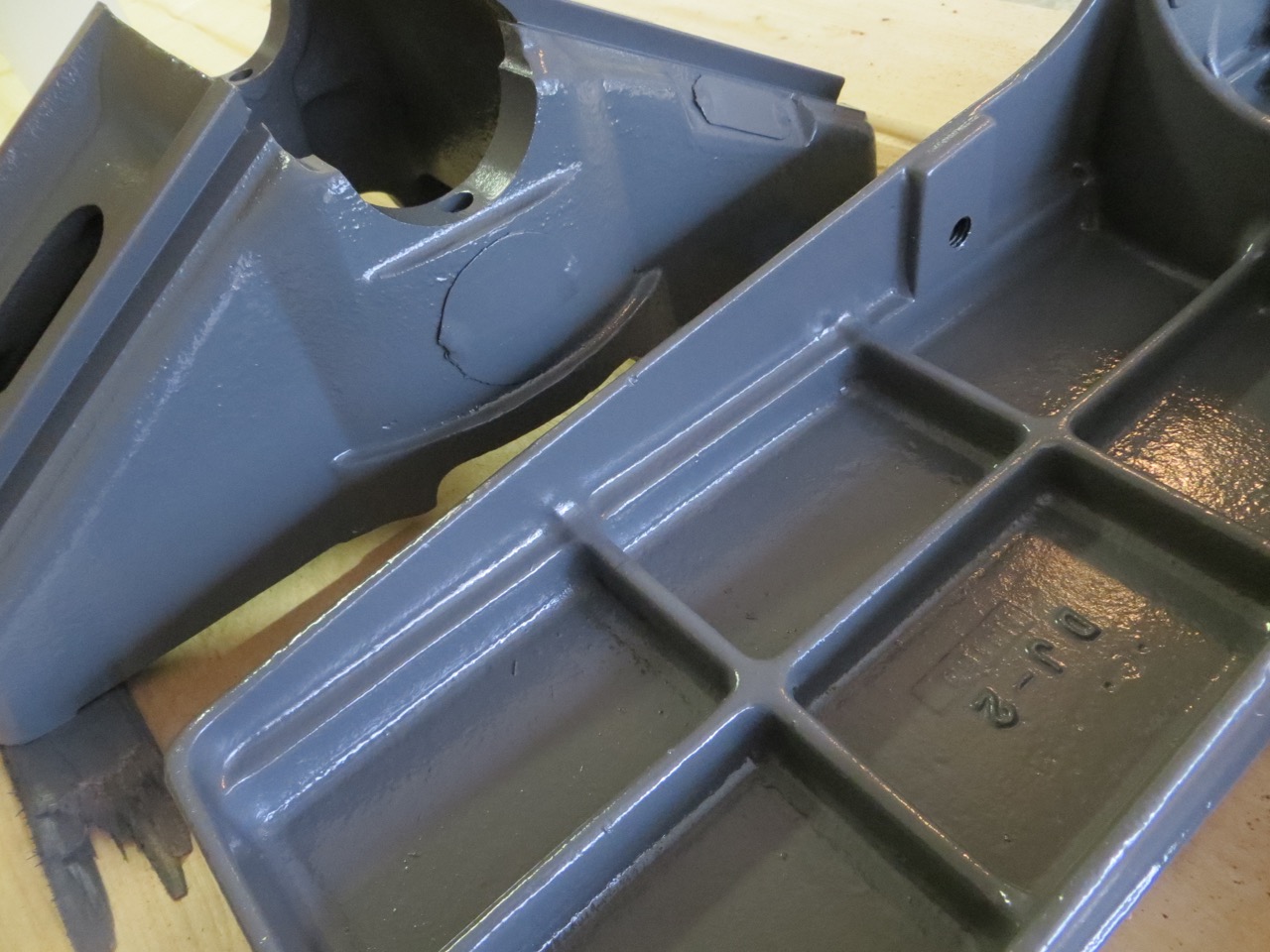

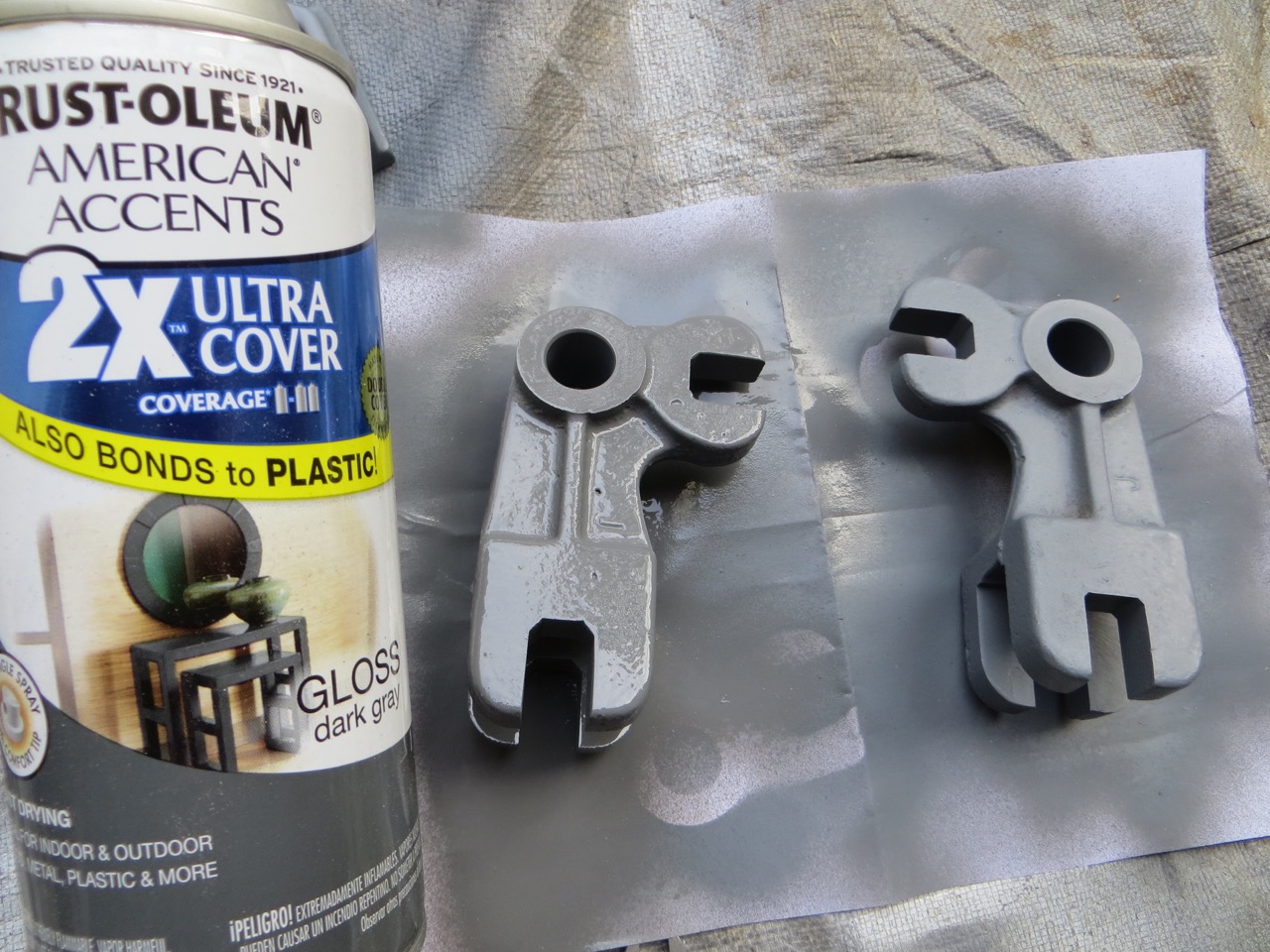

 I chose a gloss paint so it was easier to keep clean; do 2-3 coats.

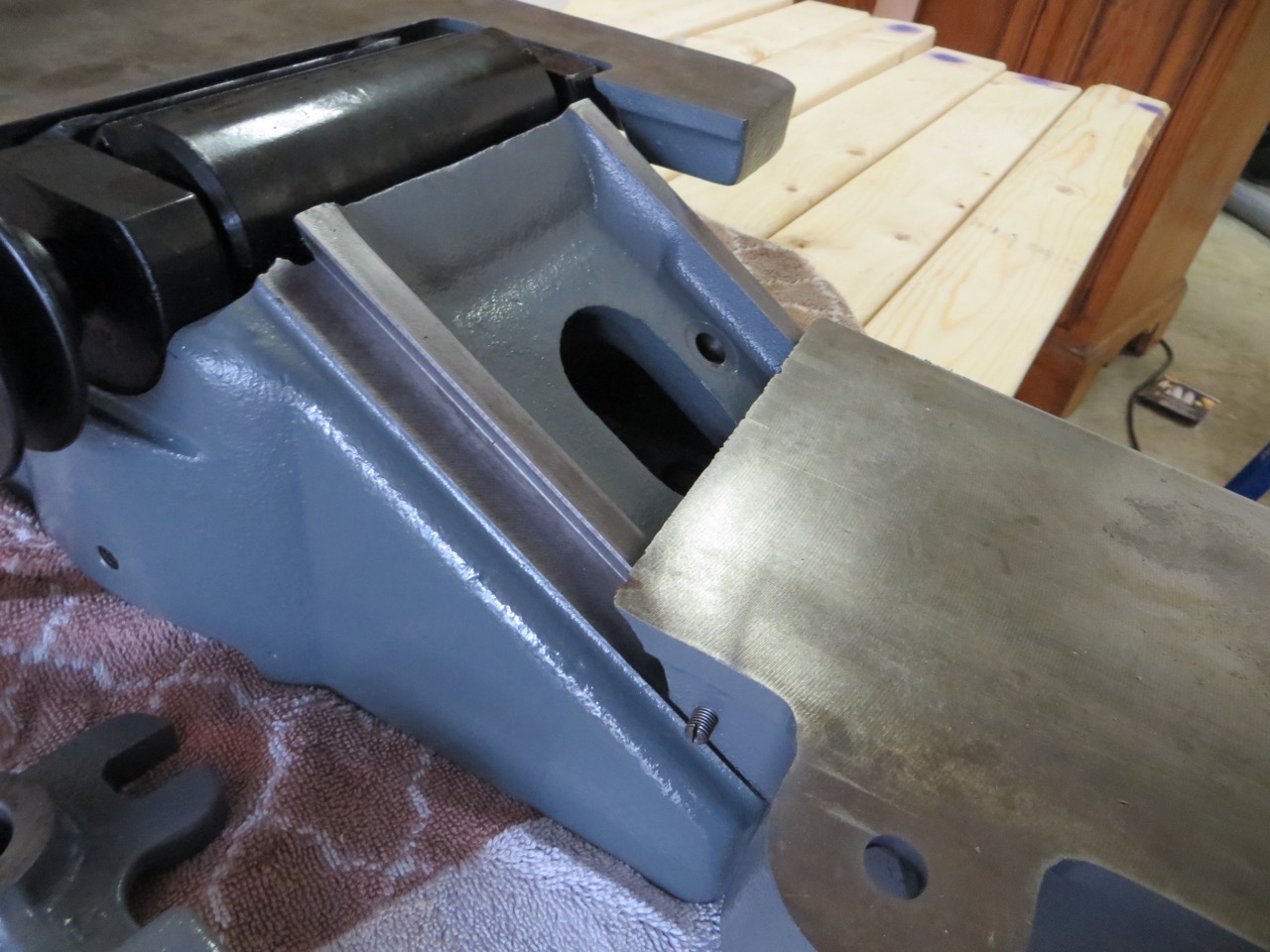

I primed and painted my tables so the table was against the floor at all times to keep paint from getting on it.

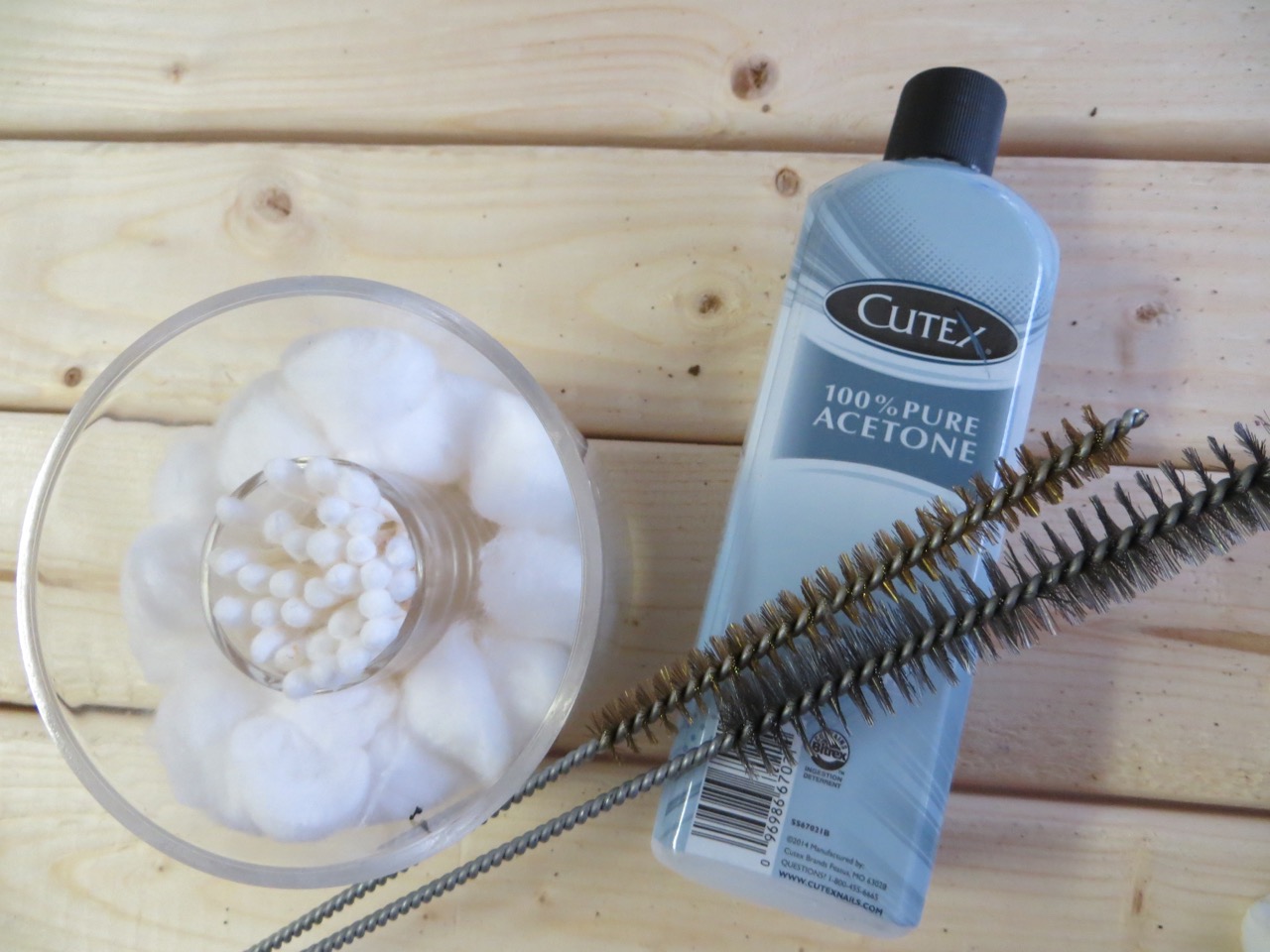

 These are my secret weapons for cleaning paint from areas I didn’t want it.

 I made sure the dovetail ways were bare metal…

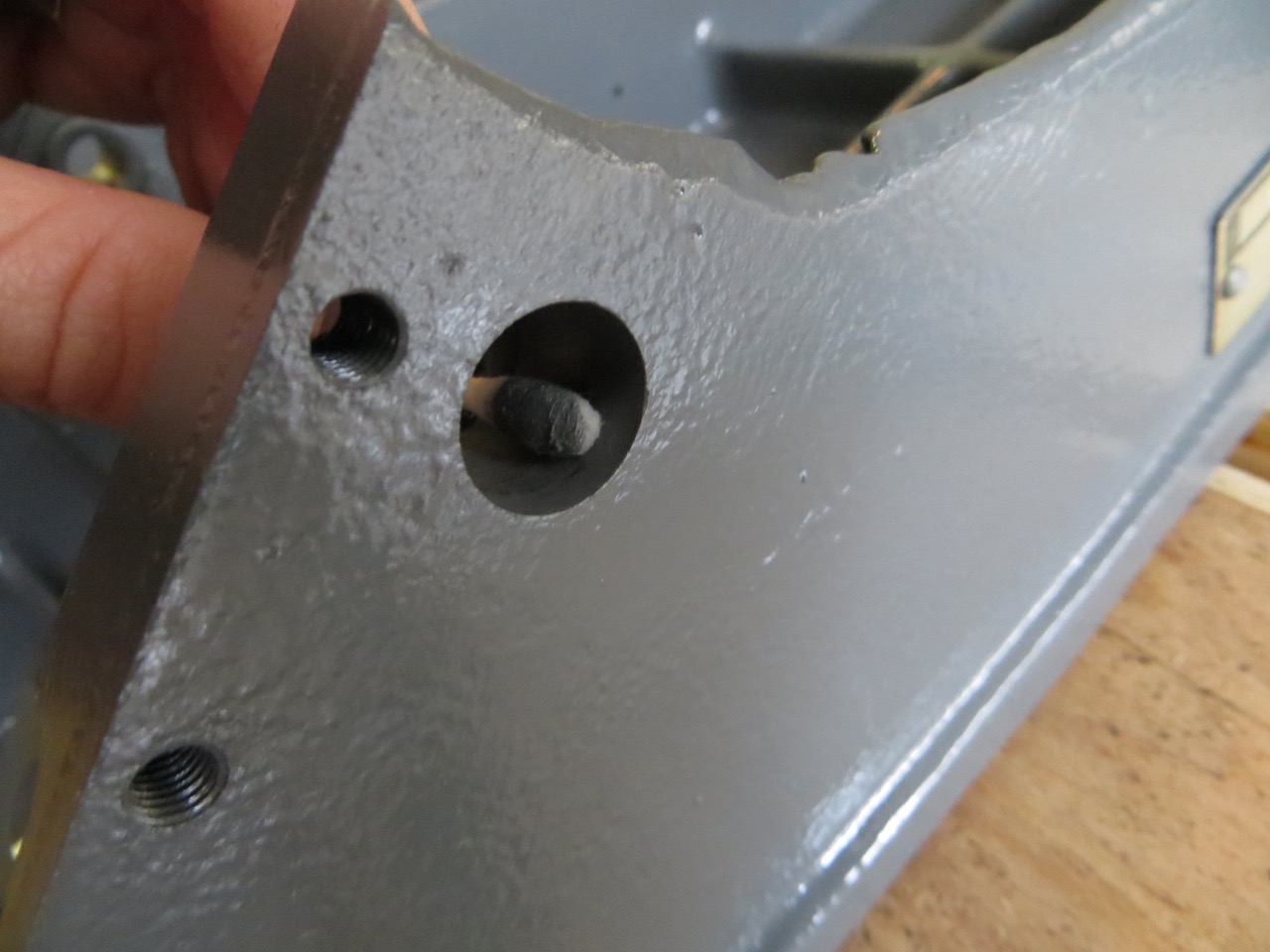

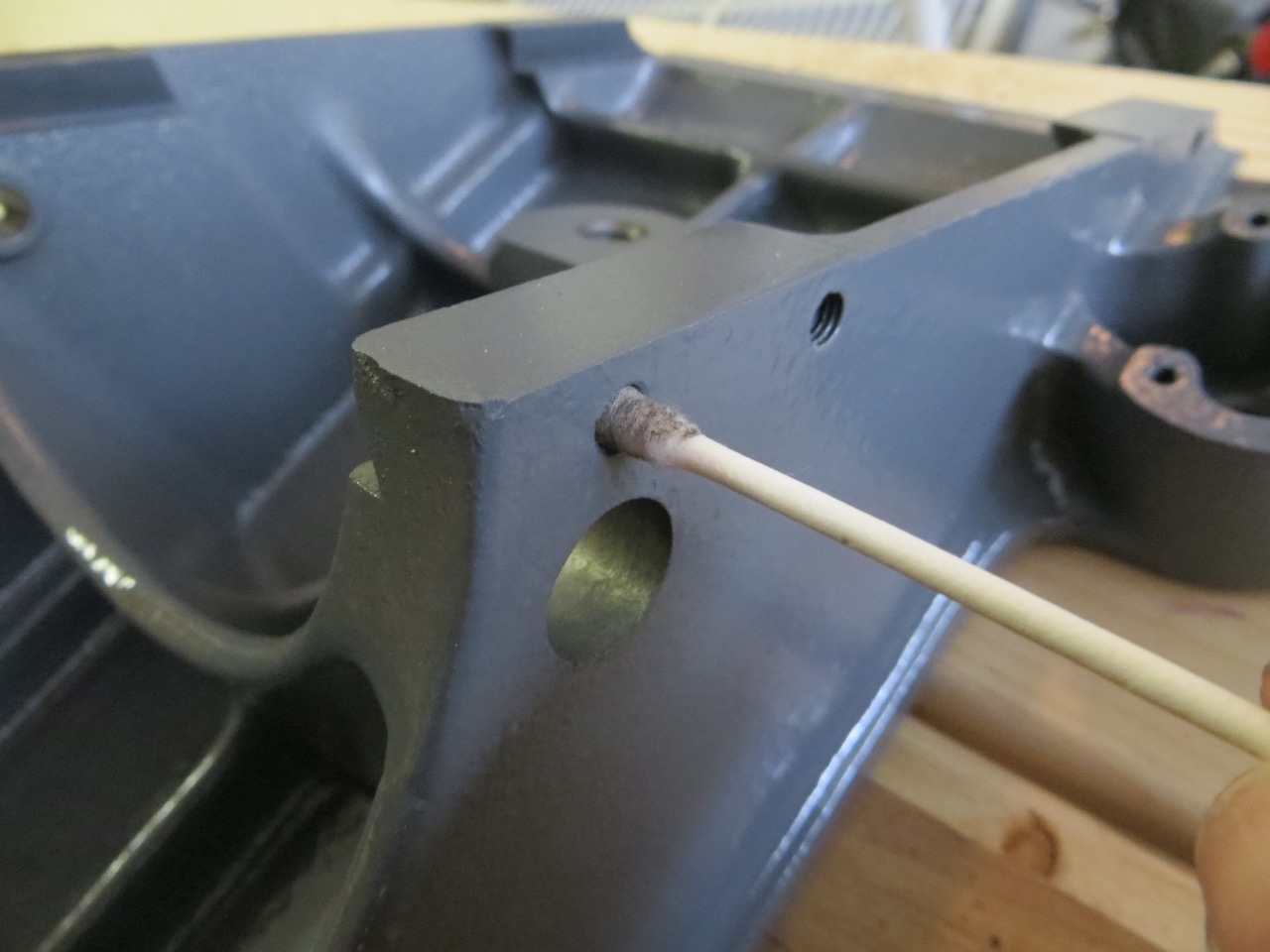

 Any areas where shafts, bolts, screws went through got the same treatment.  Once the bare metal was showing I wiped WD-40 over those areas to protect from rust and cut down on friction.

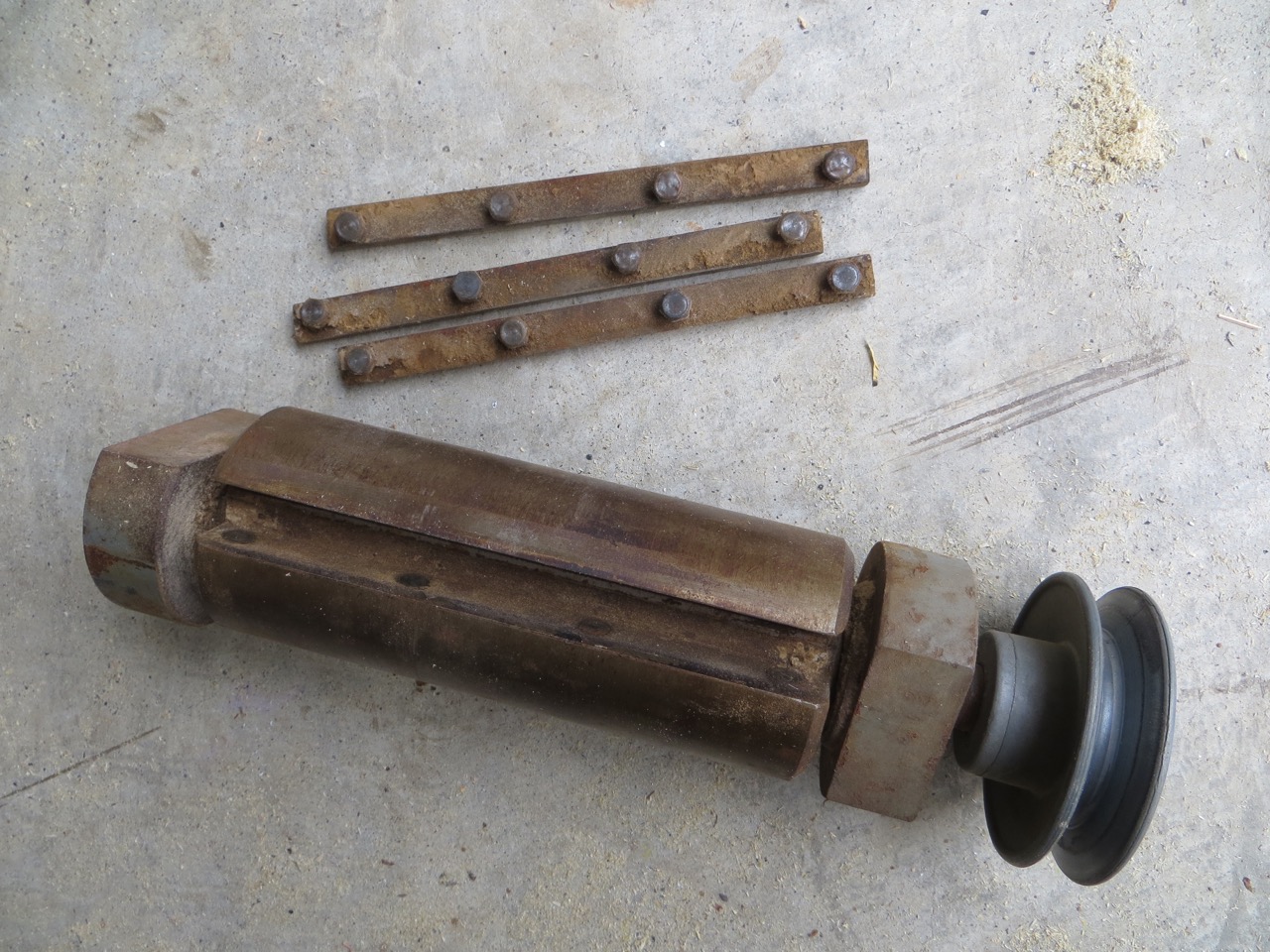

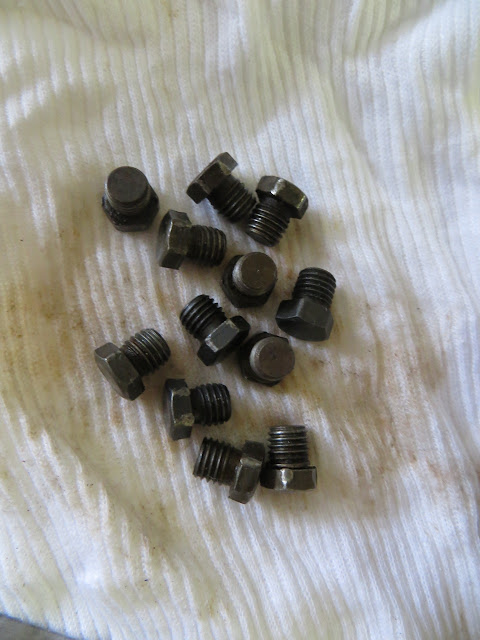

Again, WD-40 and steel wool to clean the knife set bars and screws.

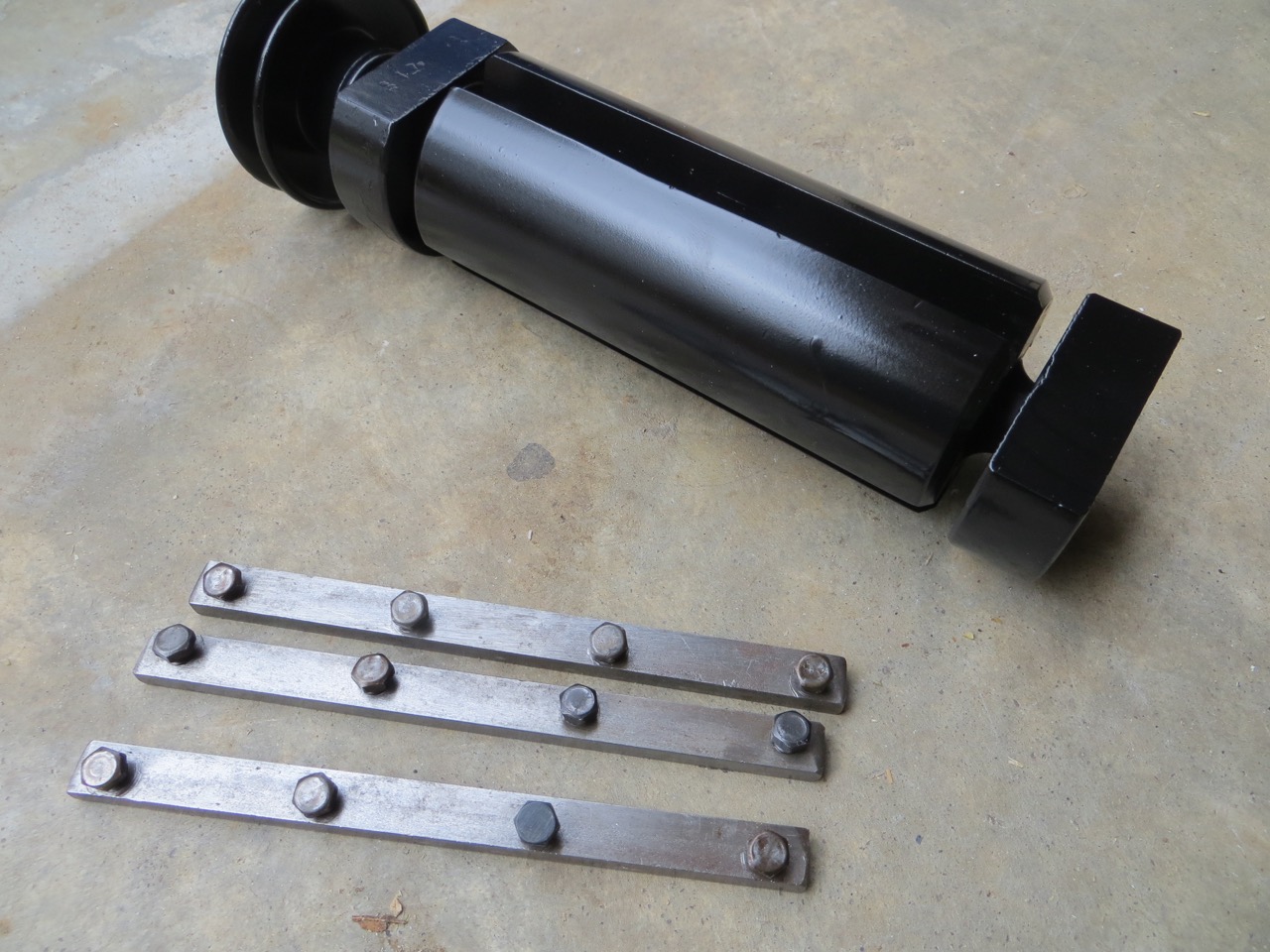

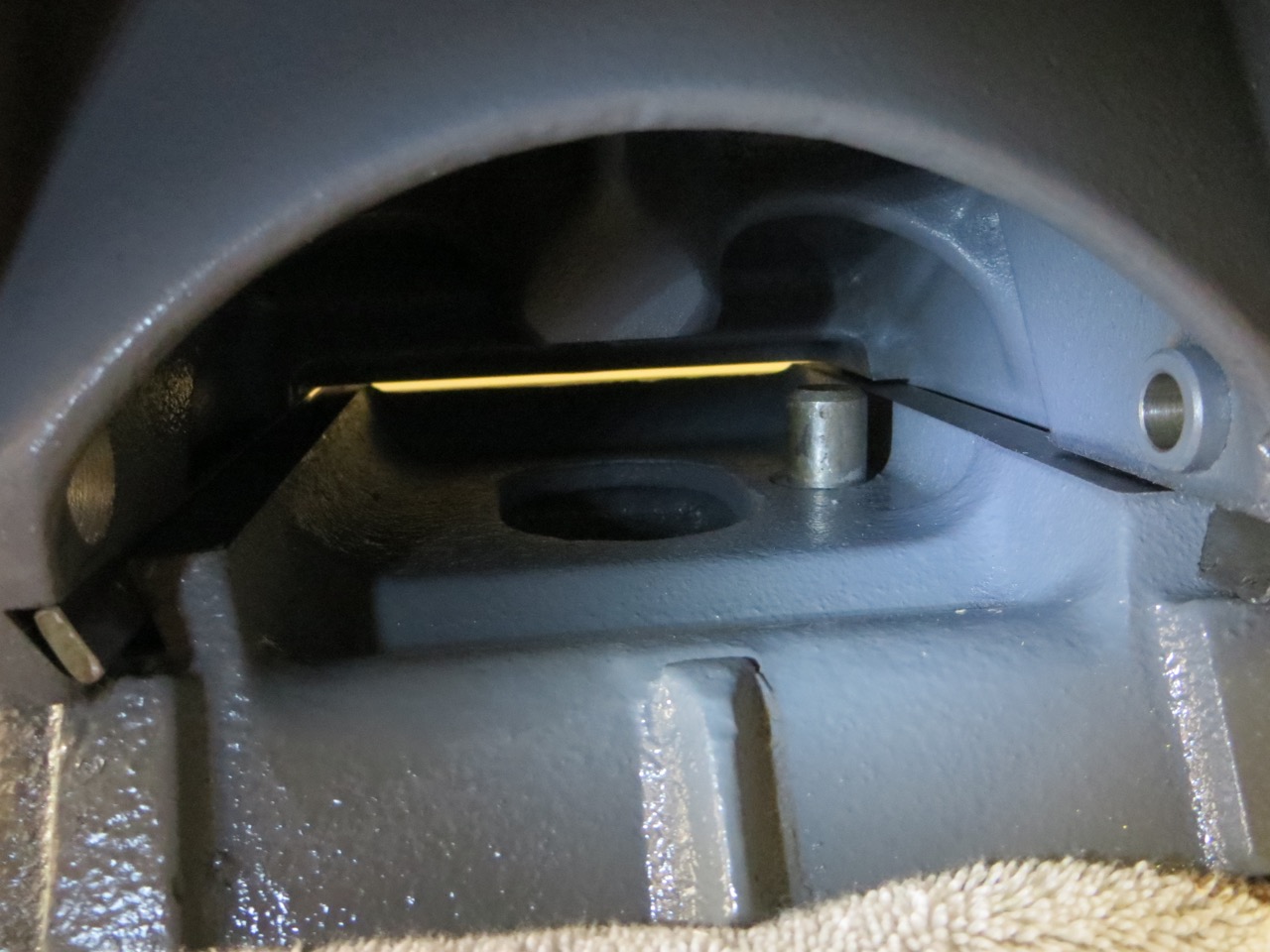

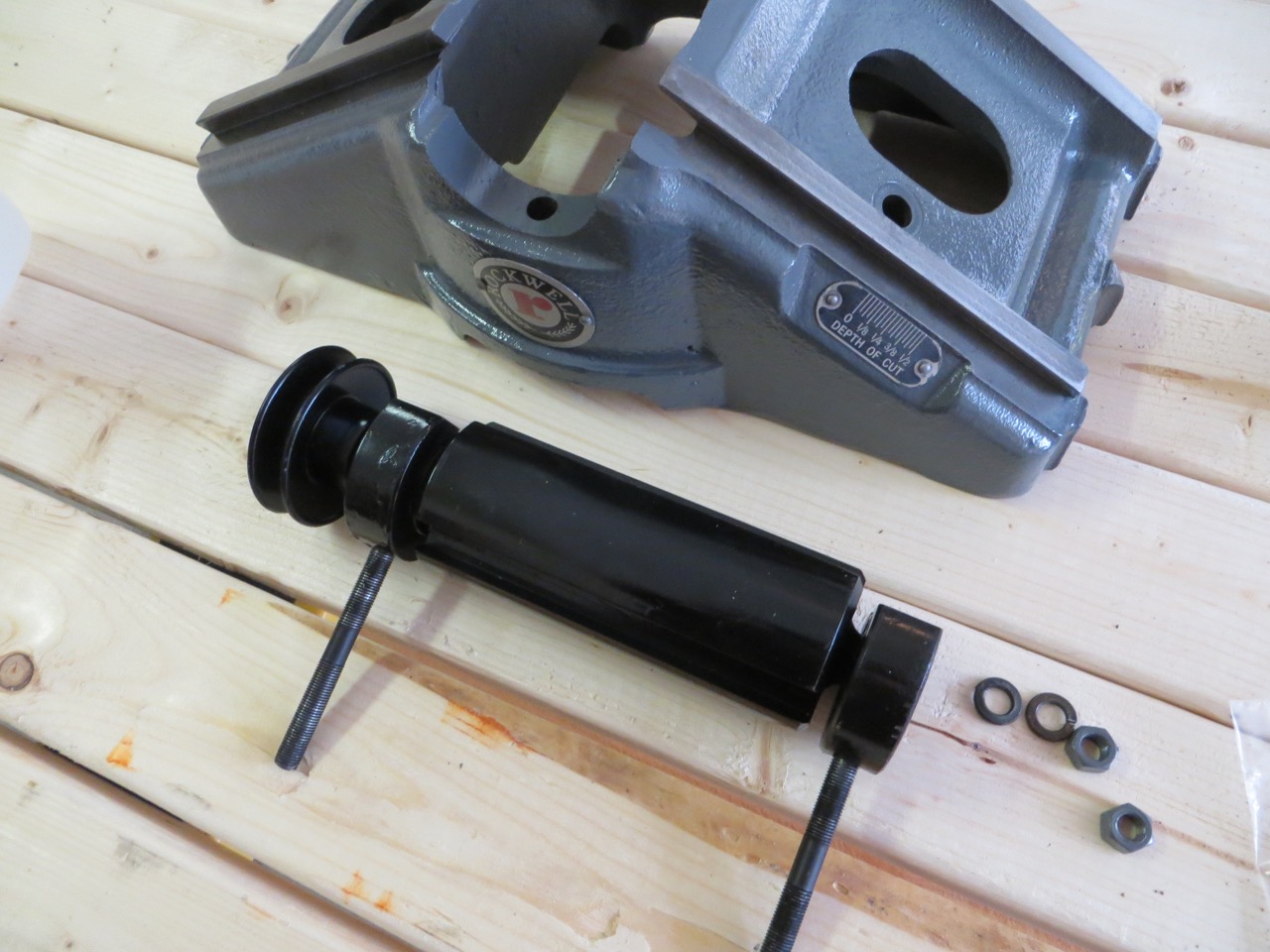

 I decided to paint the cutterhead to protect from rust.

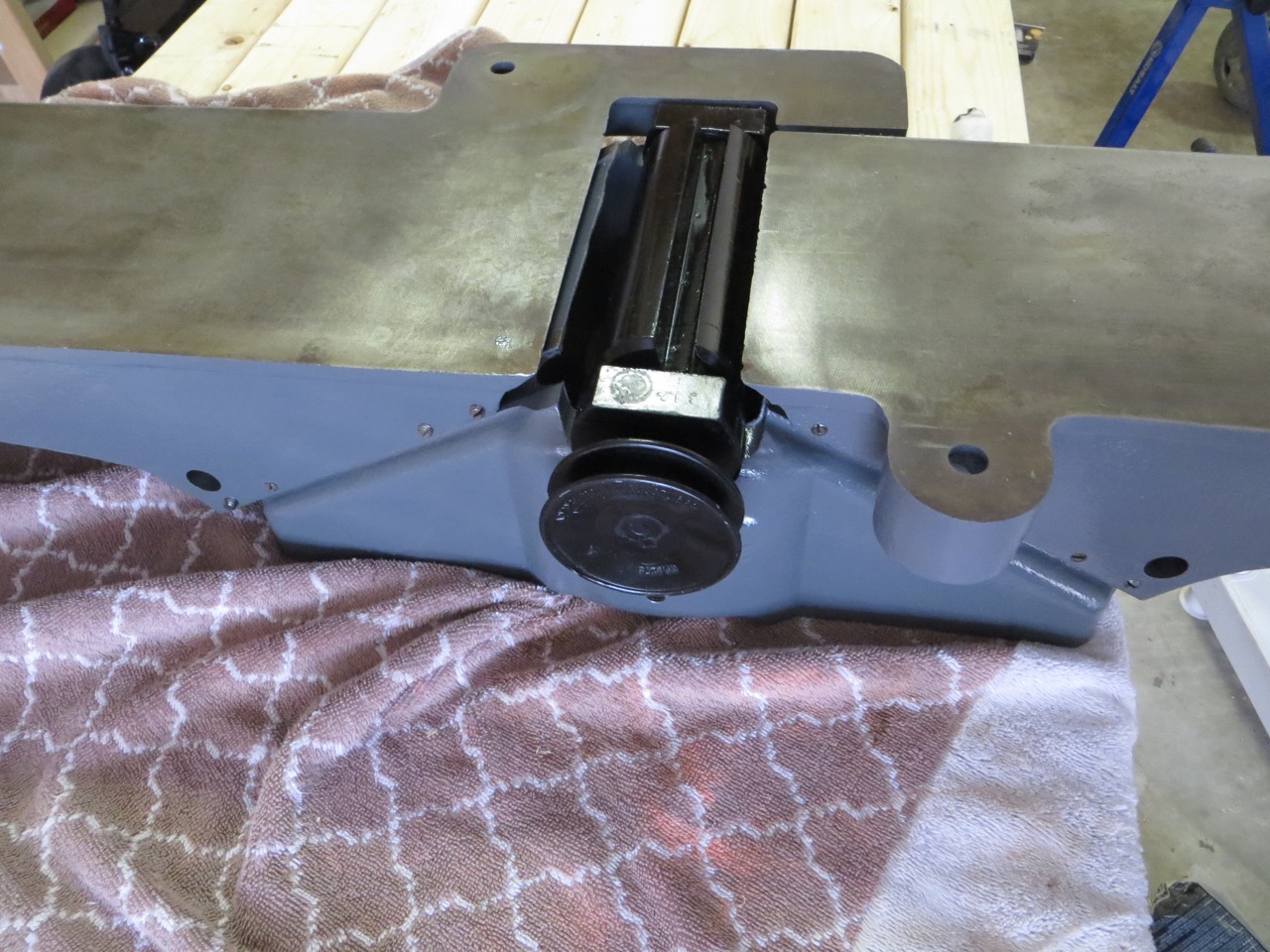

 For assembly, I decided to attach the cutterhead first.

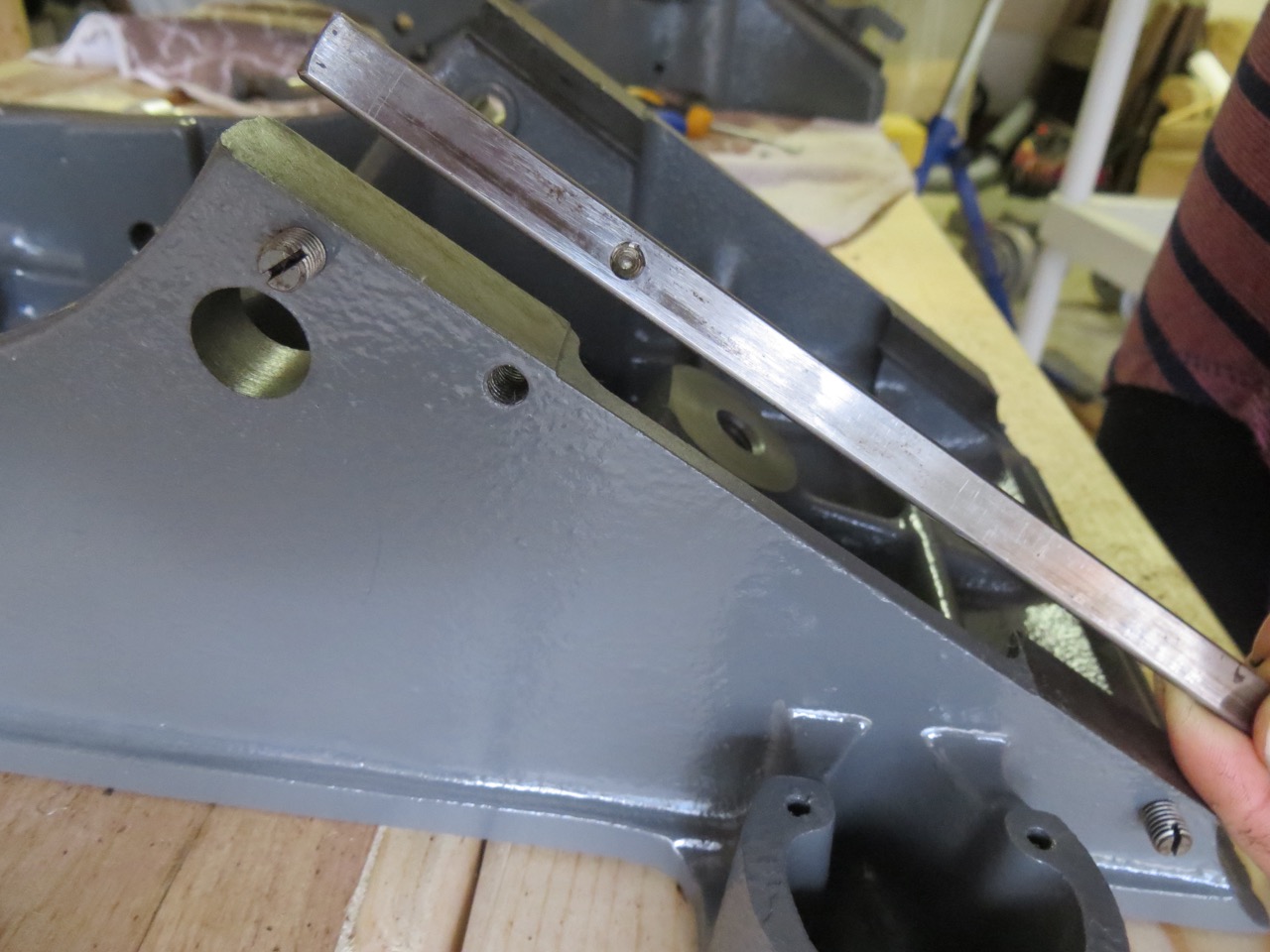

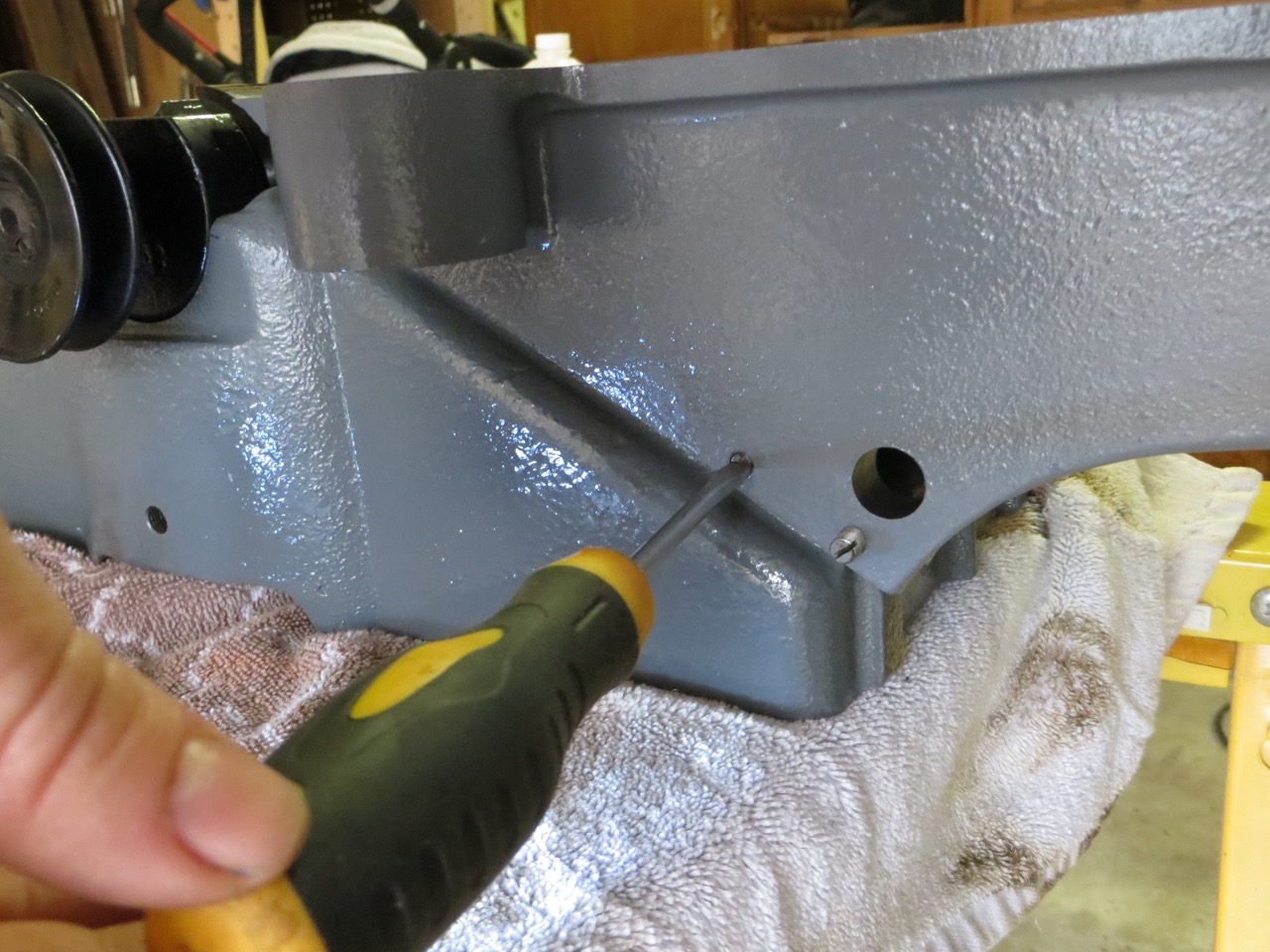

Hold up your gib bars to your gib screws to see how to orient it in the dovetail ways.  You can see I’ve screwed in some of the gib screws already so they’re easy to tighten once the table is on and I’m not fumbling around while holding the table in place.  I left the one gib screw out that will lock the gib bar in place.

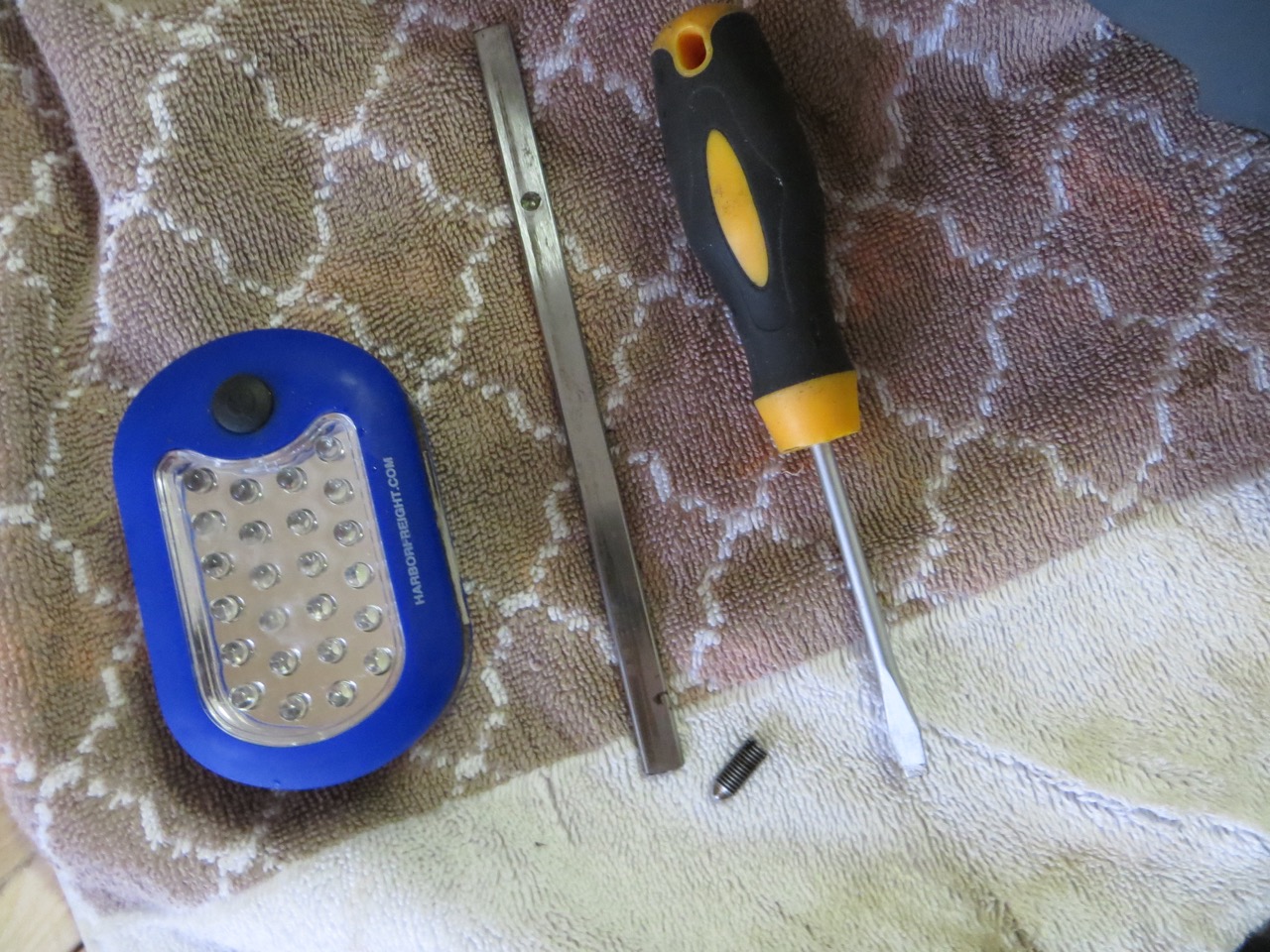

 Have your tools ready.

 Slide your table on…

 …insert your gib bar inside the dovetail way and move it back/forth until you can locate the impression on the bar through the gib screw hole (you’ll want a flashlight).

 Without moving, very carefully screw in that last gib screw.  You want this screw somewhat tight; tight enough that the screw keeps the gib bar in place as the table is adjusted up/down but loose enough that it’s not pinning the bar so tight that the tables are hard to move.  Tighten the other gib screws (keeping somewhat loose until you can do final adjustments at the end).

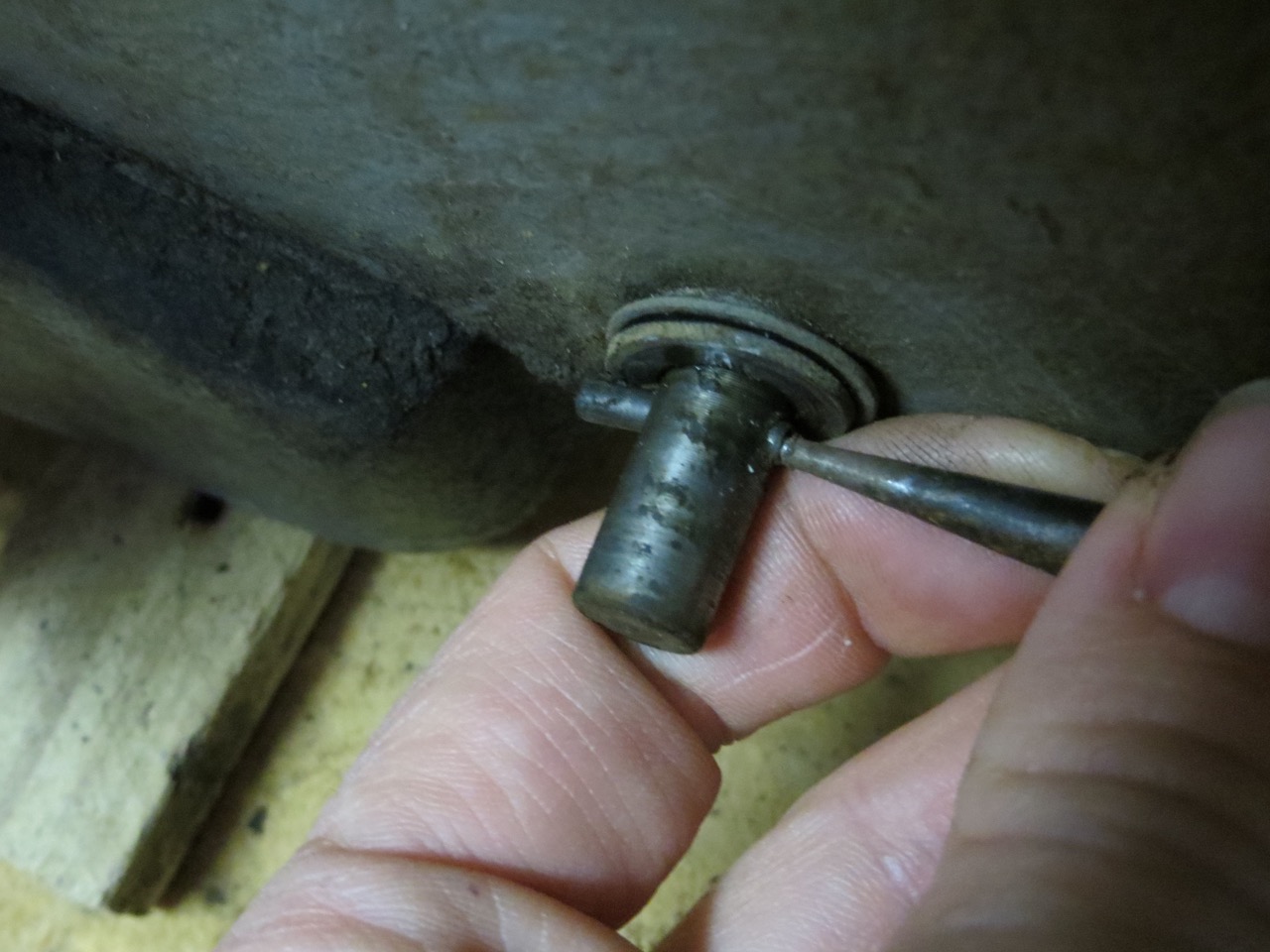

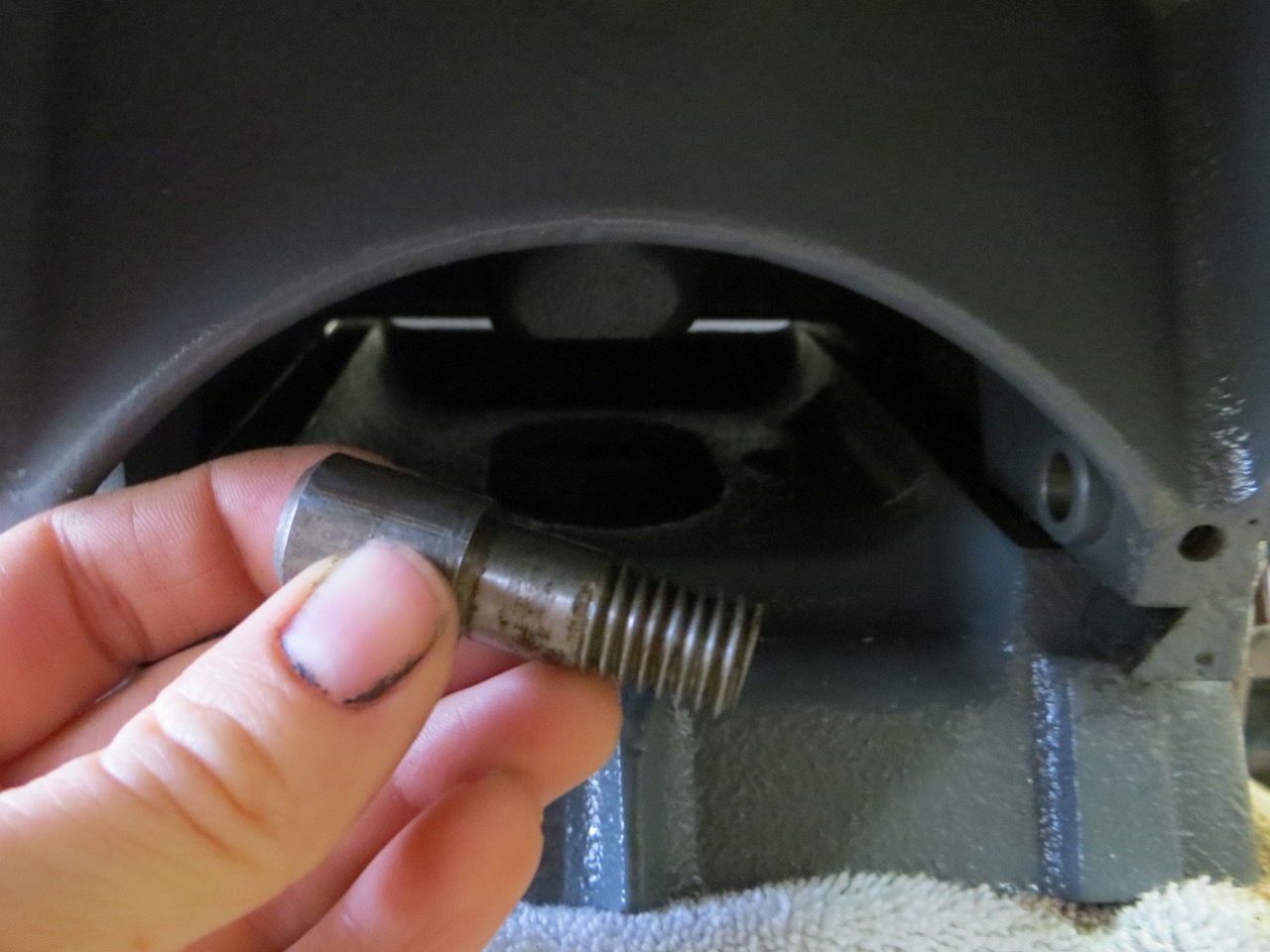

 Take your shoulder pin…

 …and place it through the hole under the table…

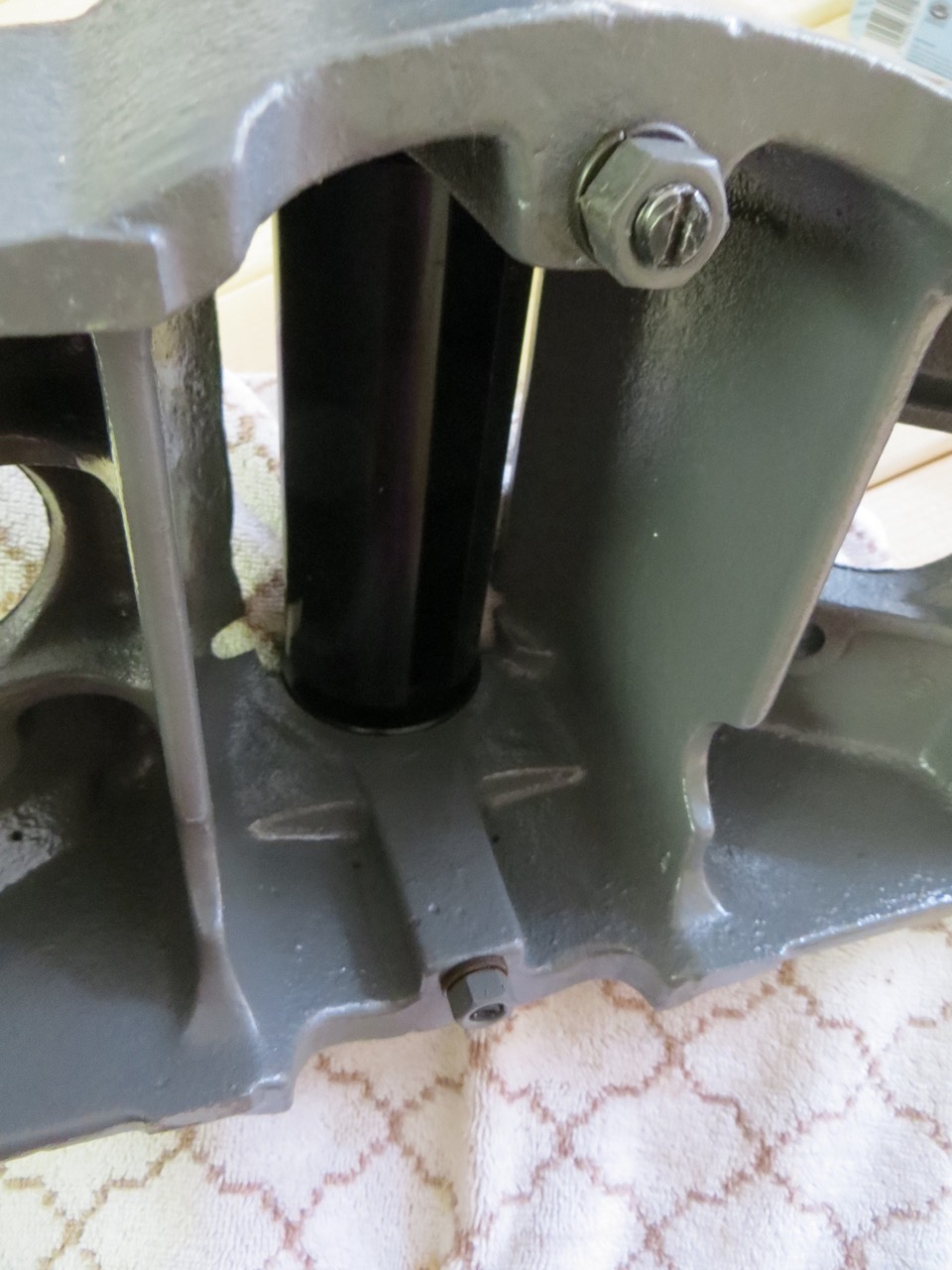

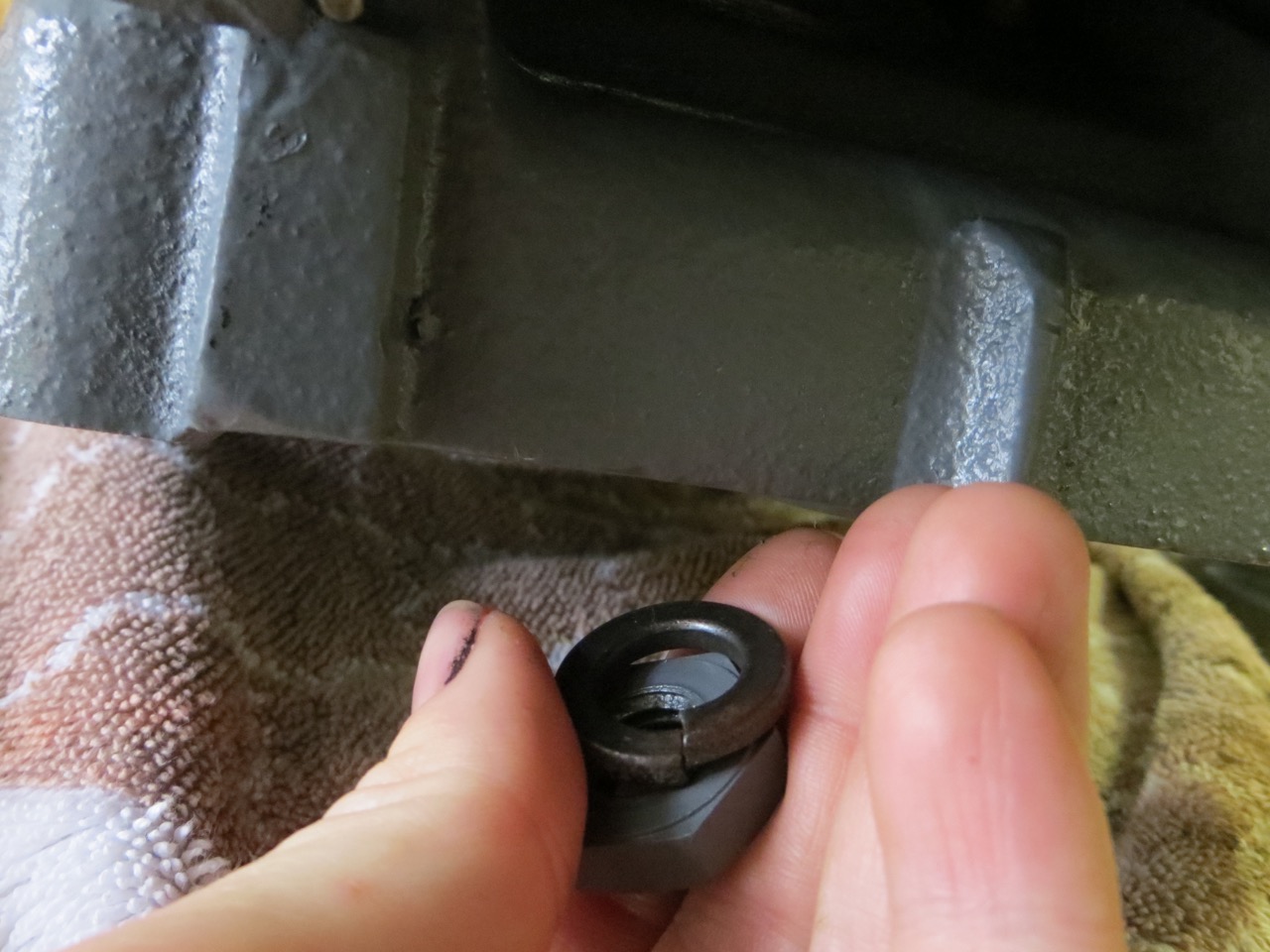

 …and finger tighten the lockwasher and nut from underneath.

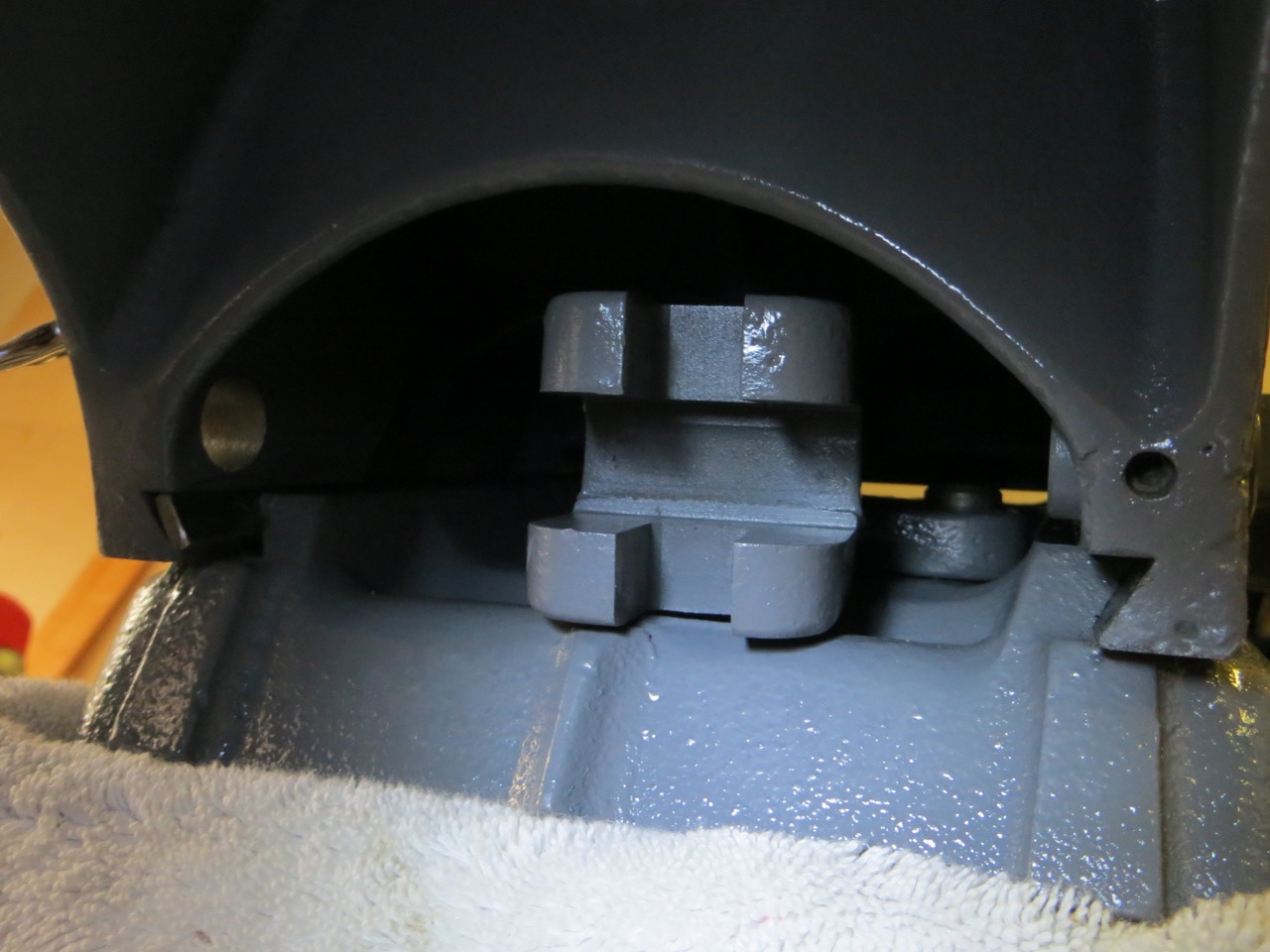

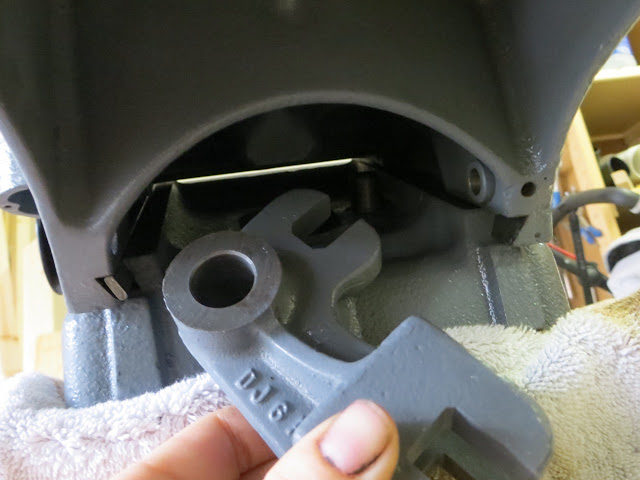

 Locate the correct ‘arm’ and fish it inside…

 …so it’s holding onto the shoulder pin.

Now the tables are on!  Carefully turn everything over so you can work on the underside…

… and insert your bolt…

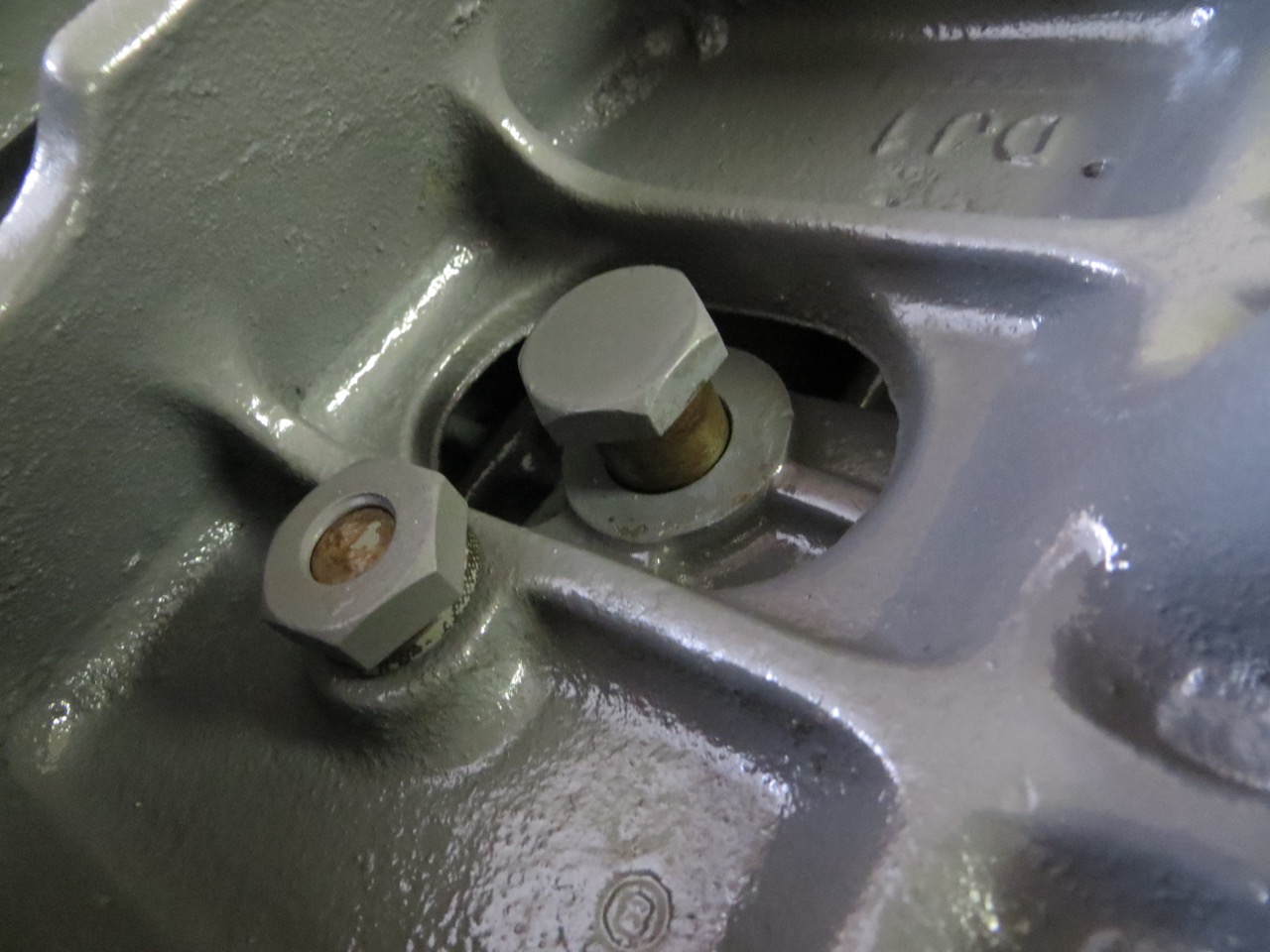

…and tighten both the bolt and shoulder pin nut.

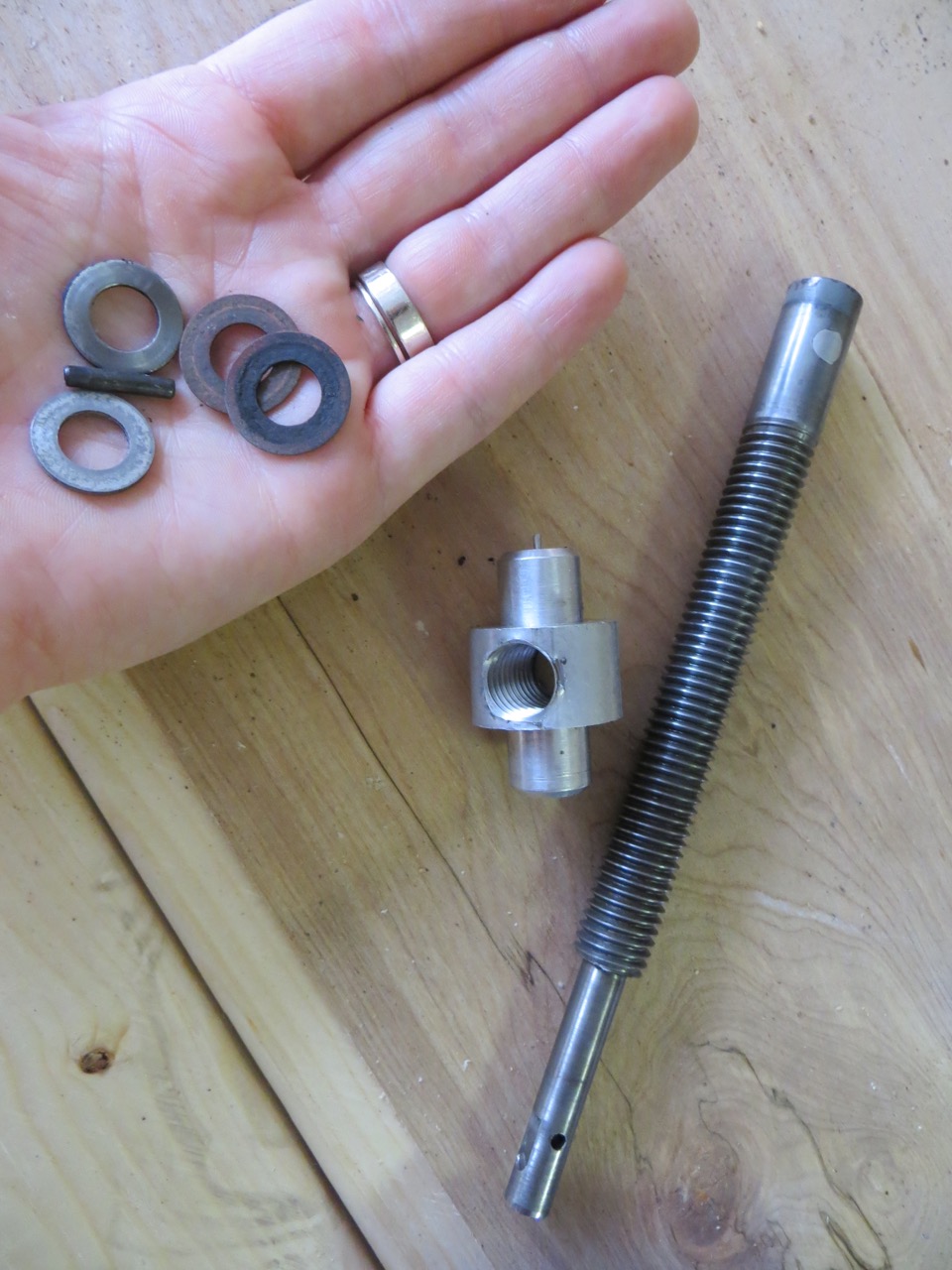

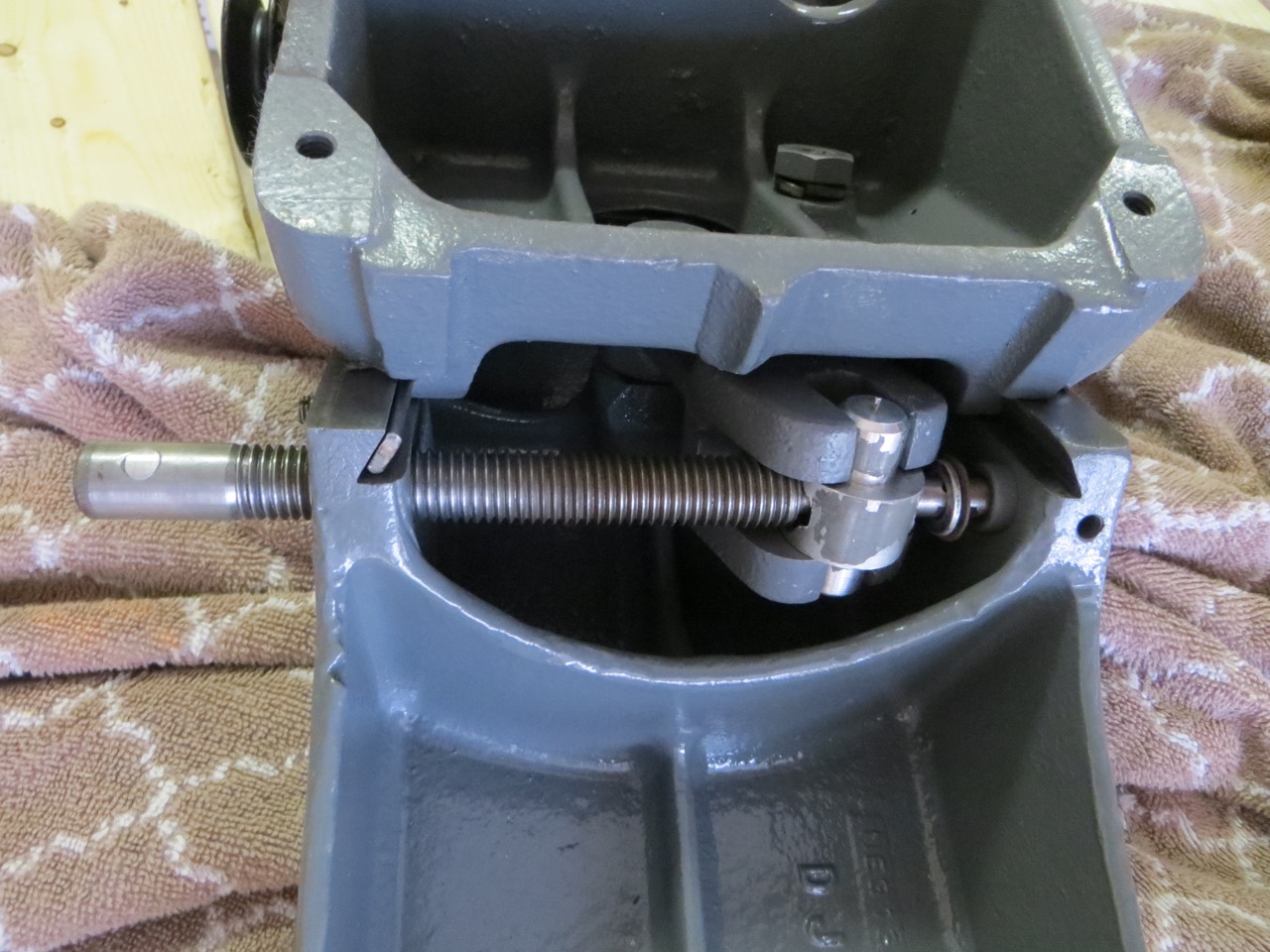

 Gather pieces needed for your adjusting screw/wheel rod.

 Place the adjusting nut into the “arm” and turn adjusting rod to pass through to the other side.  Add washers and keep turning rod so it comes through the other side of the table.

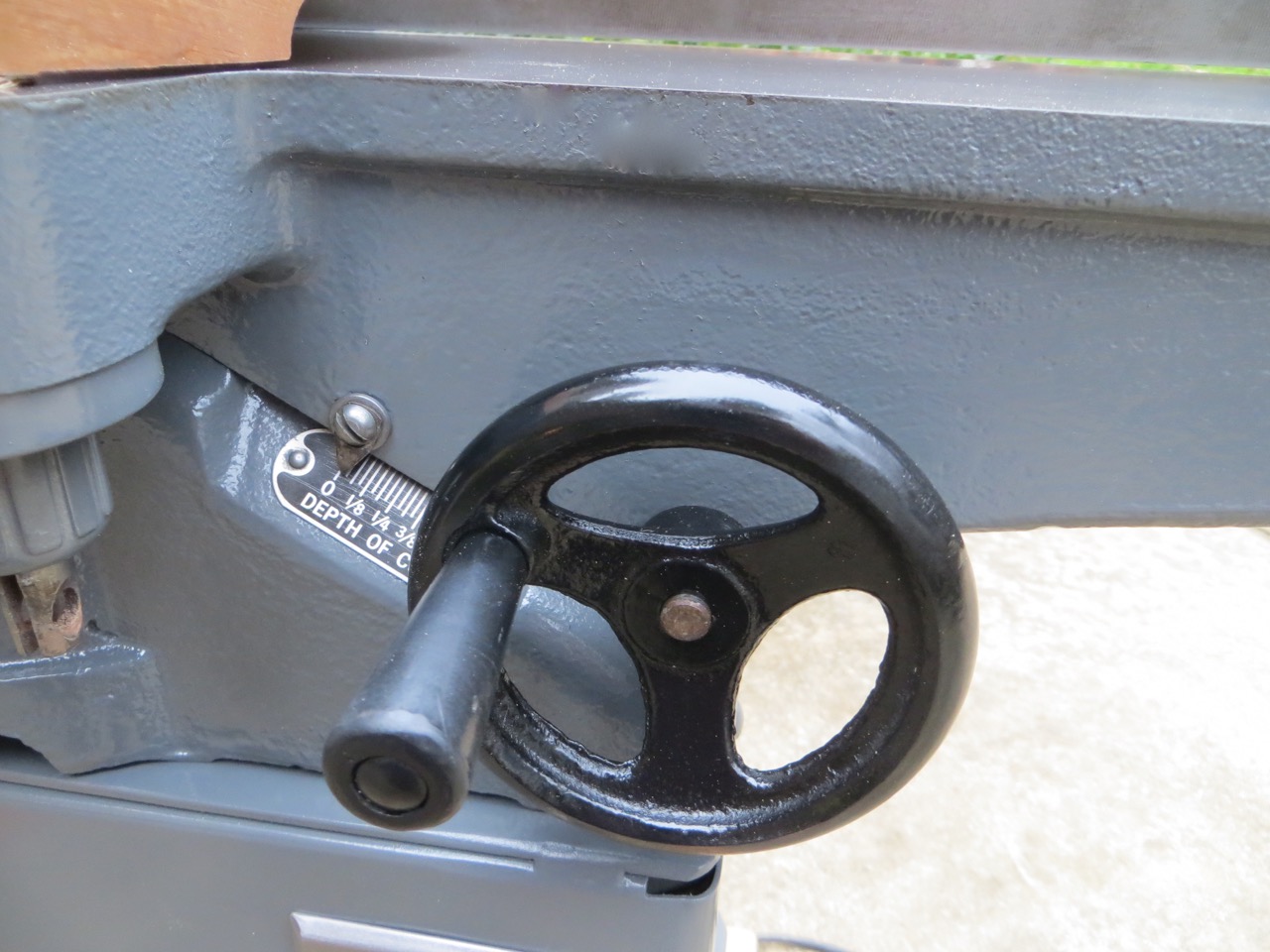

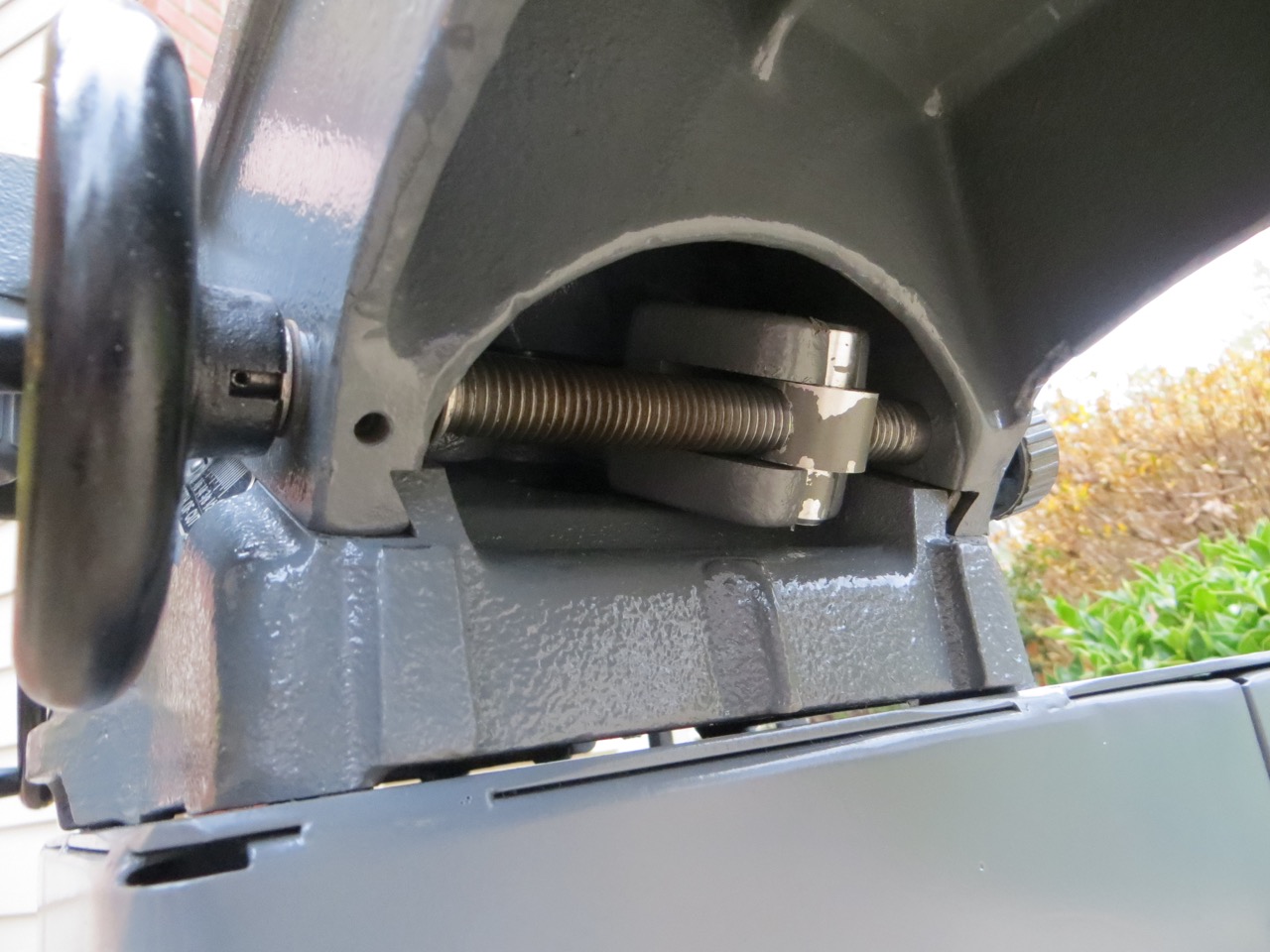

Add other washers and use a mallet to push pin through rod.  Attach hand wheels and lock screws on other ends.

Your done with the hard part!

Now onto the fence:
 Start disassembling.

 No wonder the table was hard to adjust!

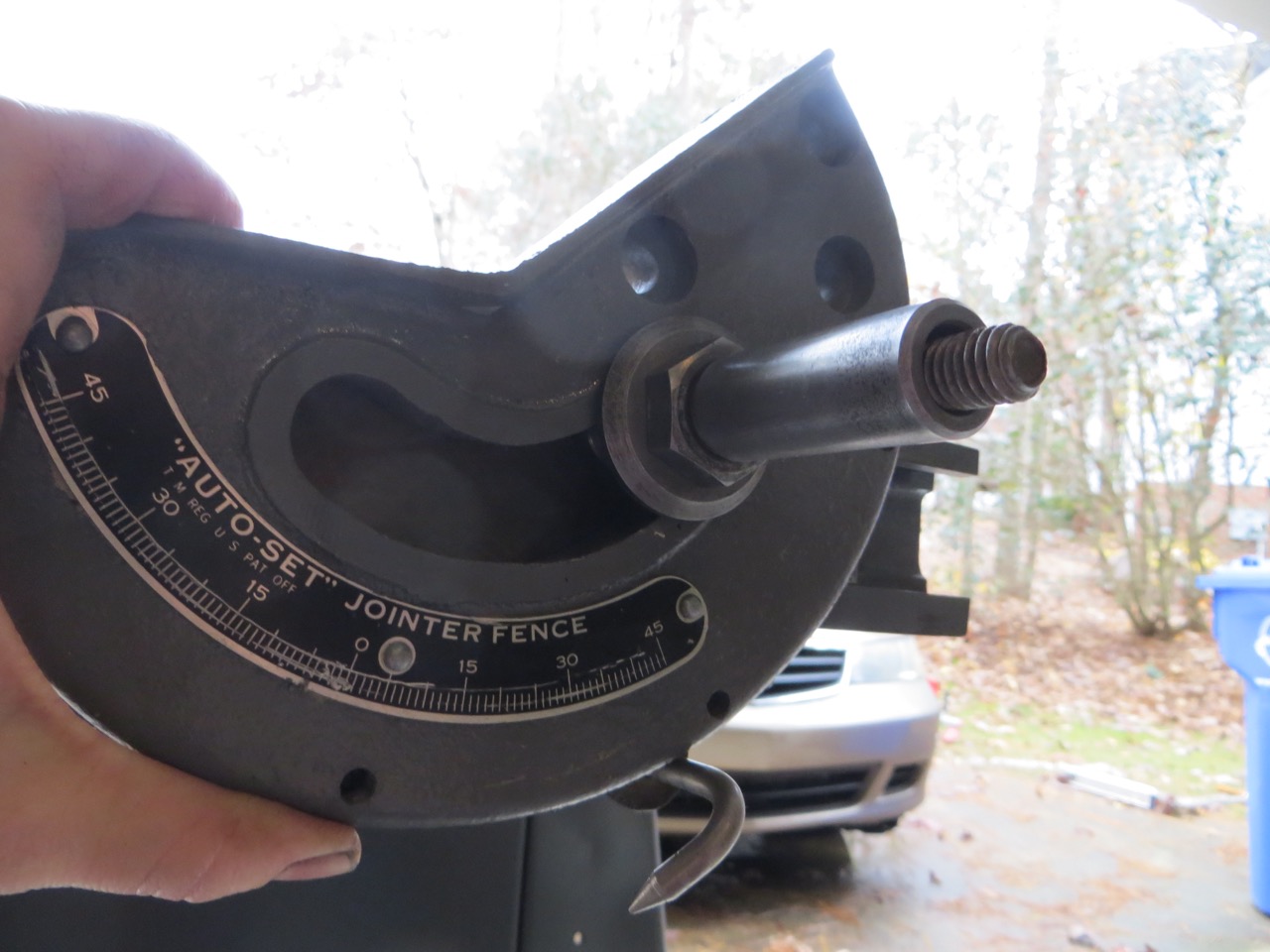

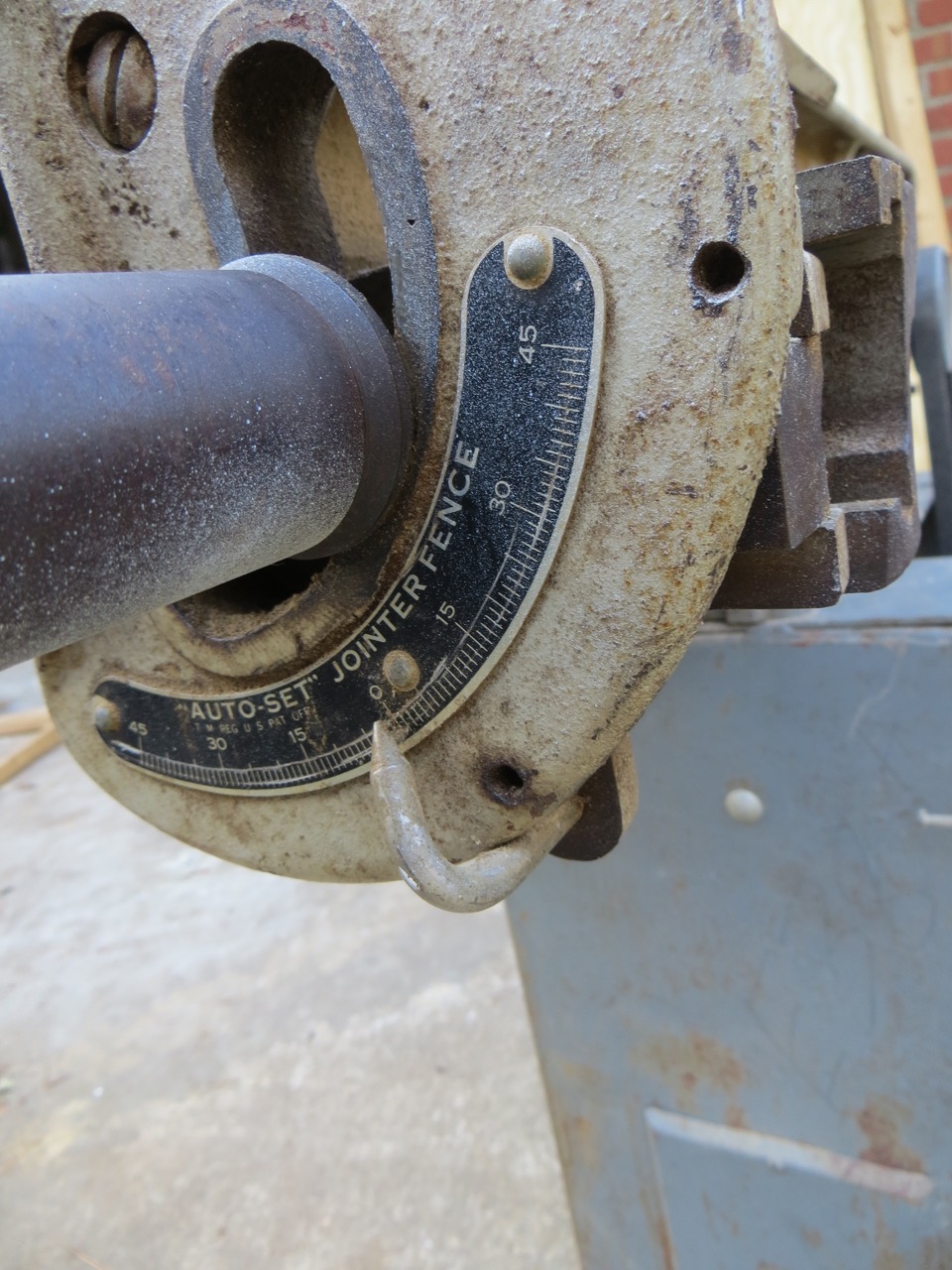

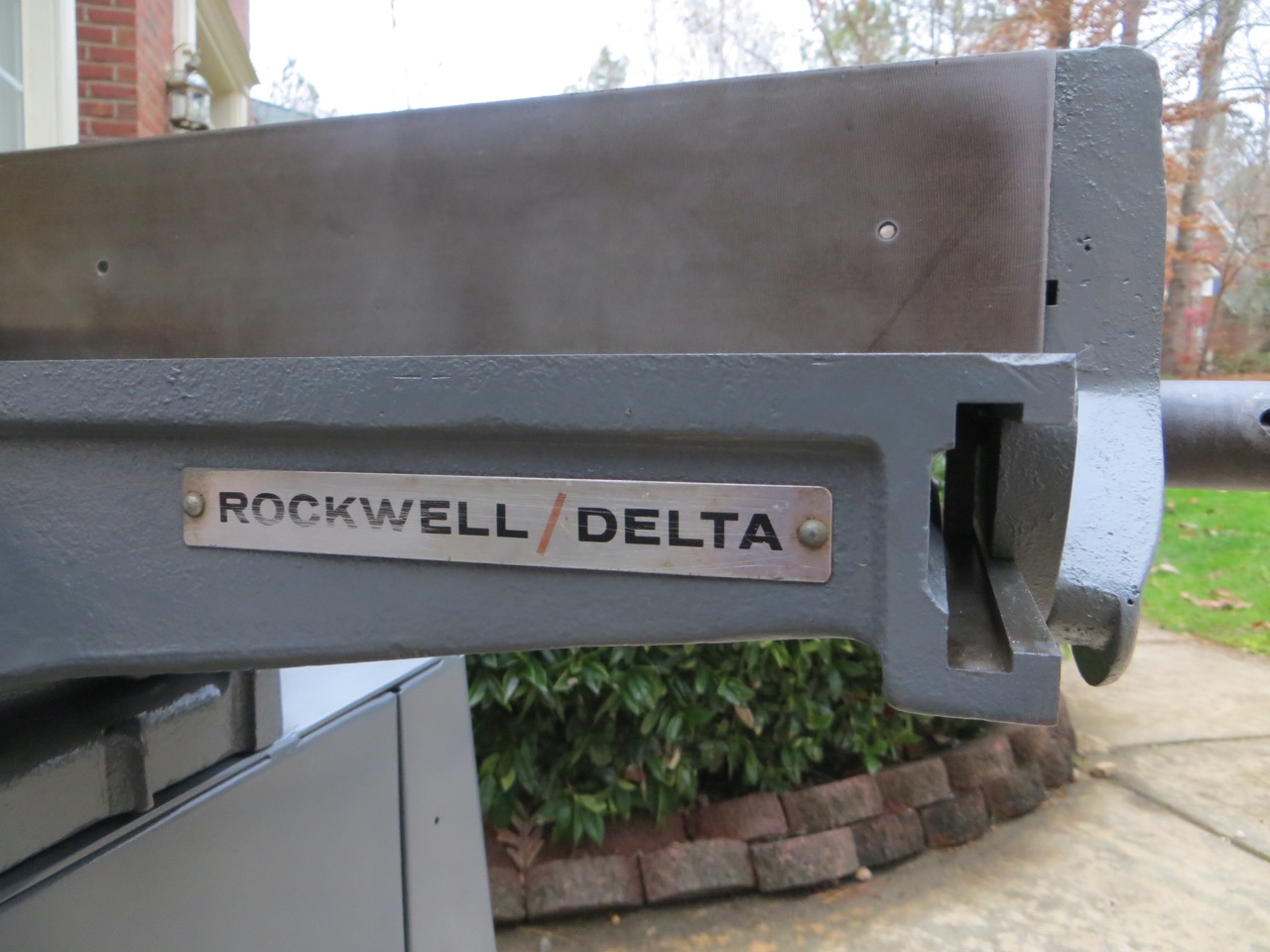

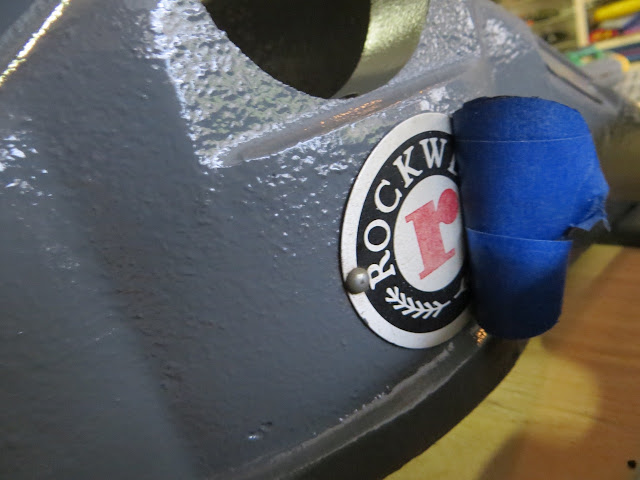

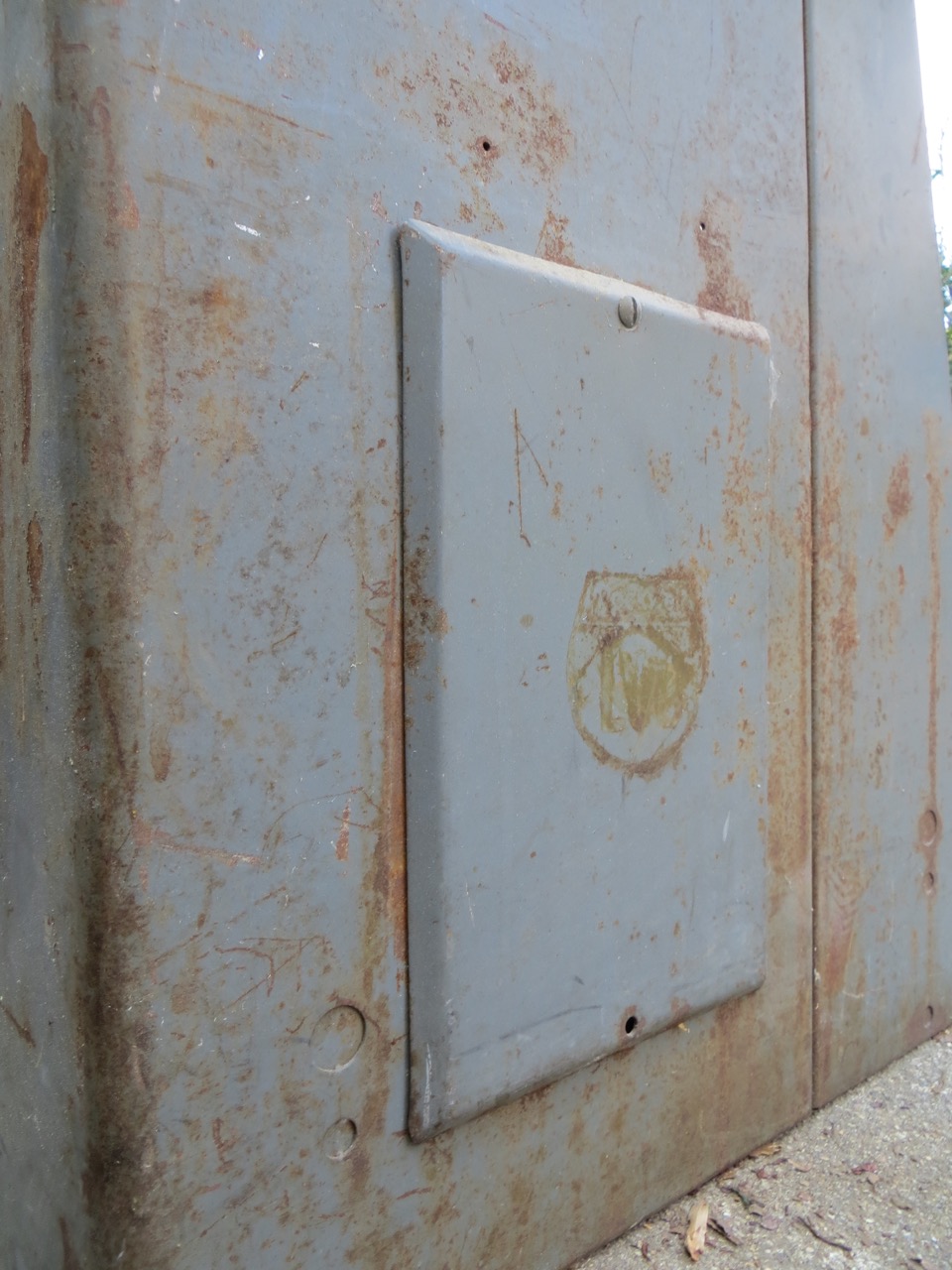

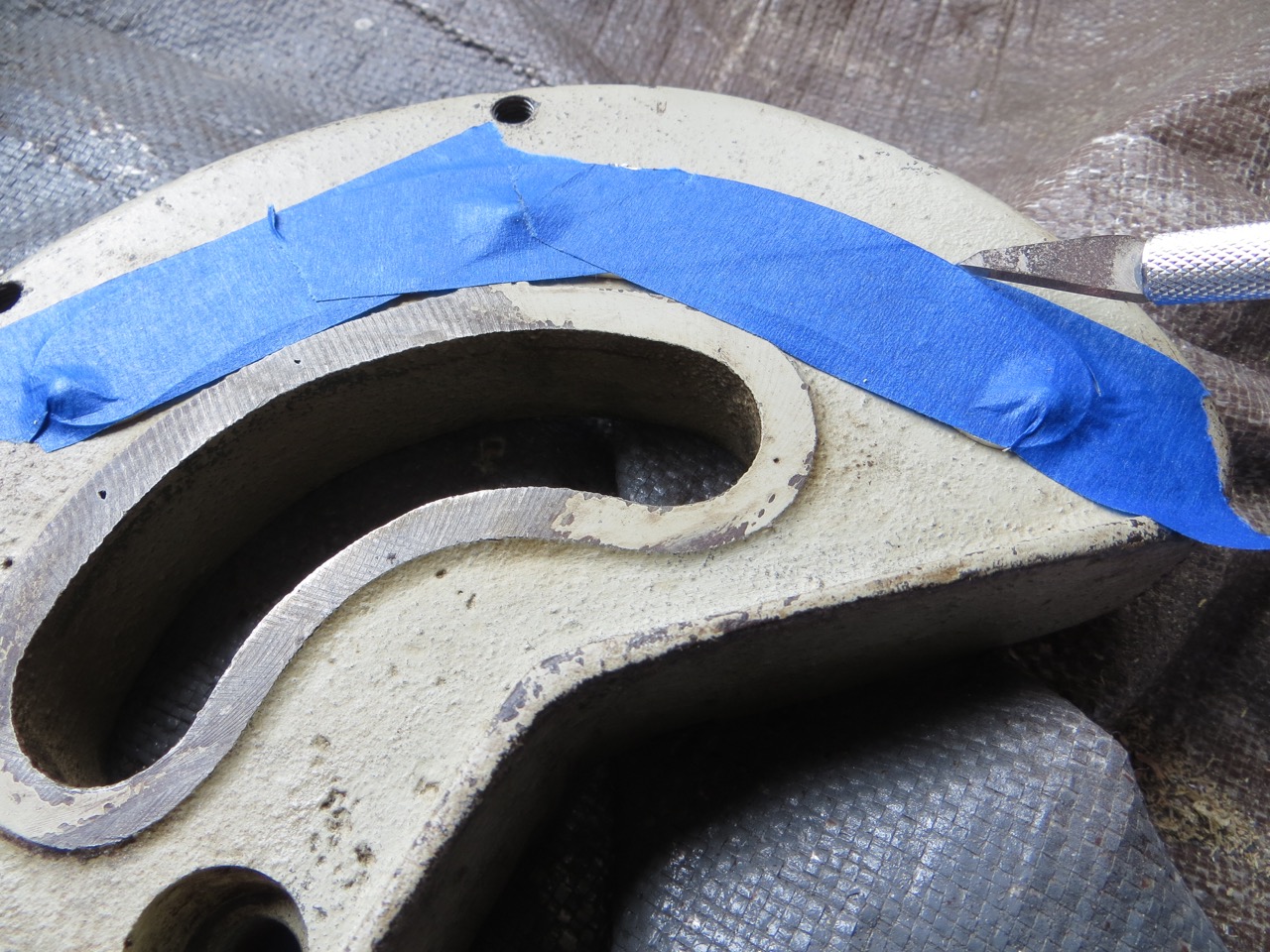

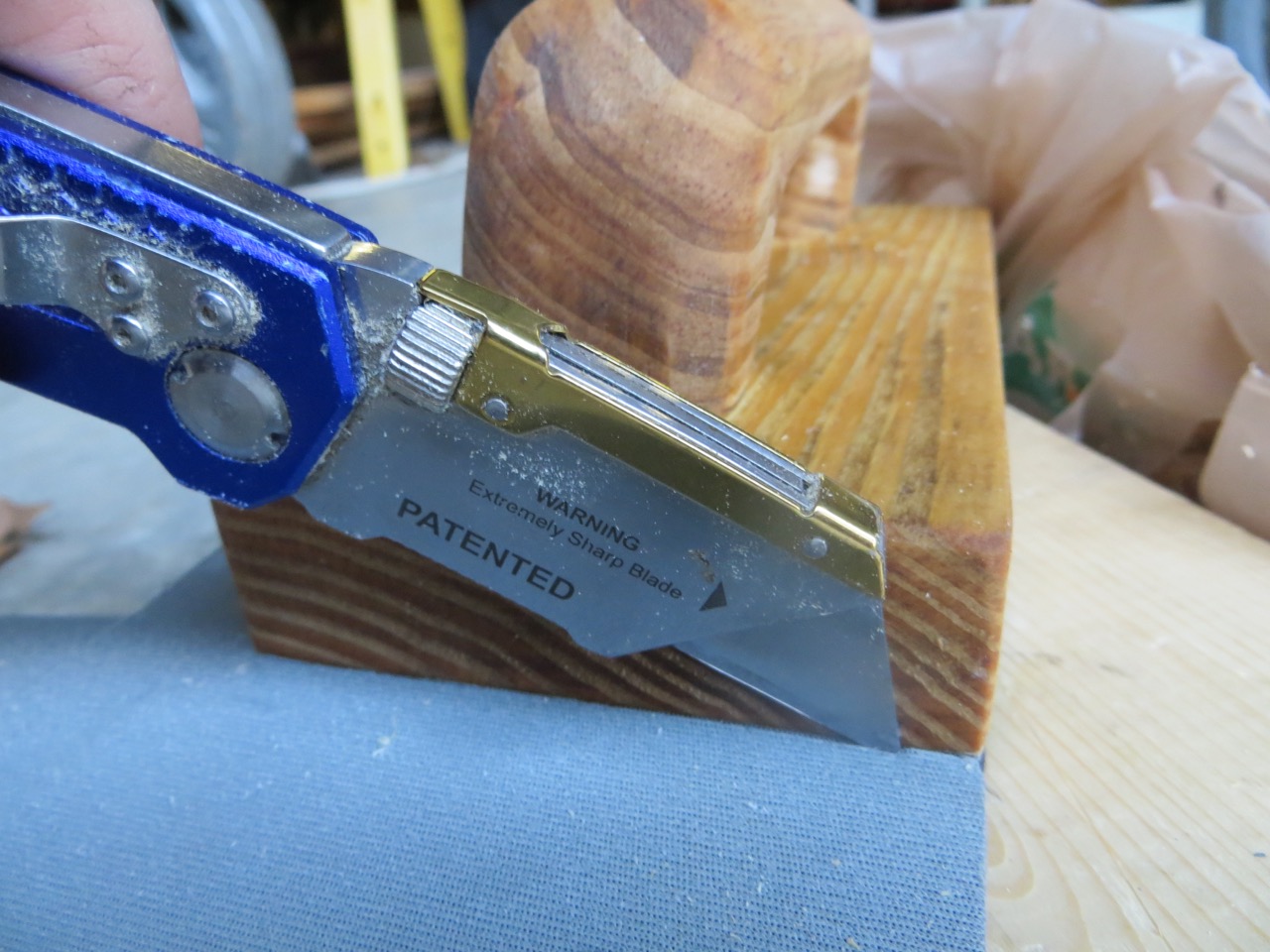

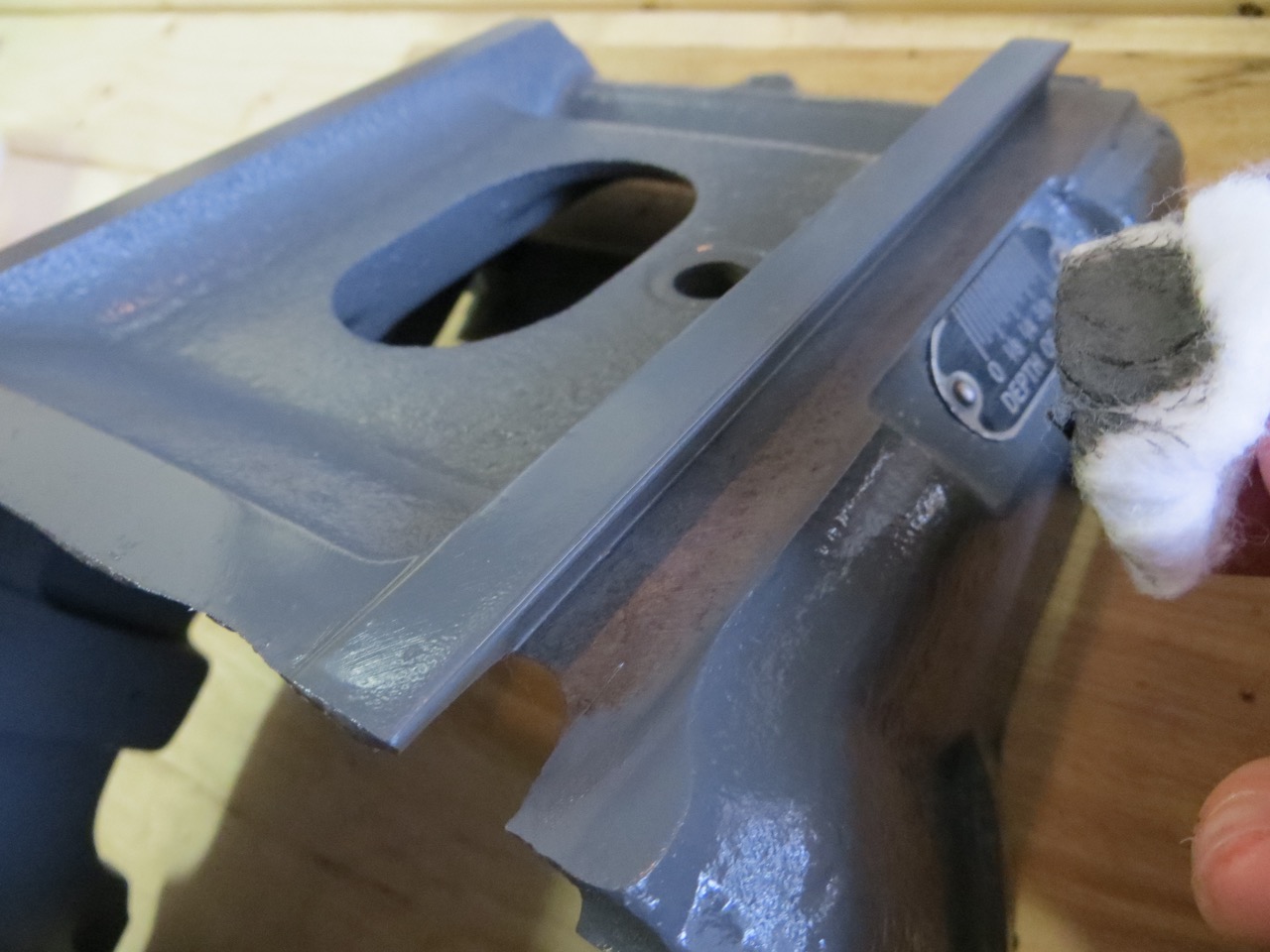

 For taping I use an Xacto knife to score around the edges of the badge to get a perfect line.

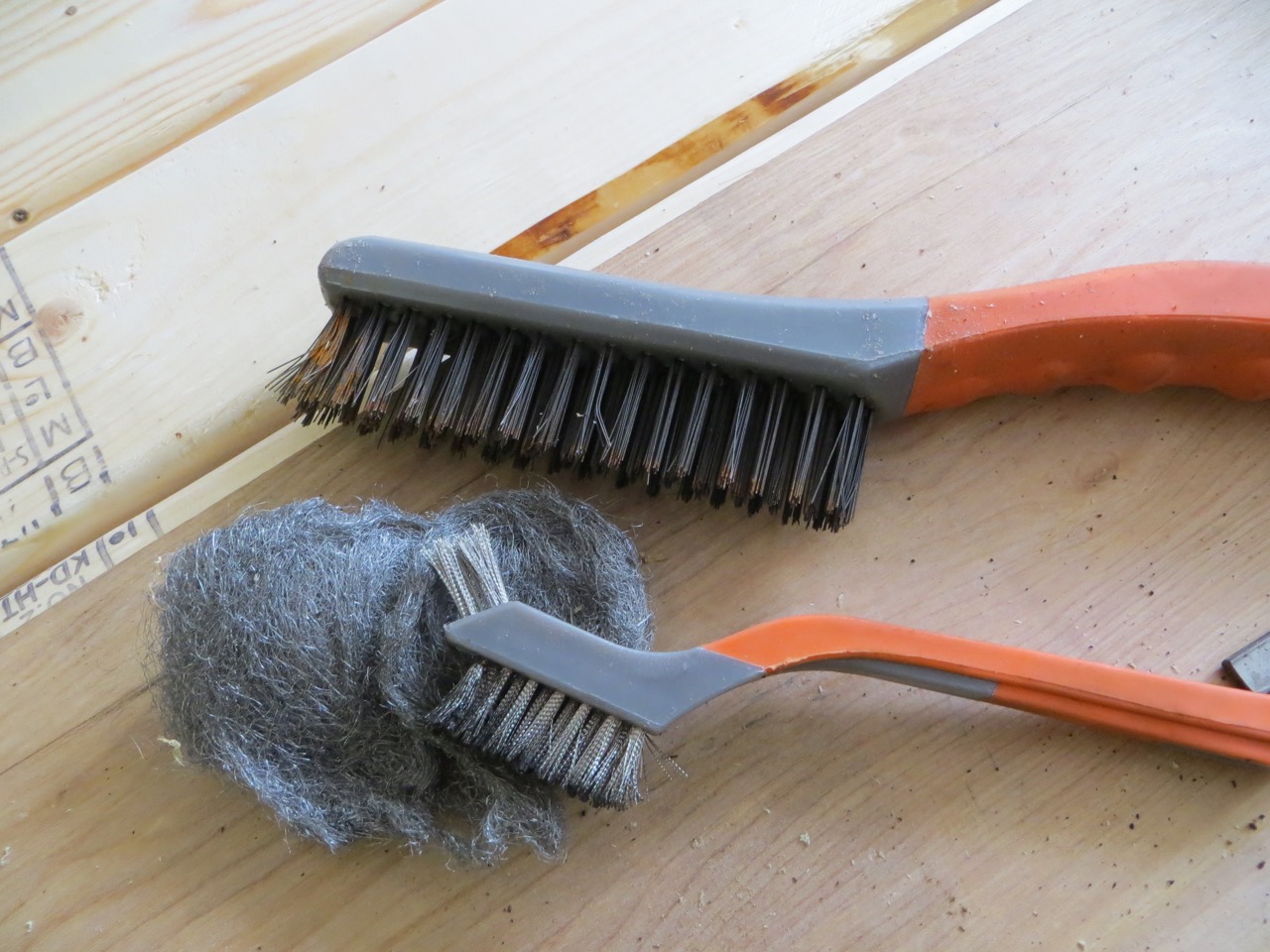

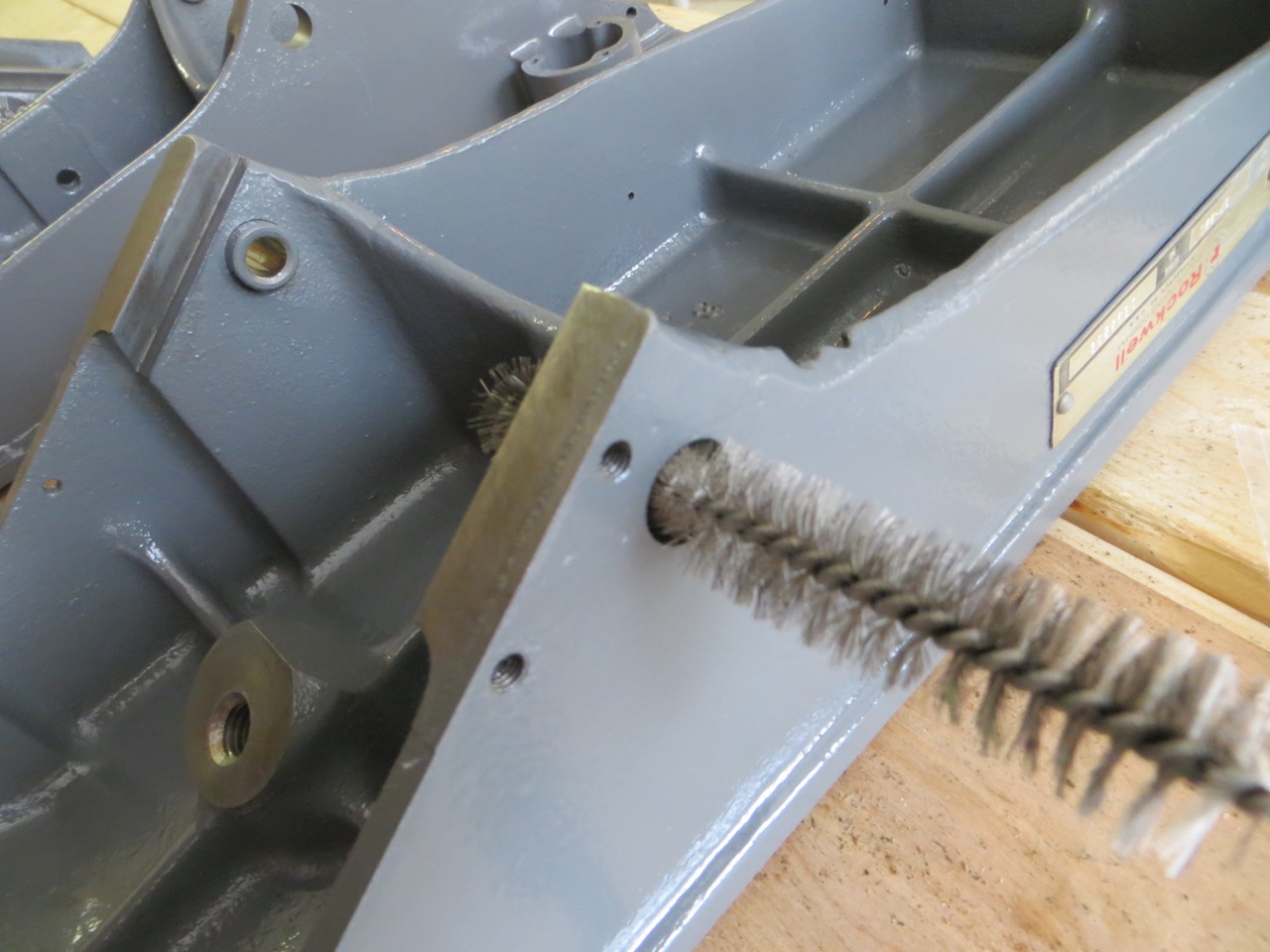

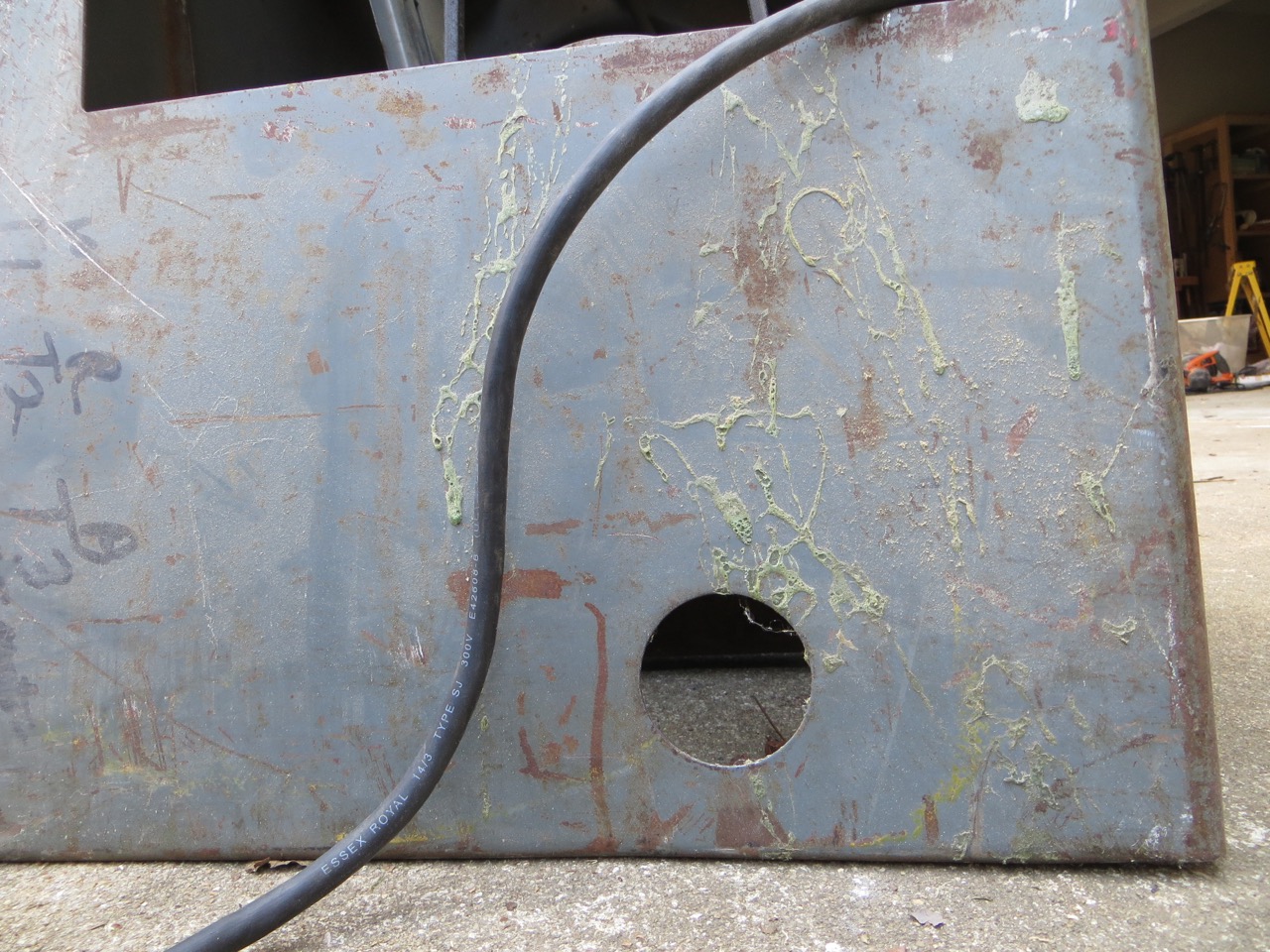

I scrubbed the fence parts and metal base with steel wool and the brushes.  Since the base had a lot of rough spots and spilled paint I used my orbital sander to get it smooth again.  I used mineral spirits to clean and followed up with TSP just like before.

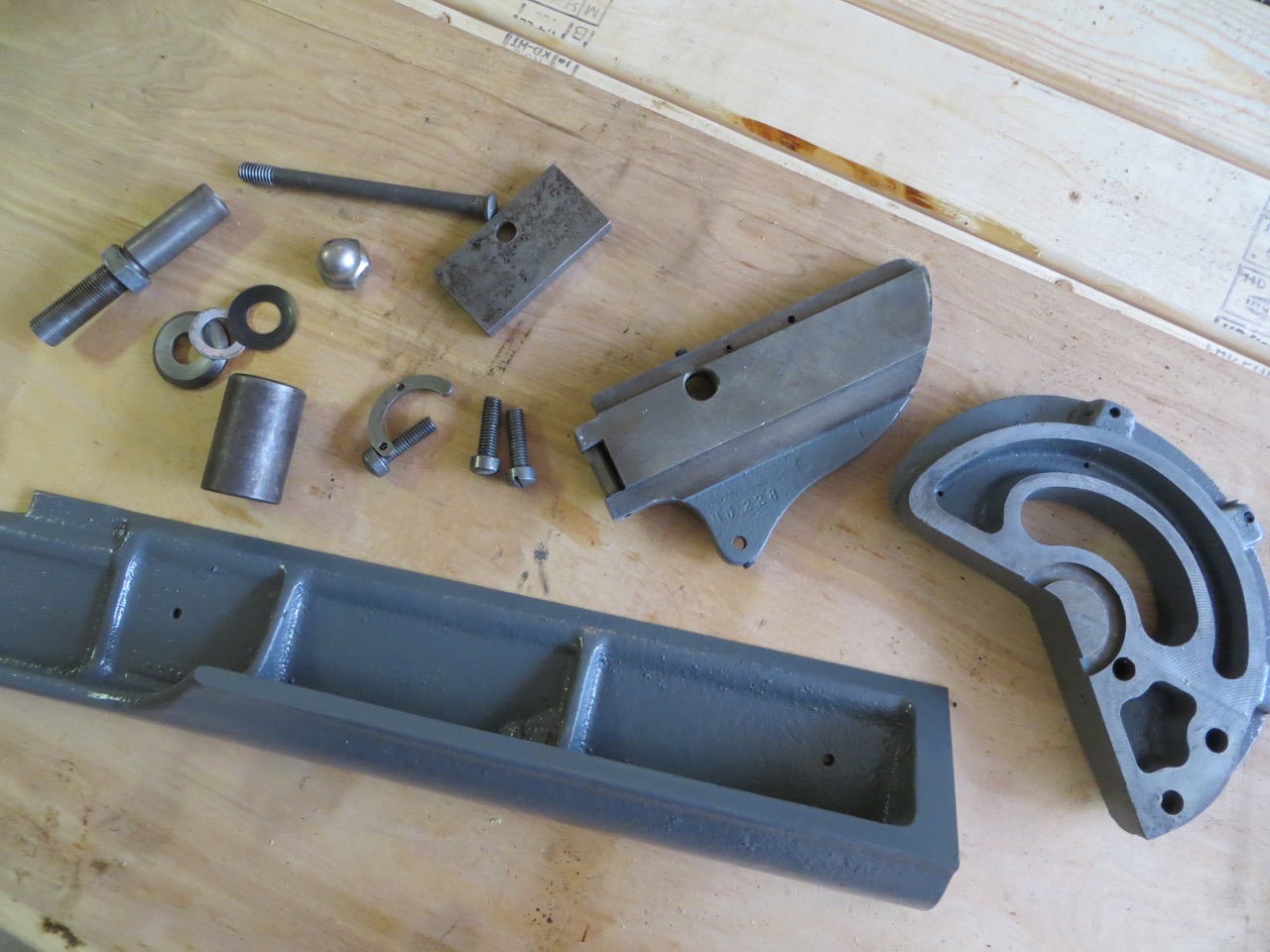

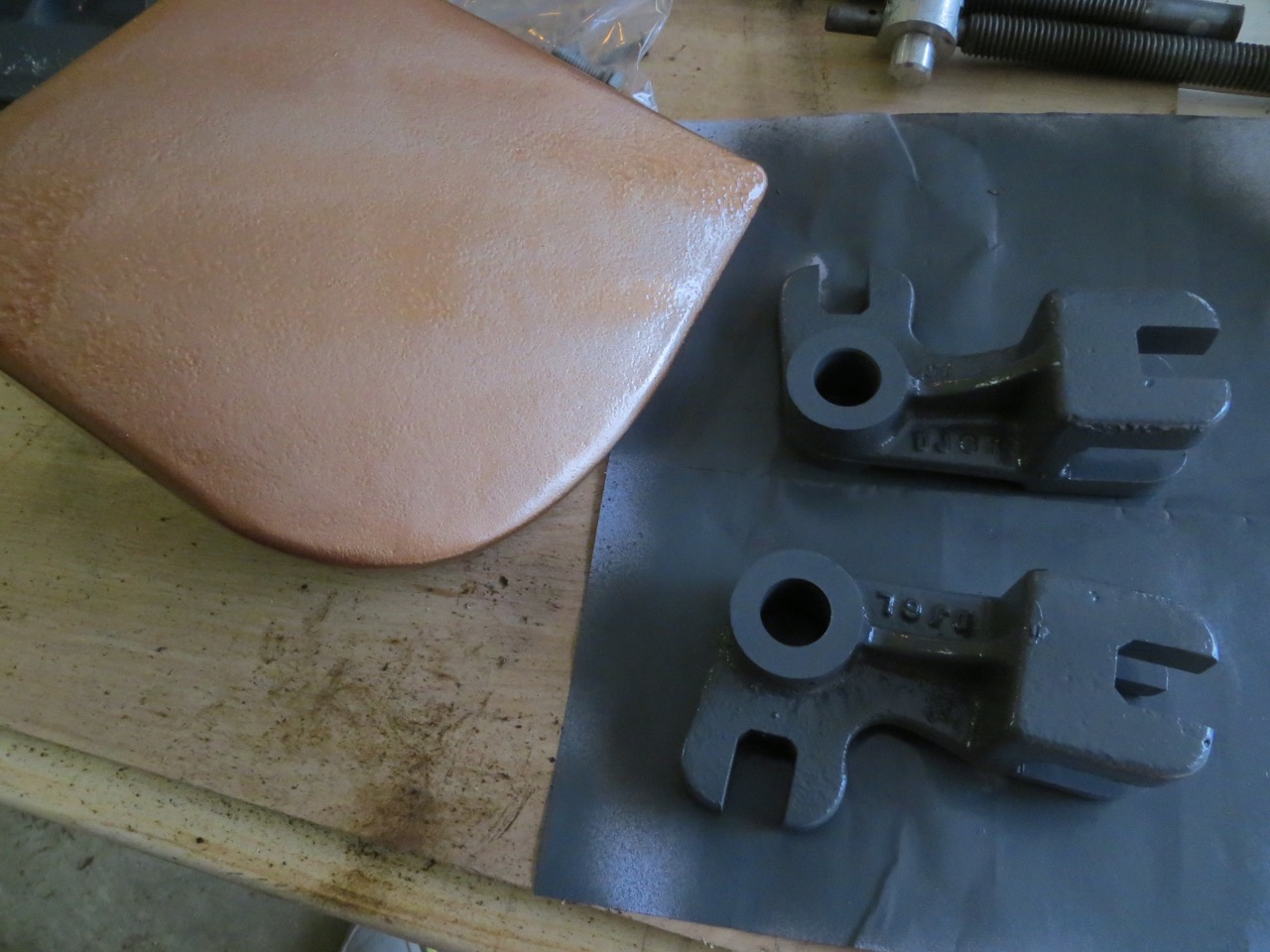

 Once all parts were clean and dry I primed and painted. I love seeing the paint go on because it makes it look new within seconds!

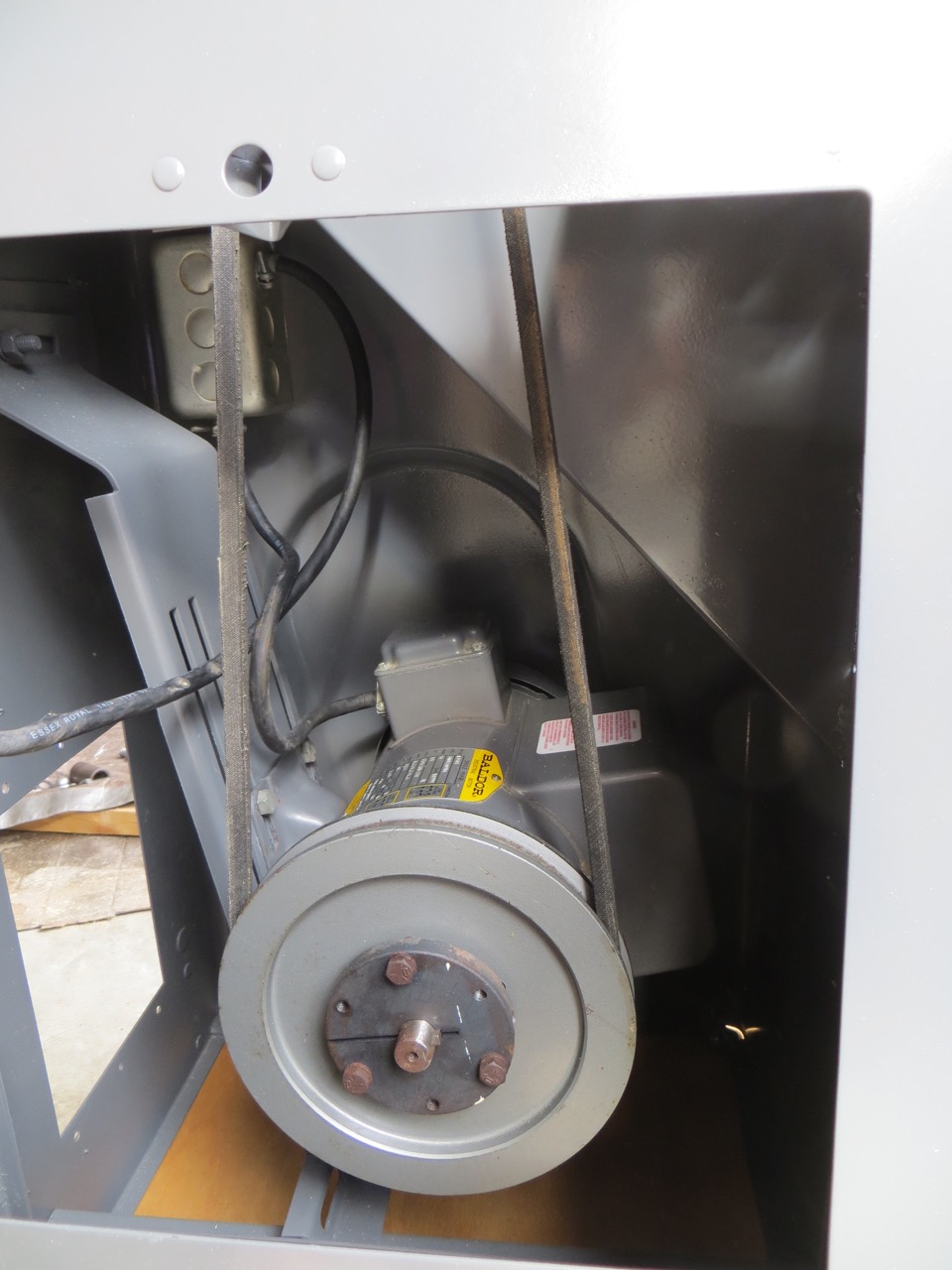

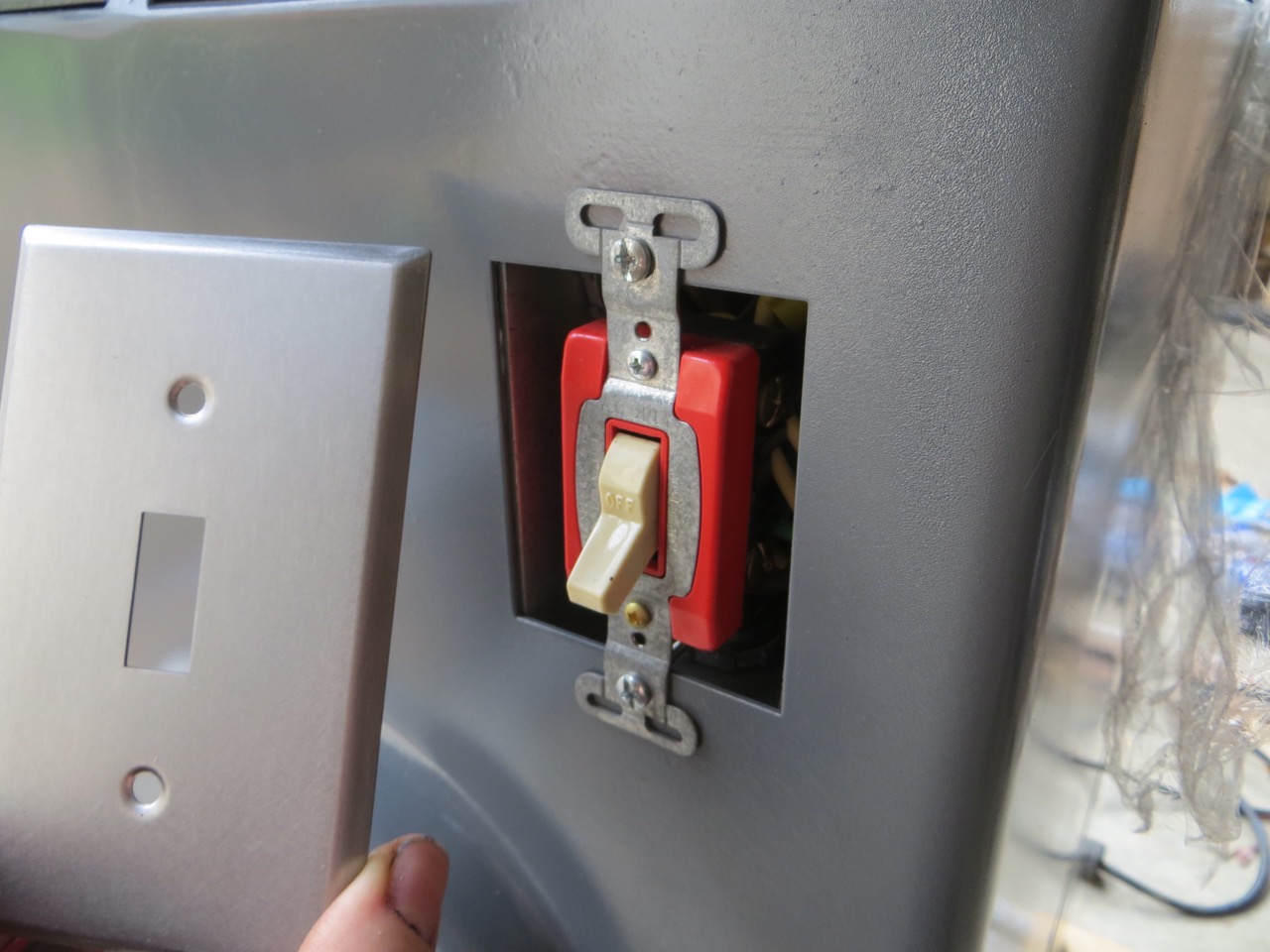

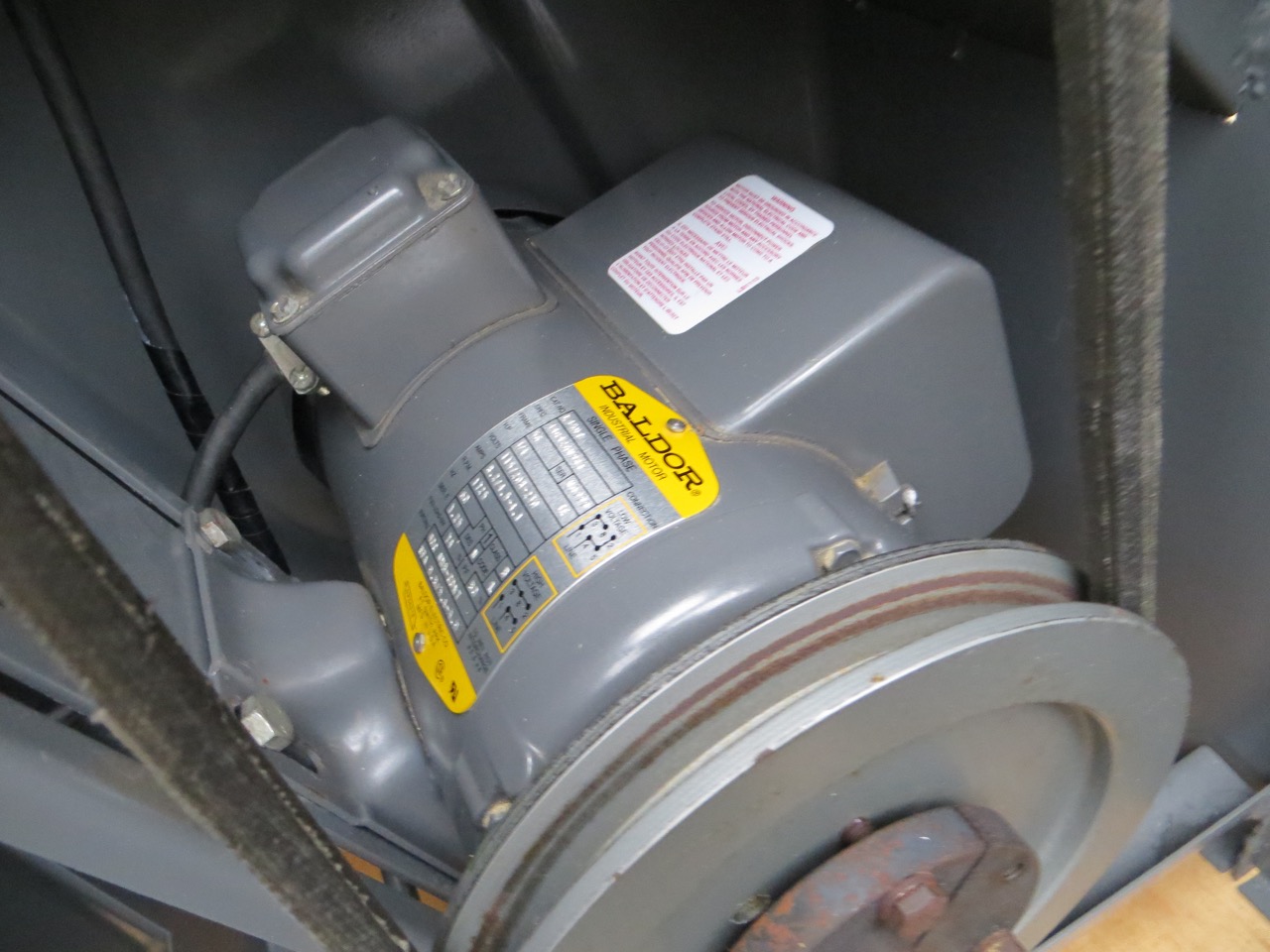

 Let the assembly begin!  The finish line is in sight!  At this point I have the main jointer head bolted back on the metal stand so I can add the v-belt and motor.  Ensure that you get the belt tension just right; you want about a 1″ give in the belt when you pull both sides together.

Here I’ve used my acetone method to remove paint where metal rubs on metal and rubbed with WD-40 to protect.

 For assembly I found it was easiest to add the clamp plate and stud on the table first…

 …attach the rest of the pieces…

 …and screw the fence on.

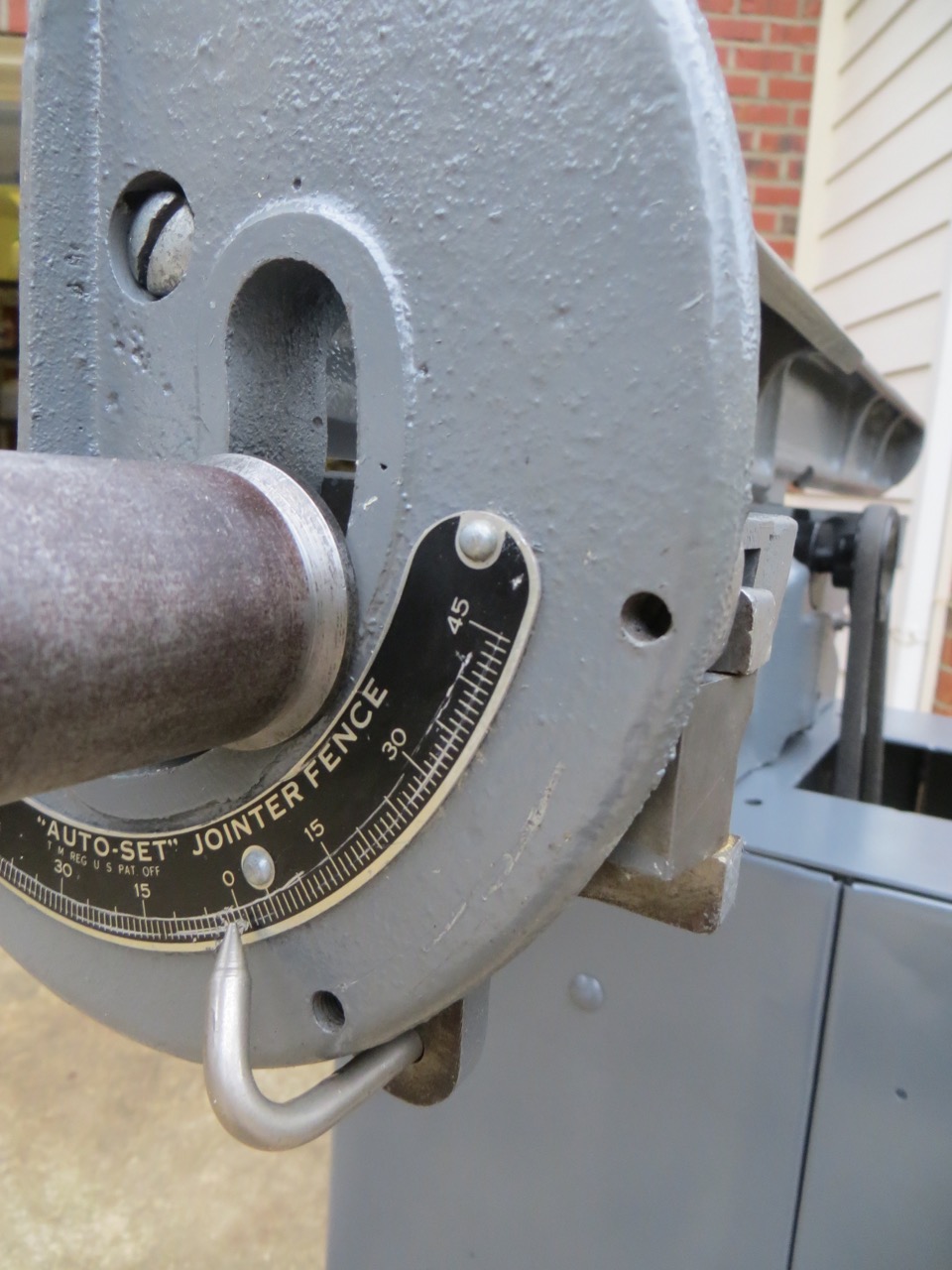

Use a square to ensure your table is adjusted perfectly.

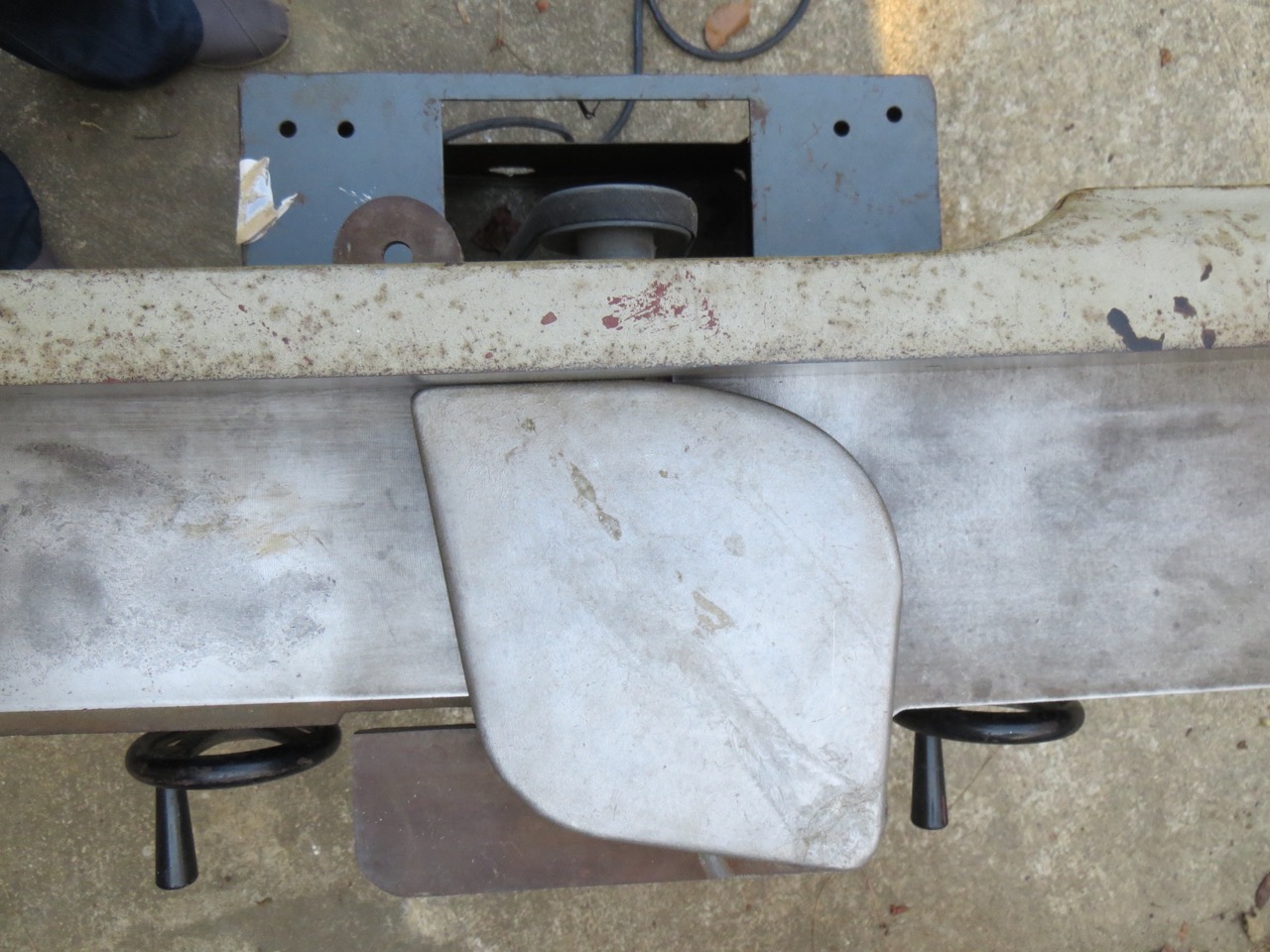

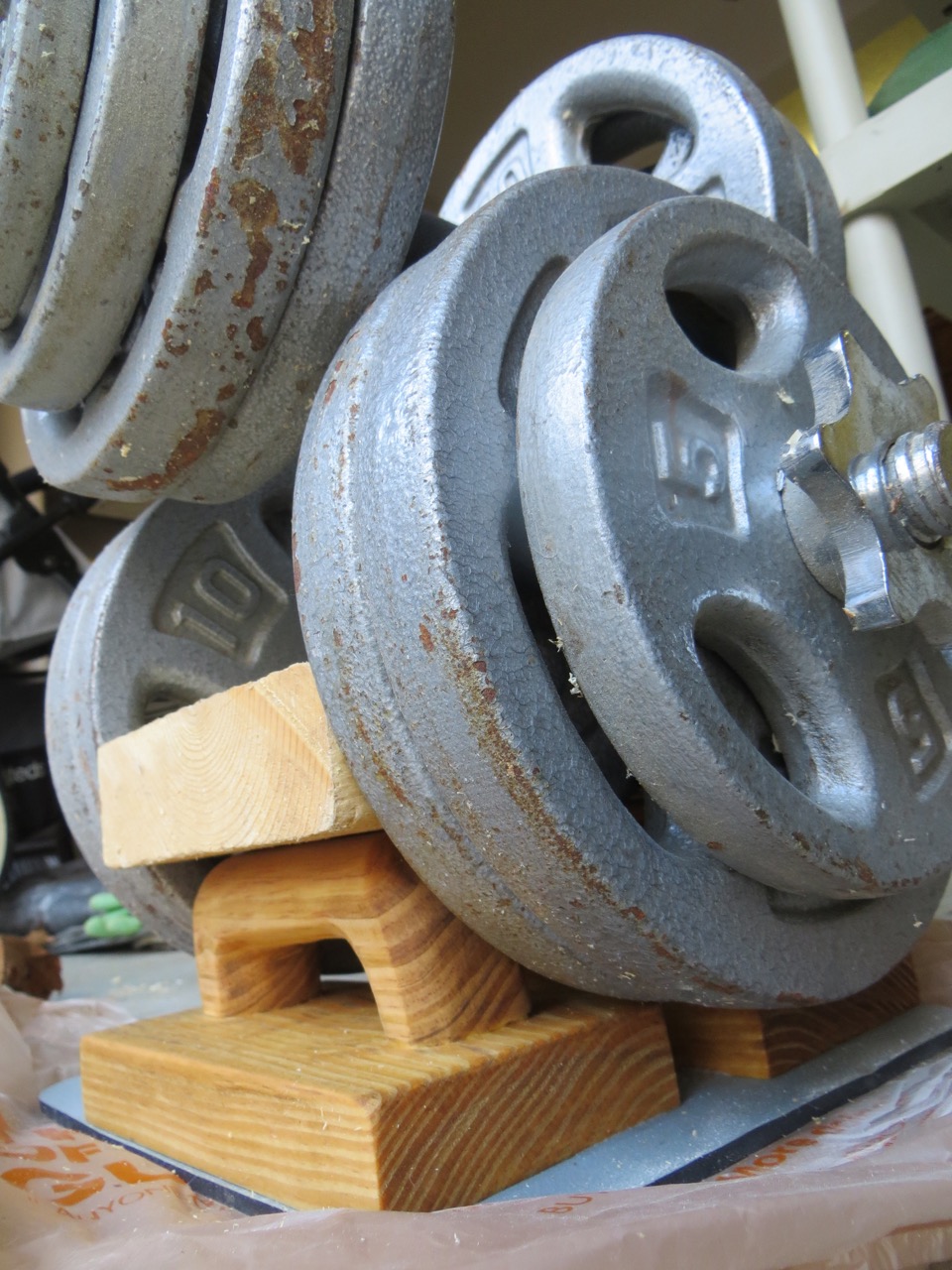

When I first got the jointer home the tables sagged really bad – probably from all the gunk in the dovetail ways that interfered.  I used a long straight metal edge to see and adjust the sagging (which was minimal) by adjusting the gib screws.  It’s amazing how a slight turn of a little screw will raise/lower a huge-heavy table!

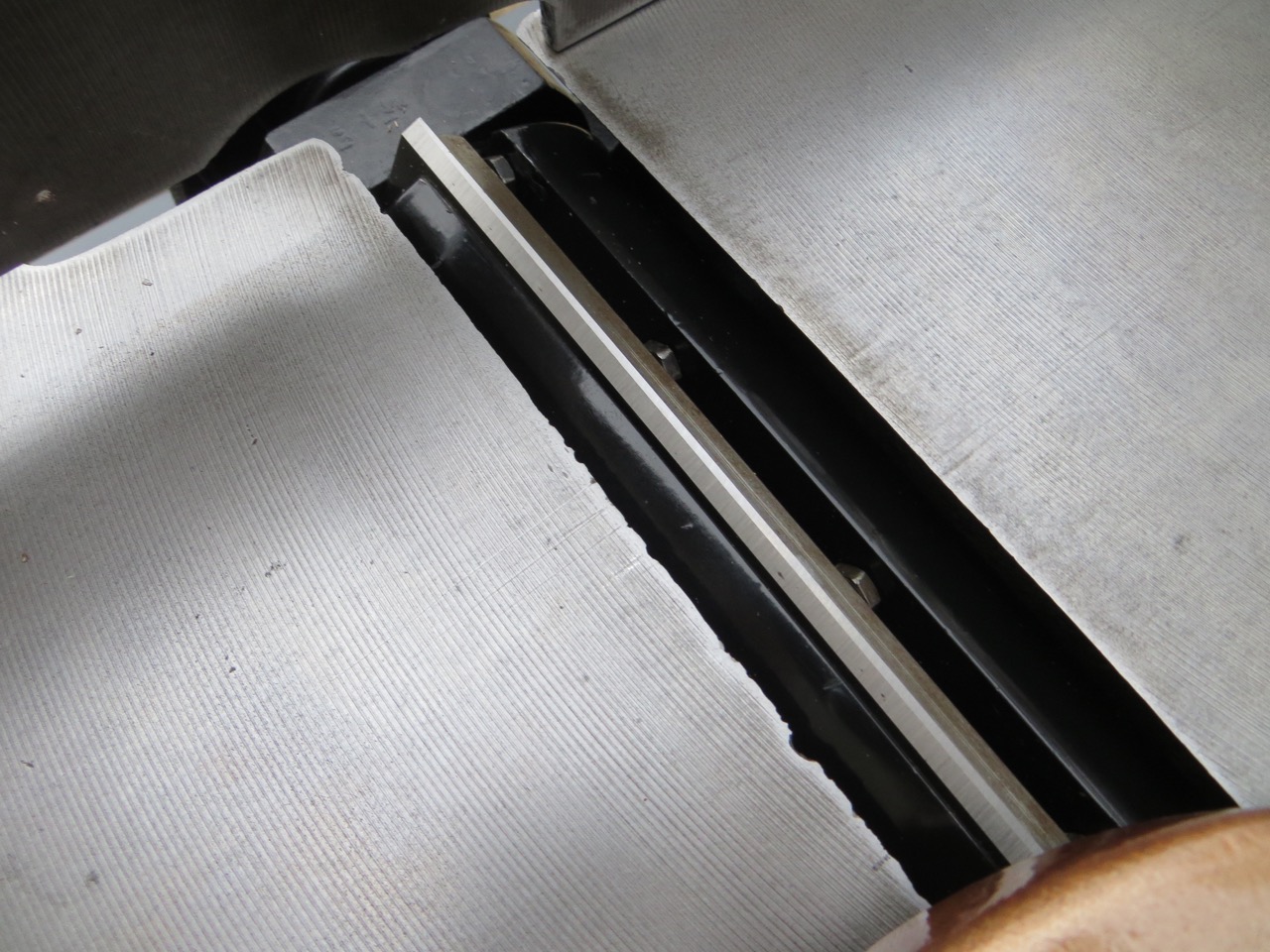

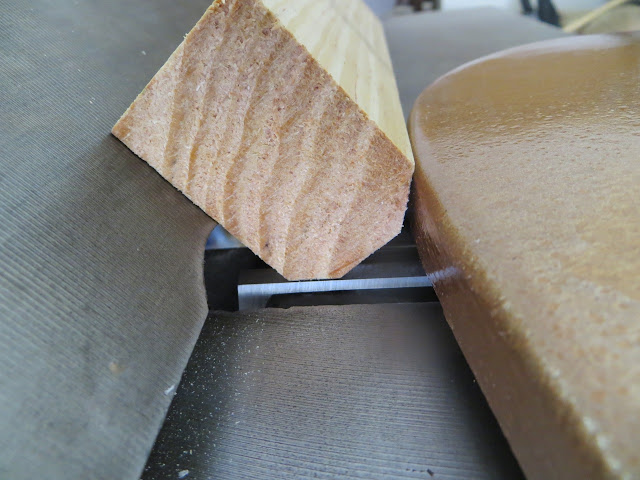

I didn’t bother getting the original knives sharpened but opted to buy new ones (here) for $15.

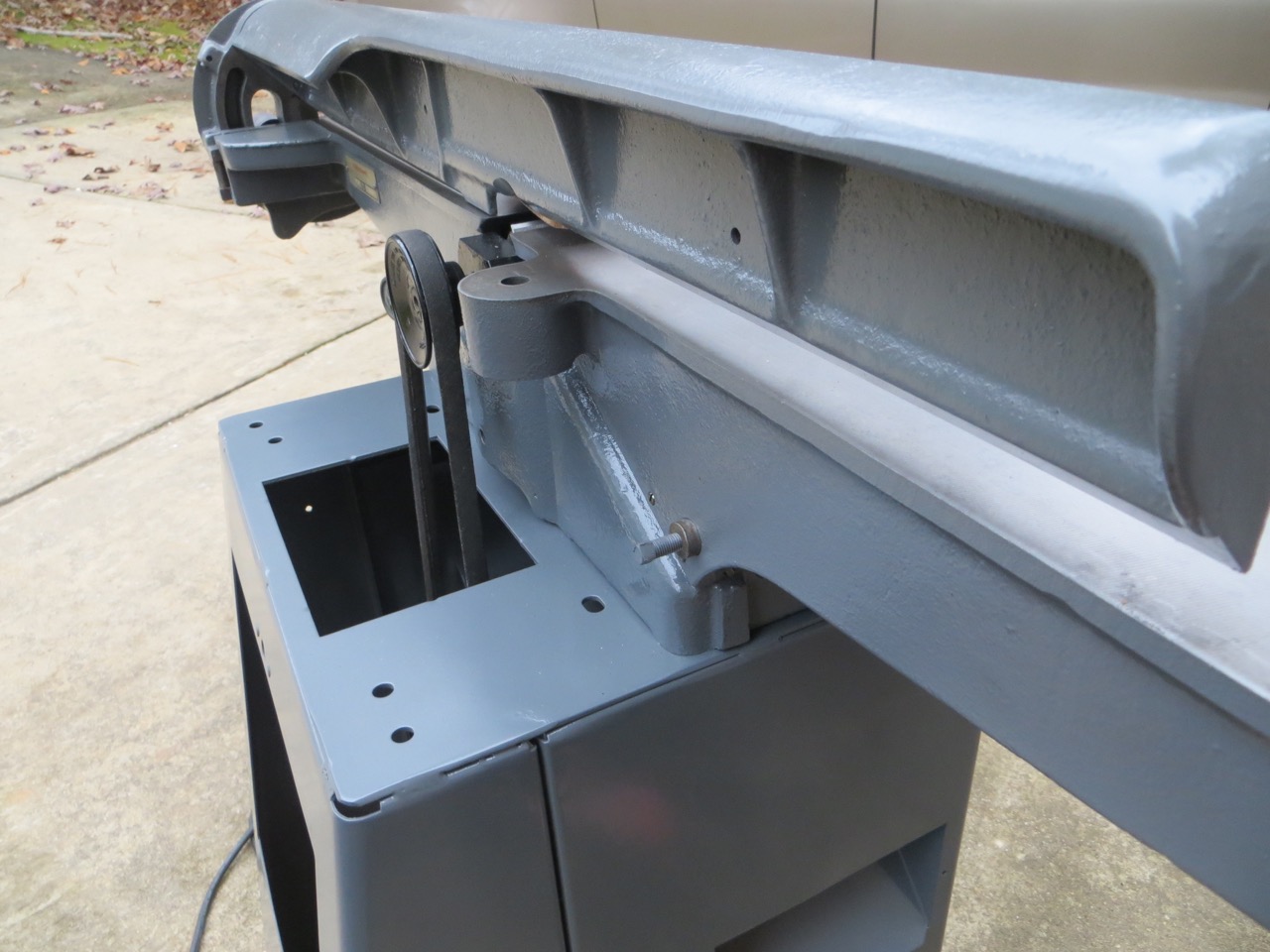

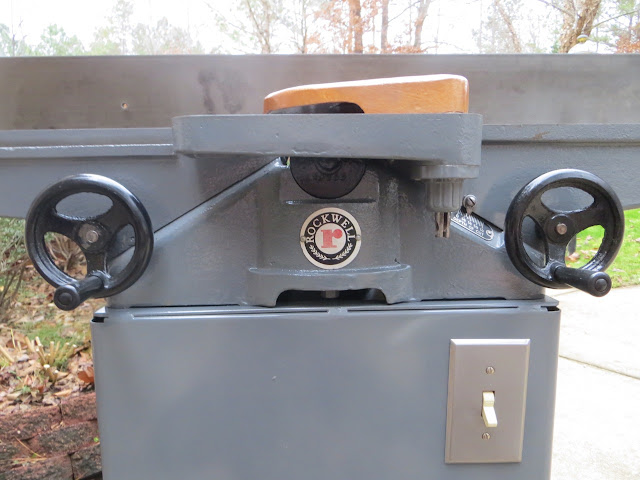

I know you want to see the BEFORE and AFTER again:

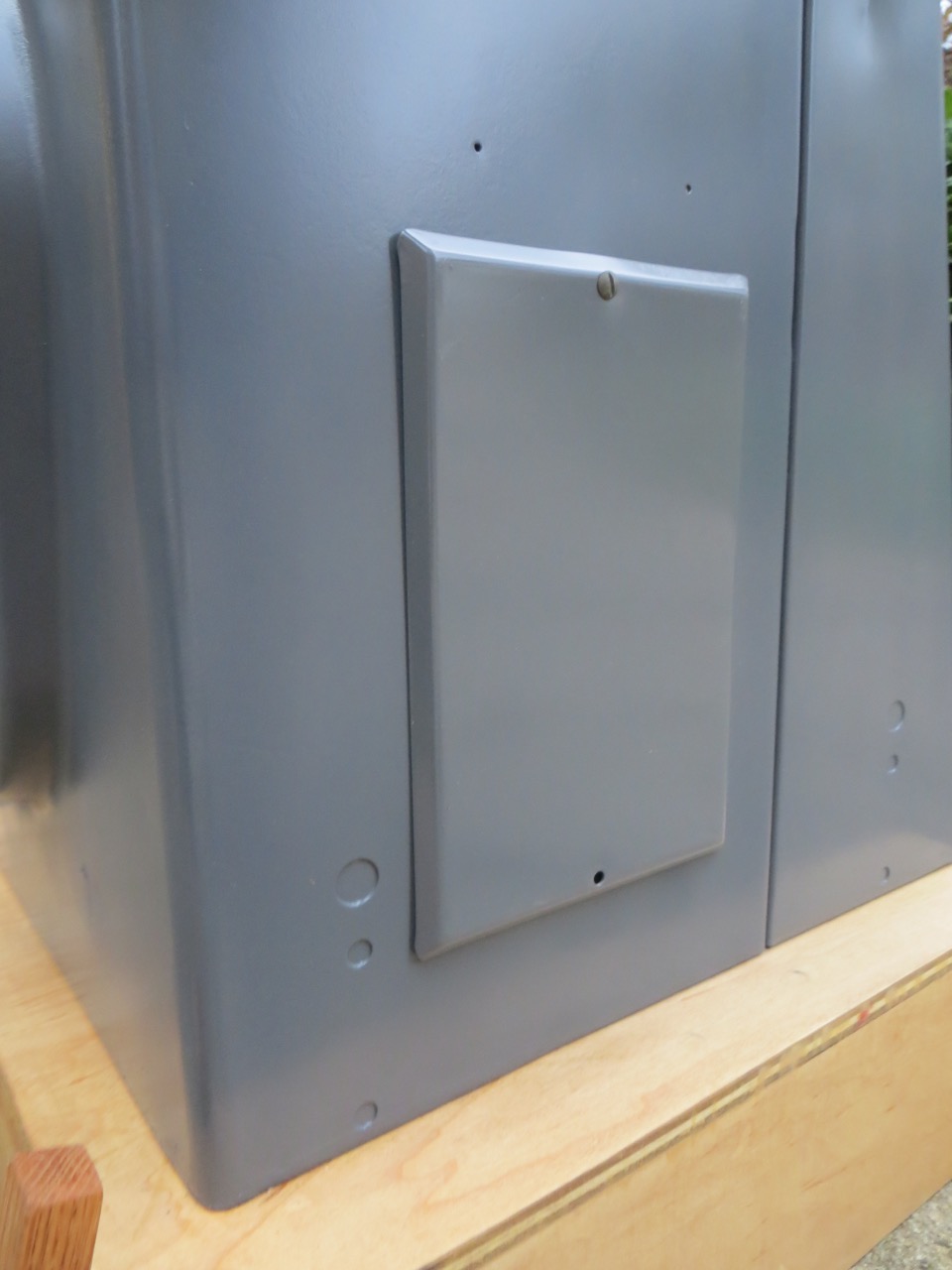

The base is made out of 3/4″ plywood with hardwood components.  I got the plans here.

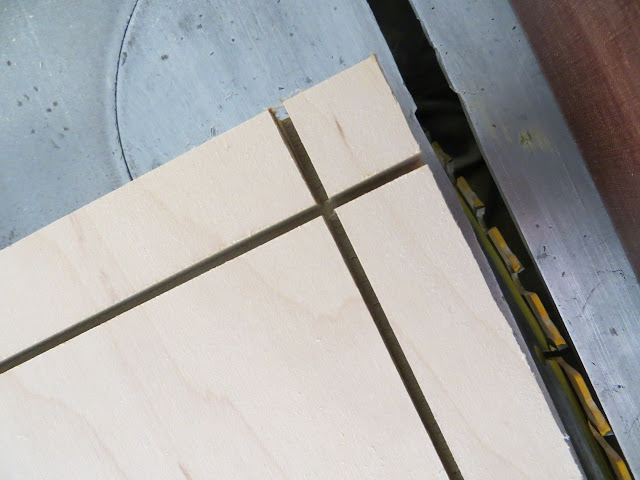

Making the shoulder for the top – I had to improvise because I don’t own a dado set.

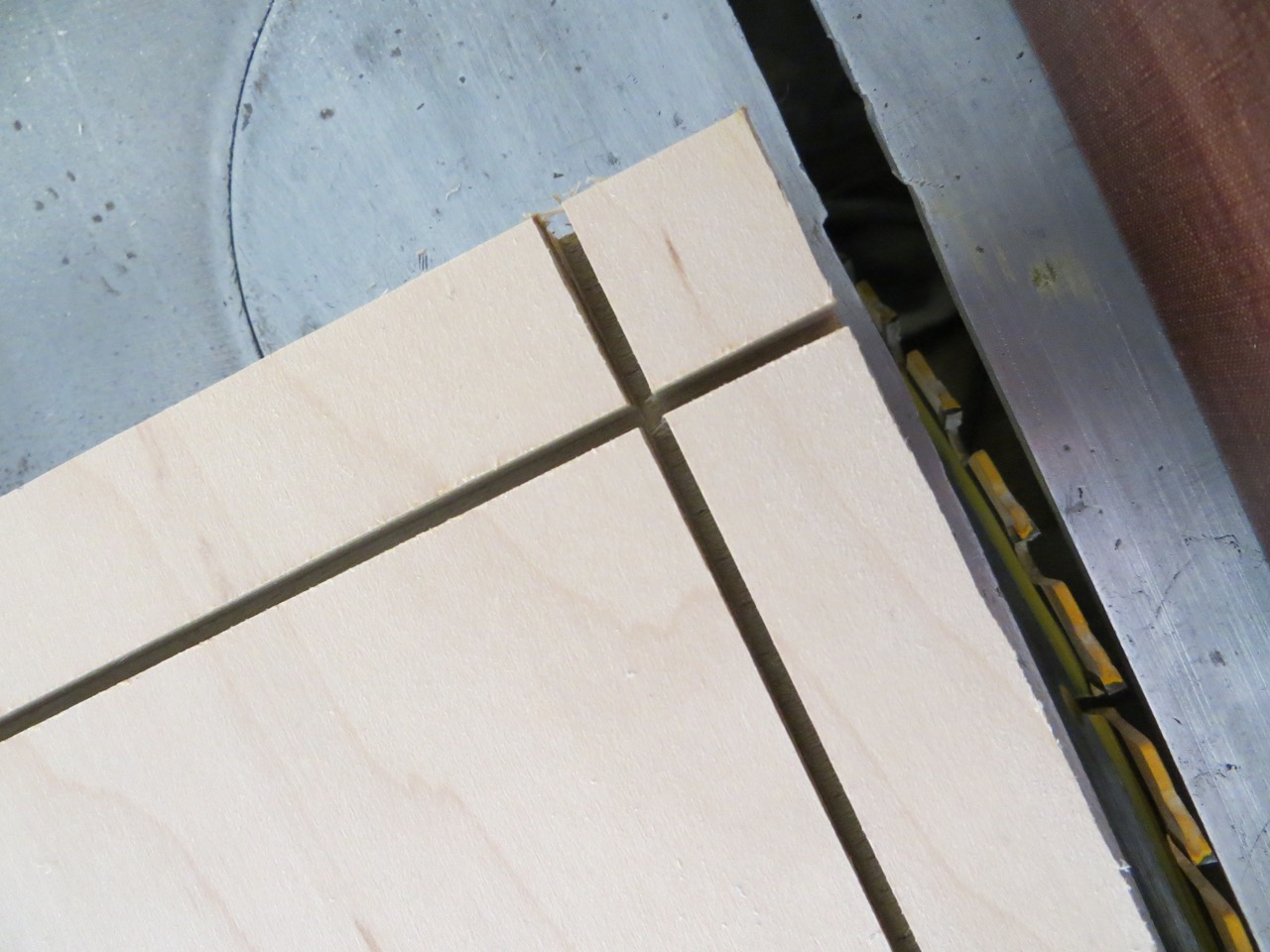

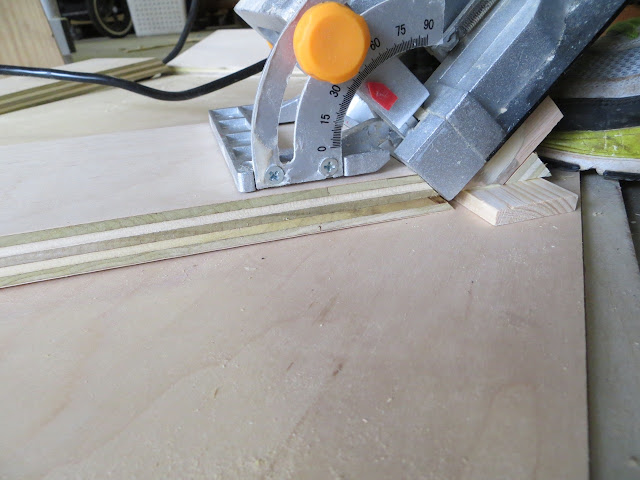

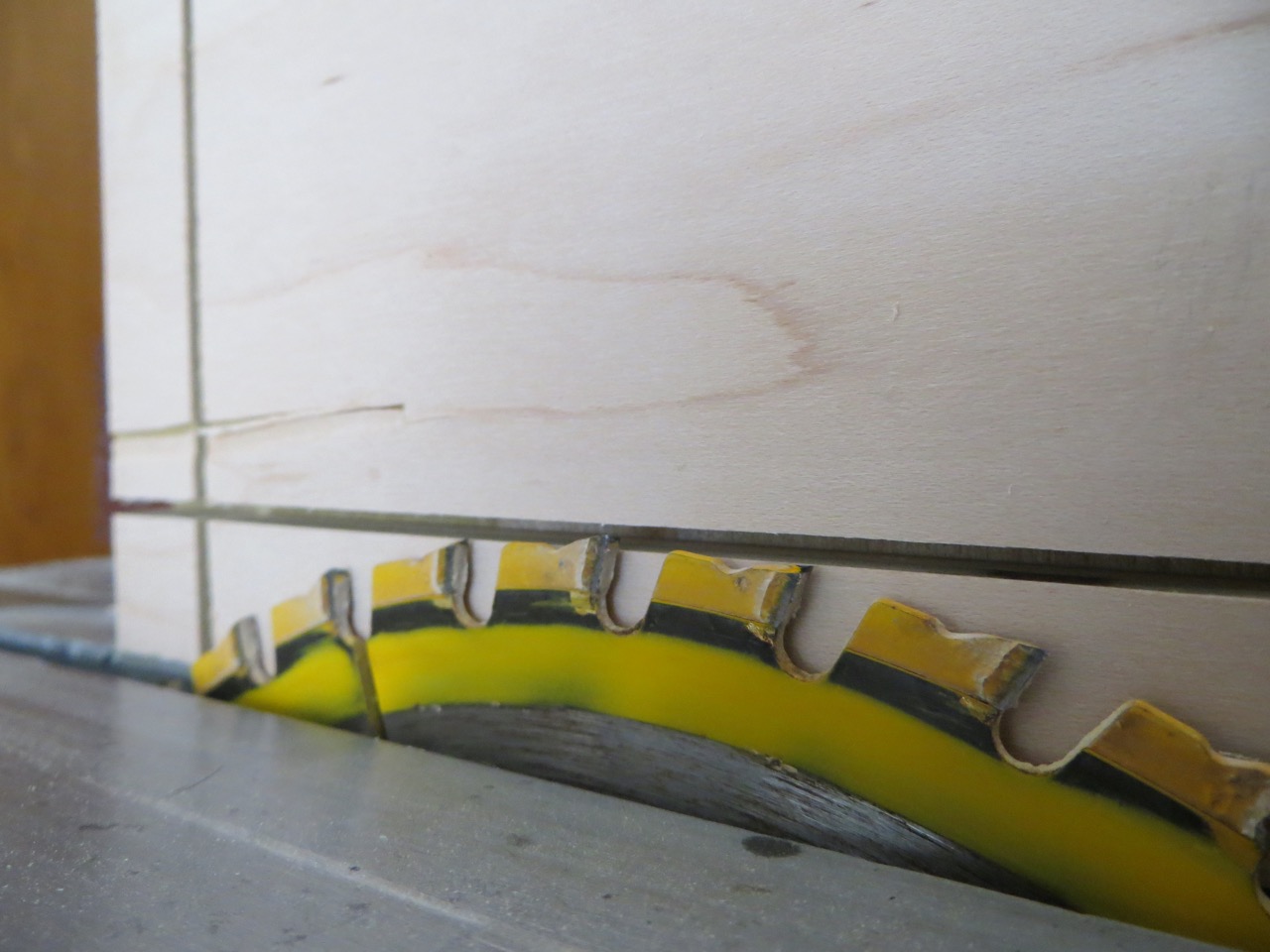

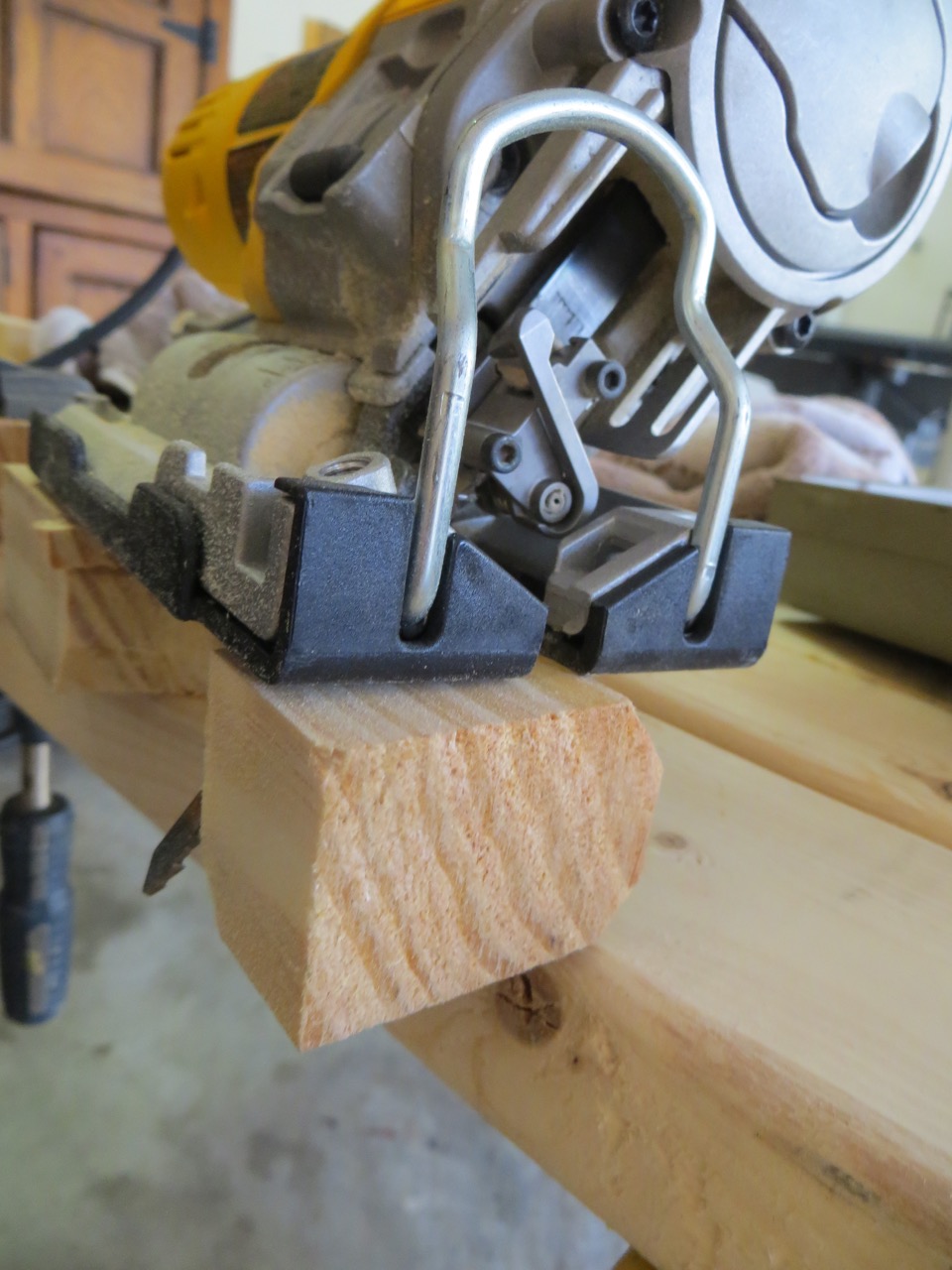

 My little jig for making biscuit joints on 45-degree angle.

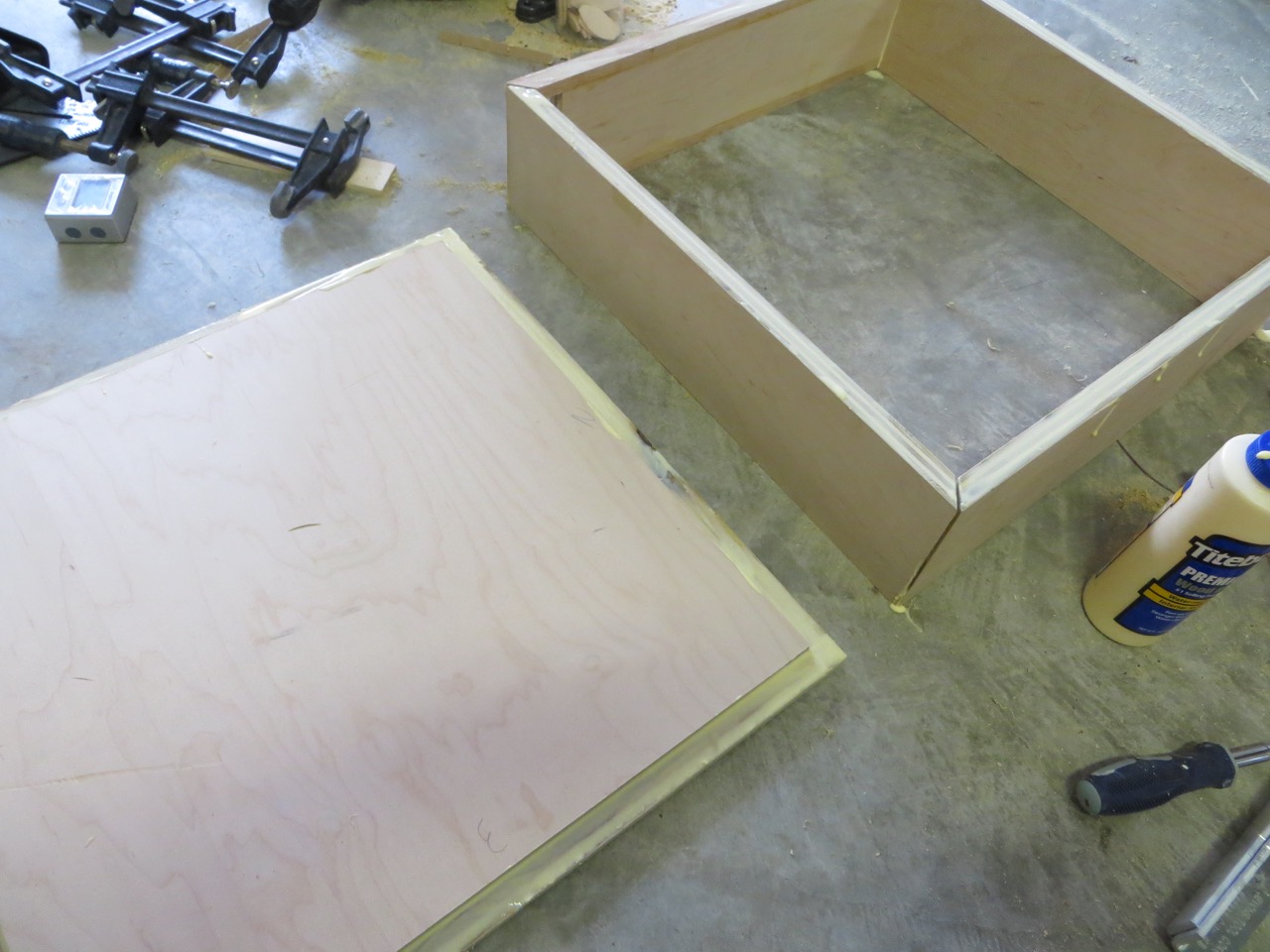

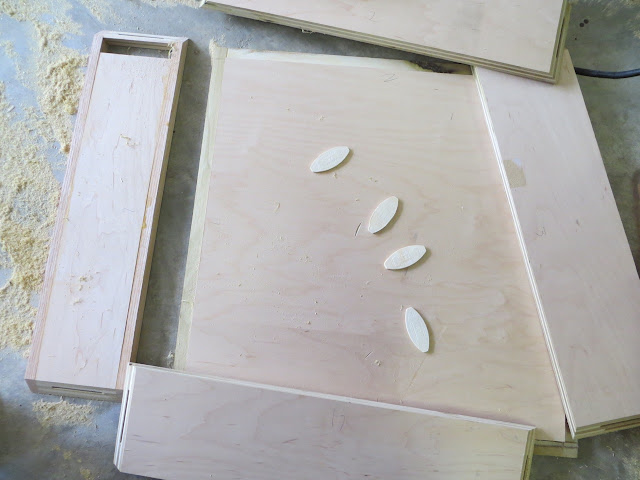

 Here I have all my sides and top ready to glue up!

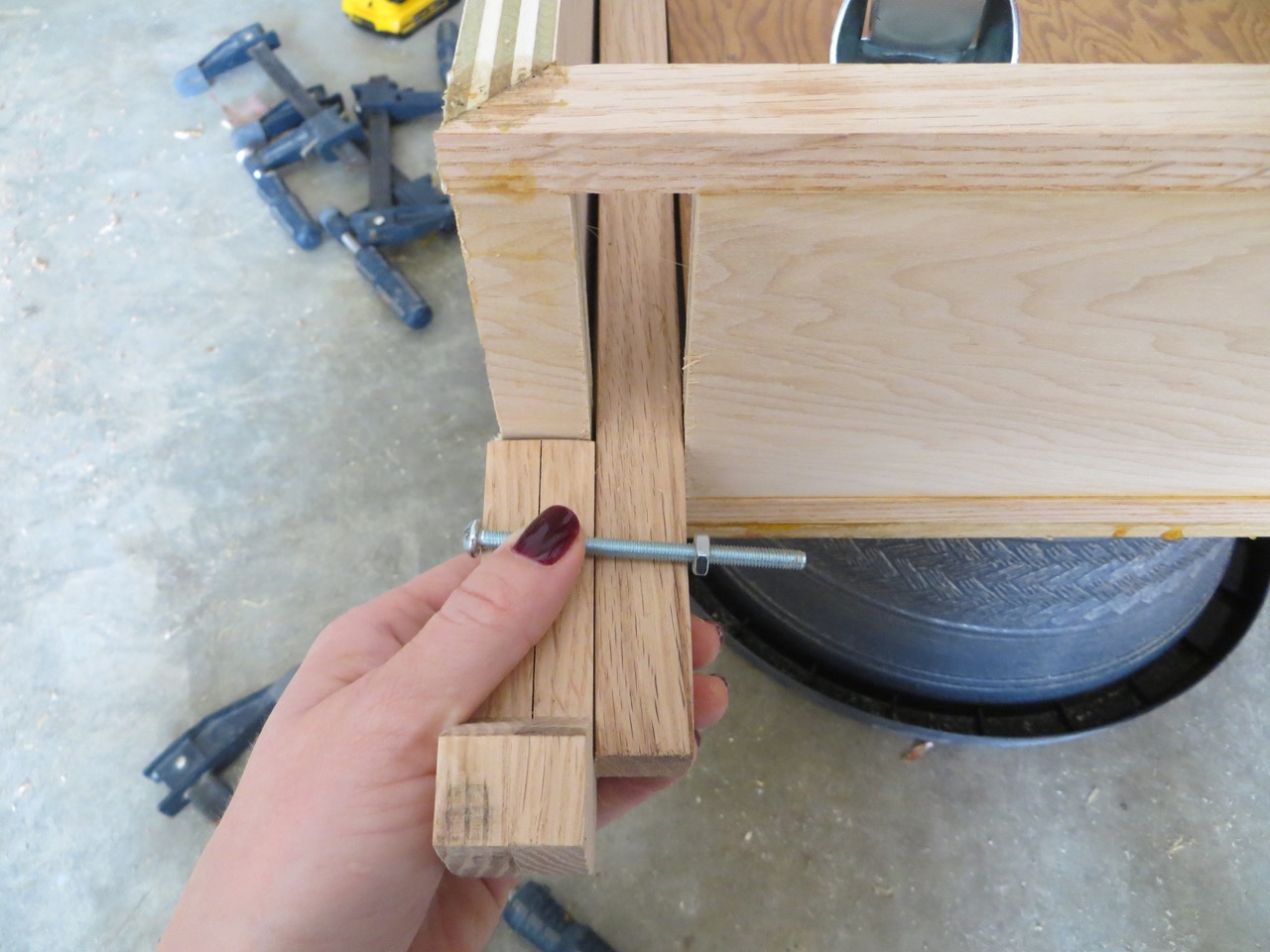

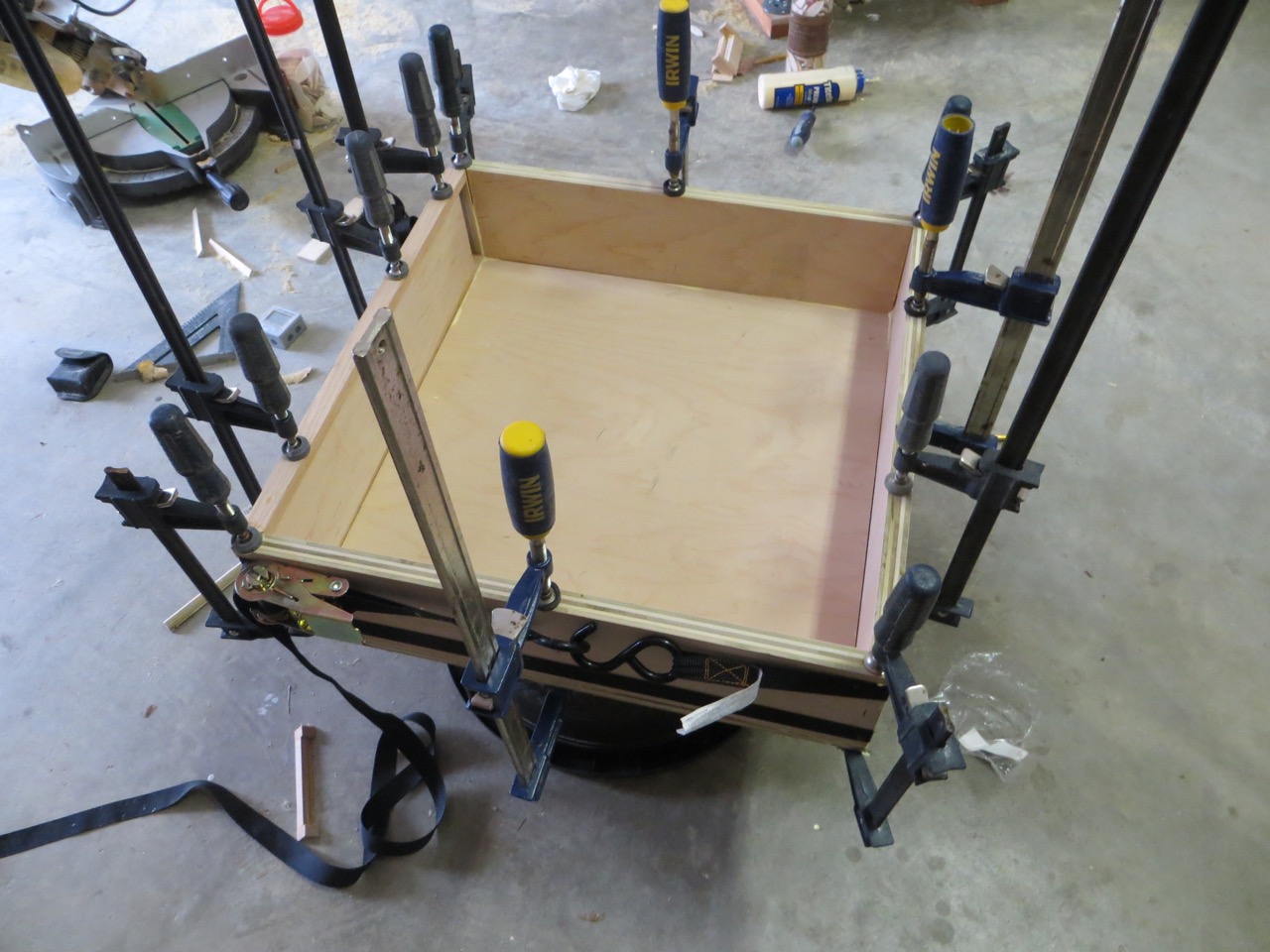

 This sure looks a little funky, doesn’t it?  I used ratcheting straps to pull everything in together. 😉

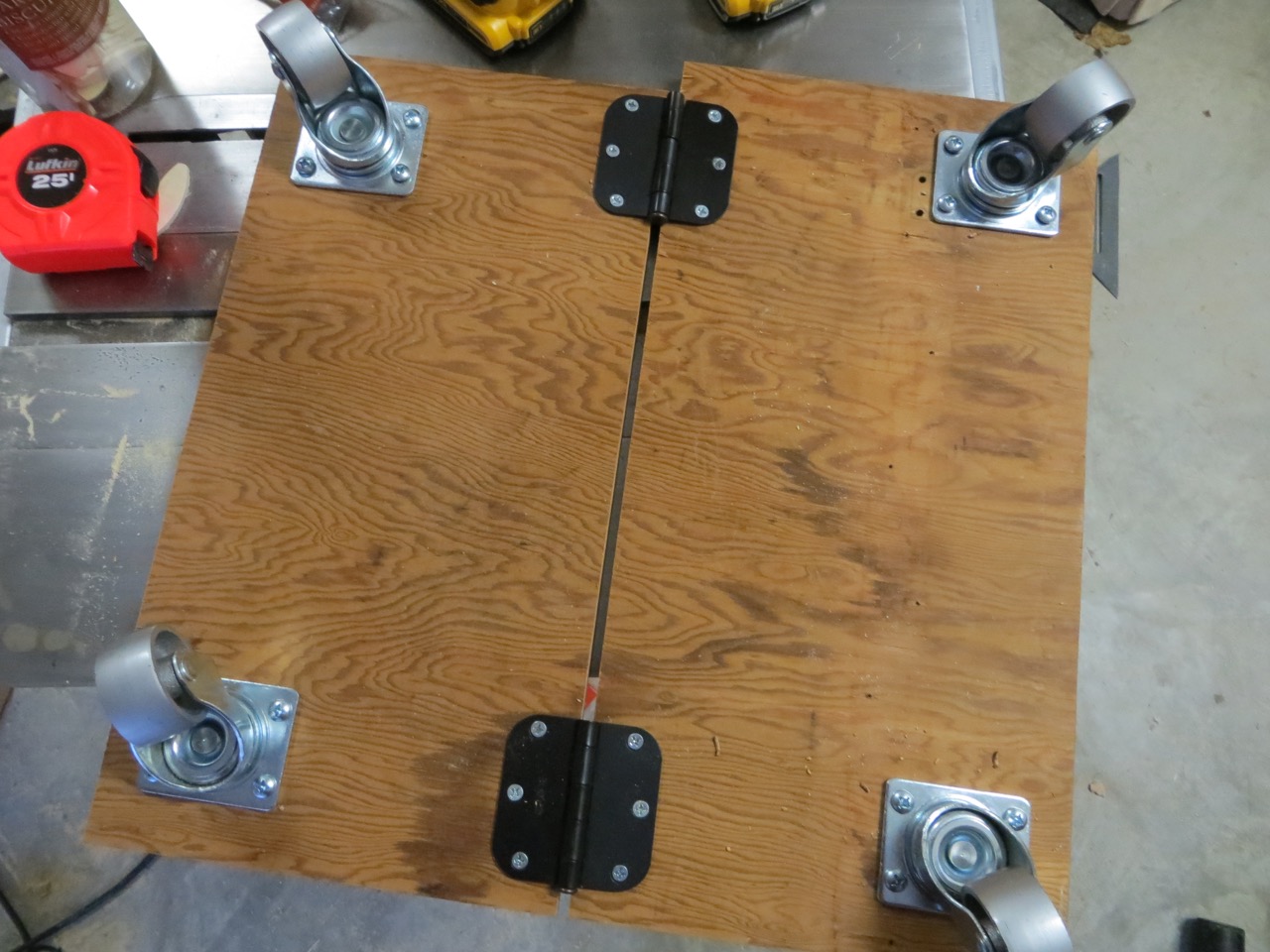

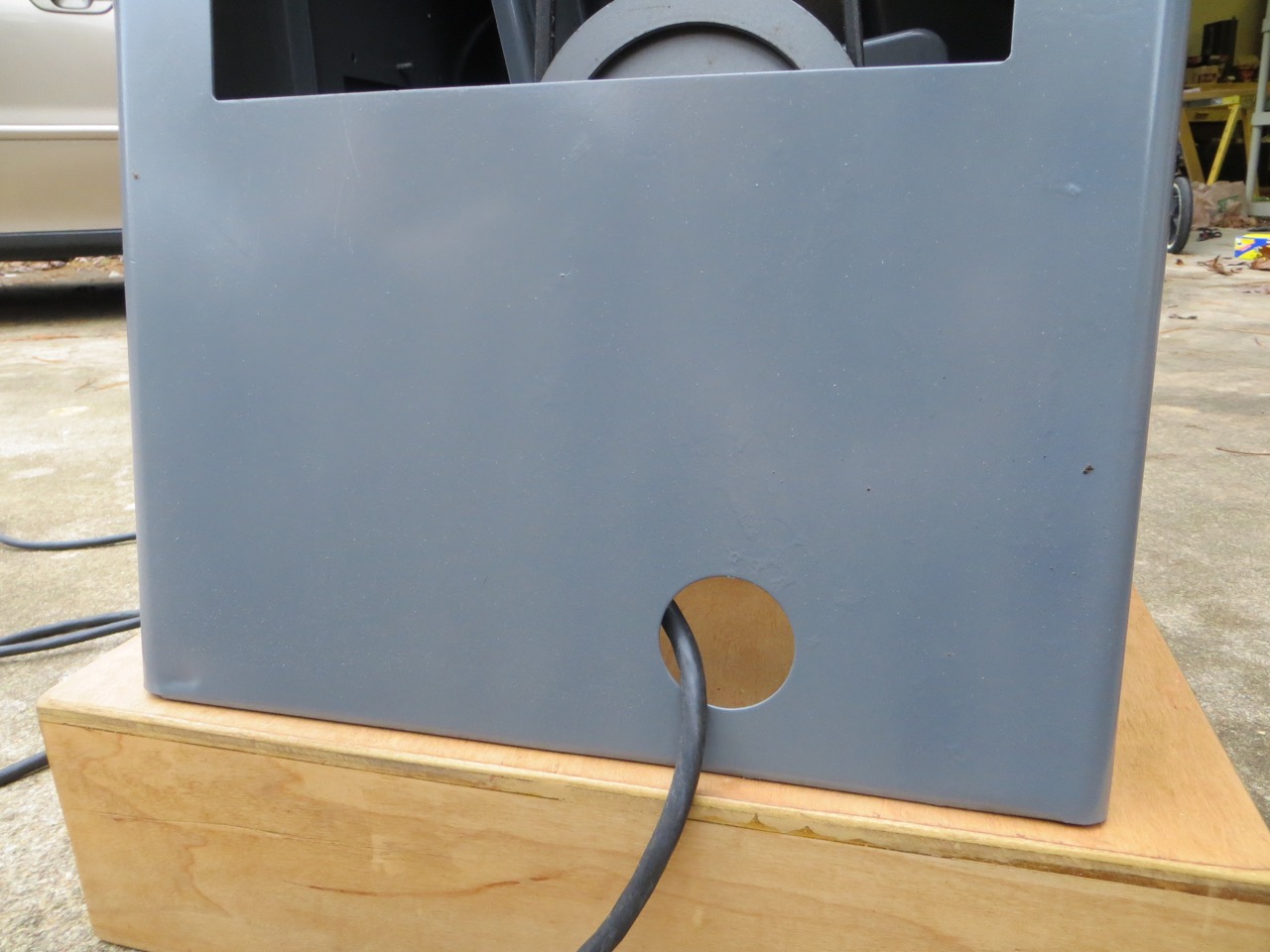

 While the base was drying I worked on the guts – caster wheels on hinged plywood boards.

I cut out the sides of the pedal and taped between them so I could sand them together and ensure they were exact matches.

 Once the arm was bolted to the caster boards and extending out I worked on the pedal.  Here I’m measuring how long to cut the bolt.

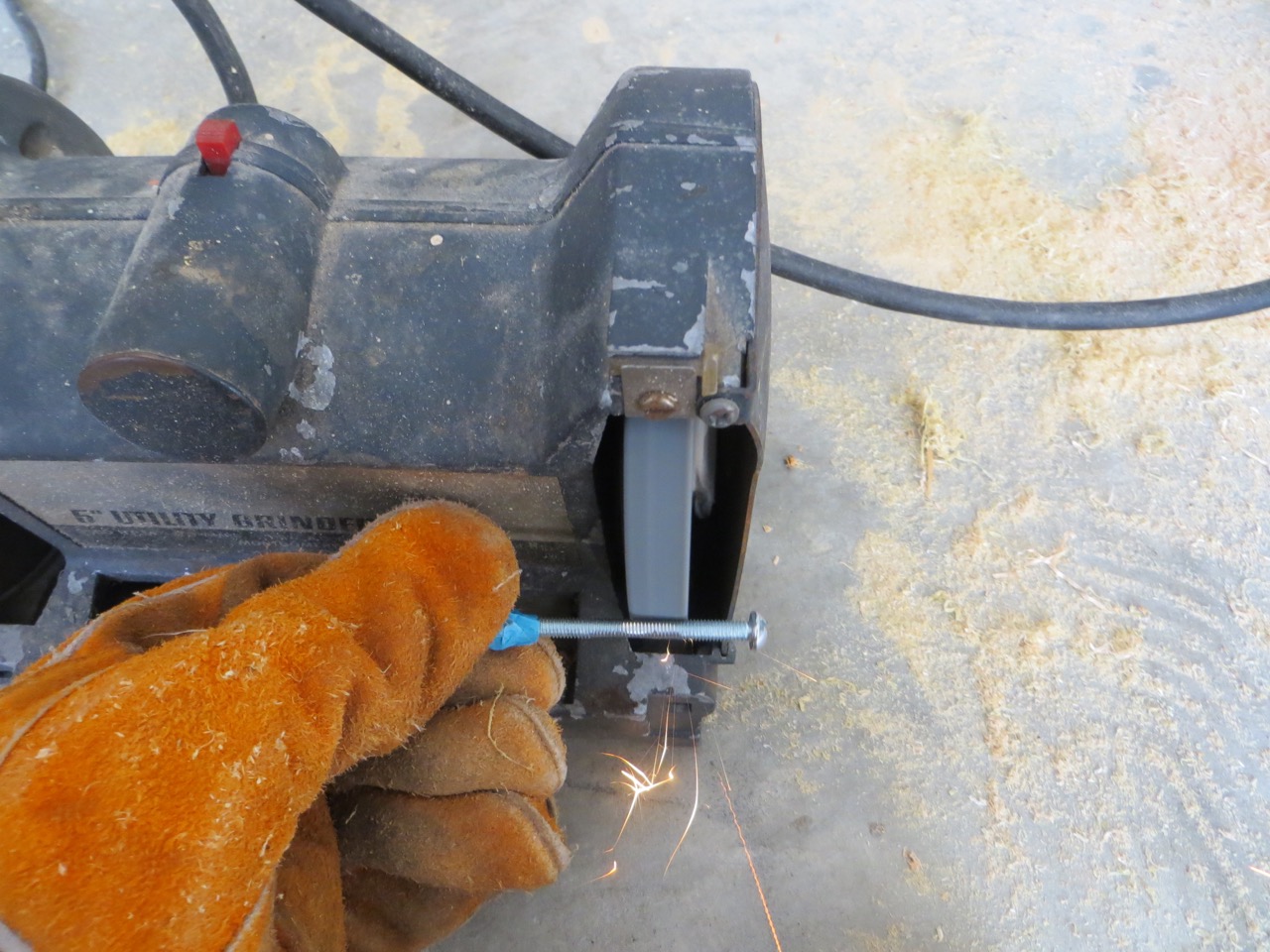

 I also used my little underpowered grinder to take off the threads so the pedal could operate more smoothly.

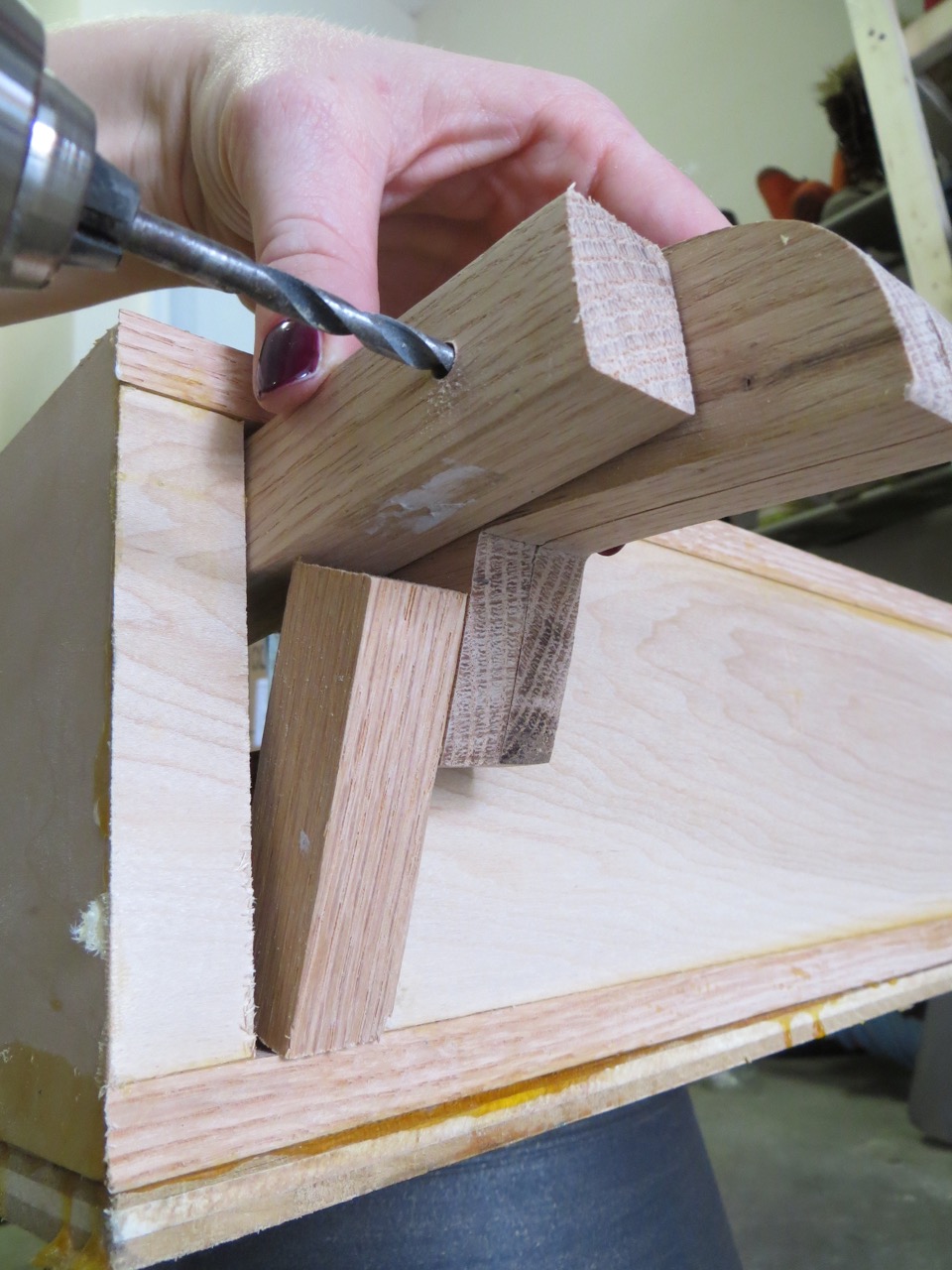

 I figured out the placement I needed the bolt (“hinge”) to be and drilled through the arm to the other side until I scored the side of the pedal.

You can see the small mark from my drill bit that marks where to drill (you can see it’s slightly off from the pencil mark I transferred from the template).

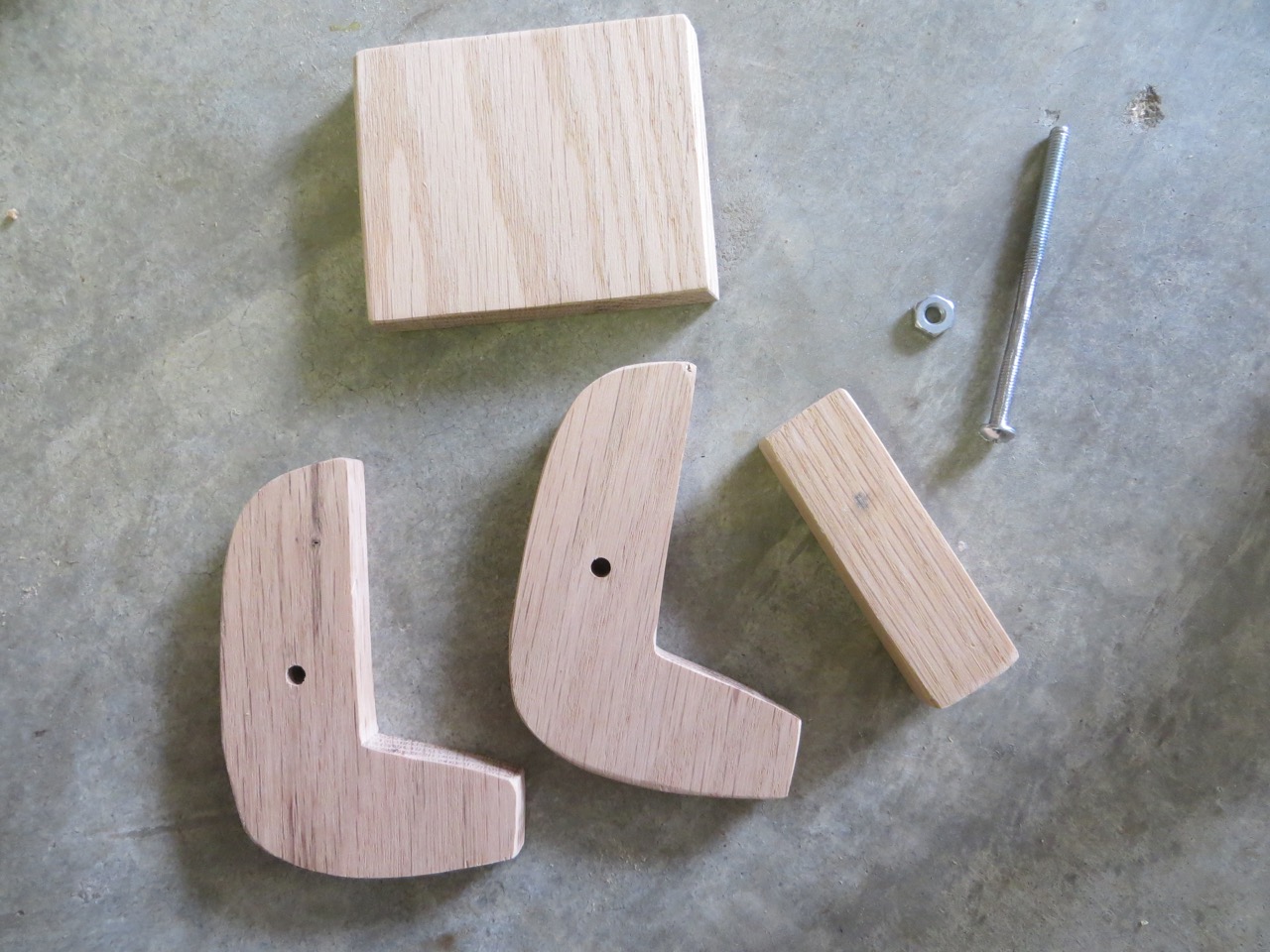

 Pedal components.

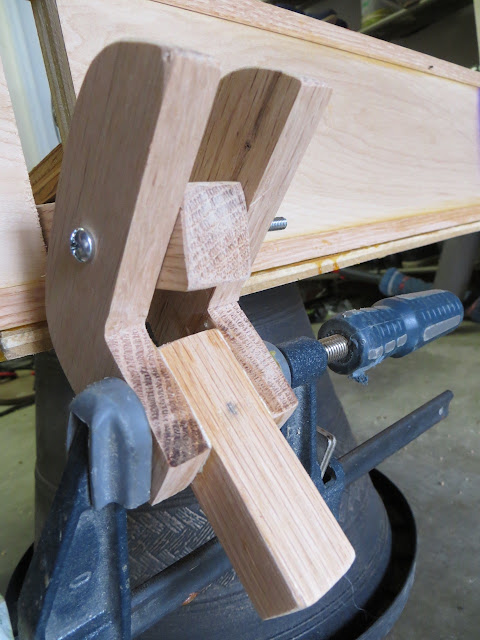

I glued it while attached to the arm to ensure I got the bolt placement just right, etc.

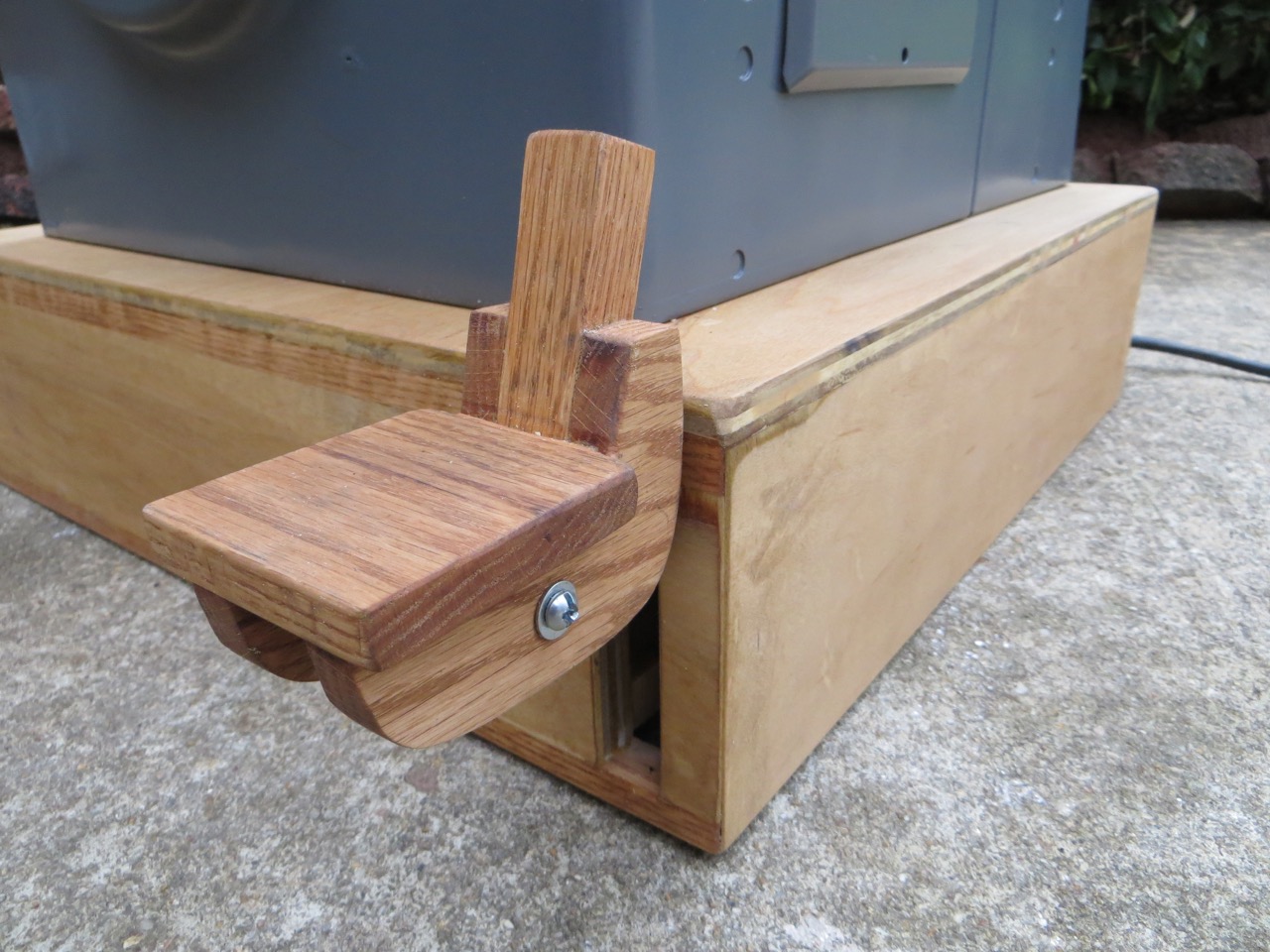

 Here’s the pedal engaged (casters down) and jointer raised.

 Here’s the pedal disengaged (casters up) and jointer lowered.

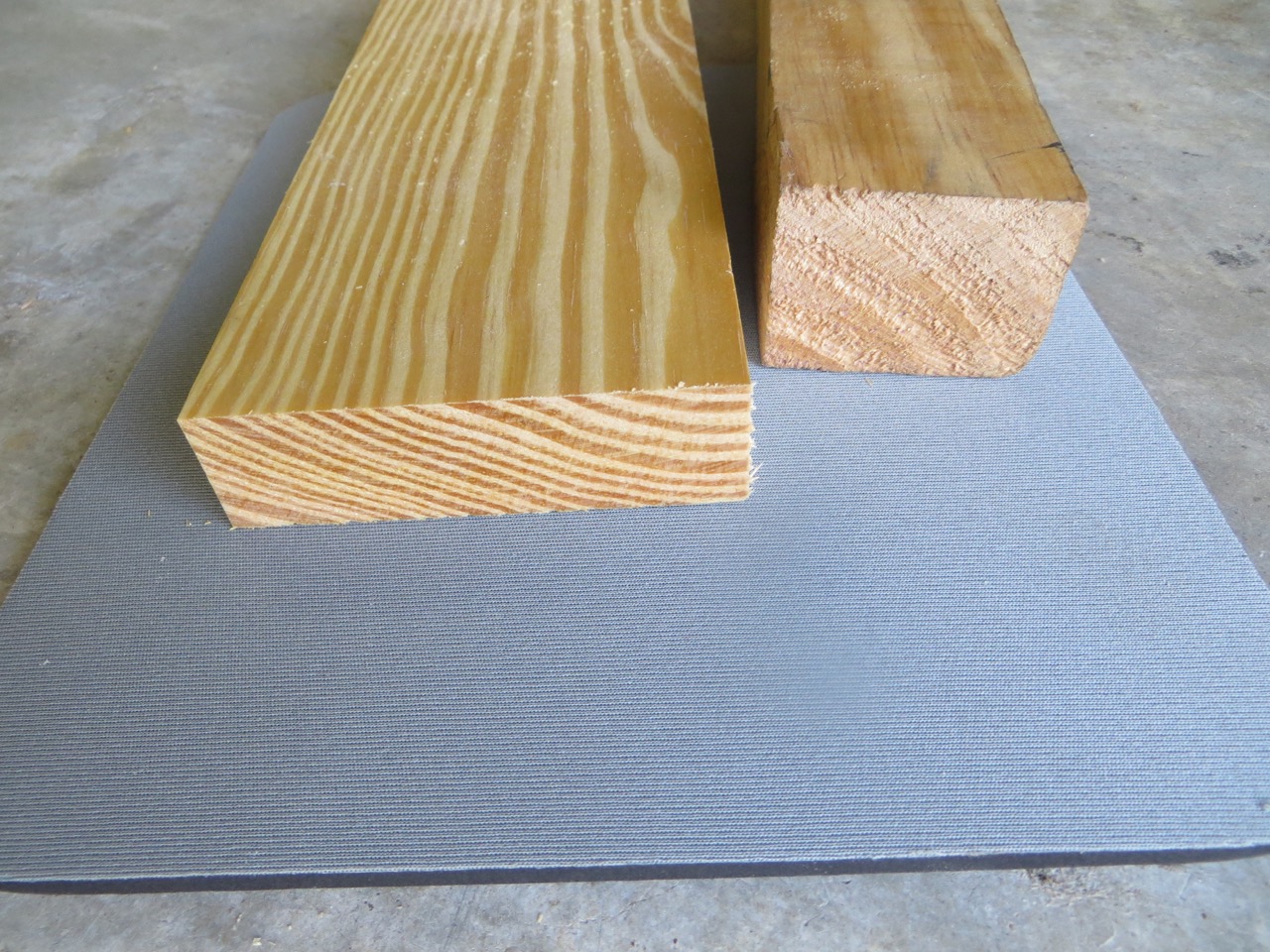

Supplies used: 5/4 board (4″ wide), scrap 2×4 (now a 2×3 basically) and a mouse pad.  Also – glue, screws and adhesive.

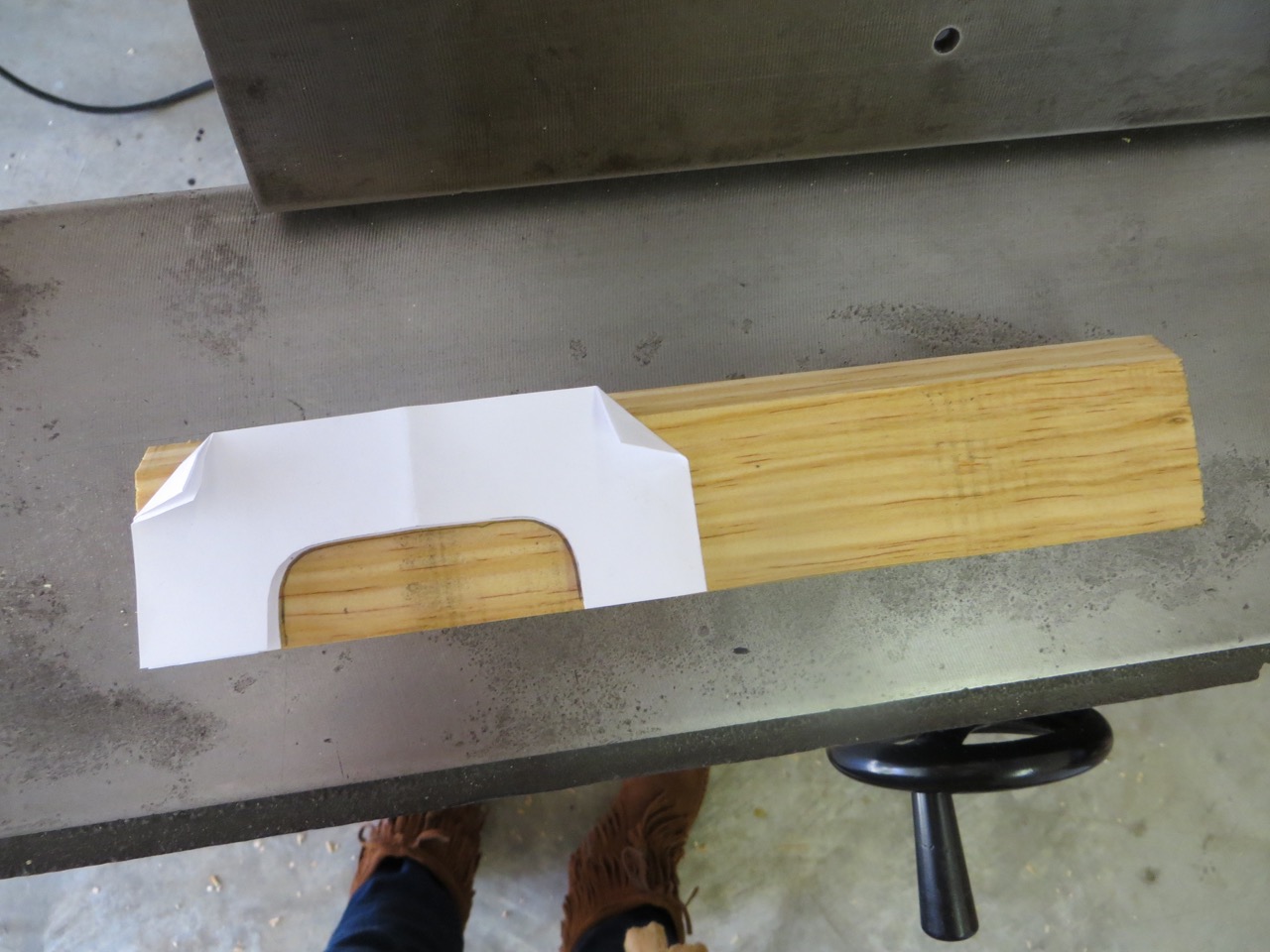

I cut a template from paper to transfer my lines for making the handles.  I was able to fit both handles on this board perfectly.

To round the handles I ran the top edge through the jointer.

If you want your handles to sit on the wood block at an angle (like the store bought ones) run the other side of your wood block through your table saw right now with the blade at an angle.  I did this step once the handles were already cut out and it was sketchy!

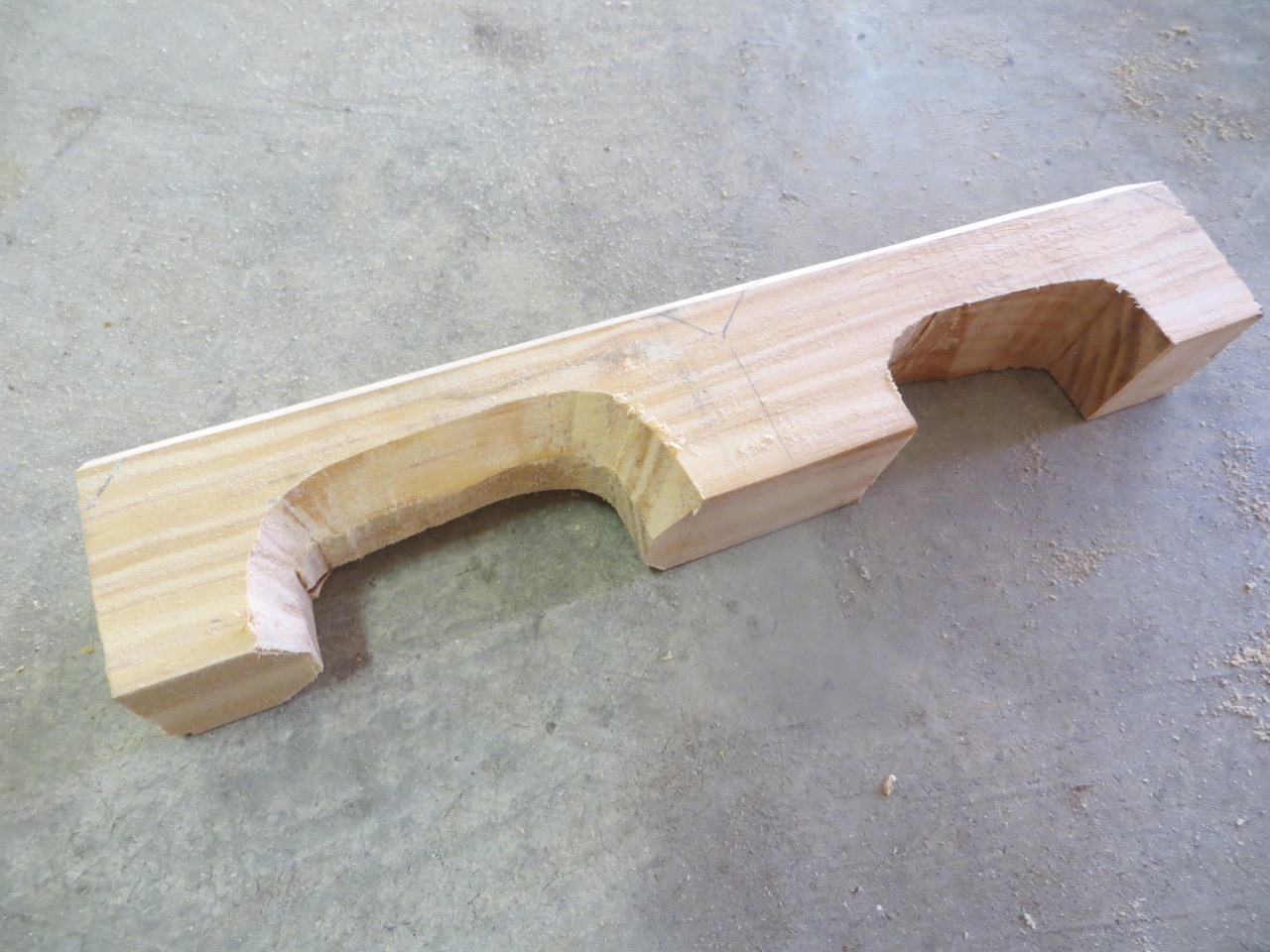

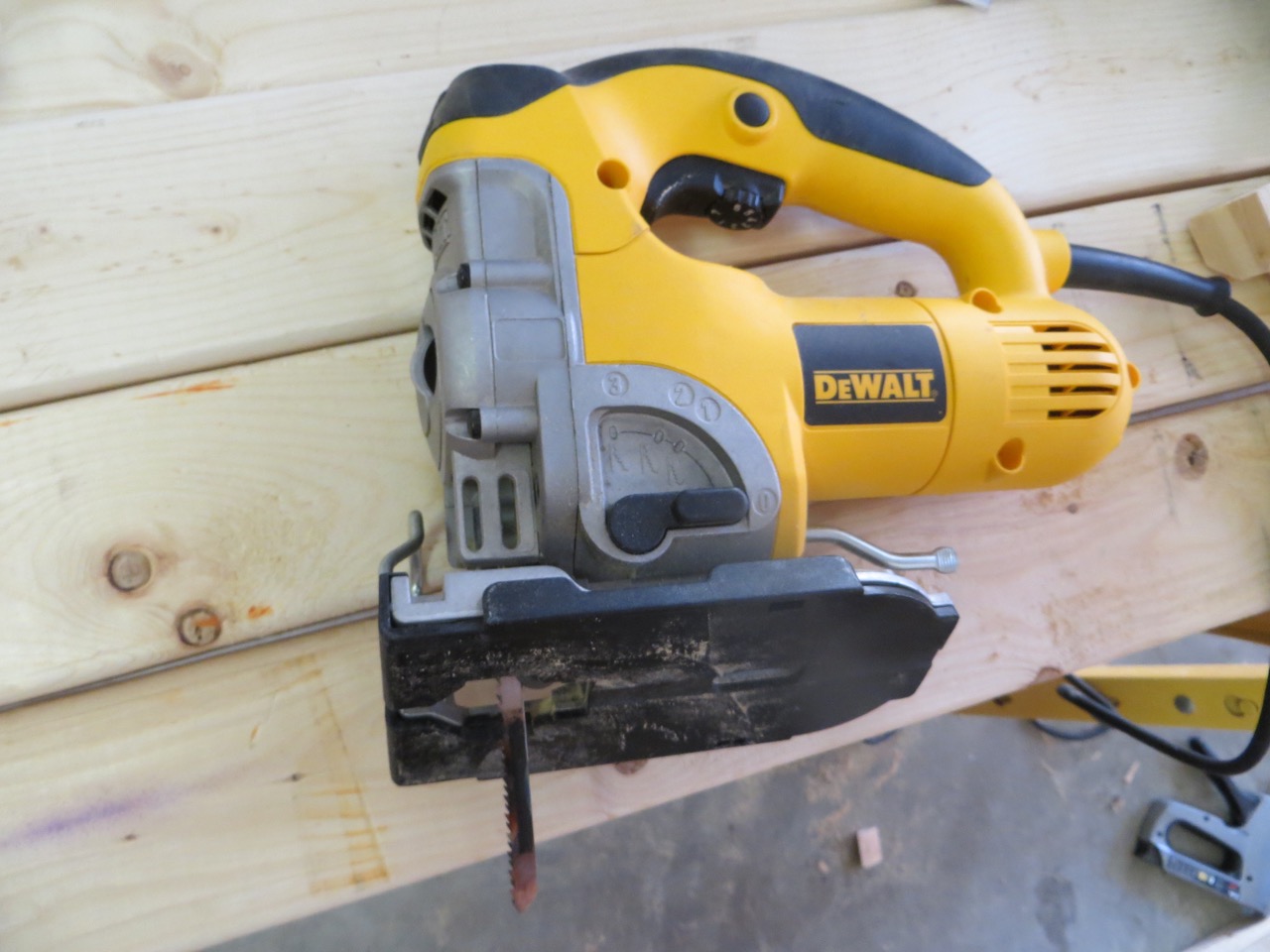

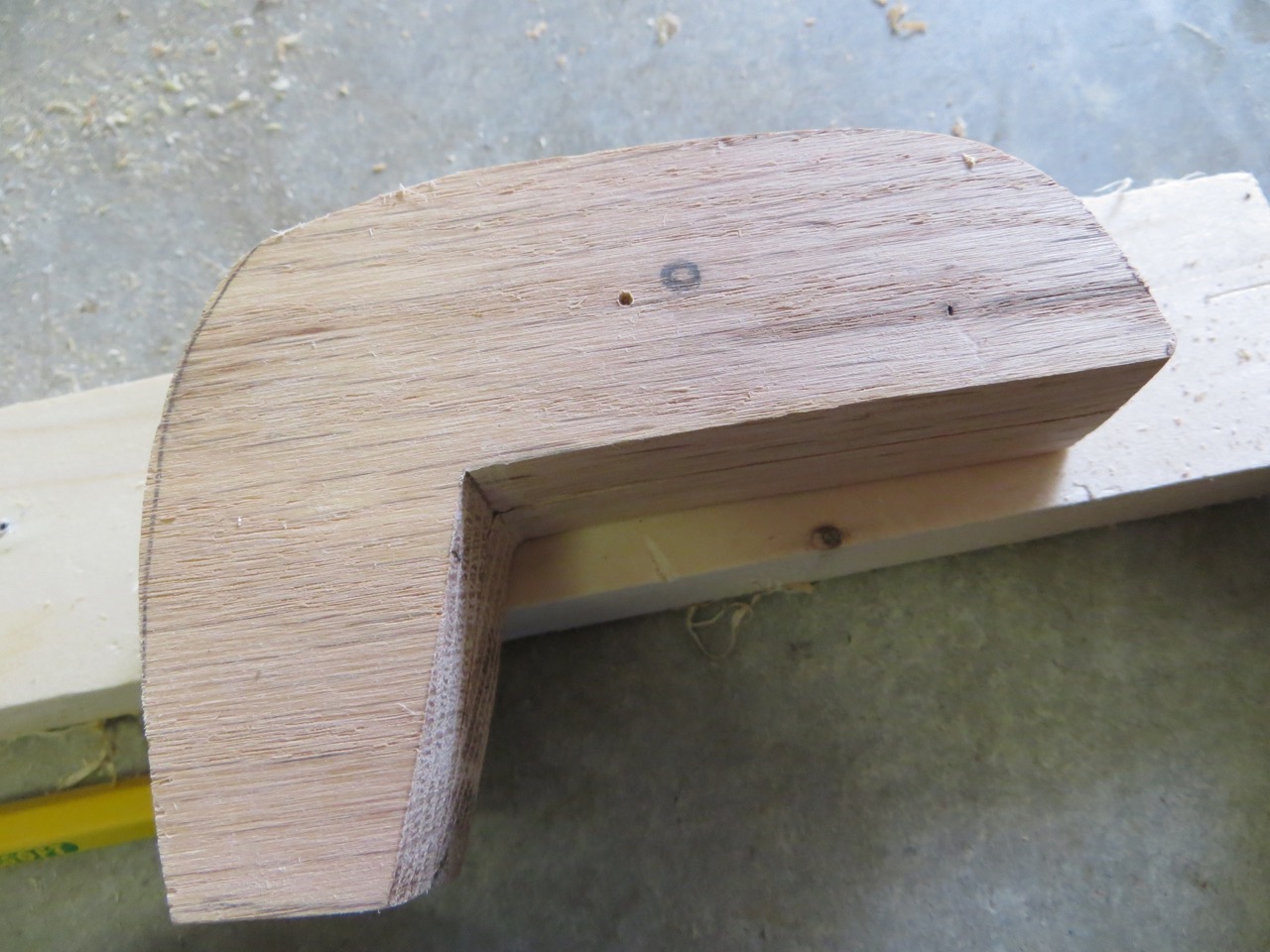

I don’t have a bandsaw so I made use of my jig saw!  First I cut out the rough opening of my handles then I adjusted the base of my jigsaw so it was slanted…

 …and cut off the corner of my handle openings.

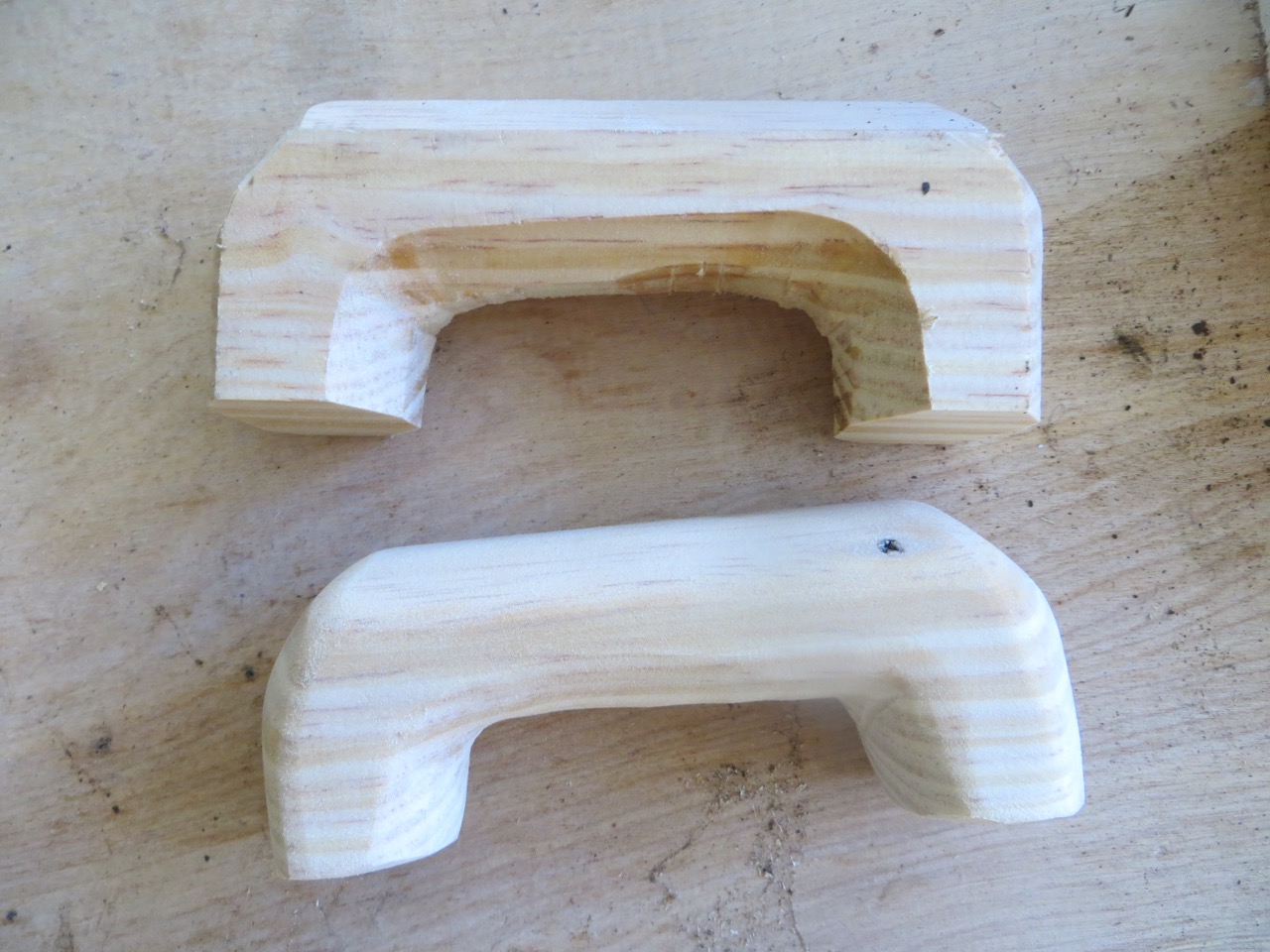

 You can see how rough the shape is! 😂😳  Next I cut along the other lines with my miter saw and cut the rest of the corners with the slanted jig saw.

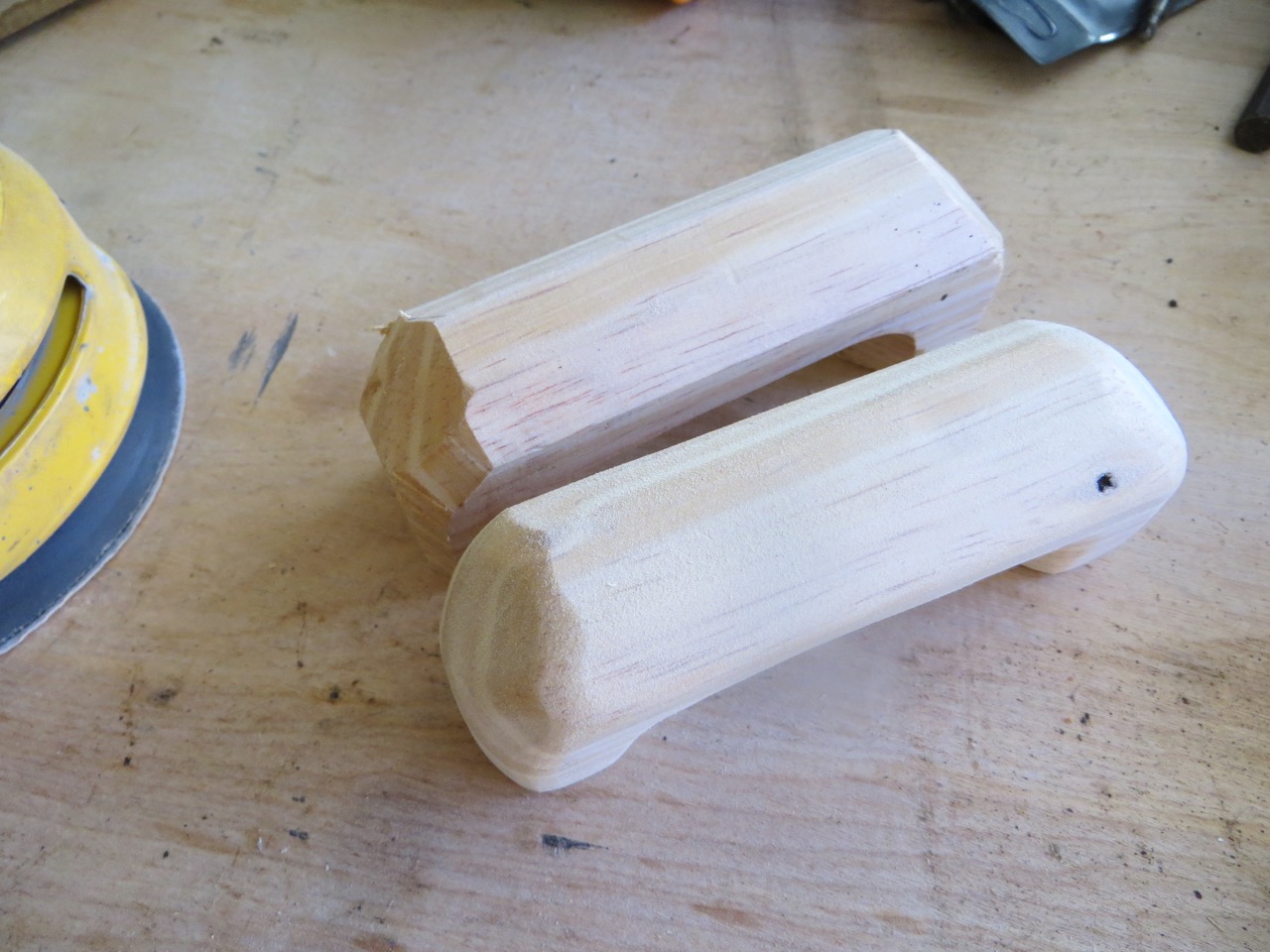

 It doesn’t look too bad after a good sanding!

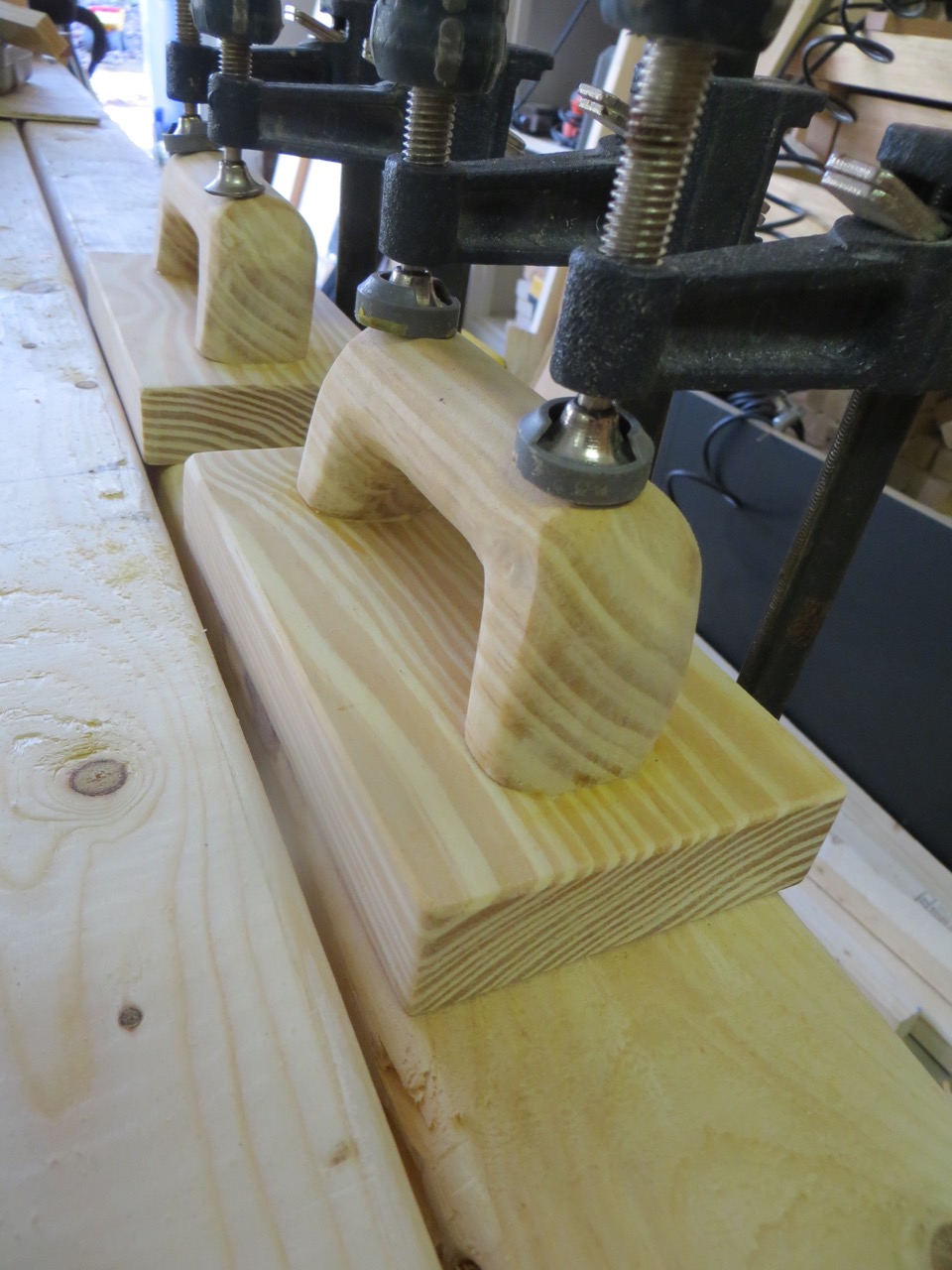

 I glued and clamped the handles onto bases (cut to the size you want).

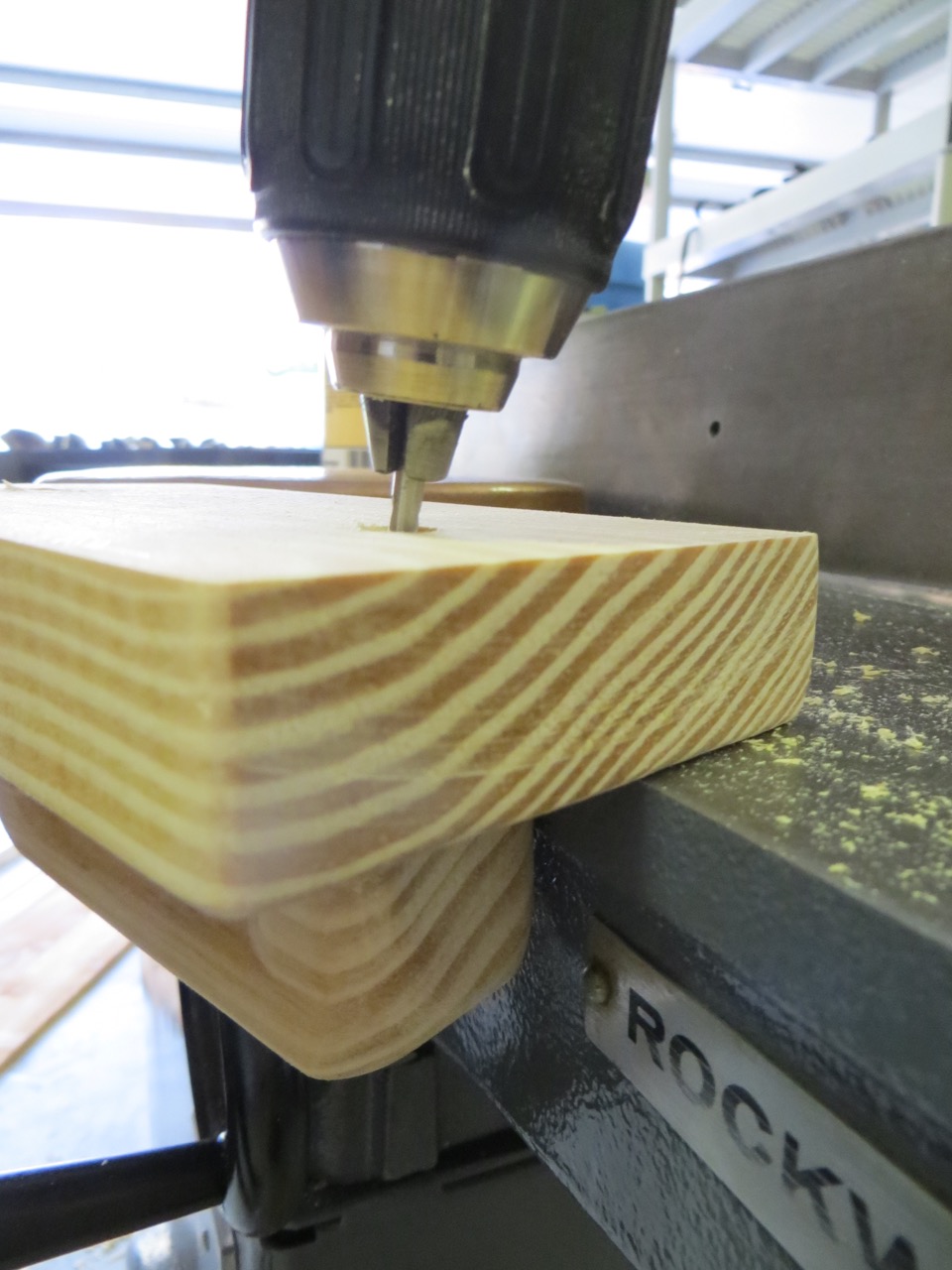

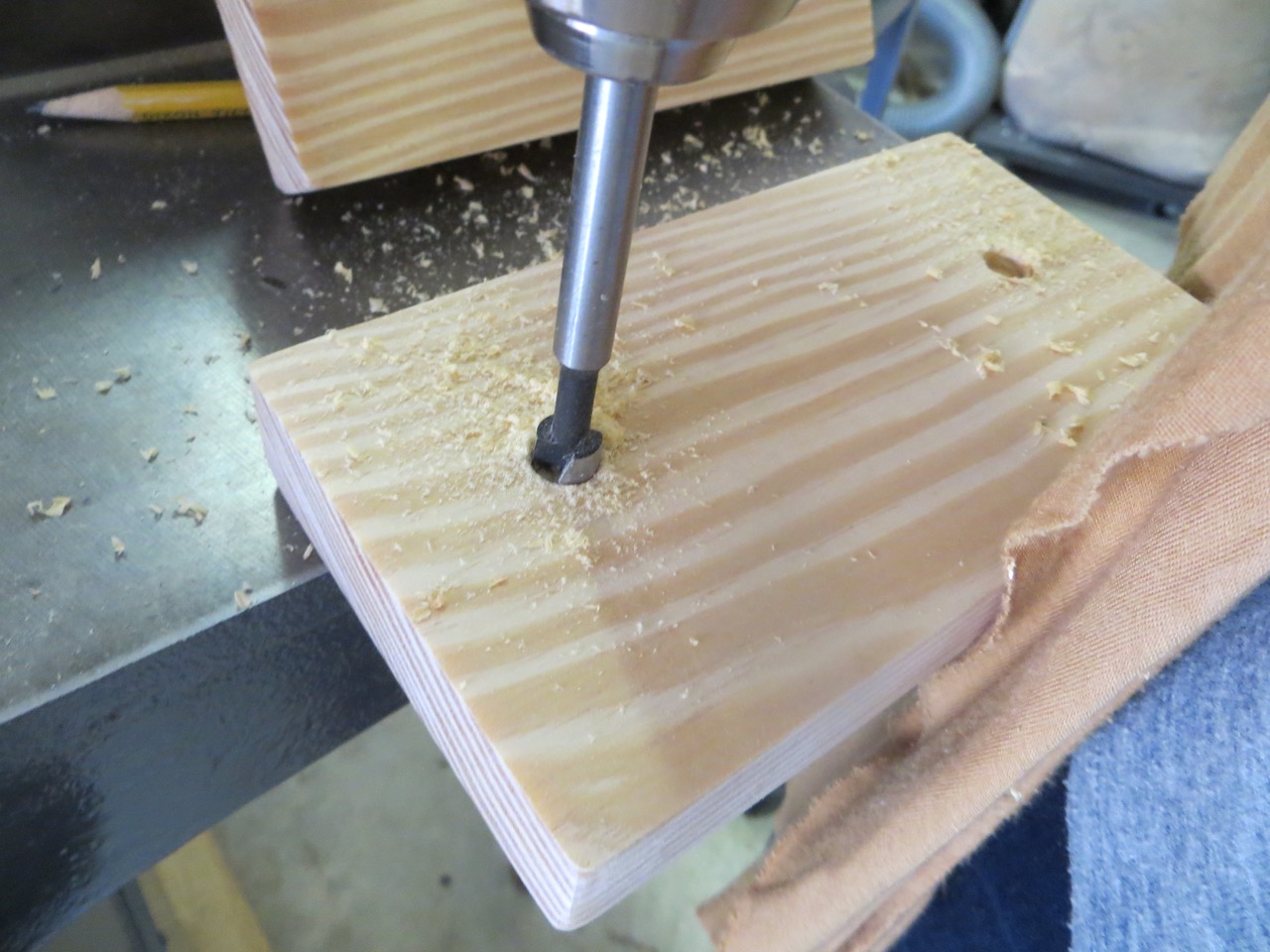

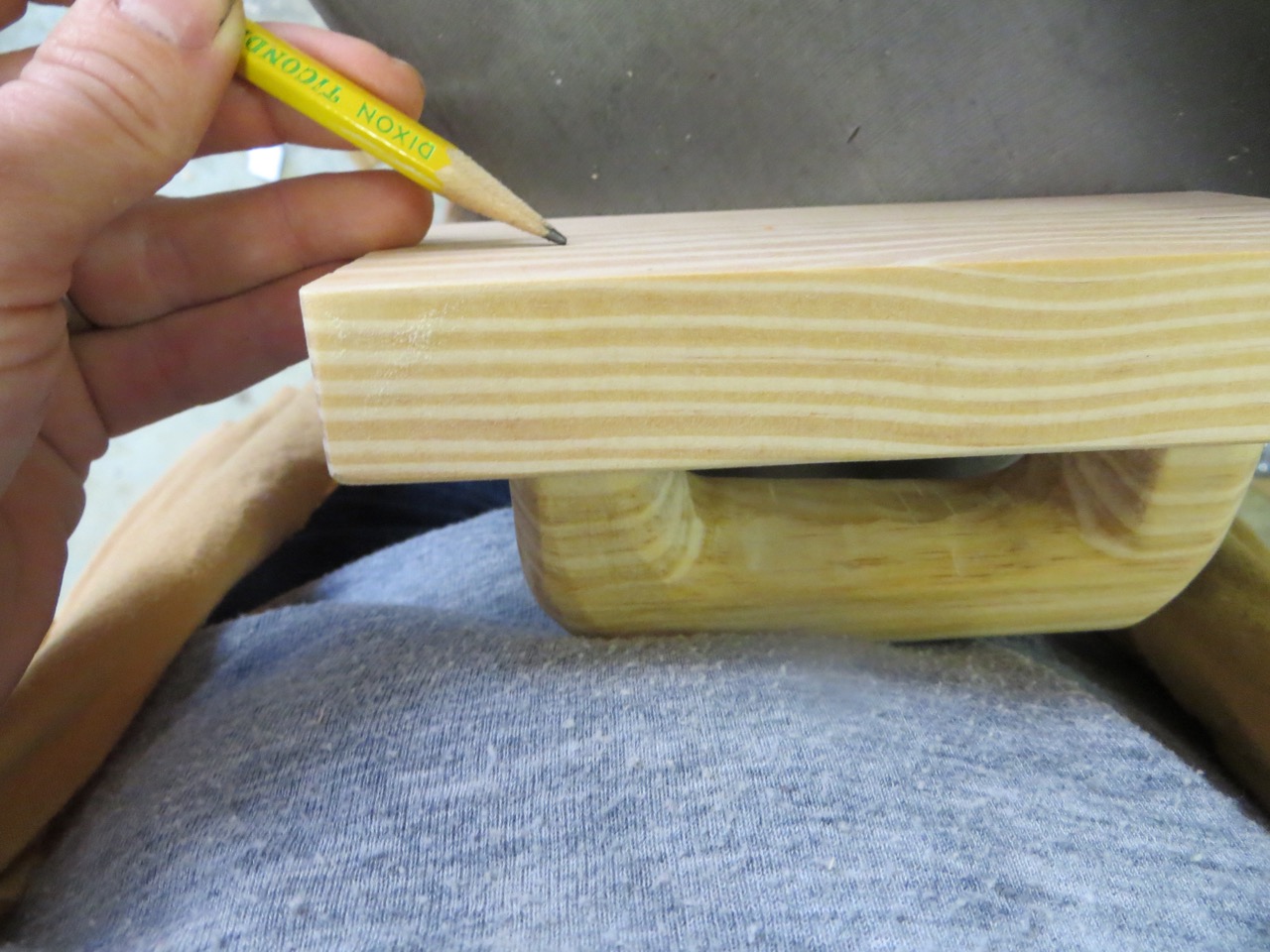

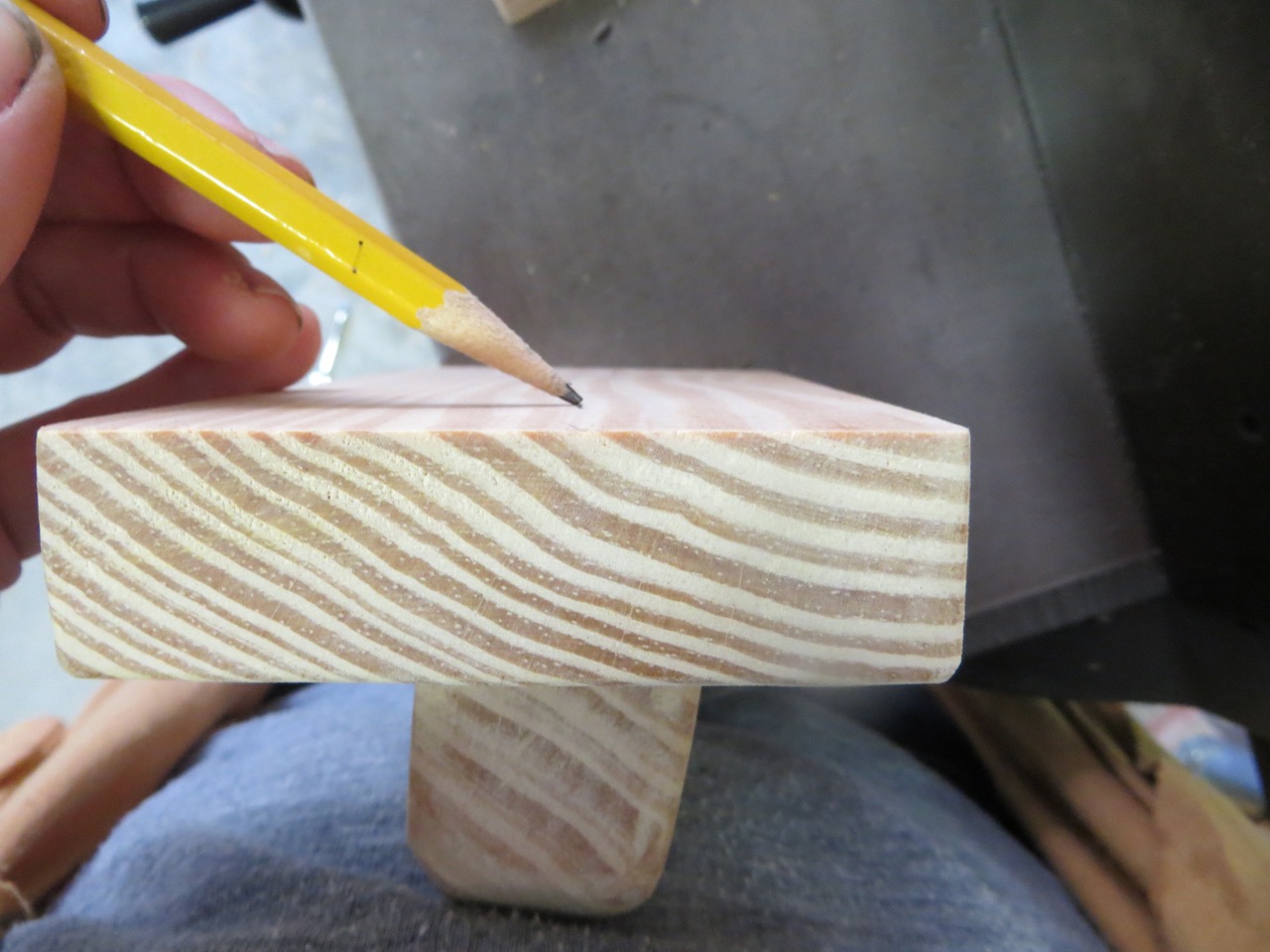

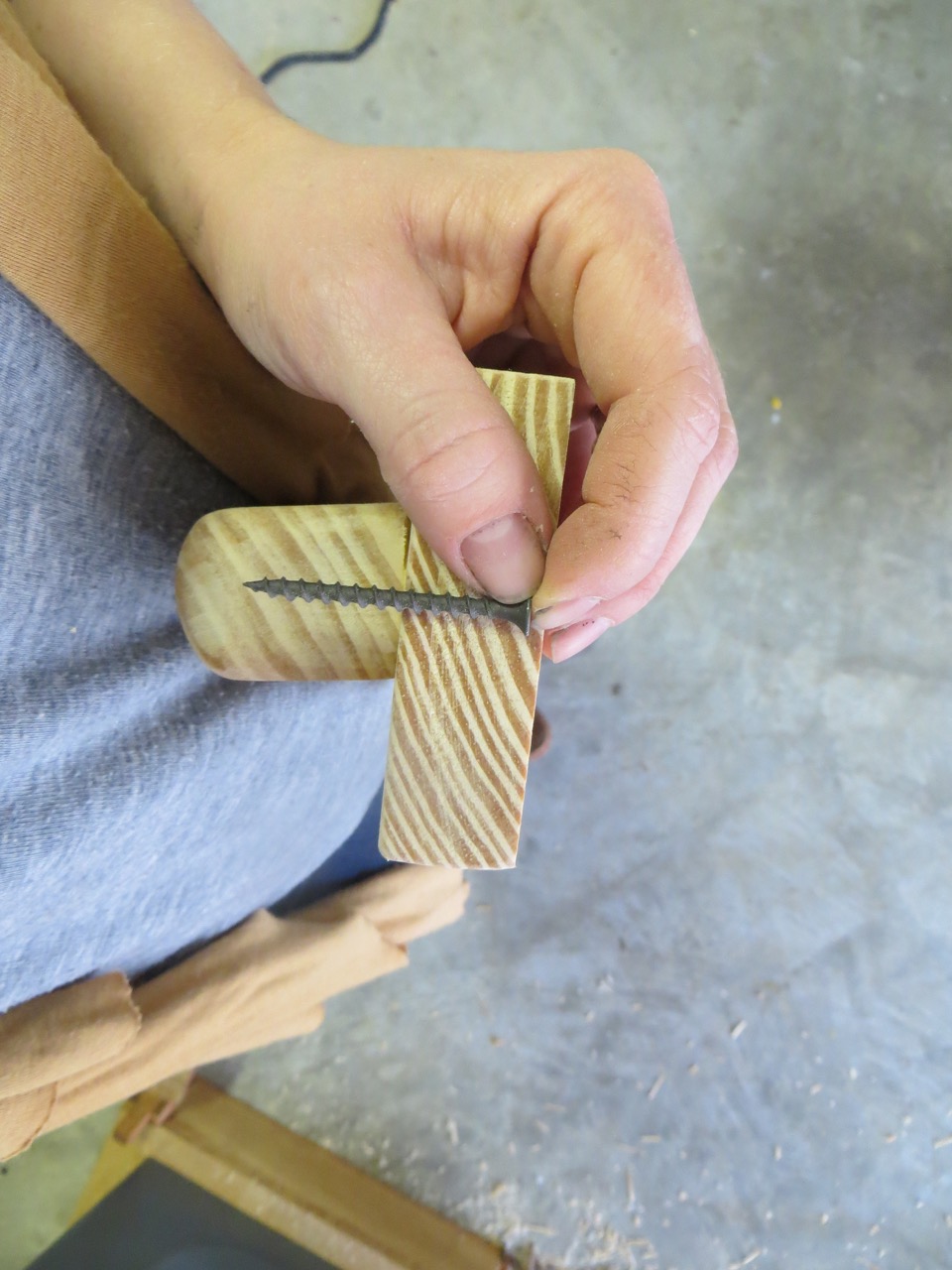

 Once the glue was dry I marked the center of each handle to find where to place my screws.

  I used Loctite adhesive to spray on my pad because it’s what I had on hand-it seemed to do the job good enough.  I used my husbands weights that were nearby to ensure the pad stuck well while it dried.

 Afterwards I cut the pad to size.

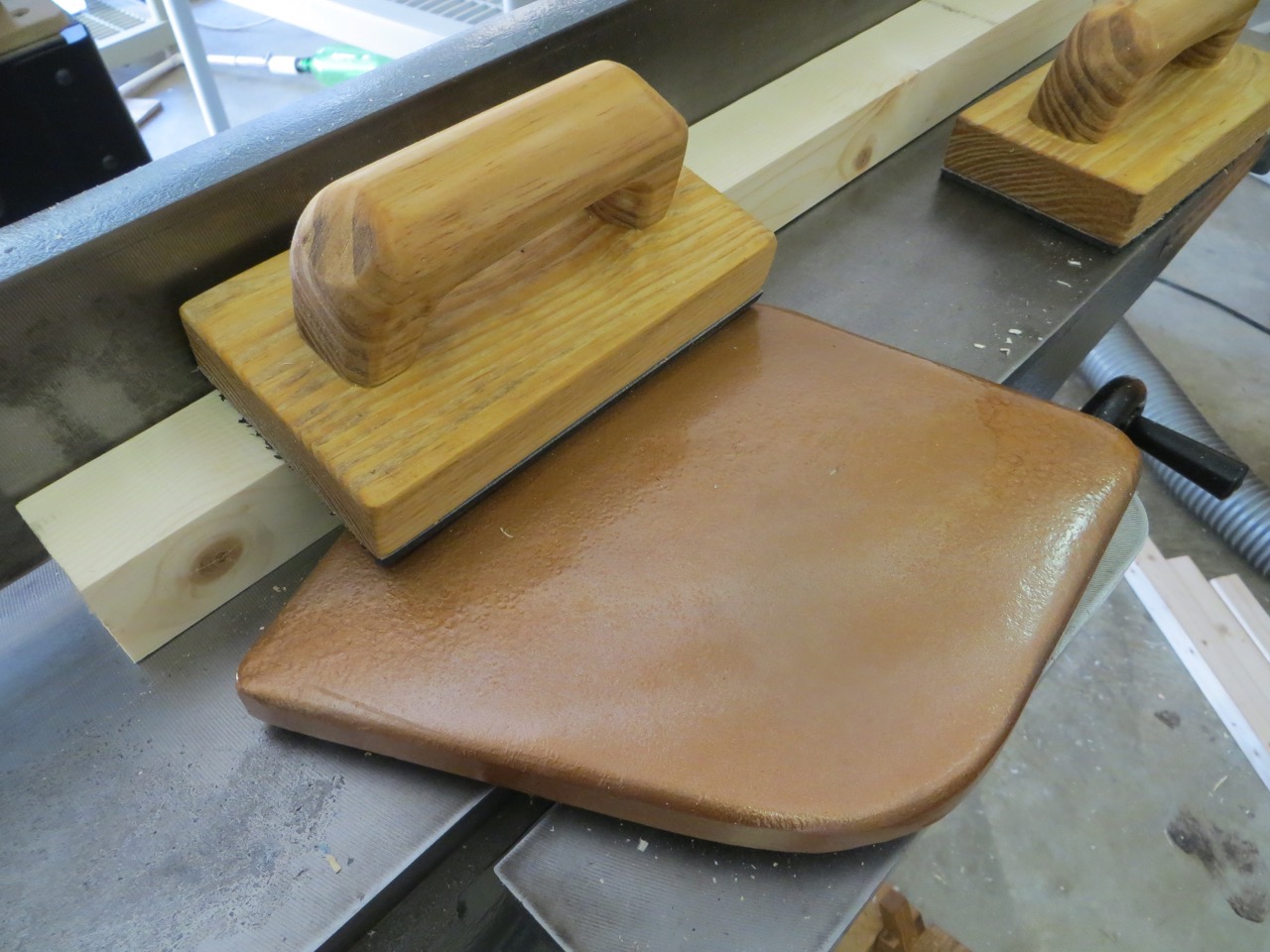

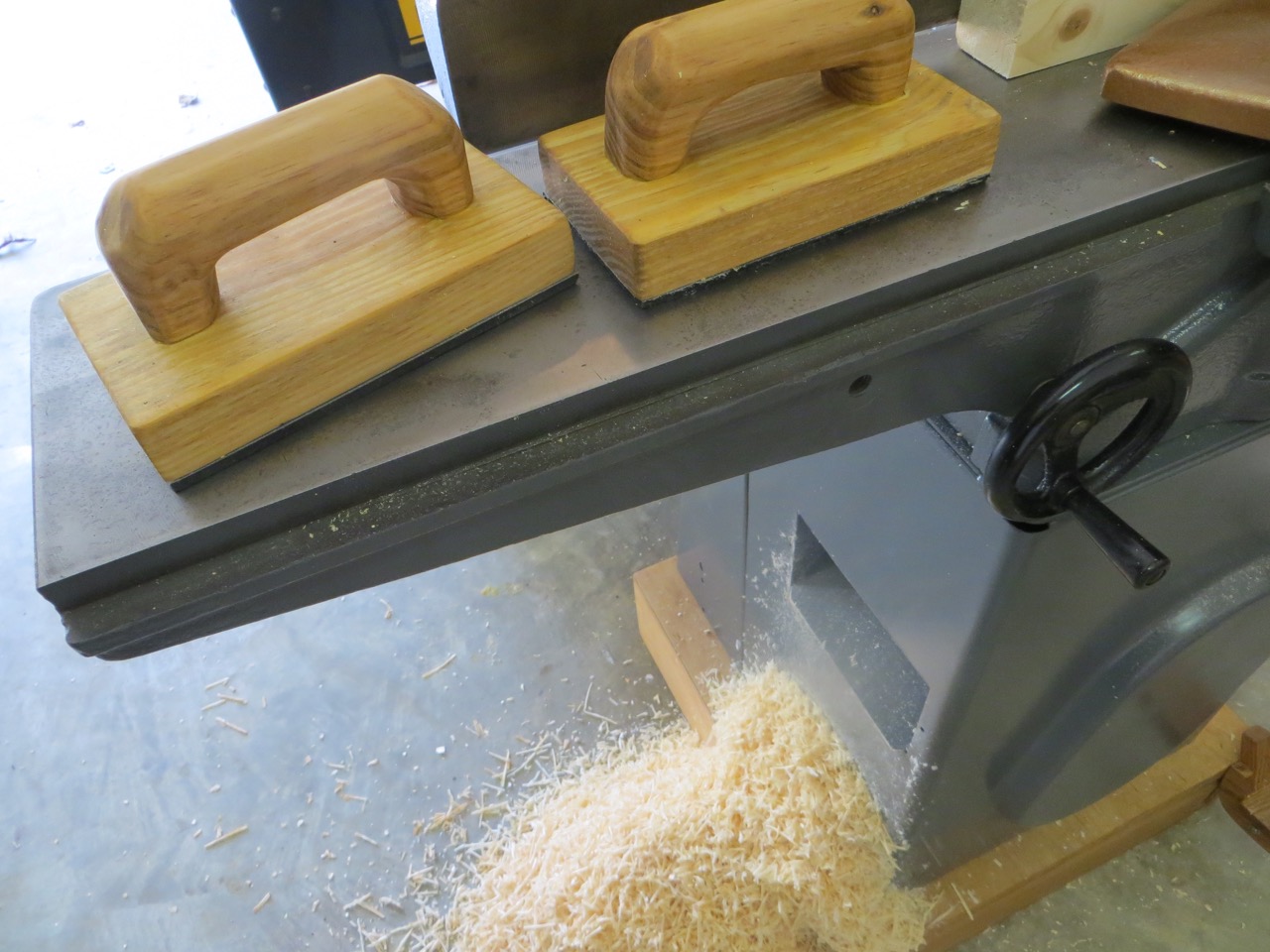

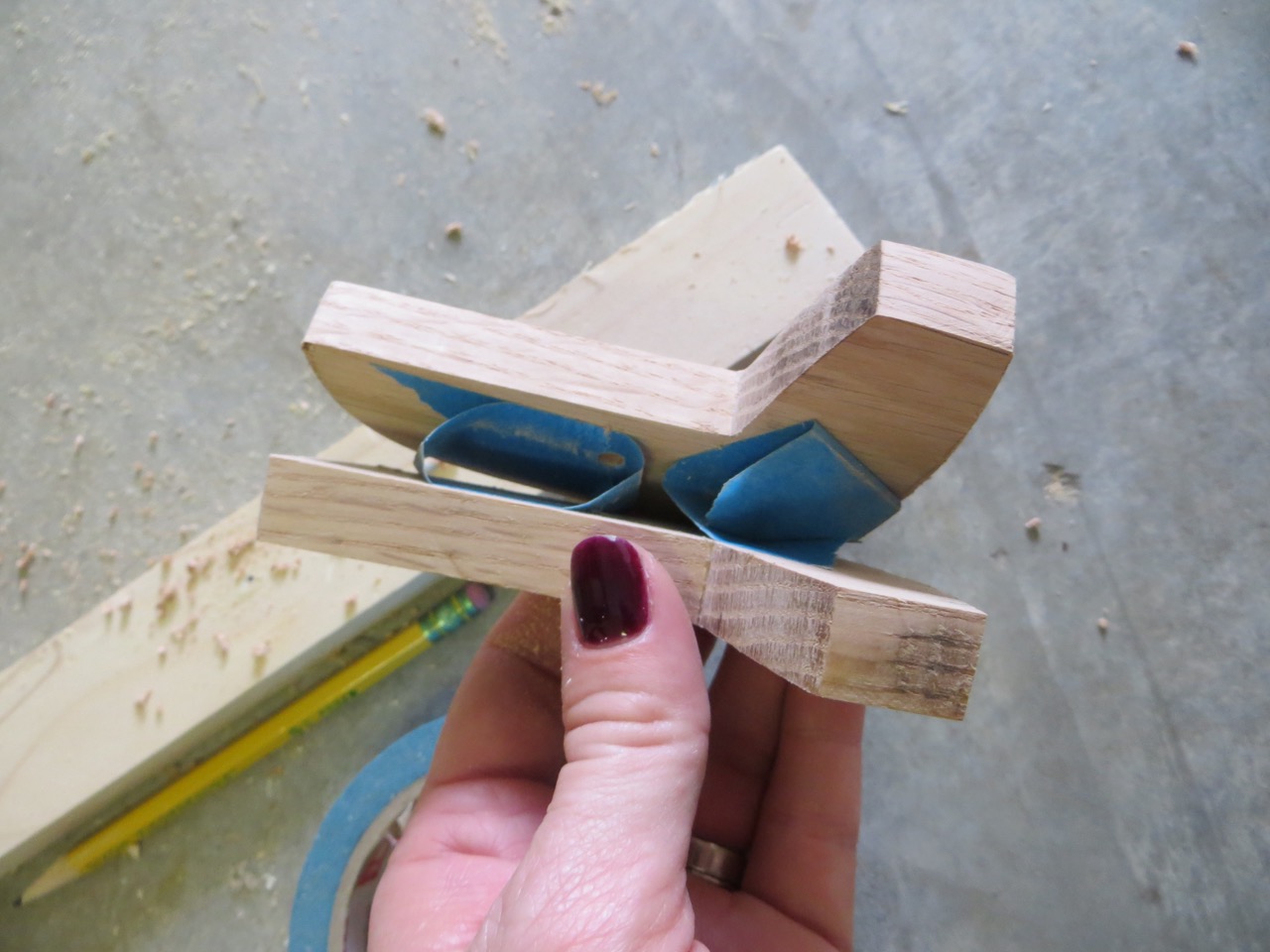

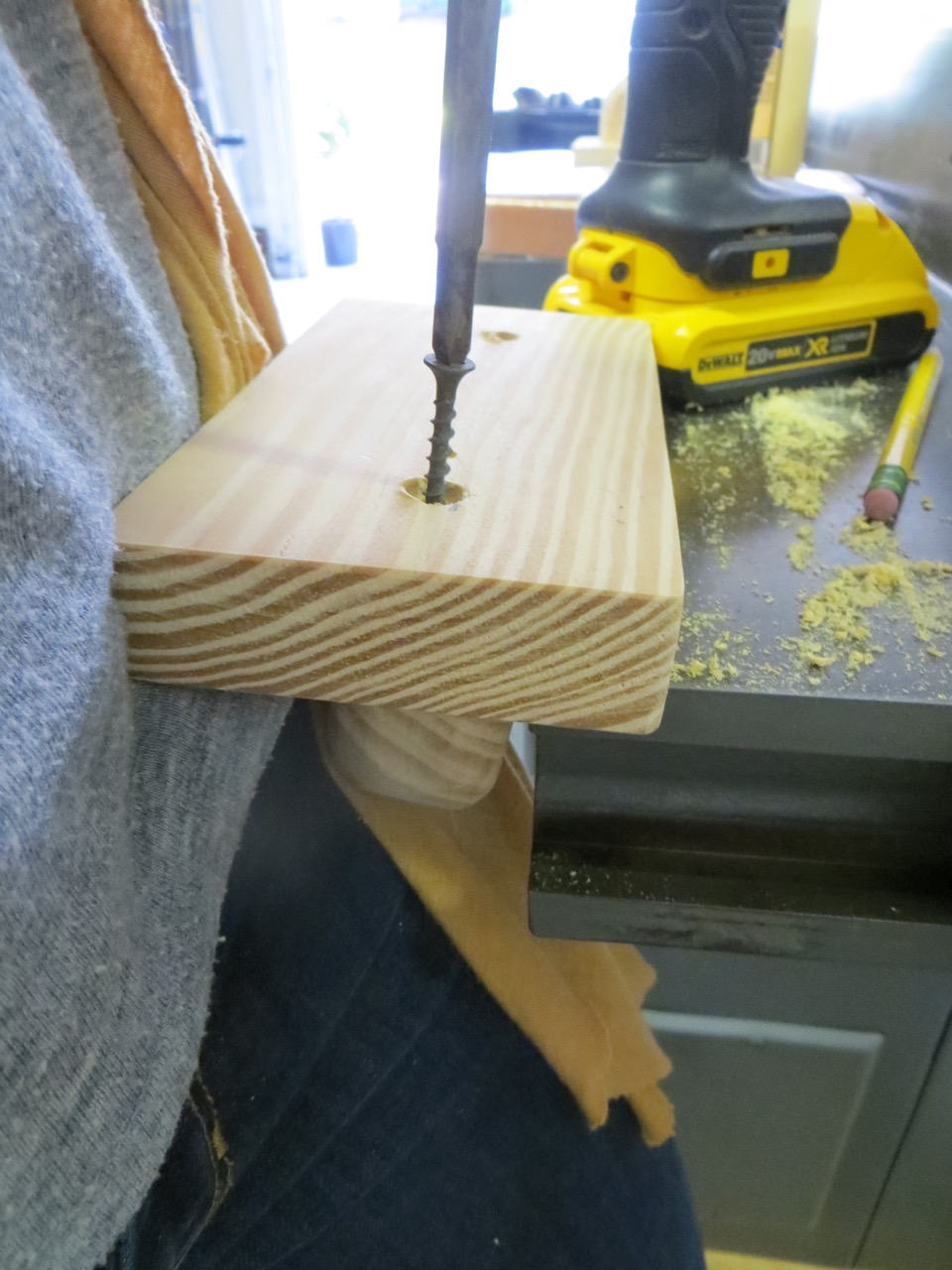

 It was amazing how much safer I felt using these!  (In this picture you can see the angle of the handles by looking at the block on the right – much more comfortable to push wood through with the angle!)

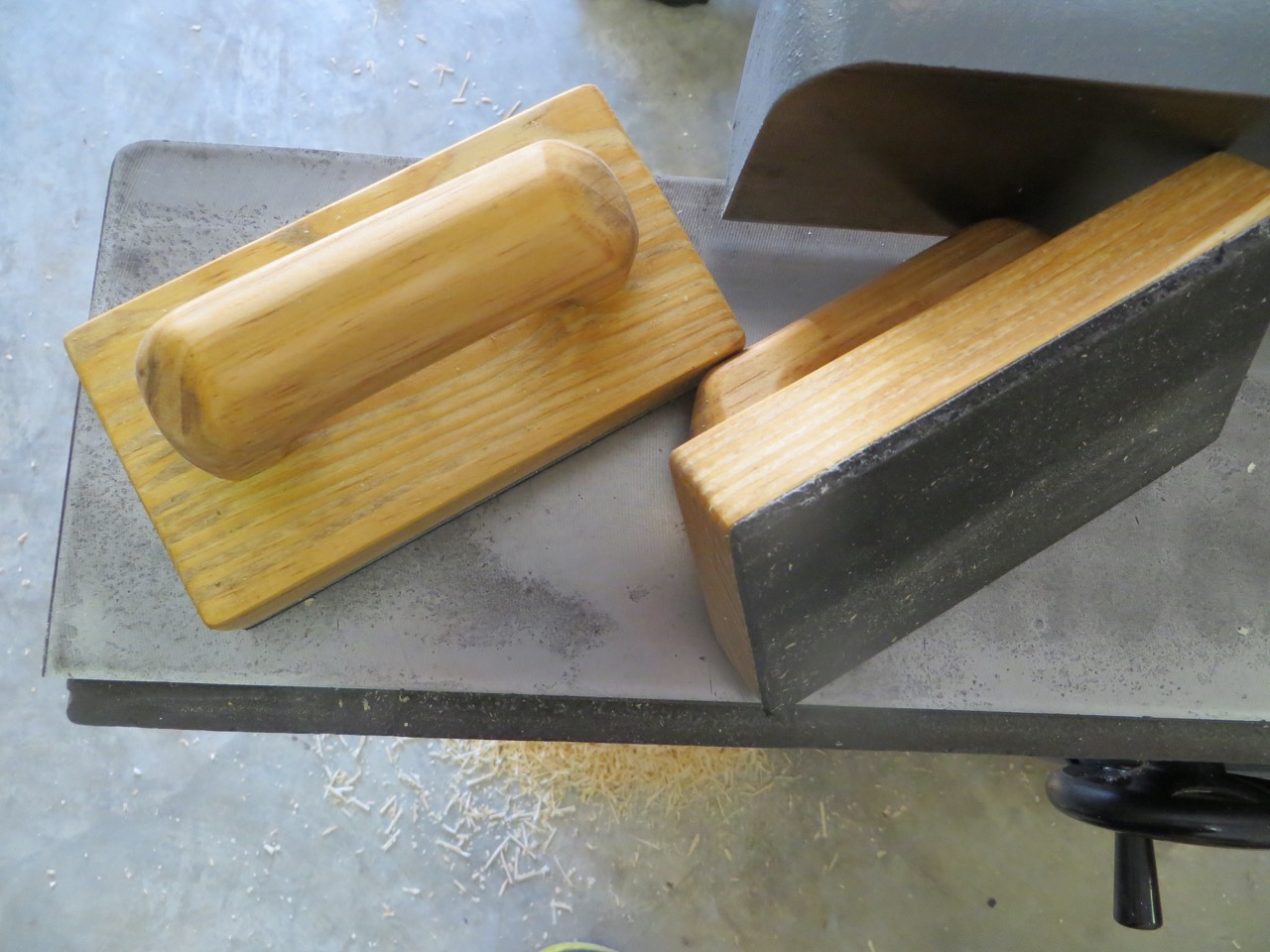

The pad does the job with no slipping!
